24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25

Model: FLS-24V-White-2835-LENS
24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25
  • 24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25
  • 24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25
  • 24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25
  • 24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25
  • 24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25

Select Specifications:

Select Size:

$49.98 $29.9840% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
5-19
$29.98
20-49
$29.38
50-99
$28.78
100+
$28.18
* Discounts may vary based on options above
Qty: -+Min:  5
*Mixed OFF

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

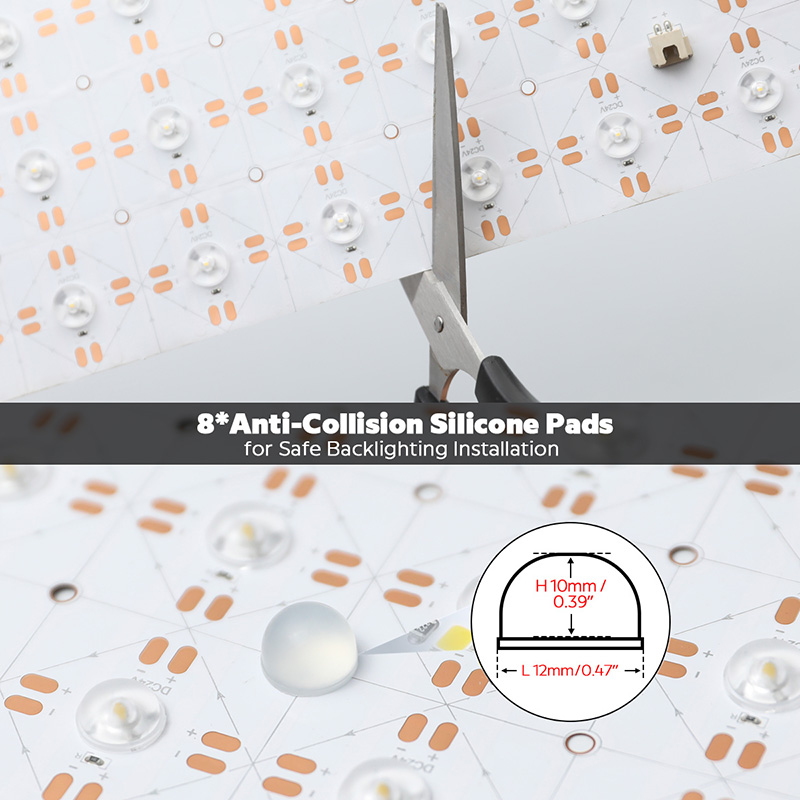

    This LED light sheet features acrylic lenses encapsulating each 2835 LED, enabling every single LED on the sheet panel to emit light over a larger angle. As a result, our flat LED sheet can provide even illumination with high brightness, bringing a comfortable lighting experience. The optical lenses also protect LED light panel sheet from dust and moisture, prolonging its life while improving overall light efficiency. Cuttable LED sheet has shallow black lines marked on it to guide your cut. Using scissors, you can cut LED lighting sheets horizontally, vertically or diagonally to DIY shape. For easy installation, we have mounted connectors on the surface, and the back of these paper thin LED light sheets is labeled with adhesive backing. Multiple color temperatures are available, and a dimmer can be used to adjust the brightness of these lights. These LED sheets for backlighting are made with double-layer circuit boards and lead-free SMT technology for superior stability. For more information on these led lighting sheet panels, please click to view the PDF below.



    Features:

    1. Each 2835 LED on the sheet is encased in PMMA lens, 93% high light transmittance, 180° beam angle, providing brighter and more even illumination.

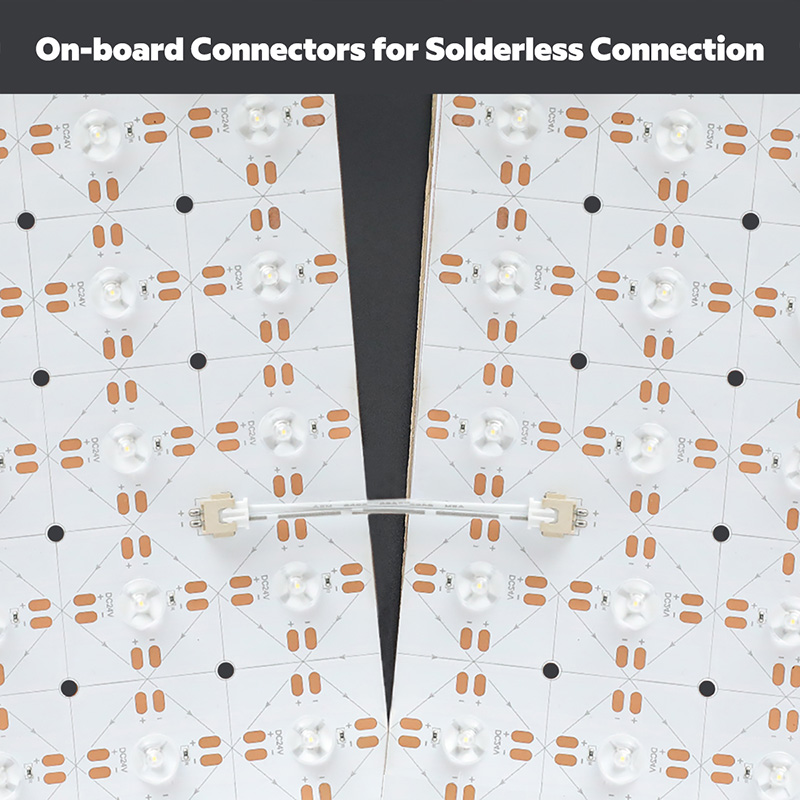

    2. Large Size of 19.6"x9.8"x0.3" (500mm*250mm*8mm), can be connected with each other to cover wide areas with connectors mounted on the FPC board.

    3. Single white, multiple color temperatures are available, including warm white 2700K and 3000K, natural white 4000K, cold white 6000K, fully dimmable.

    4. IP20 waterproof, can only be used in dry environments.

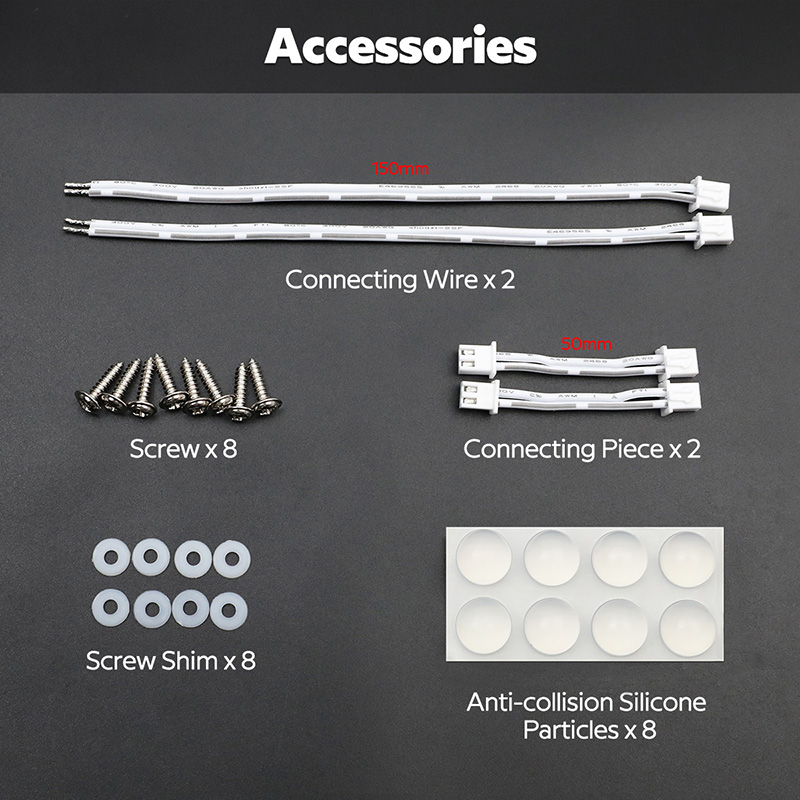

    Kit: Select this 24V power supply and dimming controller to run this sheet LED.

    The "50X25" listed in the title represents that the length of the LED sheeting is 50 cm (19.6in) and the width is 25 cm (9.8in).

    Click here to discover more LED light sheets: Flexible Cuttable LED Sheet Lights

    Lensed Flexible LED Sheet Manual Download PDF



    Video showcasing the CCT color LED sheet used for marble wall backlighting.

    Kindly note that the product featured in the video is different from the one offered here. (mainly color difference) We appreciate your attention to this detail.



    Product Specifications

    LED Strip Type: 24V 2835 White Lensed Flexible LED Panel Sheet
    LED Chip: SMD2835
    Input Voltage: 24V DC

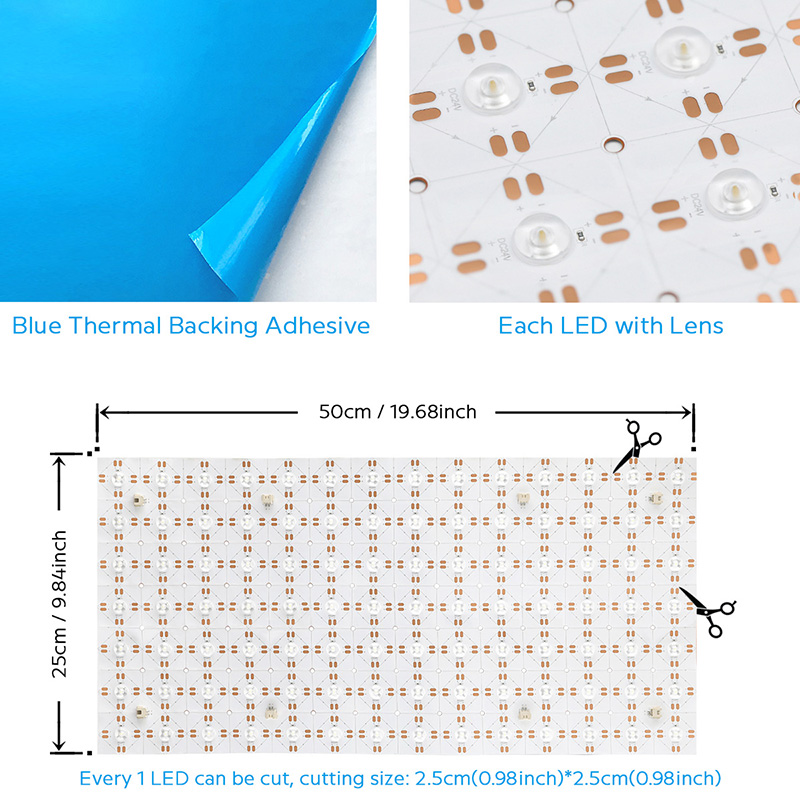

    Product Size: L19.6 "x W9.8"x H0.3" (500mm*250mm*8mm)
    Light Color: warm white 2700K 3000K, natural white 4000K, cold white 6000K
    Lumen:  1800 Lm/m
    LED Quantity: 98 LEDs per sheet
    Working Power: Max 20W per sheet
    Cut Unit: 1 LED (1.4"x 1.4")
    Lifespan:  50,000+hours
    Beam Pattern: 180 degrees
    IP Rating:  Non-waterproof IP20
    CRI: 90+

    Lensed Flexible LED Sheet Cuttable White Lighting Effect

    24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    24V 2835 White Flexible LED Panel Sheet With Optical Lens 50x2524V 2835 White Flexible LED Panel Sheet With Optical Lens 50x2524V 2835 White Flexible LED Panel Sheet With Optical Lens 50x2524V 2835 White Flexible LED Panel Sheet With Optical Lens 50x2524V 2835 White Flexible LED Panel Sheet With Optical Lens 50x25
