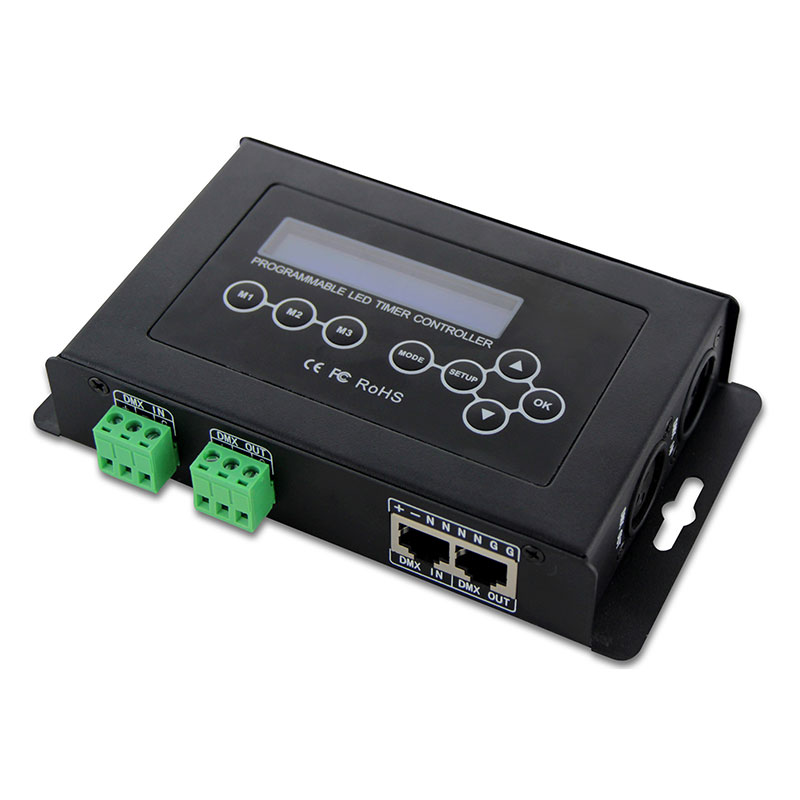

DC9V Timer Dimmer BC-322-DMX512
This Timer dimmer Series is 4CH output, it can adjust the brightness based on the set time. Users also can insert a variety of special lighting change effect, which can be customized or recorded by the DMX console, simulating the light change in nature perfectly, suitable for commercial lighting, plant light, and aquarium light etc.
1、With LCD display, easy operation.
2、Built-in real time clock system, and can set any time & any brightness.
3、Four-channel output, each channel can be configured and timing dims independently.
4、1manual mode, 4 timing mode, 12 change effect, perfectly simulate the light changes in nature.
5、Four kinds of change effect record function, you can use the standard DMX512 console to program and record as a special effect mode.
6、Quick demonstration function, users can quickly check the accuracy of the data
7、4 channels output DMX512 signal.
8、Multiple DMX512 interface: XLR-3, RJ45, terminal block for convenient usage.
Standards and Certifications
Working Voltage: DC9V(With adapter)
Input Signal: DMX512
Output Signal: DMX512 (Four effective channel data)
DMX Interface: XLR-3，RJ45，Terminal Block
Working Temp: -20~55℃
Product Dimension: L161×W100×H30(mm)
