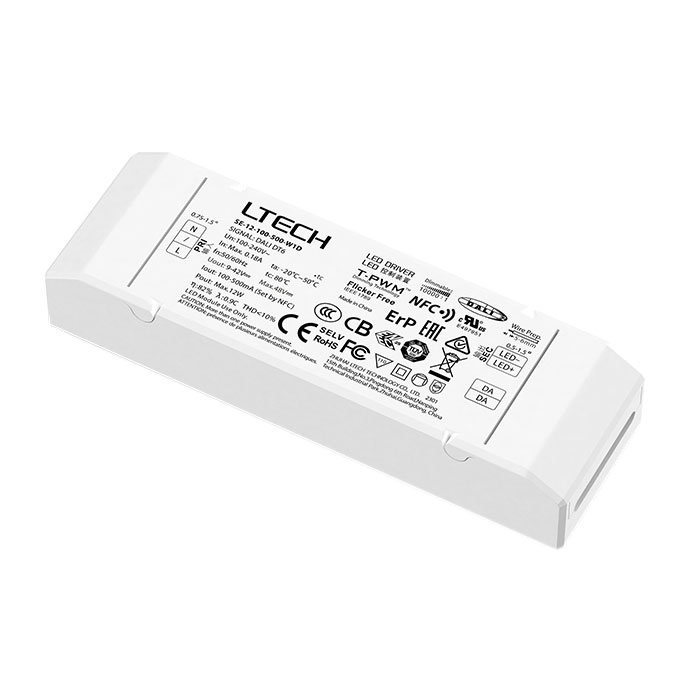

Ltech SE-12-100-500-W1D 12W 100-500mA NFC Constant Current DALI-2 DT6 LED Driver
Ltech SE-12-100-500-W1D... $19.98
L-tech LT-NFC DALI... $38.98
L-tech LT-NFC DALI...

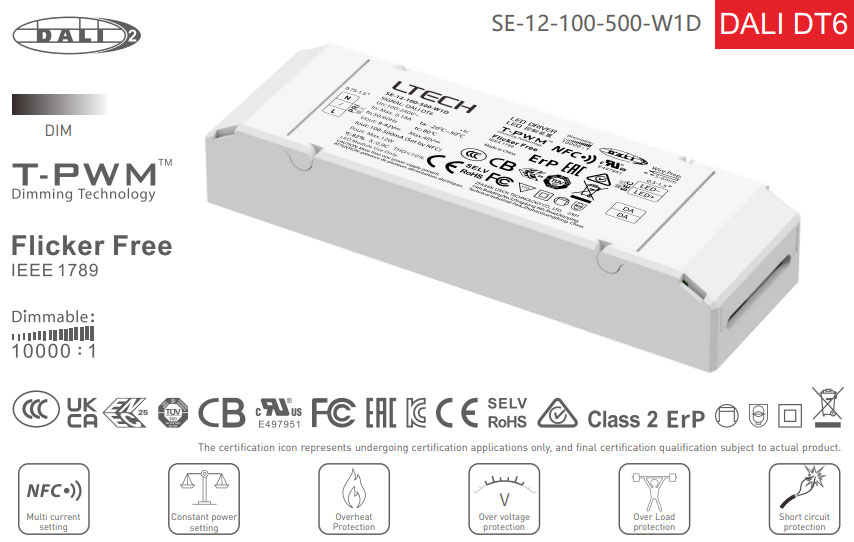

Ltech DALI Constant Current LED Driver SE-12-100-500-W1D with DALI-2 DT6 dimming interface, soft-on and fade-in dimming, adapt T-PWM™ dimming technology, allowing quality and high-end lighting control. The whole dimming process is flicker-free with high frequency exemption level. Multiple current levels, wide voltage range, suitable for LEDs with different power. When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
You can change the dimming interface, output current, DALI address and other parameters on the NFC programmer or via the NFC Lighting App, and sync the parameters to the driver. Set the DALI group, scene in the advanced DALI template. And set the output current down to 1mA.
Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

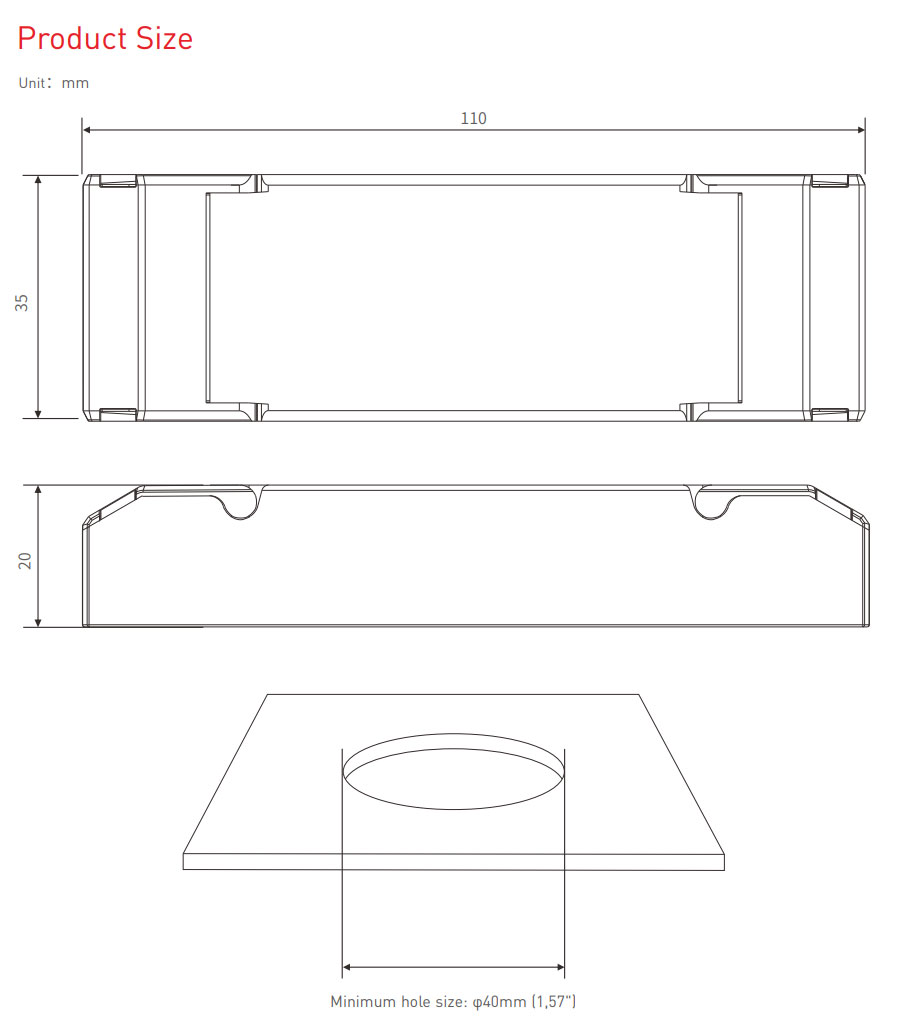

Ultra small, thin and lightweight, screwless end cap.
DALI bus standard IEC62386-101, 102, 207.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Comply with the EU’s ErP Directive, networked standby<0.5W.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).
SE-12-100-500-W1D Manual Download
Standards and Certifications
|L-tech SE-12-100-500-W1D DALI LED Driver|

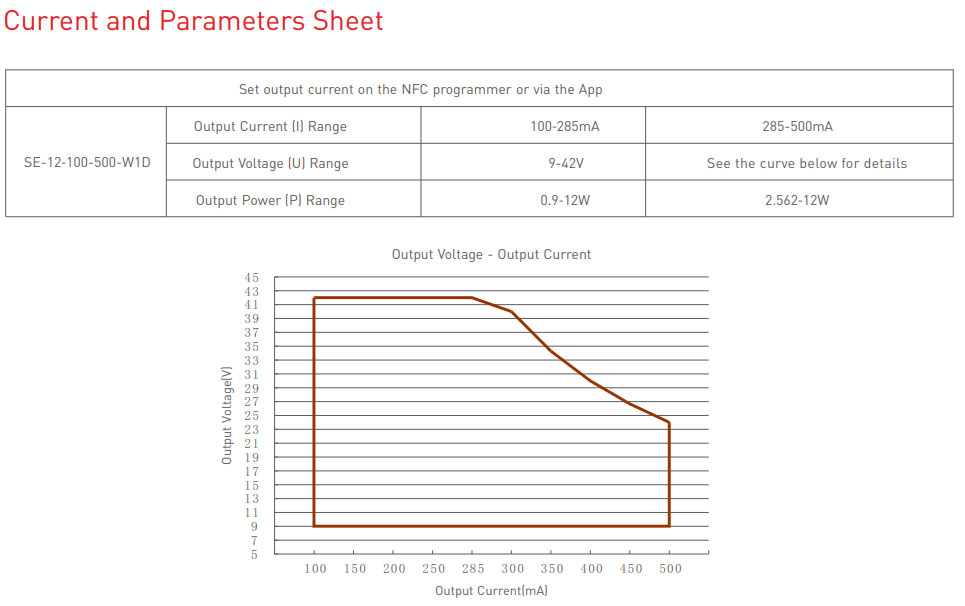

|Output Voltage Range:||9-42Vdc|
|Output Power Range:||0.9W-12W|
|Dimming Range:||0~100%, down to 0.1%|
|Output Type:||Constant current|
|Working Temperature:||ta: -20~50°C tc: 90°C|
|Dimming Interface:||DALI-2 DT6|
|Input Current:||≤0.18A/115Vac ≤0.08A/230Vac|
|Efficiency (typ.):||84%@300mA (at full load), 82%@500mA (at full load)|
