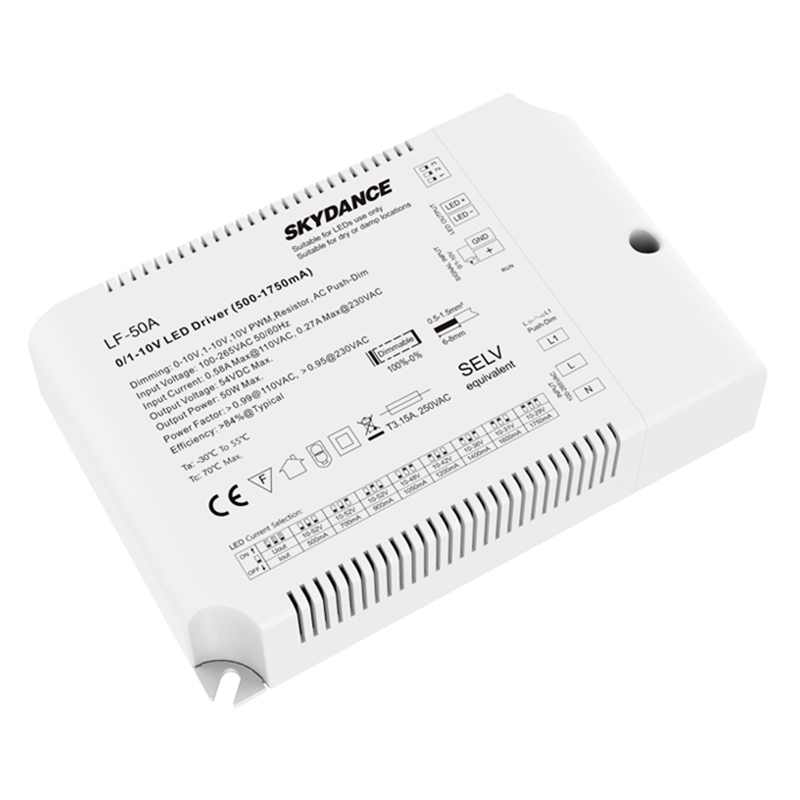

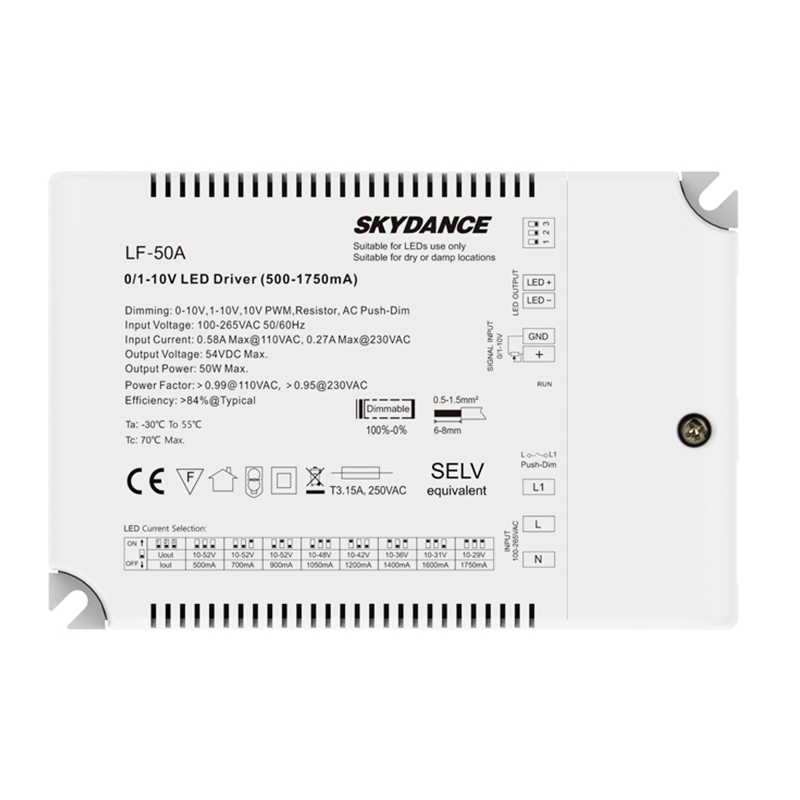

50W 500-1750mA Multi-Current 0/1-10V& switchDim LED Driver LF-50A

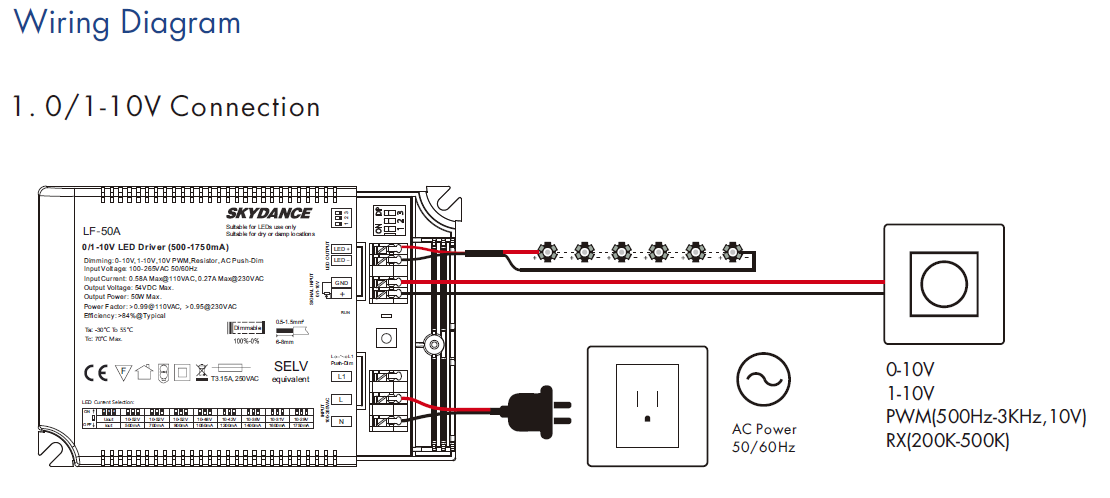

● Dimming interface: 0-10V, 1-10V, 10V PWM, Resistor, AC Push-Dim.
● Universal AC input / Full range.
● 1 channel constant current output, configurable current via DIP switch.
● Built-in active PFC function: 0.95 Typ.

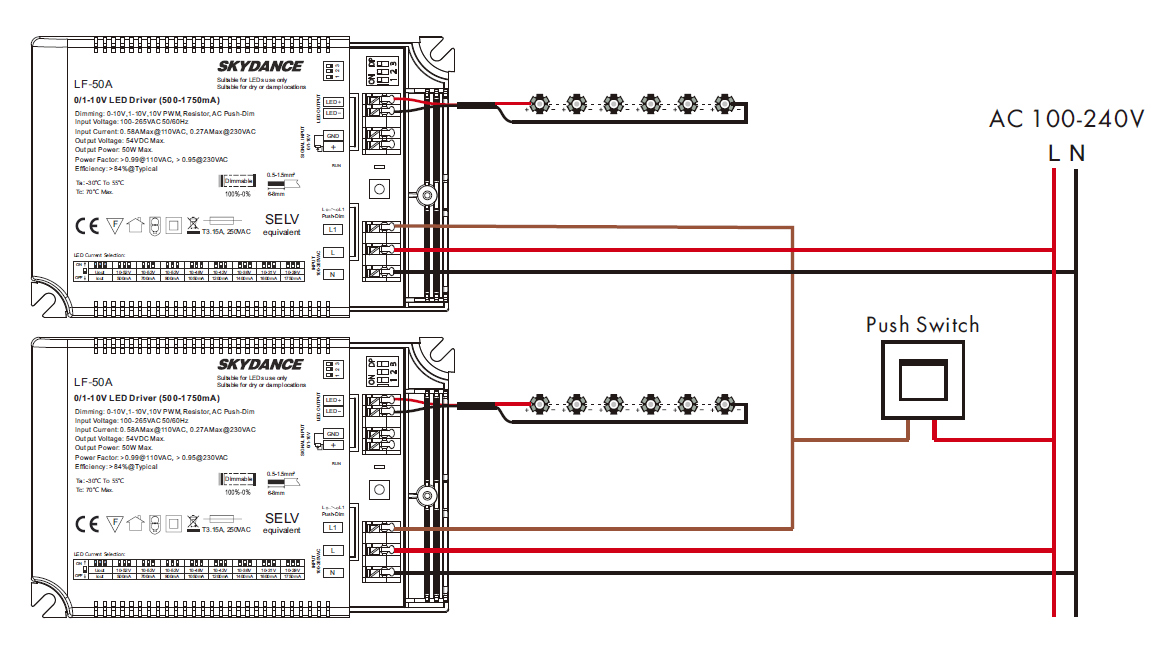

● Synchronize on the multiple numbers of LED drivers.
● Over-heat / Overload / Short circuit protection, recover automatically.
● Full protective plastic case.
● Suitable for indoor LED lighting application.
● 5 Year, 50,000hr warranty.
Standards and Certifications
● Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
● Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
● Use for retrofit upgrades & new luminaire designs.
