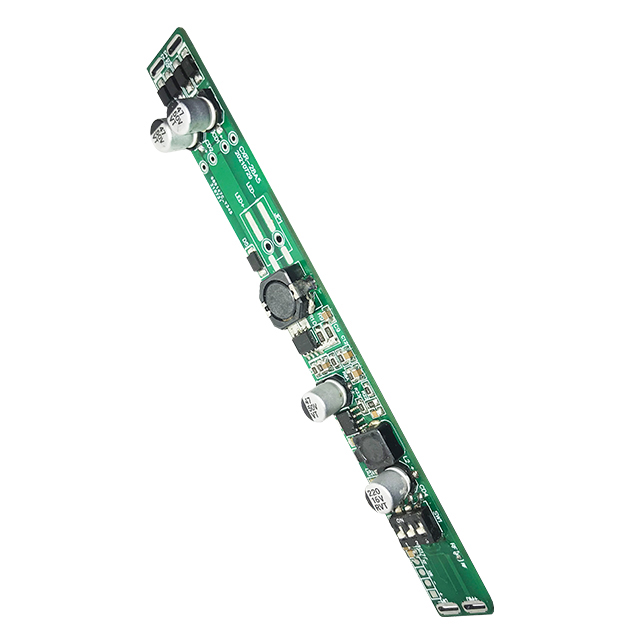

CXL-28A MAX 29.4W Single Color 0/1-10V Dimmable Constant Current LED Driver - 48V to 10-42V
DC48V to DC10~42V constant current LED driver, the max output power is 29.4W, multiple output current settings dimming interface: 0-10V,1-10V PWM, Resistor

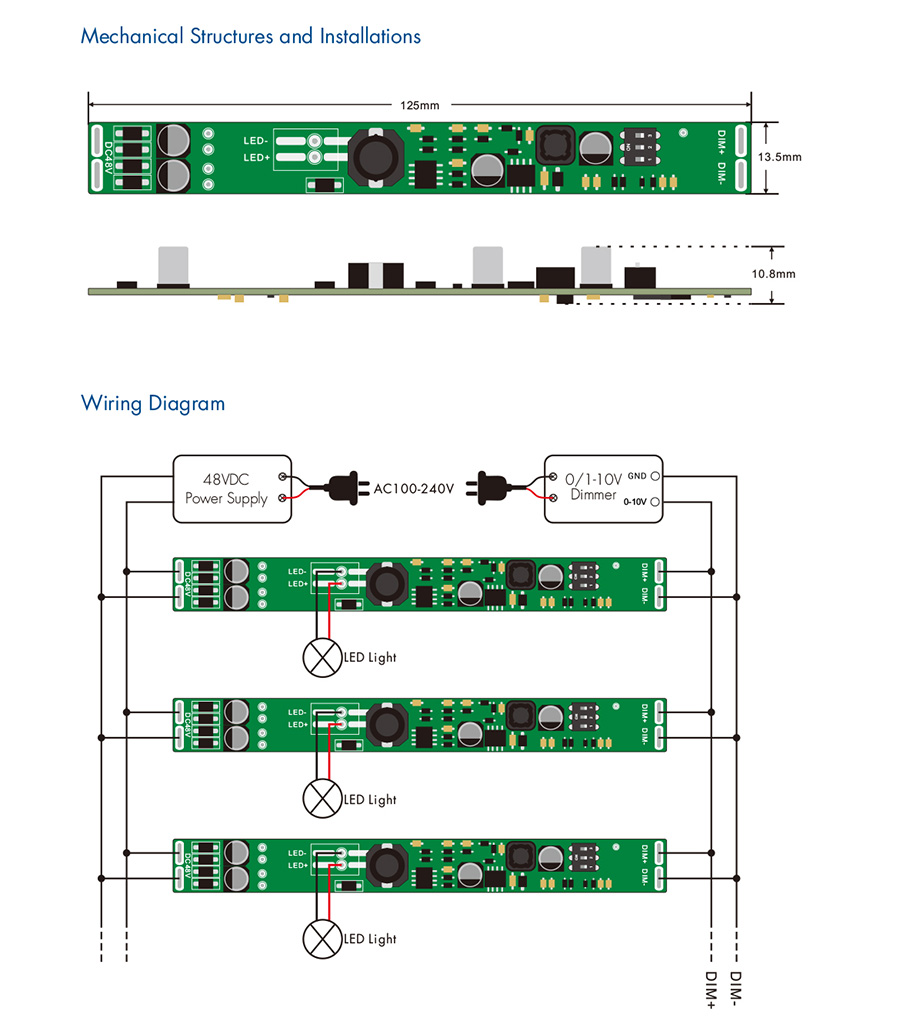

External connect the 0/1-10V dimmable LED controller or LED wall panel controller to control the single color LED device to achieve 0-100% dimmable.
No input polarity, the working efficiency up to 95%, suitable for -30~60℃ working environment, with Short circuit, overload, no-load and anti-reverse protection, don't let it touch the water, this is the non-waterproof LED driver.
Suitable for STUCCHl standard housings, magnetic installation smooth dimming without flicker, quiet without noise, we provide a 5 years warranty.

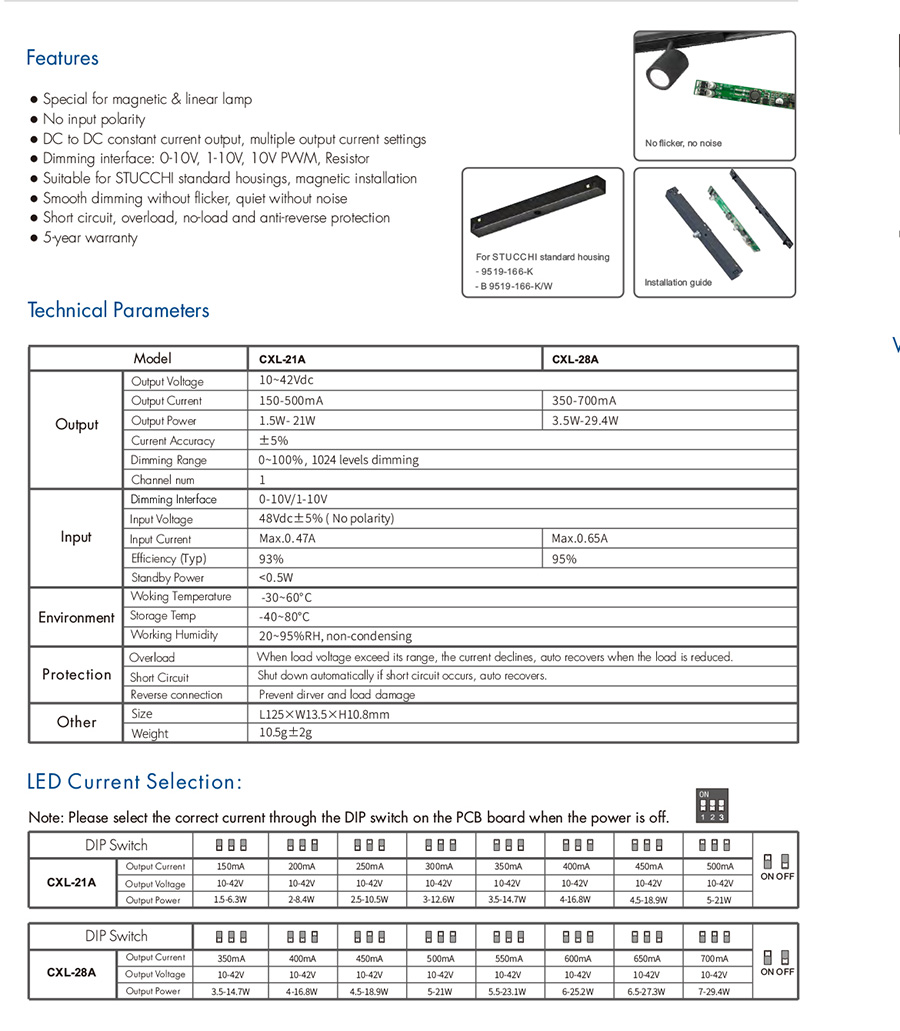

Output Voltage: 10-42Vdc
Output Current: 350-700mA
Output Power: 3.5W-29.4W
Dimmable Range: 0-100%, 1024 levels dimming
Channel Num: 1 (Single color), external connect the 0/1-10V device
Dimming Interface: 0/1-10V
Input Voltage: 48Vdc
Input Current: Max 0.47A
Working Temperature: -30~60℃
The above distance is measured in a spacious (no obstacle) environment, Please refer to the actual test distance before installation.
● Suitable for downlight, spotlight and decorative applications.
● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display.
● Use for retrofit upgrades & new luminaire designs
