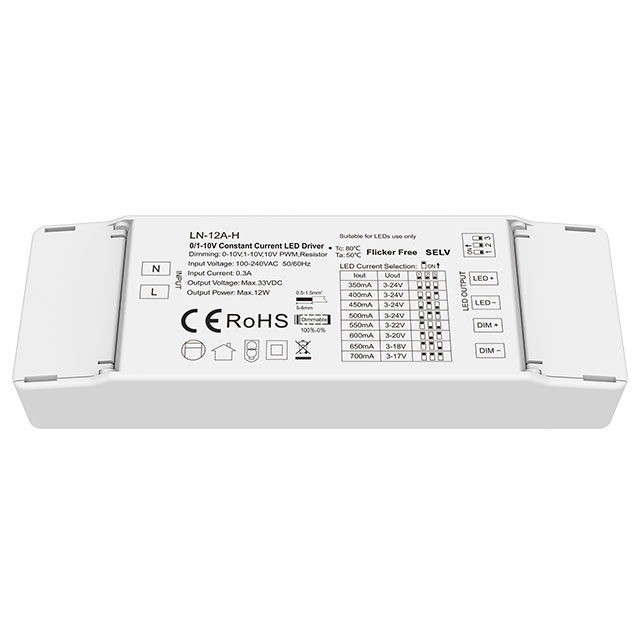

100-240VAC 12W 350-700mA Constant Current 0/1-10V Dimmable LED Driver LN-12A-H
0/1-10V Constant Current LED Dimming Driver.
● Dimming interface: 0-10V, 1-10V, 10V PWM, Resistor
● Universal AC input / Full range
● Flicker - Free
● 1 channel constant current output, configurable current via DIP switch
● Synchronize on multiple number of LED drivers
● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty
Standards and Certifications
|Alternating Current:||0.3A/115VAC, 0.15A/230VAC|
|Max Output Voltage:||33VDC|
|Dimming Range:||0～100％, dimming depth:0.1%|
● Suitable for downlight, spotlight and decorative applications.
● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display.
● Use for retrofit upgrades & new luminaire designs.
