Product Information
Deliver robust, reliable power to your most ambitious lighting projects with the SuperLightingLED 600W Ultra-Slim Waterproof Power Supply. Engineered to convert 220V AC input into a stable 24V DC output, this unit provides an impressive 25A of current, making it the ideal power supply for led lights in large-scale installations. Its high-capacity output is perfect for long runs of high-density LED strips, architectural facade lighting, and extensive landscape illumination. Housed in a durable, IP67-rated enclosure, it's fully protected against dust and water immersion, ensuring dependable performance in harsh outdoor environments. The ultra-slim 38mm profile allows for discreet placement, maintaining the aesthetic integrity of your design while delivering uncompromising power to your outdoor waterproof LED lights.
Key Features
High-Capacity 600W Output
Provides a massive 600 watts (25 amps) of constant voltage power, ideal for large, power-intensive 24V LED lighting projects.
IP67 Weatherproof Rating
Completely sealed and waterproof, offering superior protection against rain, dust, and temporary submersion for outdoor reliability.
Ultra-Slim Design
With a height of only 38mm, this power supply can be easily concealed in tight spaces, architectural coves, or behind fixtures.
Stable 24V Constant Voltage
Ensures consistent brightness and performance across all connected LED strips by providing a steady, flicker-free DC output.

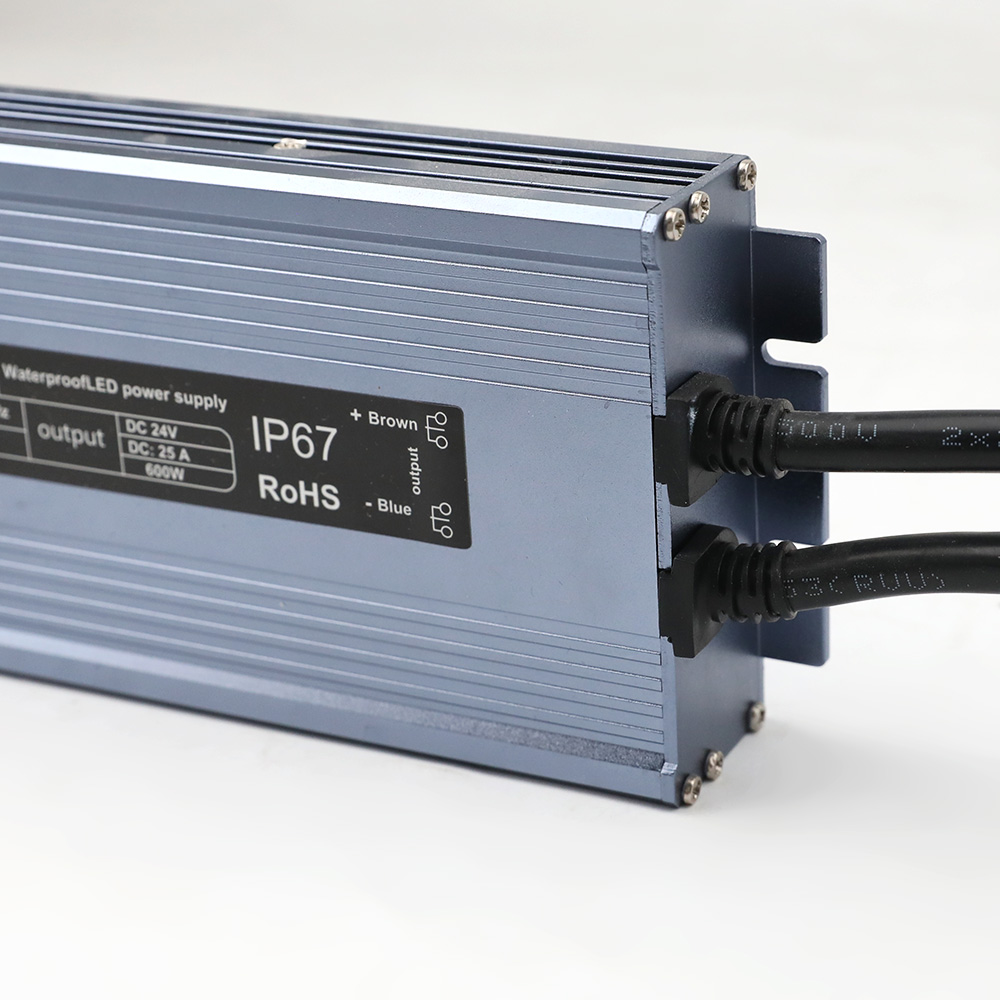

Dual Output Channels
Simplifies wiring for large or complex layouts by providing two separate output channels from a single, centralized unit.
Optimized for 220V Grids
Designed specifically for AC180-220V input, making it a perfect fit for electrical systems in Europe, the UK, and Australia.
Technical Highlights
- Built-in protections against short circuits, over-voltage, and overload conditions.
- Efficient passive cooling design requires no fans, ensuring silent operation.
- Pre-stripped and tinned wires for straightforward, secure connections.
- Durable aluminum alloy housing for enhanced heat dissipation and corrosion resistance.
Product Specifications
| Parameter | Details |
|---|---|
| Product Type | Constant Voltage Waterproof Power Supply |
| Model | PSWP-24V-550W |
| Input Voltage | AC 180-220V (220V±20%) |
| Input Frequency | 50-60Hz |
| Output Voltage | DC 24V |
| Output Current | 25A |
| Output Power | 600W |
| Protection Level | IP67 Waterproof |
| Output Channels | 2 |

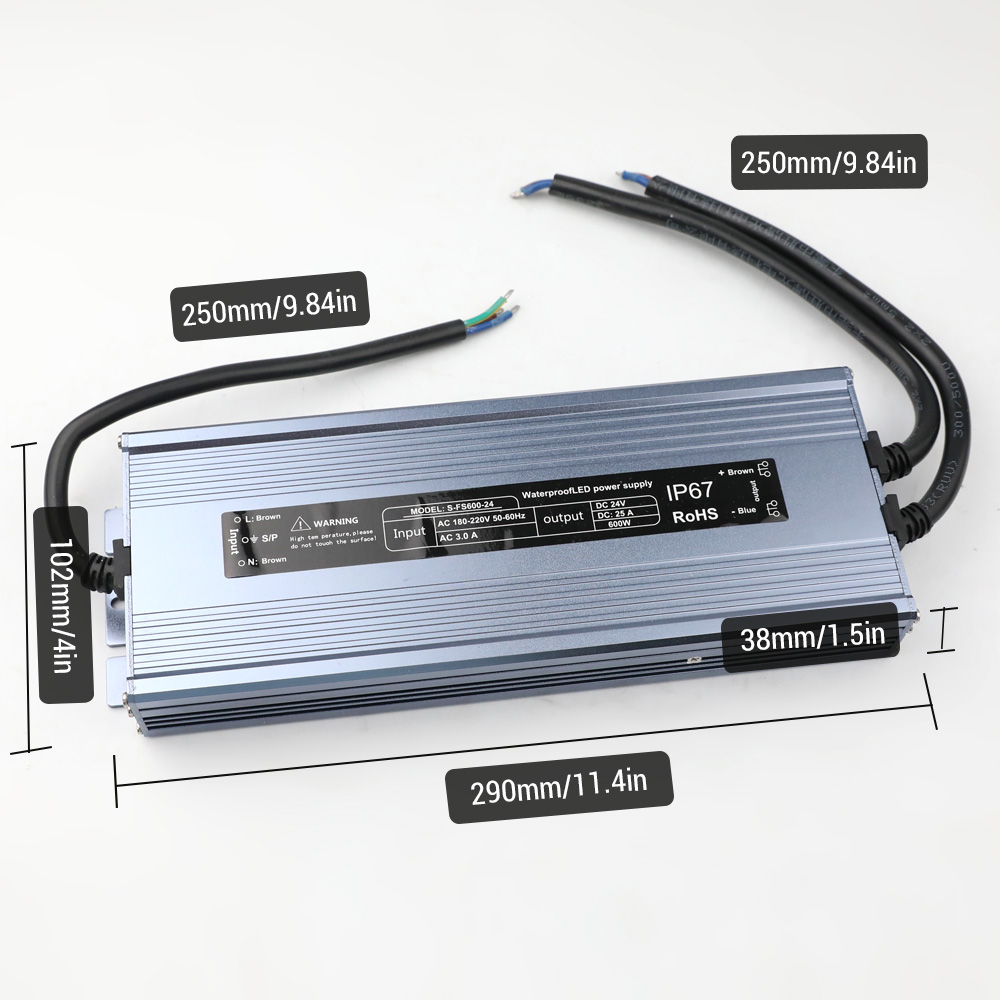

| Dimensions (L*W*H) | 290 x 102 x 38 mm |
| Total Wire Length | 250mm / 9.84in |
| Input Wire Diameter | 1.5 mm² (16AWG) |
| Output Wire Diameter | 2.5 mm² (14AWG) |
| Housing Material | Aluminum Alloy |
Application Scenarios
How to Wire & Install This Power Supply
- Step 1: Calculate Your Load. Sum the total wattage of all 24V LED strip lights or fixtures you plan to connect. To ensure longevity and safety, your total load should not exceed 80% of the power supply's capacity (480W for this 600W model).

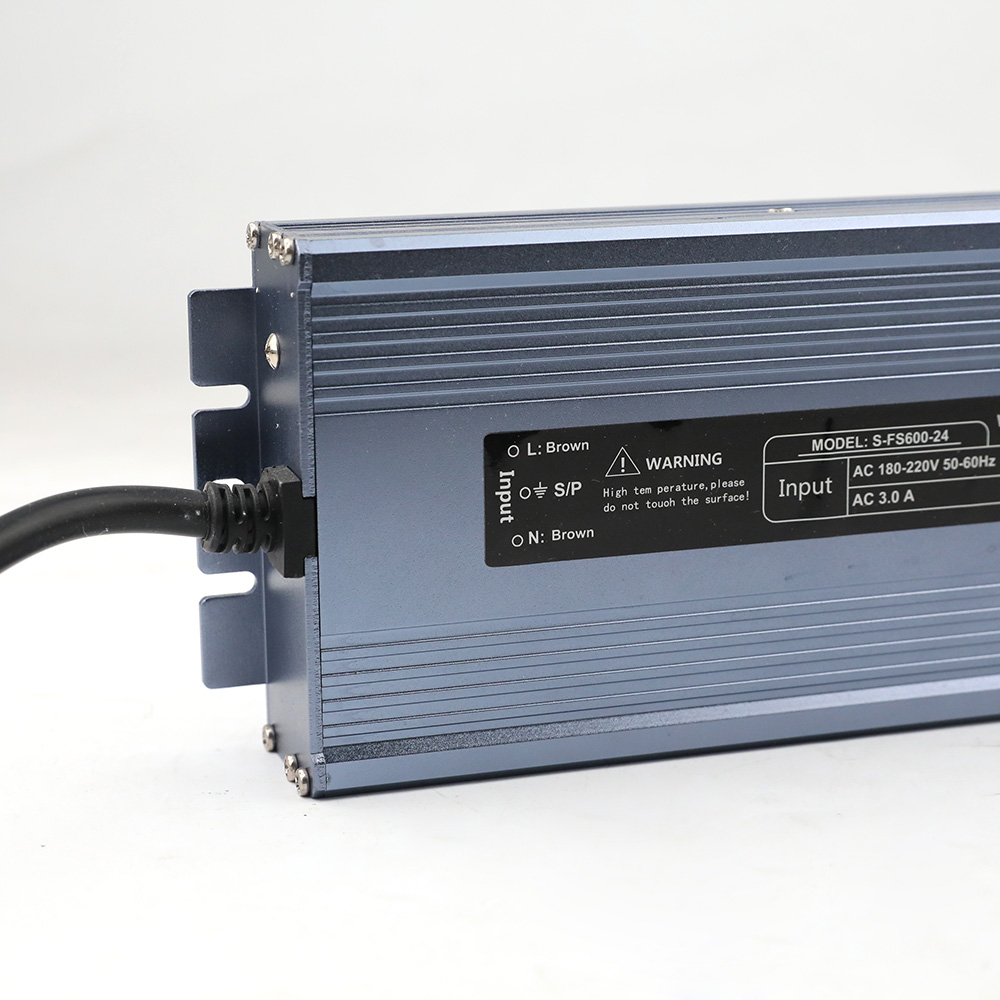

- Step 2: Connect AC Input. De-energize the main circuit. Connect the AC input wires to your 180-220V source: Brown wire to Live (L), Blue wire to Neutral (N), and Yellow/Green wire to Earth/Ground (G).
- Step 3: Connect DC Output. Connect the DC output wires to your 24V LED lighting. Ensure correct polarity: Red wire to Positive (+) and Black wire to Negative (-). This unit features two output channel pairs for easier wiring.
- Step 4: Test Installation. Once all connections are secure and insulated, re-energize the main circuit. Your LED lights should power on. If not, immediately disconnect power and re-check all wiring.
- WARNING: Installation involves high voltage wiring and should be performed by a qualified electrician.
- This power supply is designed for 180-220V AC input only. Do NOT connect to a 110V/120V AC source.
- Do not overload the power supply. Always maintain at least a 20% power headroom.
- Ensure all connections are watertight to maintain the IP67 rating.
- This is a constant voltage power supply. Do not use with LEDs that require a constant current driver.

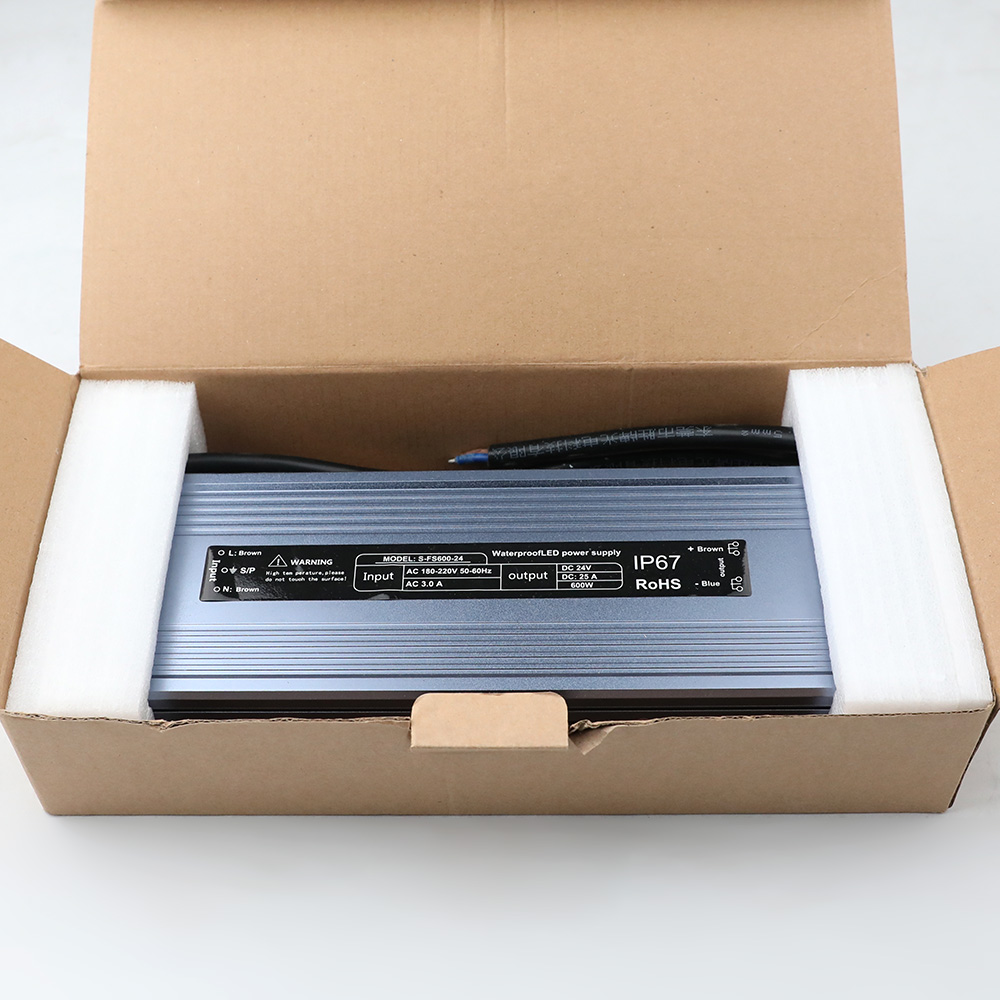

What's in the Box
- ✓1 x 600W DC24V IP67 LED Power Supply (Model: PSWP-24V-550W)
Frequently Asked Questions
Q: Can I use this 600W power supply in the USA or Canada?
A:No. This power supply is specifically designed for an AC input range of 180-220V and is not compatible with the 110/120V electrical systems found in North America.
Q: How many feet of 24V LED strip lights can this power supply run?
A:This depends on the power consumption of your specific LED strip, measured in watts per foot or meter. To calculate, divide the maximum safe load (480W) by the strip's wattage per foot. For example, it can power approximately 96 feet of a 5W/ft strip (480W / 5W/ft).
Q: What is the difference between a constant voltage and constant current power supply?
A:This is a constant voltage power supply, which maintains a steady 24V output. It's used for LED strips and modules that have on-board current-limiting resistors. Constant current drivers, in contrast, maintain a steady amperage and are used for high-power LEDs without resistors.
Q: Is this outdoor power supply dimmable?
A:This power supply itself is not dimmable via a standard wall dimmer on the AC side. To dim your 24V LED strips, you must install a PWM dimmer on the low-voltage (DC) side, between the power supply and the lights.
Q: What does an IP67 rating mean?
A:IP67 indicates the enclosure is completely protected from dust ingress (the '6') and can withstand temporary immersion in water up to 1 meter deep for 30 minutes (the '7'). It is highly resistant to rain, splashes, and harsh weather.
Q: How do I calculate the right size power supply for my LED lights?
A:To determine the correct size, calculate the total wattage of your LED strip lights (length in feet/meters × watts per foot/meter). Then, add a 20% safety margin by multiplying the total wattage by 1.2. Choose a power supply with a wattage rating equal to or greater than this final number.
Q: Why are there two sets of output wires?
A:The dual output channels help manage high currents and simplify wiring for larger projects. You can run two separate sections of LED strips directly from the power supply, which can help balance the load and reduce voltage drop over long distances.
