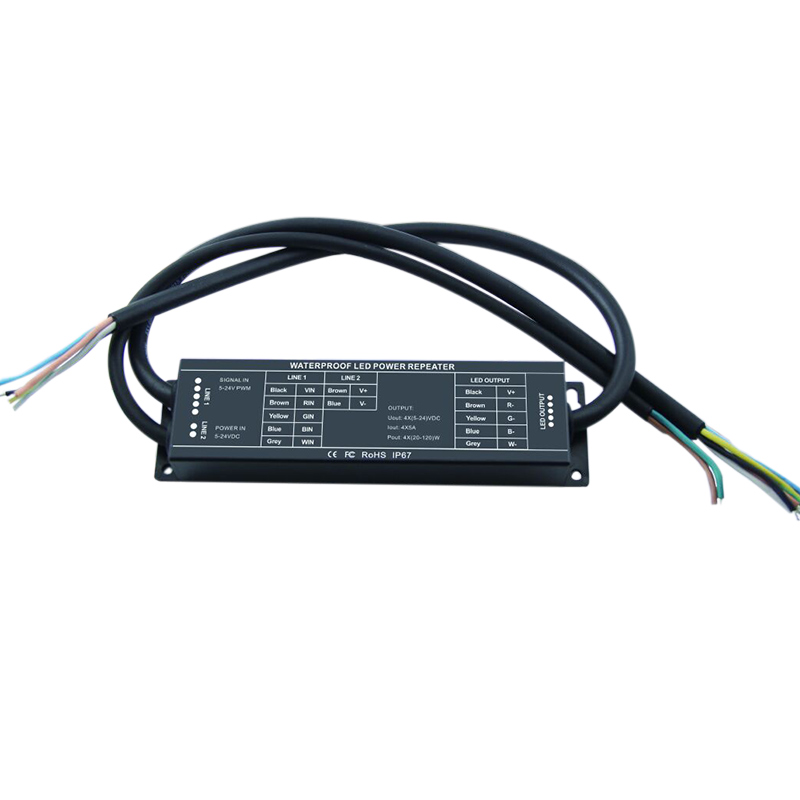

DC5-24V Constant Voltage PWM 4 Channels Waterproof LED Power Repeater BC-964-WP

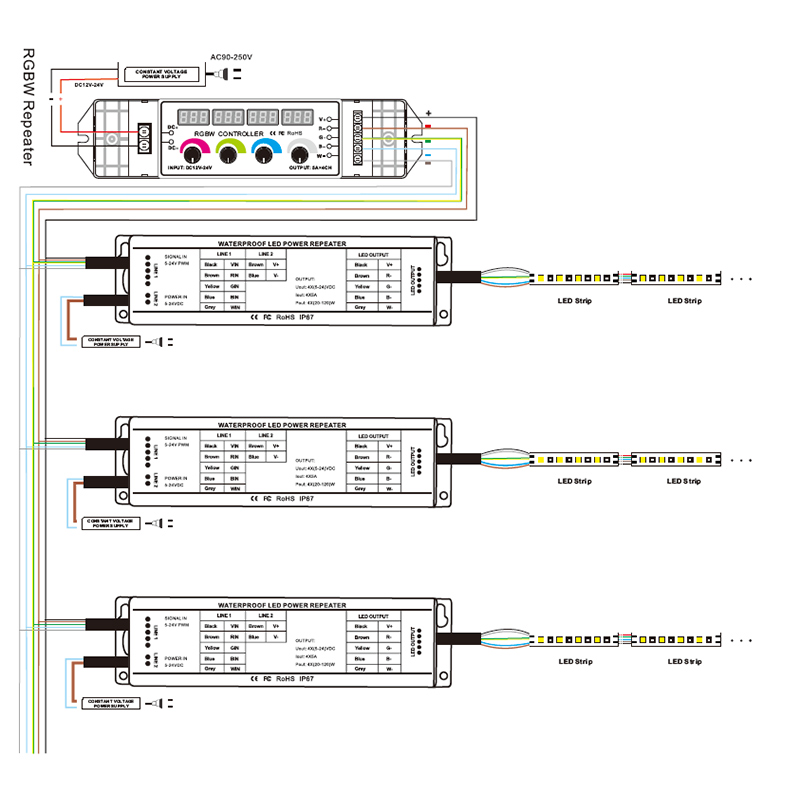

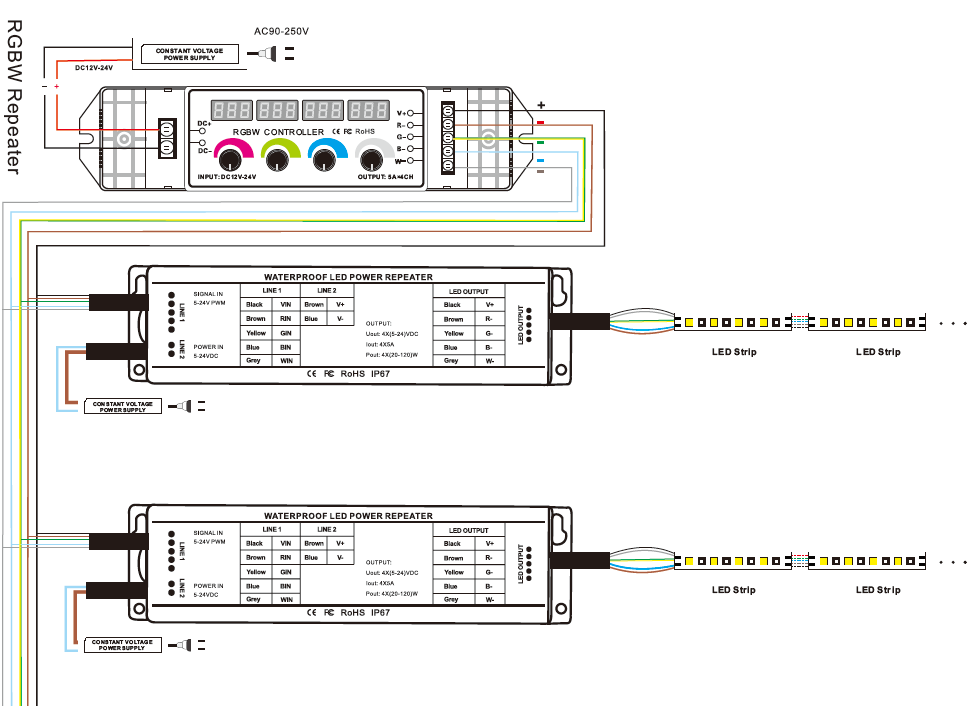

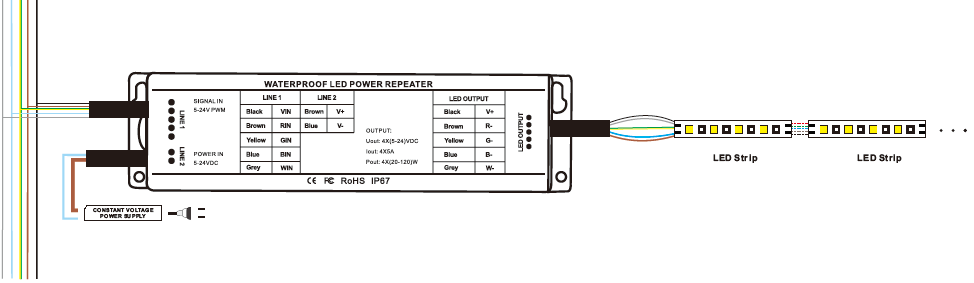

Welcome to ue this Waterproof LED Power Repeater, it is suitable for power expansion for all kinds of PWM controller , unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
1. automatically adapt DC5V-24V input.
2. Sustain high frequency common anode PWM input signal.
3. Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to
fulfill abundant color changings.
4. Over current protection and short circuit protection.
5.3000v photoelectric isolation function
Please don’t install this controller in lightening, intense magnetic and high-voltage fields.
1. To reduce the risk of component damage and fire caused by a short circuit, make the sure correct connection
2. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3. Check if the voltage and power adapter suit the controller (please select DC12-24V power supply with constant voltage)
4. Don’t connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5. Please don’t open controller cover and operate if problems occur.
Standards and Certifications
Input voltage: DC5V-DC24
Max Load Current: 5A×4CH
Output signal: Constant voltage PWM
Max output powers: 100W(5V)/240W(12V)/480W(24V)
Product Dimension: L173*W45*H25mm
Product size: 35cm
Package Size: L215*W80*H30mm
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC5-36V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
Power Source Selection:
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least a 20% higher output power supply than the consumption of LED lights.
