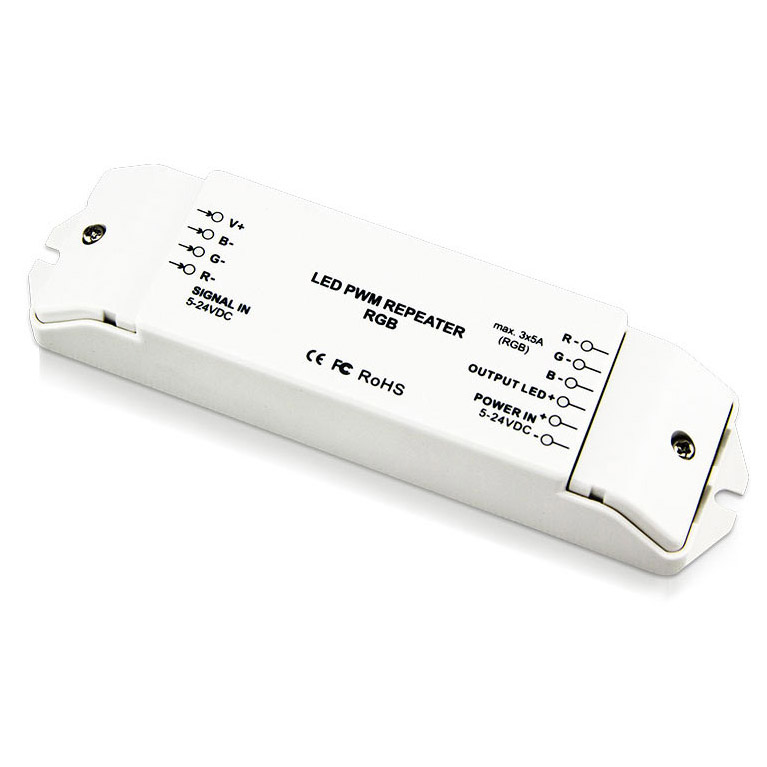

DC5V-DC24V 3CH High-Frequency Repeater BC-963
LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion, it accepts PWM control, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and the constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
1. Common anode input and output.
2. Sustain high-frequency common anode PWM input signal.

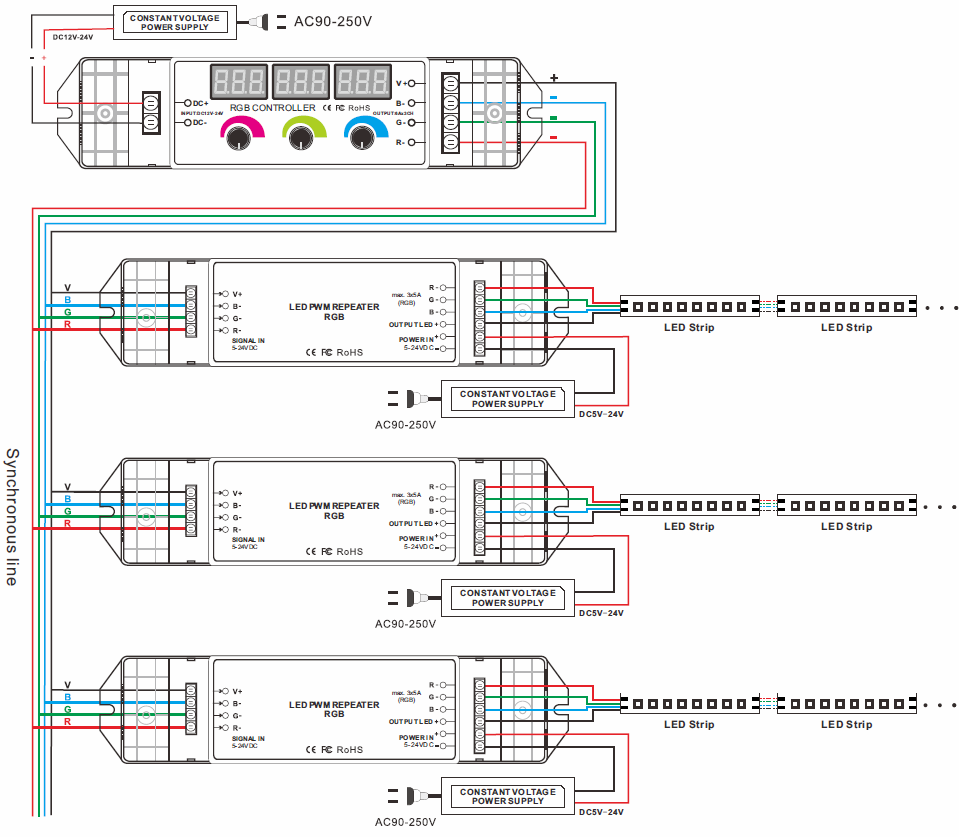

3. Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changing.
4. Overcurrent protection and short circuit protection.
5. 3000V optoelectronic isolation.
Standards and Certifications
Input voltage: DC5V-DC24V
Max Load Current: 5A/CH×3
Output signal: Constant voltage PWM
Max output power: 75W(5V)180W(12V)360W(24V)

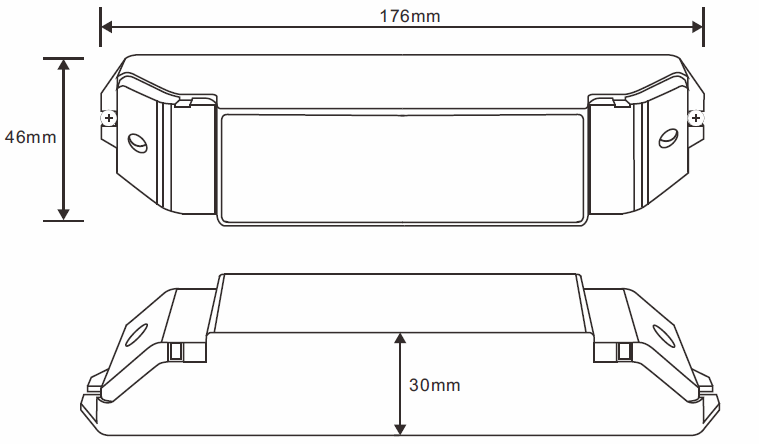

Product Dimension: L175×W44×H30(mm)
Package Size: L178×W48×H35(mm)
Gross Weight: 120g
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or
replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
Power Source Selection:
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least a 20% higher output power supply than the consumption of LED lights.
