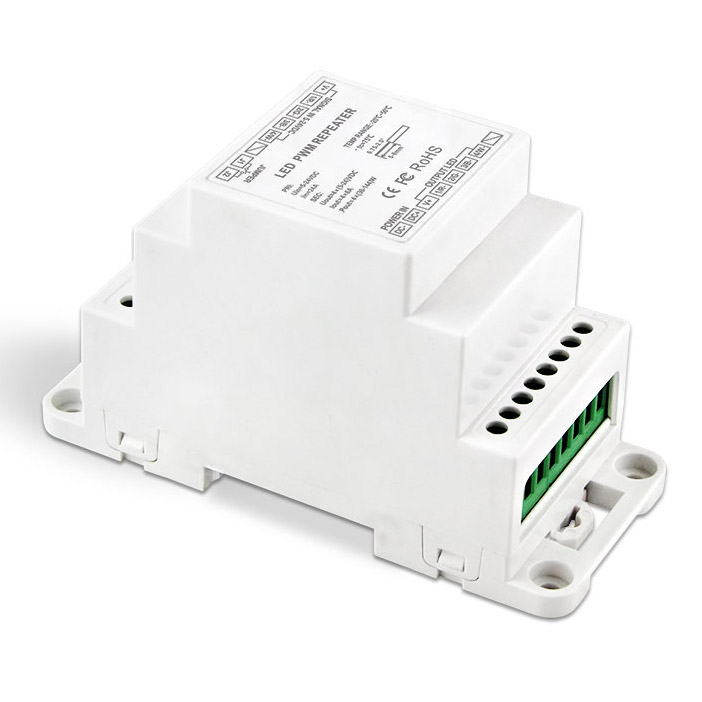

DC5V-DC24V 4CH Power Repeater BC-964-DIN
DIN Rail LED Power Repeater is suitable for all BINCOLOR power-output style controllers' power expansion, it accepts PWM SIGNAL, unlimited quantity of power repeater to be connected theoretically. Also, the power repeater of constant voltage model and the constant current model could be connected freely, Suitable for synchronous control of different LED lamps.
1. Common anode input and output.
2. Sustain high-frequency common anode PWM input signal.
3. Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changing.
4. Overcurrent protection and short circuit protection.
5. Optical isolation function, controller damage will not affect the repeater.
6. Output channels can be output independently or synchronously.
7. The DIN rail style facilitates the installation of large-scale projects.
Standards and Certifications
1. To ensure your safety and product proper usage, please read the user manual carefully.
2. To avoid installed the product in a minefield, strong magnetic field, and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause a fire.
4. Please install the product in a well-ventilated area to ensure an appropriate temperature environment.
5. The product must be worked with a DC constant voltage power supply. Please check the consistency of input power with the product, if the output voltage of the power complies with that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no short-circuit, then power on！
7. Don't repair it by yourself whenever an error occurs. Contact the supplier for any inquiry.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except the
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
Power Source Selection:
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least a 20% higher output power supply than the consumption of LED lights.
