DC12V-48V DMX512 Constant Current Decoder BC-831-CC
DMX512 Constant Current Decoder which is developed only for a constant current LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. The max output is marked beside the terminals, please choose the correct current as per your lamp, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.
1. Automatically adapt input voltage DC12V-48V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code.
3. 1 channel output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.

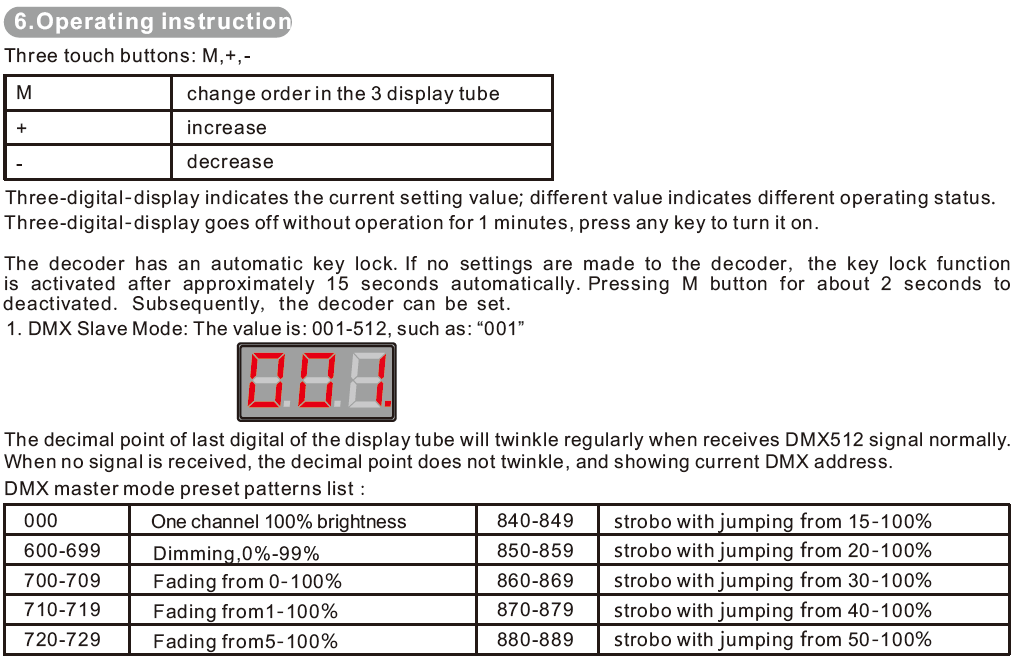

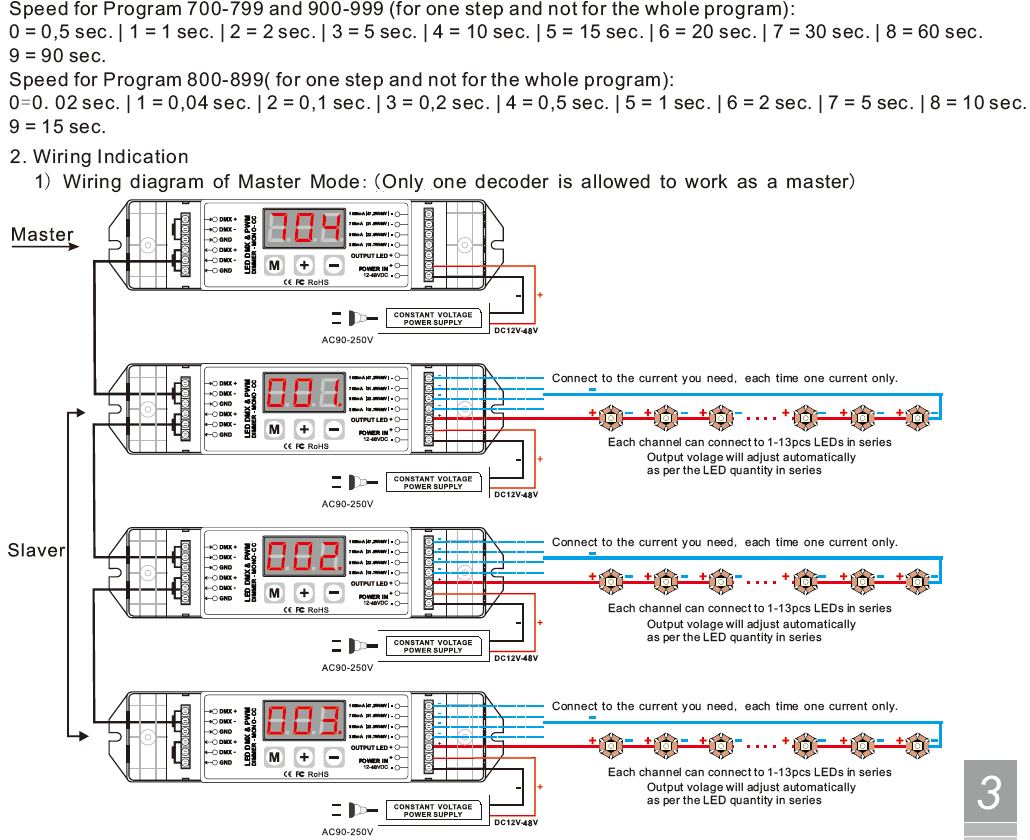

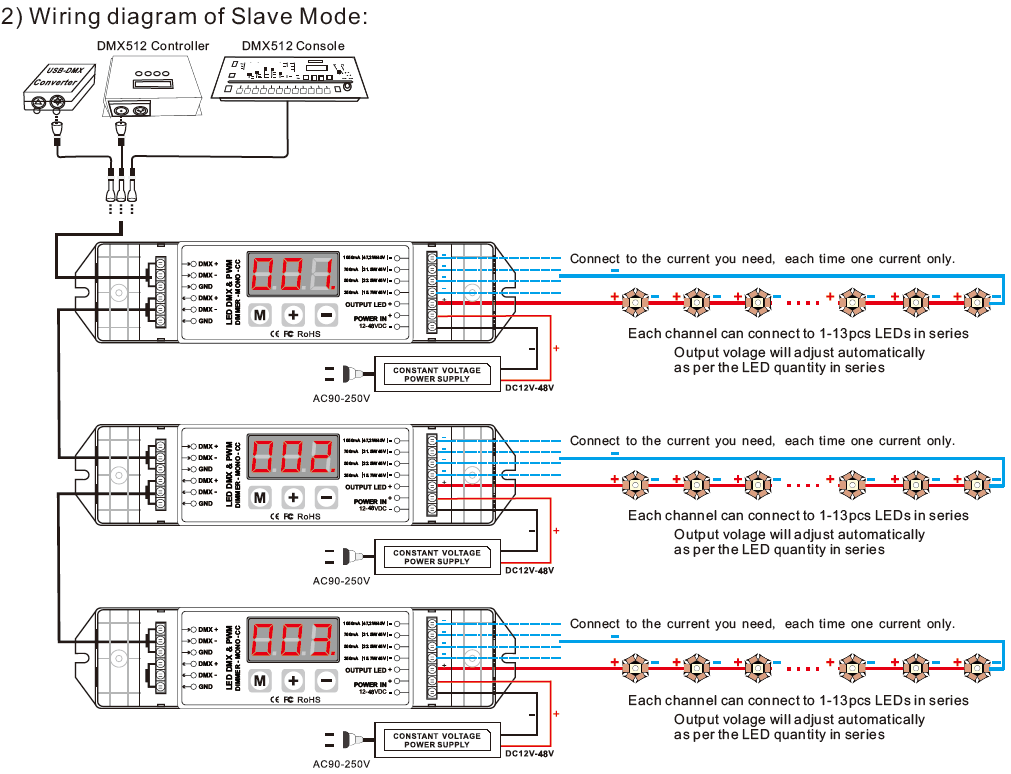

4. DMX Master mode, Slave mode available.
5.30 changing modes and 10-speed scales in master mode.
6. An indicator of the DMX512 signal receiving status.
7. Power loss memory function.
Standards and Certifications
1. To ensure your safety and product properly usage, please read the user manual carefully.
2. To avoid installed the product in minefield, strong magnetic field and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause fire.
4. Please install the product in a well ventilated area to ensure appropriate temperature environment.
5. The product must be worked with DC constant voltage power supply.
Please check the consistence of input power with the product, if the output voltage of the power comply with that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no shortcircuit, then power on！

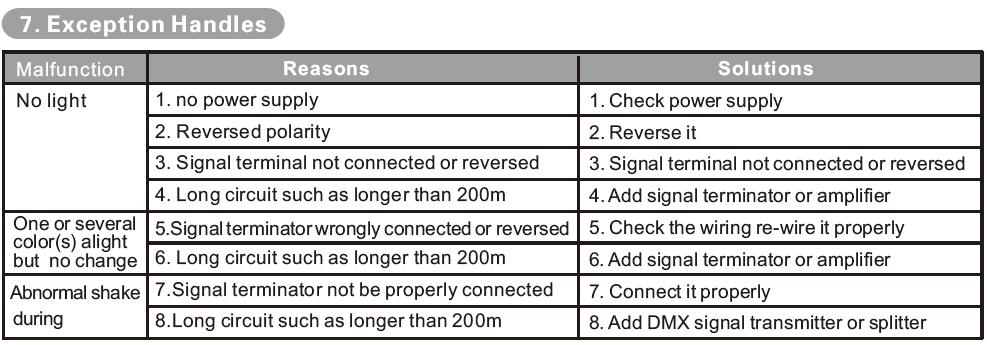

7.Don't repair it by yourself whenever an error occur. Contact the supplier for any inquiry.
