DC12V-48V DMX512 Constant Current Decoder BC-809

Model: BC-809
DC12V-48V DMX512 Constant Current Decoder BC-809

Select Specifications:

$29.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$29.98
10-49
$29.38
50-99
$28.48
100+
$27.28
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Brief Introduction

    This Decoder is specially designed for high power LED lamps. The decoder has 3 output channels, outputs 350mA/700mA constant current PWM driving signal; each channel can realize 256 level grey control. Use DMX512 constant current decoder to directly control

    high power single/RGB color LED lamps without constant current IC, which do not need any extra circuit component, it could be connected with high power LED lamps in series.



    Feature function:

    1. 3 Output Channels, connect single/RGB color LED lamps.

    2. 0-100% brightness adjusting, 256 levels of grey scale per channel.

    3. Standard DMX512 input protocol set address with dip-switch.

    4. Wide voltage input: DC12V-48V.

    5. 10 testing modes, 8 levels of changing speed.

    6. 2 Models: 350mA / 700mA constant current output.

    7. Power loss memory function.

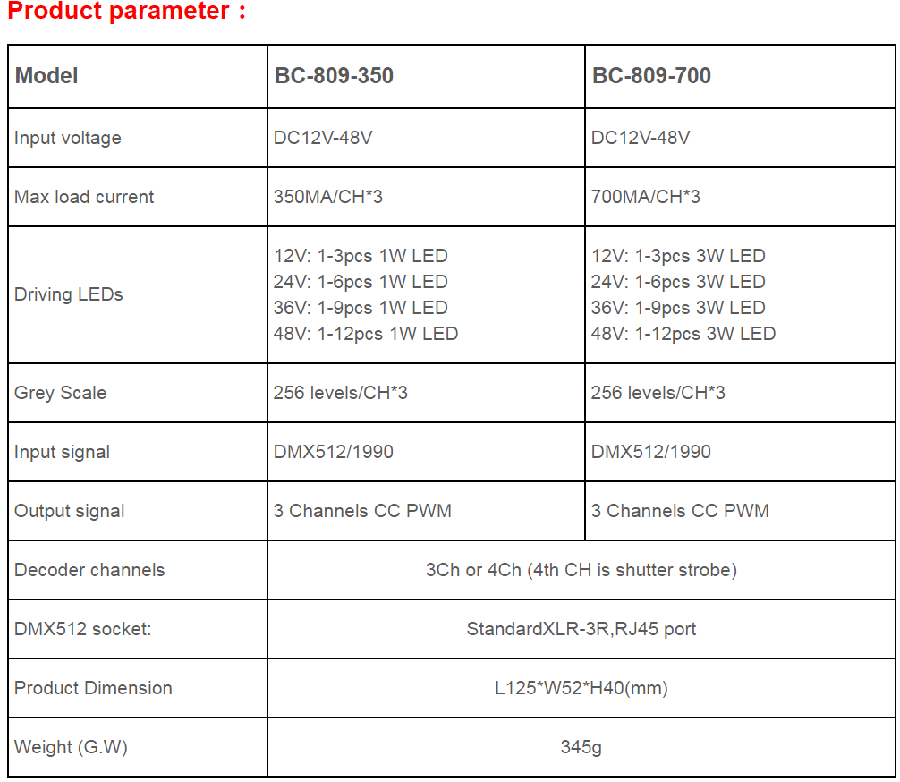

    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO  warranty-5-year



    Specifications Download   PDF



    Two different versions

    3 DMX ADD Version:

    The 1st address controls LEDs on CH1,0-255 steps of brightness.

    The 2nd address controls LEDs on CH2,0-255 steps of brightness.

    The 3rd address controls LEDs on CH3,0-255 steps of brightness.

    4 DMX ADD Version:

    The 1st address controls LEDs on CH1, 0-255 steps of brightness.

    The 2nd address controls LEDs on CH2, 0-255 steps of brightness.

    The 3rd address controls LEDs on CH3, 0-255 steps of brightness.

    0-127 of the 4th address controls the brightness, 128-255 for strobing.



    Safety warnings

    Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.

    1.To reduce the risk of component damage and fire caused by a short circuit, make the sure correct connection

    2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.

    3.Check if the voltage and power adapter suit the controller

    (please select DC12-48V power supply with constant voltage)

    4.Donot connect cables with power on; make sure a correct connection and no short circuit

    checked with the instrument before power on.

    5.Please don’t open the controller cover and operate if problems occur. The manual is only suitable for this model; any update is subject to change without prior notice.

    NOTE: According to DMX512 protocol, in order to ensure steady data transmission, you should add a metal star(Metal Thin Film resistor,90-120Ω 1/4 W )at the end of each layout of DMX data cable(between Foot 2 and Foot 3, Data + and Data -), please also refer to your DMX console manual to select a correct resistor.



    Operating instructions

    1. Decoder address setting

    This decoder occupies 3 addresses, adopted Dip switch to set the address, the Dip switches from 1 to 9 are a kind of binary value coding switches used to set DMX512 initial address code, the correlative bits is the 1-9 bits of the DIP switch, the 1st bit is LSC, the 9th

    bit MSC, 512 addresses totally. DMX512 initial address code is equal to the total amount of the Dip switches’ number from 1 to 9, press Dip switches downward (ON: at position “1”), user can get the number of its

    position, if pressing upward (at position “0”), the number of its position is 0. Accept DMX512 signal only when the DIP switch FUN=OFF (at position “0”)

    After-Sales

    From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except for the following cases:

    1.Any defects caused by wrong operations.

    2.Any damages caused by an inappropriate power supply or abnormal voltage.

    3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.

    4.Any damages due to transportation, breaking, flooded water after the purchase.

    5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.

    6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.

    7.Product has been updated.



    Kindly Reminder

    1.Power Source Selection

    The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least 20% higher output power supply than the consumption of LED lights.

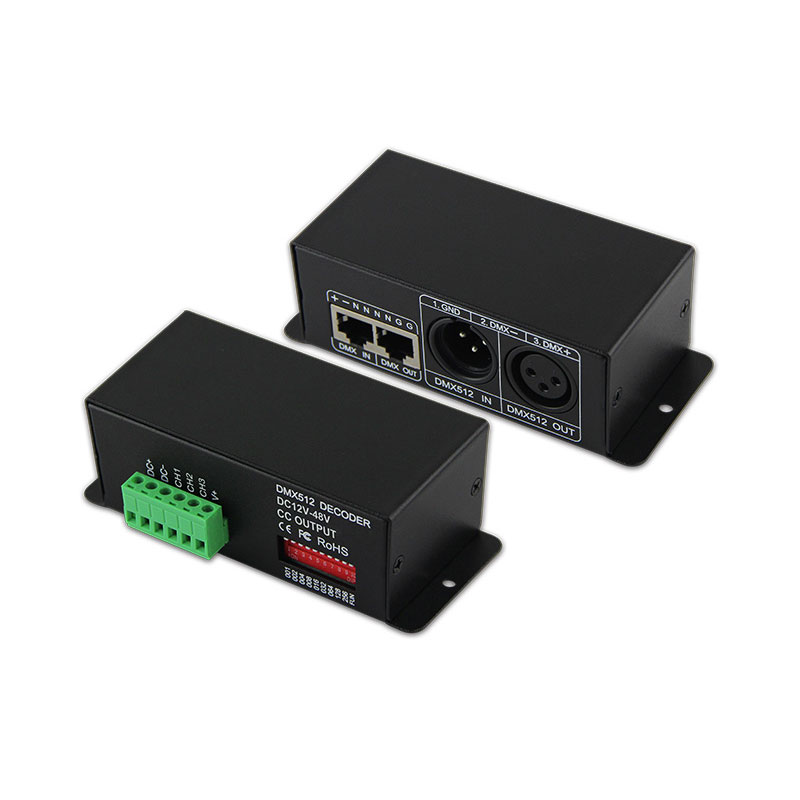

    DC12V-48V DMX512 Constant Current Decoder BC-809
