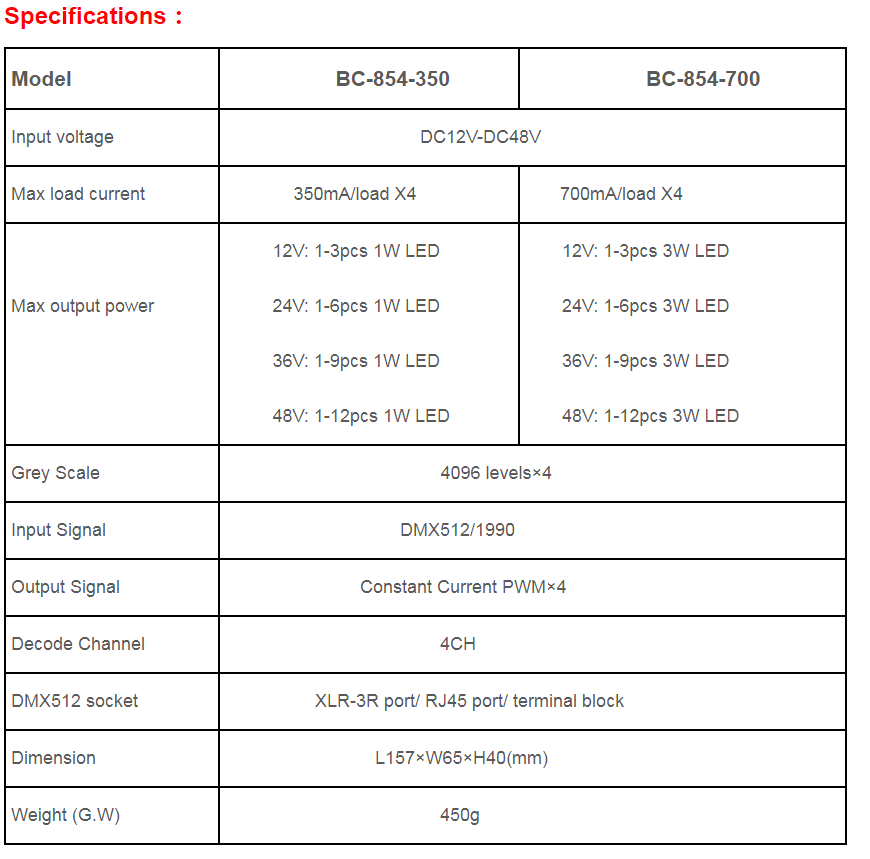

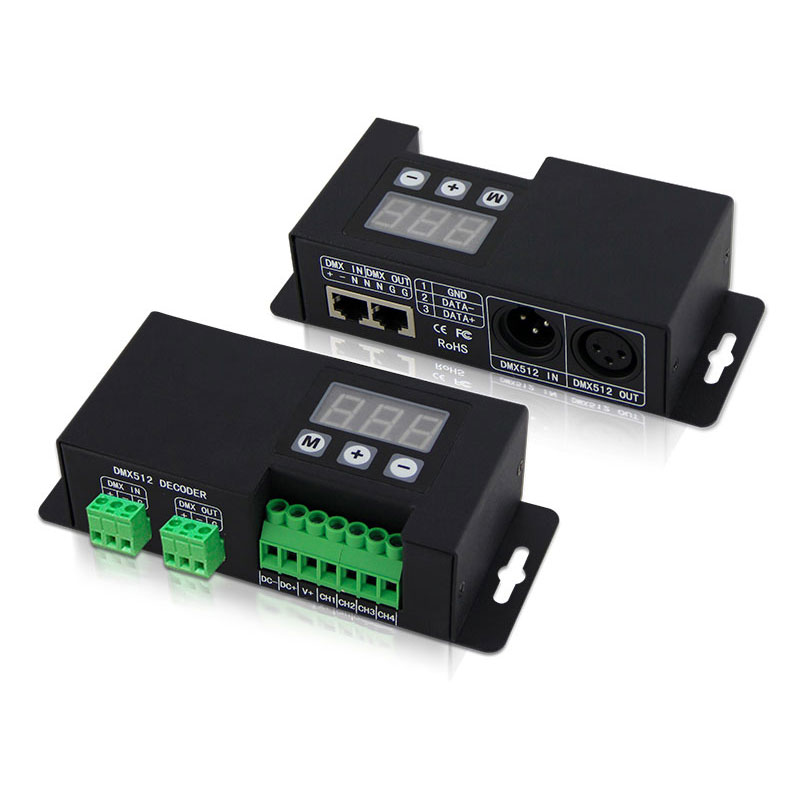

DC12V-48V DMX512 Constant Current Decoder BC-854-CC
DMX512 Constant Current Decoder which is developed only for a constant current LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. The user can choose 1~4 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
1. Automatically adapts input voltage DC12V-48V.

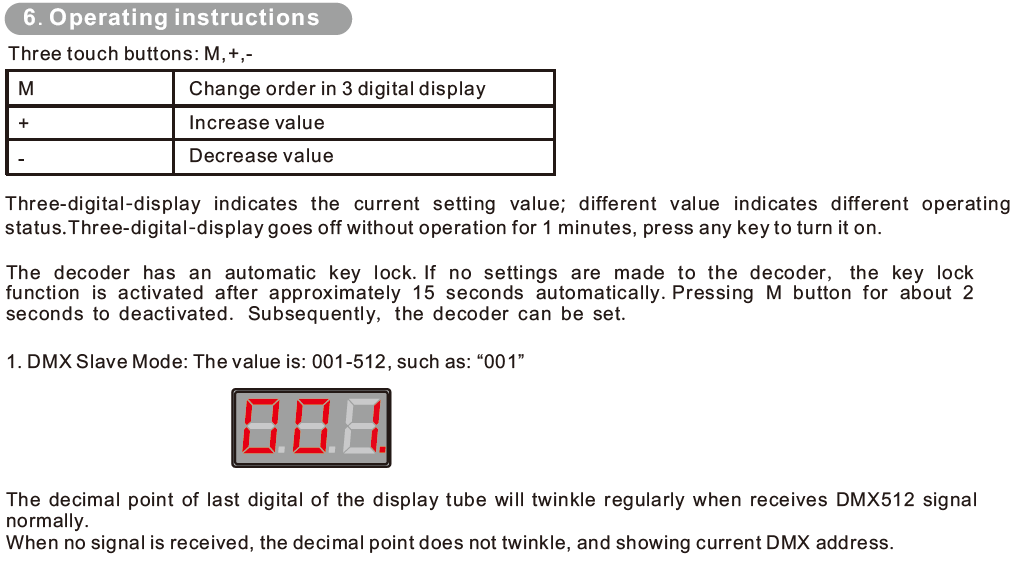

2. Input standard DMX512 signal; 3-digital-display shows DMX address.
3. 4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stable without strobe flash.

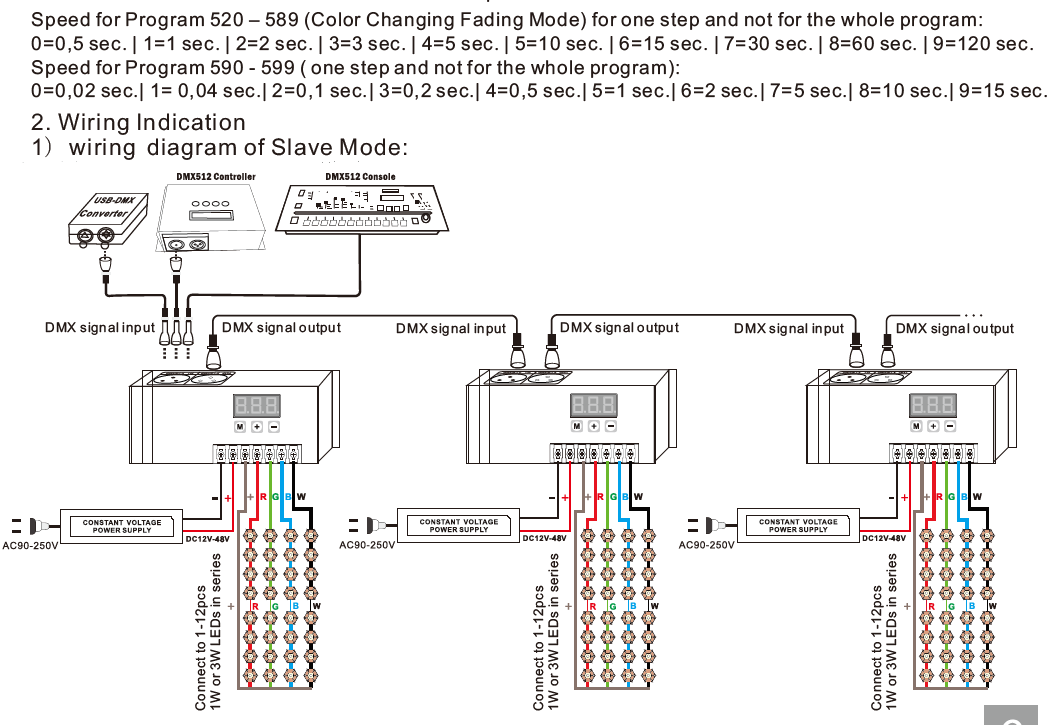

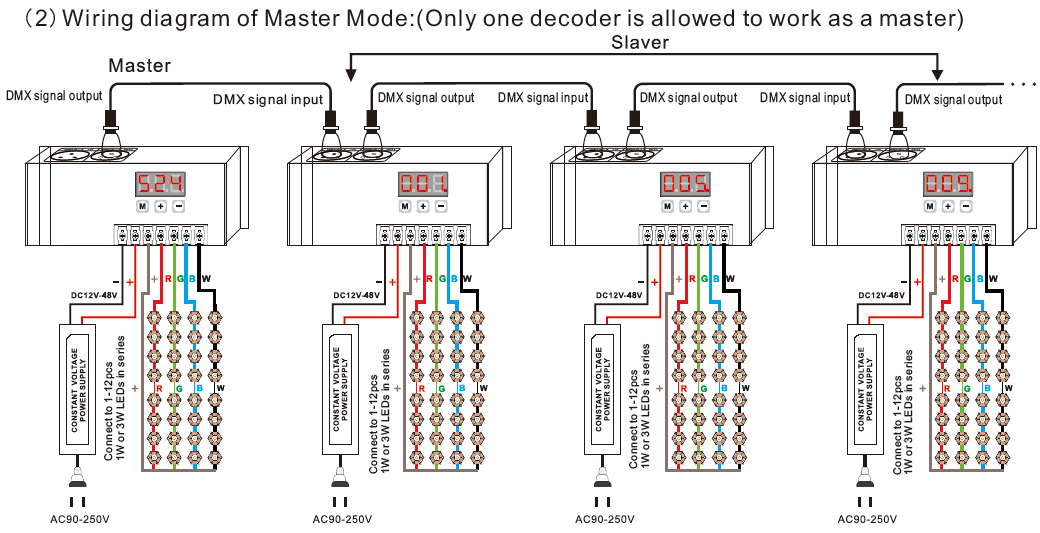

4. Support master mode or slave mode;

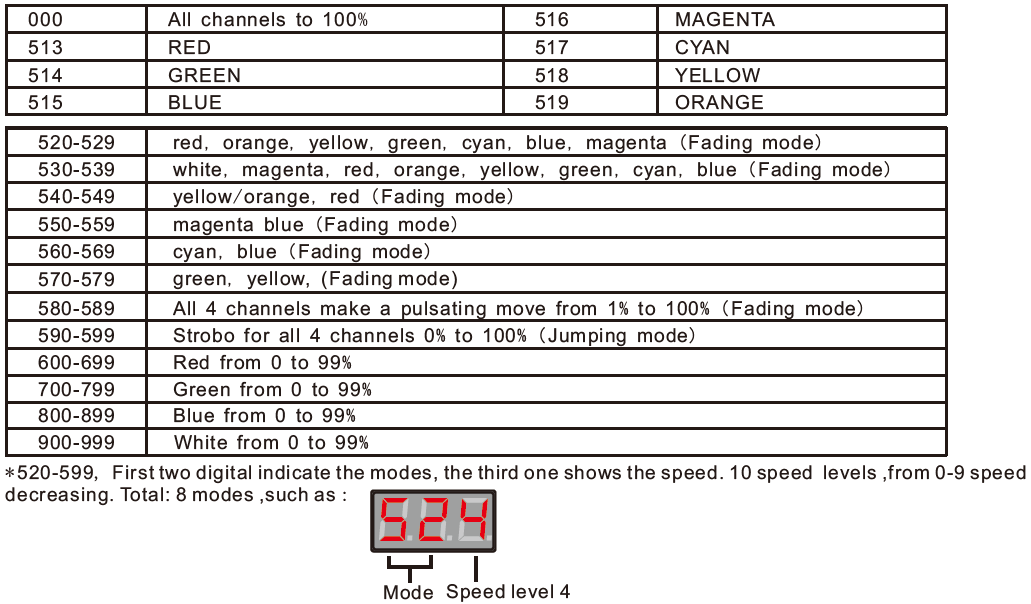

5. 8 color changing modes and 10-speed scales in master mode.
6. An indicator of the DMX512 signal receiving status.
7. Power loss memory function.
8. DMX signal lines are wrong protection.
9. Multiple DMX512 signal interface.
Standards and Certifications
Please don’t install this controller in lightening, intense magnetic and high-voltage fields.
1.To reduce the risk of component damage and fire caused by short circuit, make sure correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller.
(please select DC12-48V power supply with constant voltage)
4.Don’t connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
5.Please don’t open controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
From the day you purchase our products within 3 years, if being used properly in
accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
