24V RGB Tunable White Trim to Size Color Changing Flexible LED Sheet Light 16X8
Related Products
24V RGB Tunable White...
$36.98 $34.985% off24V SMD2835 White LED...
$32.98 $21.9833% offSP530E WiFi Bluetooth RF...
$15.98WS2815 RGB 32x8 LED...
$27.98Mean Well LRS-75-24 ...
$23.9824V 5050 5in1 RGBTW LED...
$51.98 $49.984% offMean Well LRS-150-24 ...
$32.00 $29.986% off-
Special Price: $36.98 $34.985% off

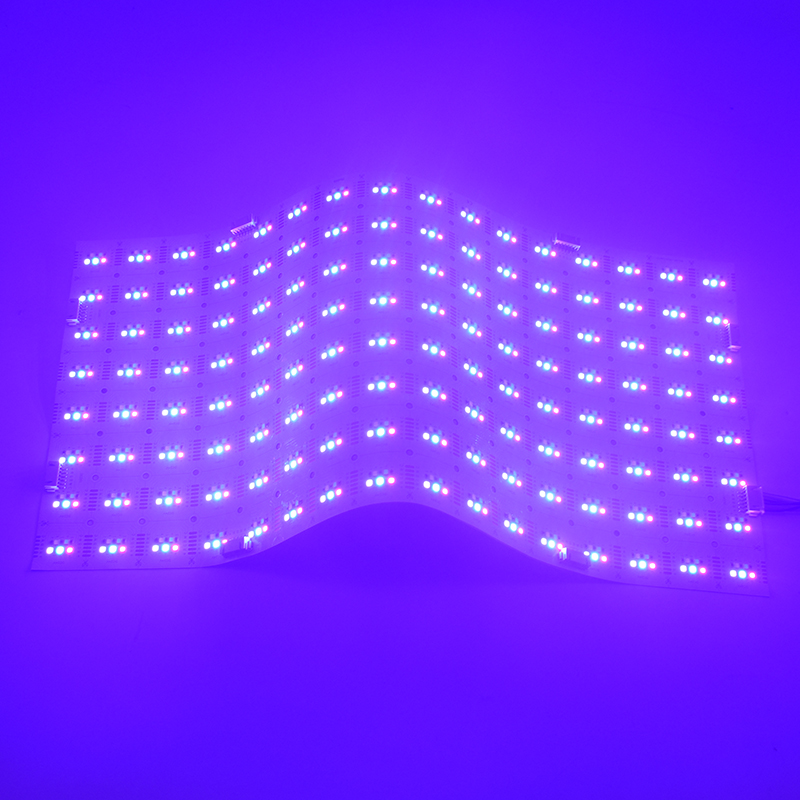

RGBCW 2700K-6500K multi-color LED sheet, designed with a strong adhesive backing, is very slim and flexible. It can be bent or folded to fit rounded surfaces or square corners. This flex LED sheet light can also be trimmed to size with scissors, and the smallest cut unit is 30.6*30.6mm.
RGB+tunable white version offers a richer choice of colors. It can mix to produce any color you want, and the color temperature of the white light is adjustable using a compatible controller. (from warm white 2700K to daylight white 6500K) There are 128 module units (i.e. the smallest cutting unit). 16 units in a row, 8 rows in total. Each module has 5 LED chips, respectively control R, G, B, warm white, and daylight white. If you're looking for finer RGBCCT color mixing and color temperature adjustment capabilities, check out our integrated chip sheet LED. We also offer smart LED sheet.

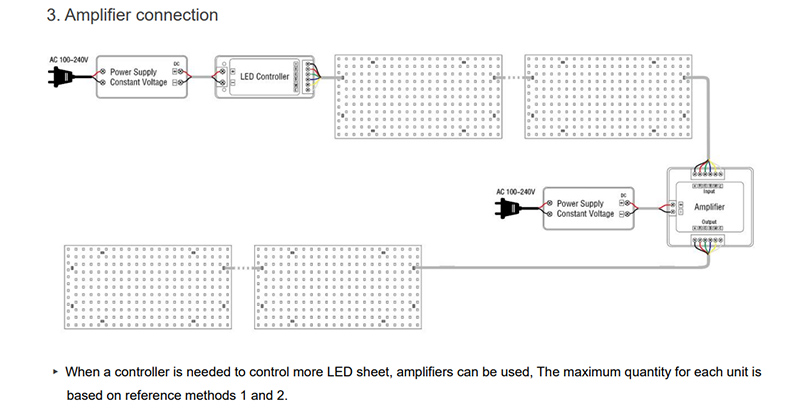

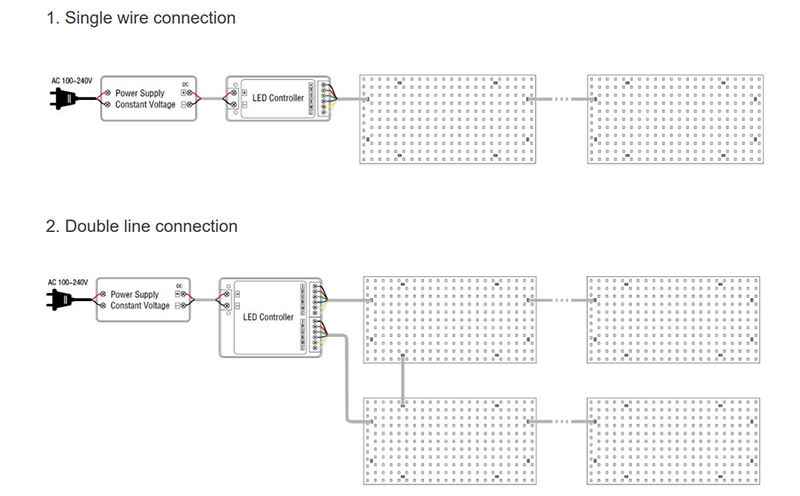

Each sheet of LED has 8 connectors mounted on top, which can be easily interconnected. Multiple colour LED lighting sheets can be seamlessly linked together to provide broad-area lighting.
LED lighting sheet panels are mainly used for countertop and wall backlighting. Install these paper-thin LED sheets behind translucent materials such as marble, onyx, acrylic, and stained glass to realize the design of illuminated walls and illuminated table tops. It is an updated modern lighting solution, widely used in bars, hotels, retail stores such as cosmetic stores, offices, and churches.
LED backlight sheet is available in IP20 non-waterproof and IP54 splash-proof. For more convenient installation, accessories including 2 connecting wires, 2 interconnection pieces, 8 anti-collision silicone pads, 8 screws and 8 screw shims will be shipped together.
Features:
1.24V RGB + tunable white 2700K-6500K LED sheet, CRI 90+, fully dimmable, can mix to produce any color you want.
2.Bright and uniform lighting, paper-thin and flexible board, bendable and foldable.
3.Cuttable with scissors, with black cutting lines marked on surface.
4.128 module units, 16 units in a row, 8 rows in total.
5.Each module unit is the smallest cut segment. (30.6*30.6mm)
6.Connectable via on-board connectors (8mm/0.3in high) or soldering, providing large area illumination.
7.Designed with adhesive backing, shipped with accessories, easy installation.
8.IP 20 for indoor uses, IP54 for damp environments.

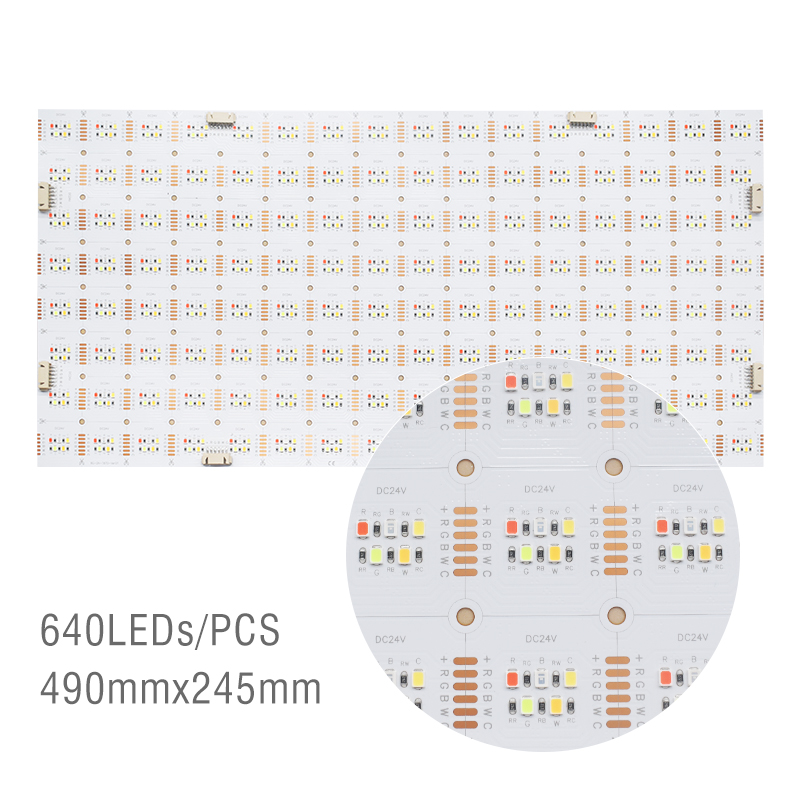

The "16X8" specified in the title indicates that there are 16 units in a row, with a total of 8 rows. Each unit contains 5 LED chips, 640 LEDs per sheet.
Please contact us if you need 12V customized LED sheet.
RGB+Tunable White LED Sheet Light Manual Download
Video showcasing the CCT color LED sheet used for marble wall backlighting.
Kindly note that the product featured in the video is different from the one offered here. (mainly color difference)
Product Specifications
LED Strip Type: | Color Changing Flexible LED Sheet Light |
LED Chip: | SMD2835 |
Input Voltage: | 24V DC |
Product Size: | L19.2 "x W9.6" x H0.3" (495mm*245mm*8mm) |
Light Color: | RGB + Tunable White (2700K-6500K) |
Light Efficiency: | 1800LM per sheet |
LED Quantity: | 640 LEDs per sheet |
Working Power: | 50W per sheet |
Cut Unit: | 5 LEDs (30.6mm*30.6mm/ 1.2” x1.2") |
Lifespan: | 50,000+hours |
CRI: | 90+ |
PCB Material: | Double Layer FPC |
Beam Pattern: | 120 degrees |
IP Rating: | Non-waterproof IP20/ Waterproof IP54 |
Warranty: | 2 years |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
