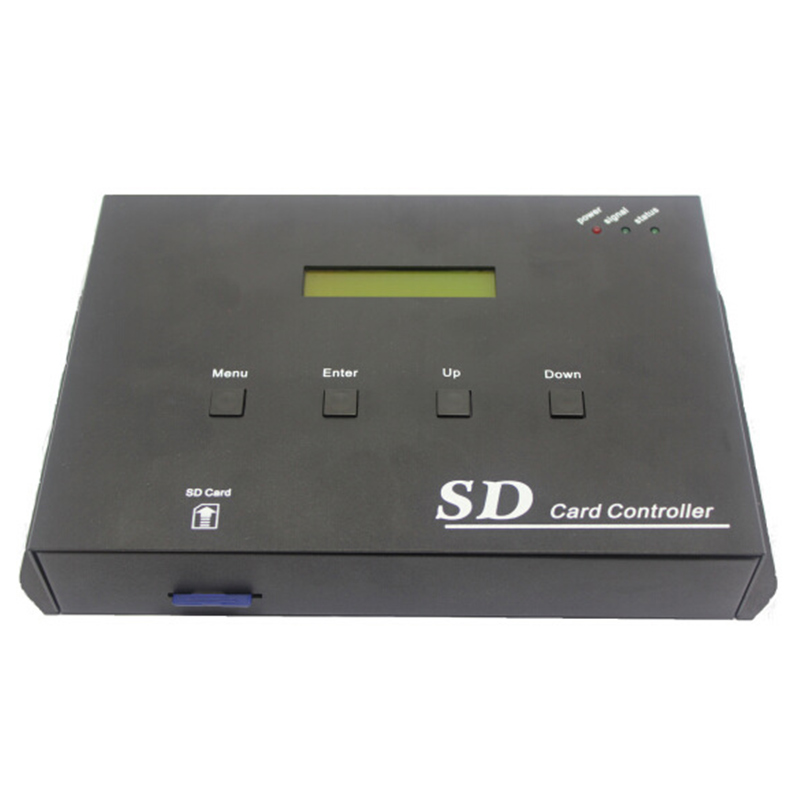

LN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED Controller

Model: SD100
LN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED Controller
  • LN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED Controller
  • LN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED Controller

$64.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$64.98
20-49
$61.73
50-99
$60.43
100+
$58.48
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    The SD card SPI controller uses an advanced computer control chip to control various lamps with LED as light sources, such as point light source, soft light bar, wall washer, glass curtain wall lamp, etc. Using key control, it has the functions of selecting pattern file, adjusting change rate, output IC selection, date setting display, holiday timing, power-off storage and switch. The system powers on and searches for all "*.LED" files in the SD card and sorts them by file name from small to large, and reads and plays the last saved file mode. The user can press the button to select the changing pattern. After selecting all the files, press the Select File Add button again to display the pattern file in a loop. It has the advantages of flexible wiring, convenient wiring, and simple use; according to the actual needs of customers, it can achieve four-channel and flat jump, gradient, strobe, horse racing, running water, running text, pictures, video and other lighting changes. The user can also edit the data pattern file through the attached pattern editing software (LedEditor v1.0). There are many different patterns and it is easy to use. For the detailed editing method, please refer to the manual of the editing software.







    Technical Parameters

    ●Working Temperature: -20-60℃

    ● Power Supply Voltage: DC12-24V

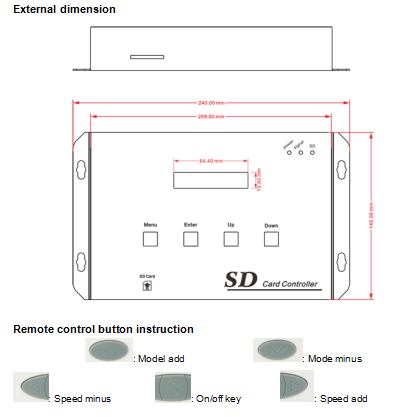

    ● Dimensions: L240 *W145 *H39 mm

    ● Packing Size: L280 *W185 *H75 mm

    ● Net Weight: 894g

    ● Gross Weight: 1250g

    ●Power Consumption: <1W

    ● Frame Frequency: The fewer points used per channel, the larger the maximum adjustable frame number, and vice versa. The recommended number of frames is 20~30fps.

    ● Support Chips: conventional single-wire and two-wire ICs in the market

    ● Output: 4 SPI signals

    ● Control Points: related to the frame rate, the slower the frame rate, the more points can be set, and vice versa. When testing at 30fps, each channel can be set up to 432 points, and the total number of points of the four channels can reach 1728 points. For details, please refer to Table 3.

    ● Grey Level: 32~255 levels (varies according to the driver chip)

    ● Maximum Number of Pattern Files: 64



    Specifications Download



    Interface description

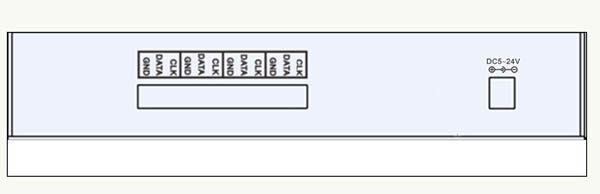

    SPI signal output interface: GND is public ground, DATA data interface, CLK clock interface. Power port: input DC voltage 5-24V.

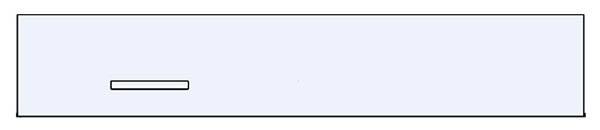

    SD card slot

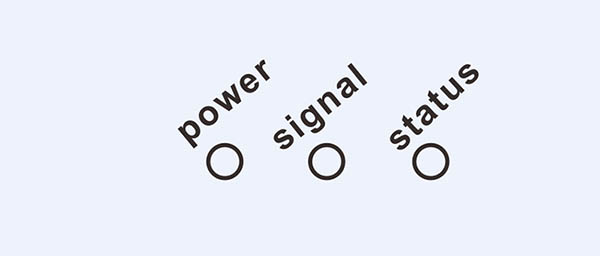

    Power: Power indicator, power on light.

    sigmal: Buttons and remote control indicator lights, there are button operation or remote control operation indicator flashes.

    Status: working status indicator, the indicator flashes when there is SPI output, the flashing frequency is related to the output speed

    Built-in mode:

    Mode

    Mode Description

    Mode

               Mode Description

    0

    Static black

    18

    Red reverse tail

    1

    Static red

    19

    Green positive tail

    2

    Static green

    20

    Green reverse tail

    3

    Static blue

    21

    Blue positive tail

    4

    Static yellow

    22

    Blue reverse tail

    5

    Static purple

    23

    Seven-color forward running tail

    6

    Static cyan

    24

    Seven-color forward running tail

    7

    Static white

    25

    Positive purple-red-purple gradient transition

    8

    Red right horse race

    26

    Positive yellow-green-yellow gradient transition

    9

    Green right horse race

    27

    Positive cyan-green-cyan gradual transition

    10

    Blue right horse race

    28

    Positive purple-blue-purple gradient transition

    11

    Three primary colors strobe

    29

    Positive cyan-blue-cyan gradient transition

    12

    Seven-color strobe

    30

    Positive white-red-white gradient transition

    13

    Three primary colors jump

    31

    Positive yellow-red-yellow gradient transition

    14

    Seven colors jump

    32

    Red-yellow-red gradient

    15

    Three-color three-way overlap running forward

    33

    Green-cyan-green gradient

    16

    Forward seven colors

    34

    Blue-purple-blue gradient

    17

    Red positive tail





    Support light bar

    Numbering

    Model

    Signal line

    1

    TM1803

    DATA

    2

    TM1809

    DATA

    3

    TM1812

    DATA

    4

    UCS1903

    DATA

    5

    UCS2903B

    DATA

    6

    WS2811

    DATA

    7

    LPD6803

    DATA、CLK

    8

    WS2801

    DATA、CLK

    9

    TLS3001

    DATA

    10

    TLS3008

    DATA

    11

    P9813

    DATA、CLK

    12

    LPD8806

    DATA、CLK



    Frame rate and number of LED files

    Speed

    Maximum points per channel

    Four points total

    12fps>

    1024

    4096

    15fps

    850

    3400

    20fps

    600

    2400

    25fps

    512

    2048

    30fps

    432

    1728

    35fps

    372

    1488

    40fps

    325

    1300

    Note: The maximum number of points corresponding to the frame rate here refers to the points of the general pattern (the .led file is not large). If the pattern is too complicated (the .led file is too large), you must reconsider the point problem. Do you need to reduce the number of points to prevent the speed of the configuration? The controller can't handle it and die.


    Typical applications

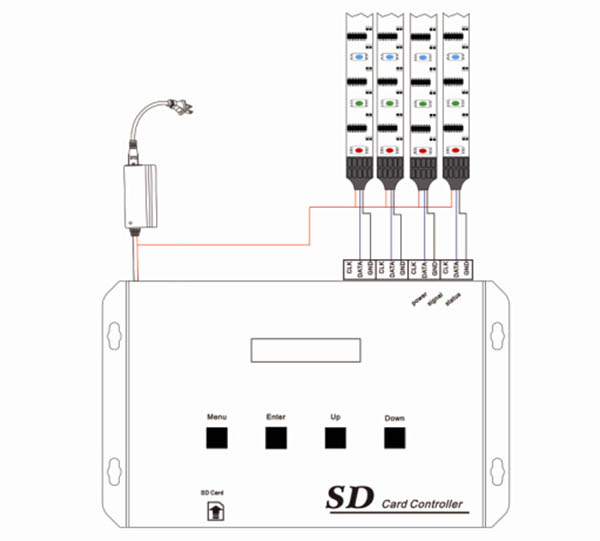

    1. The single-line IC is shown in the figure. The signal line can only be connected to the terminal corresponding to the data:

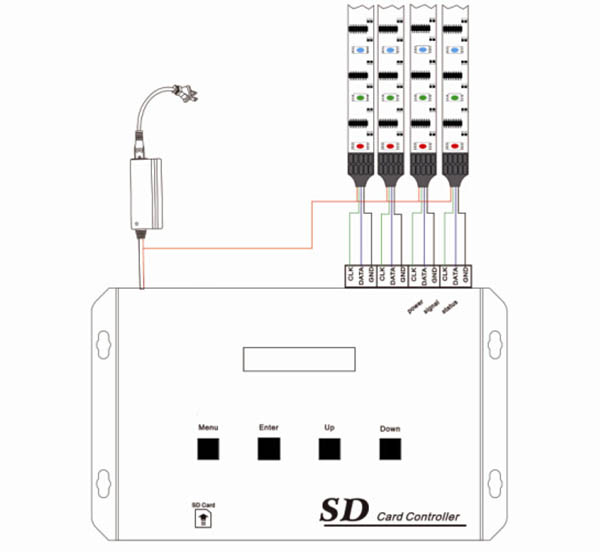

    2. The two-wire IC is shown in the figure: the clock line and the data line are connected to the corresponding terminals:





    LN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED Controller

    LN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED ControllerLN-SDDMXCON-SPI-LV DC12V SD Card DMX Signal Decoder, LED Controller
