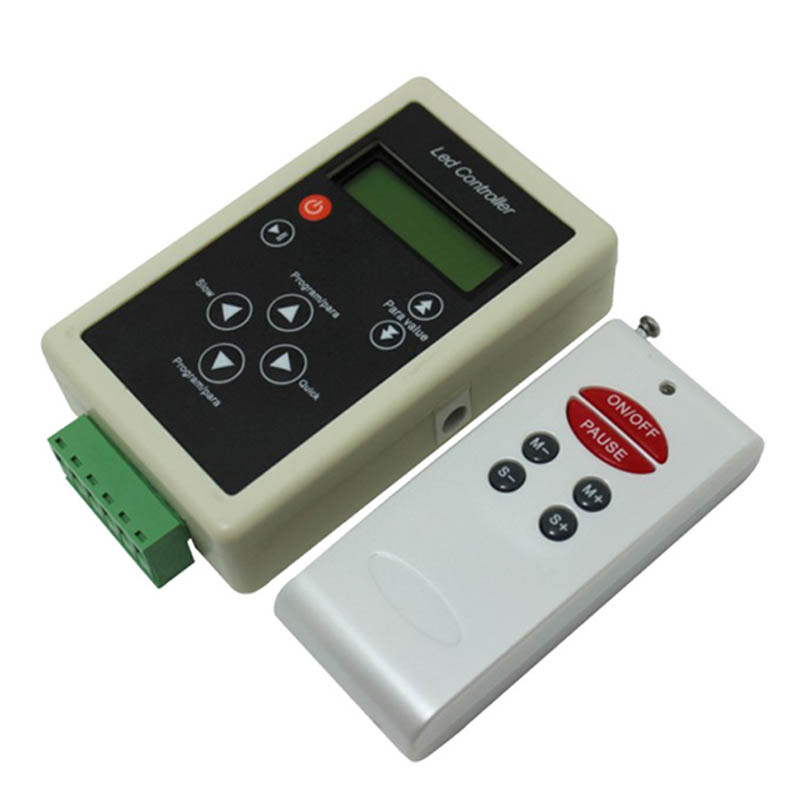

HC100 DC5-24V LED Upgraded SPI Symphony Controller, LED RF Remote Control Dimmer

Model: HC100
HC100 DC5-24V LED Upgraded SPI Symphony Controller, LED RF Remote Control Dimmer

$22.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$22.98
20-49
$21.83
50-99
$21.37
100+
$20.68
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Symphony controller is suitable for SPI signal directly driving LED applications; with 256*256*256 gray level, length setting function and power-down memory function, built-in multiple modes to choose from, at the same time can be used by RF remote control The adjustment of a dynamic light change effect. It can be used in lightbox advertising, stage setting, home decoration, etc. The controller is an upgraded version, which can support more than ten different IC light strips, support light strip line sequence switching function, and supports a maximum of 2048 pixels.







    Technical Parameters

    ● Working Temperature: -20-60℃

    ● Power Supply Voltage: DC5-24V

    ● Dimensions: L94*W59*H25mm

    ● Packing Size: L122*W86*H42mm

    ● Net Weight: 121g

    ● Gross Weight: 170g

    ● Rated Power: 2.2W

    ● Support Maximum Pixel: 2048

    ● Output: a group of SPI signals

    Specifications Download

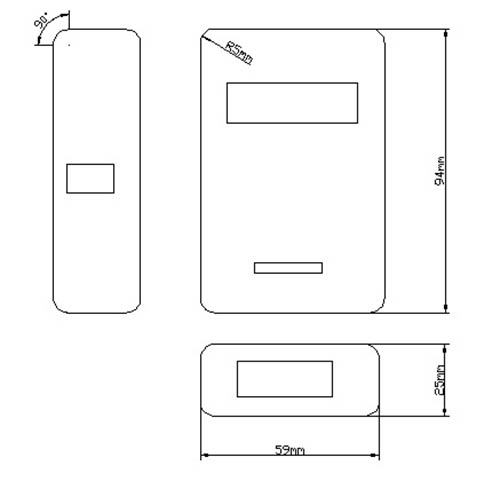

    Dimensions

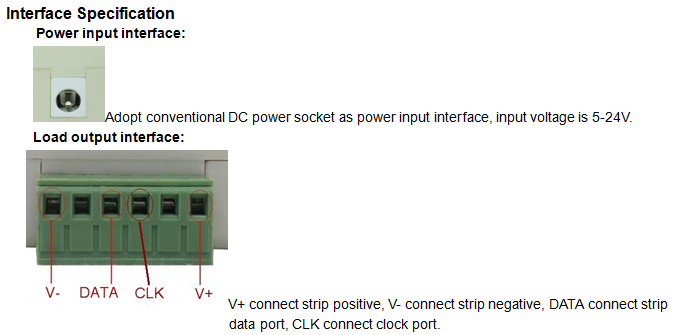

    Interface description



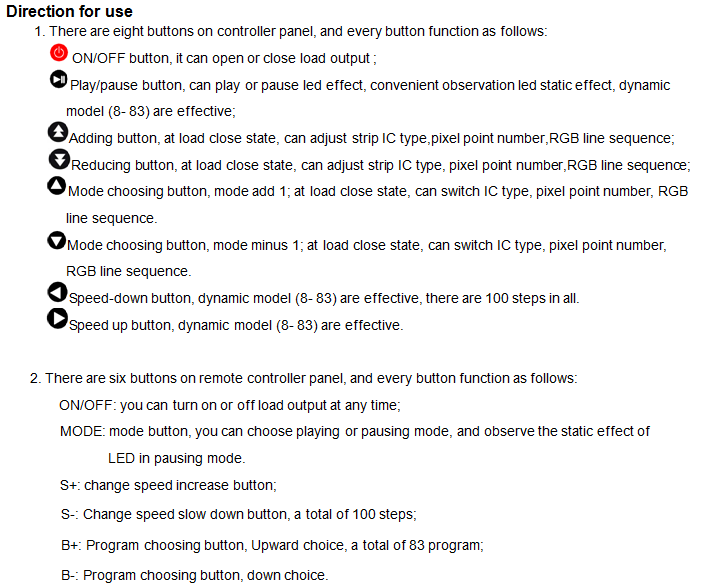

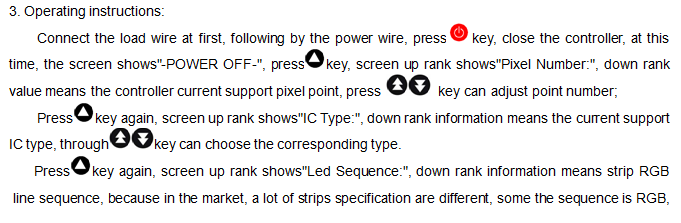

    The standard change function is shown in the following table:

    Mode

    Mode description

    Mode

    Mode description

    1

    Static red

    43

    Blue, yellow and green three-way overlap running forward



    2

    Static green

    44

    Green-blue curtain

    3

    Static blue

    45

    Blue-yellow closing



    4

    Static yellow

    46

    Forward seven colors

    5

    Static purple

    47

    Reverse seven-color flutter

    6

    Static cyan

    48

    Blue tail

    7

    Static white

    49

    Red positive tail

    8

    Red right horse race

    50

    Red reverse tail

    9

    Red left horse

    51

    Green positive tail

    10

    Green right horse race

    52

    Green reverse tail

    11

    Green left horse

    53

    Blue positive tail

    12

    Blue right horse race

    54

    Yellow positive tail

    13

    Blue left horse

    55

    Cyan positive tail

    14

    Red horse race closing

    56

    Purple tail

    15

    Green running horse curtain

    57

    White positive tail

    16

    Positive three primary colors

    58

    White reverse tail

    17

    Tri-color race horse brush color

    59

    Seven colors running backward

    18

    Tri-color horse race brushing screen

    60

    Seven-color forward running tail

    19

    Closing of the tri-color racehorse color

    61

    Positive cyan-red-cyan gradient transition

    20

    Positive seven-color horse racing color

    62

    Positive purple-red-purple gradient transition

    21

    Reverse seven-color horse racing color

    63

    Reverse purple-red-purple gradient transition

    22

    Seven-color horse racing brush salad screen

    64

    Positive yellow-green-yellow gradient transitionPositive yellow-green-yellow gradient transition

    23

    Closing of the seven-color horse race

    65

    Reverse yellow-green-yellow gradient transition

    24

    Positive three primary colors

    66

    Positive cyan-green-cyan gradual transition

    25

    Reverse three primary colors

    67

    Reverse cyan-green-cyan gradient transition

    26

    Positive three color mixing

    68

    Positive purple-blue-purple gradient transition

    27

    Reverse three color mixing

    69

    Reverse purple-blue-purple gradient transition

    28

    Positive seven colors

    70

    Positive cyan-blue-cyan gradient transition

    29

    Reverse seven colors

    71

    Reverse cyan-blue-cyan gradient transition

    30

    Three primary colors

    72

    Positive white-red-white gradient transition

    31

    Closing of three primary colors

    73

    Reverse white-red-white gradient transition

    32

    Seven-color brushed curtain

    74

    Positive green-red-green gradient transition

    33

    Closing of seven colors

    75

    Reverse blue-red-blue gradient transition

    34

    Three primary colors strobe

    76

    Positive yellow-red-yellow gradient transition

    35

    Seven-color strobe

    77

    Reverse yellow-red-yellow gradient transition

    36

    Three primary colors jump

    78

    Red-yellow-red gradient

    37

    Three-hop mixed color jump

    79

    Red-purple-red gradient

    38

    Seven colors jump

    80

    Green-cyan-green gradient

    39

    Green, blue and yellow three-way overlap running forward

    81

    Green-yellow-green gradient

    40

    Blue, yellow and green three-way overlap and reverse running

    82

    Blue-purple-blue gradient

    41

    Three-color three-way overlap running forward

    83

    Autoplay 1~82

    42

    Three mixed color three-way overlap running in reverse







    The IC types that the controller can support the light bar are as follows:

    Numbering

    Model

    Signal line

    1

    LPD6803

    DATA、CLK

    2

    TM1803

    DATA

    3

    UCS1903

    DATA

    4

    WS2811

    DATA

    5

    TM1812

    DATA

    6

    TM1809

    DATA

    7

    WS2801

    DATA、CLK

    8

    TLS3001

    DATA

    9

    TLS3008

    DATA

    10

    P9813

    DATA、CLK

    11

    LPD8806

    DATA、CLK







    If the light bar has two signal wires, you need to connect the ground wire, clock wire, and data wire to the controller V-, CLK, and DATA; if it is a signal wire light bar, connect its ground wire, data wire, and control V-, DATA can be connected.

    Note: If the voltage of the V+ terminal of the light bar is the same as the input voltage of the controller, you can directly connect it to the controller V+; if not, you need to connect another power supply.



    Typical applications

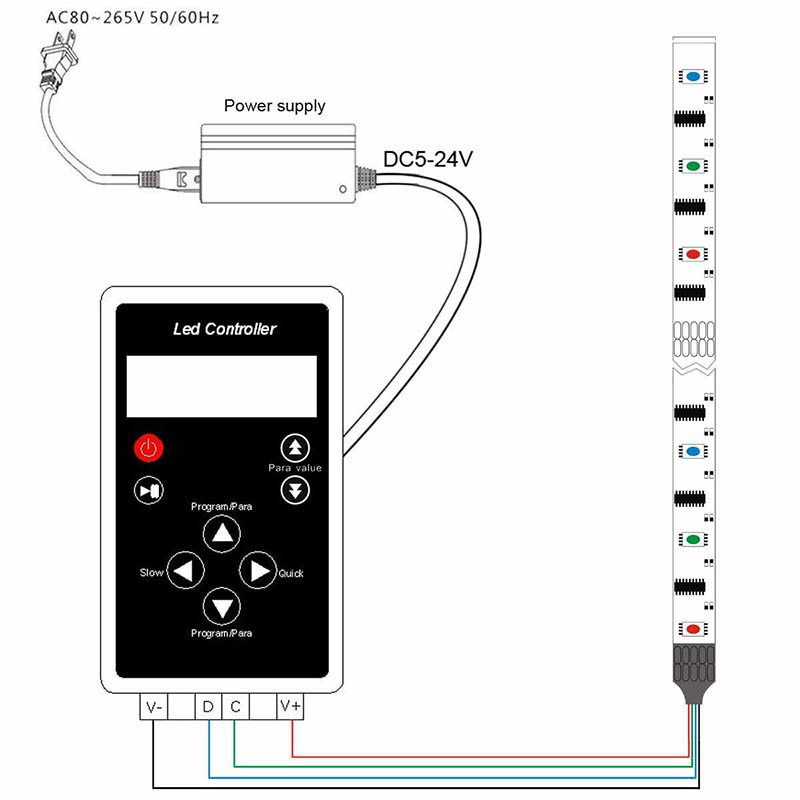

    Connection of dual signal line light bar:

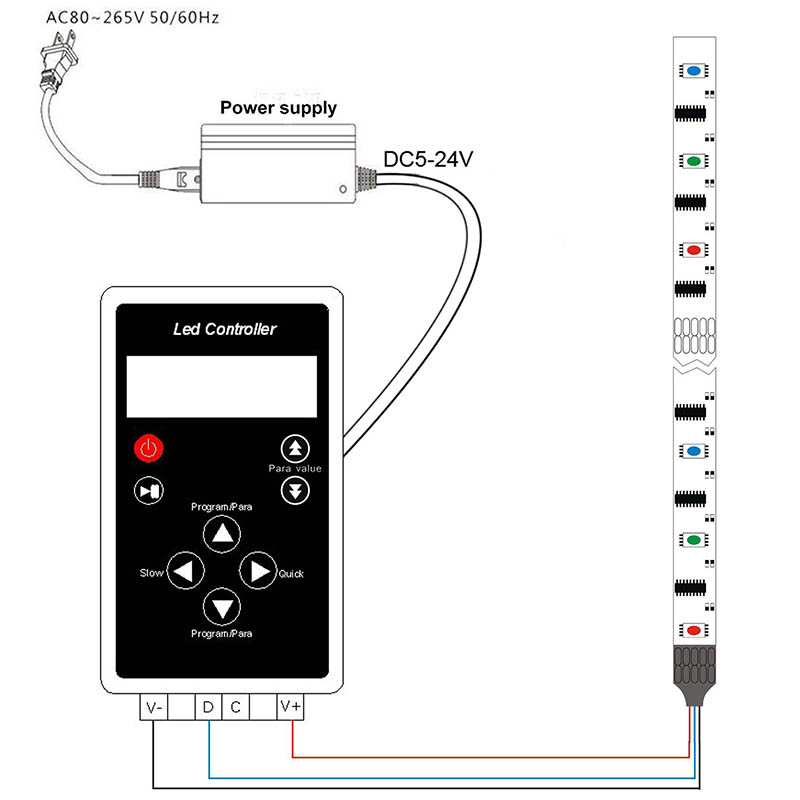

    Connection of single signal line light bar:
