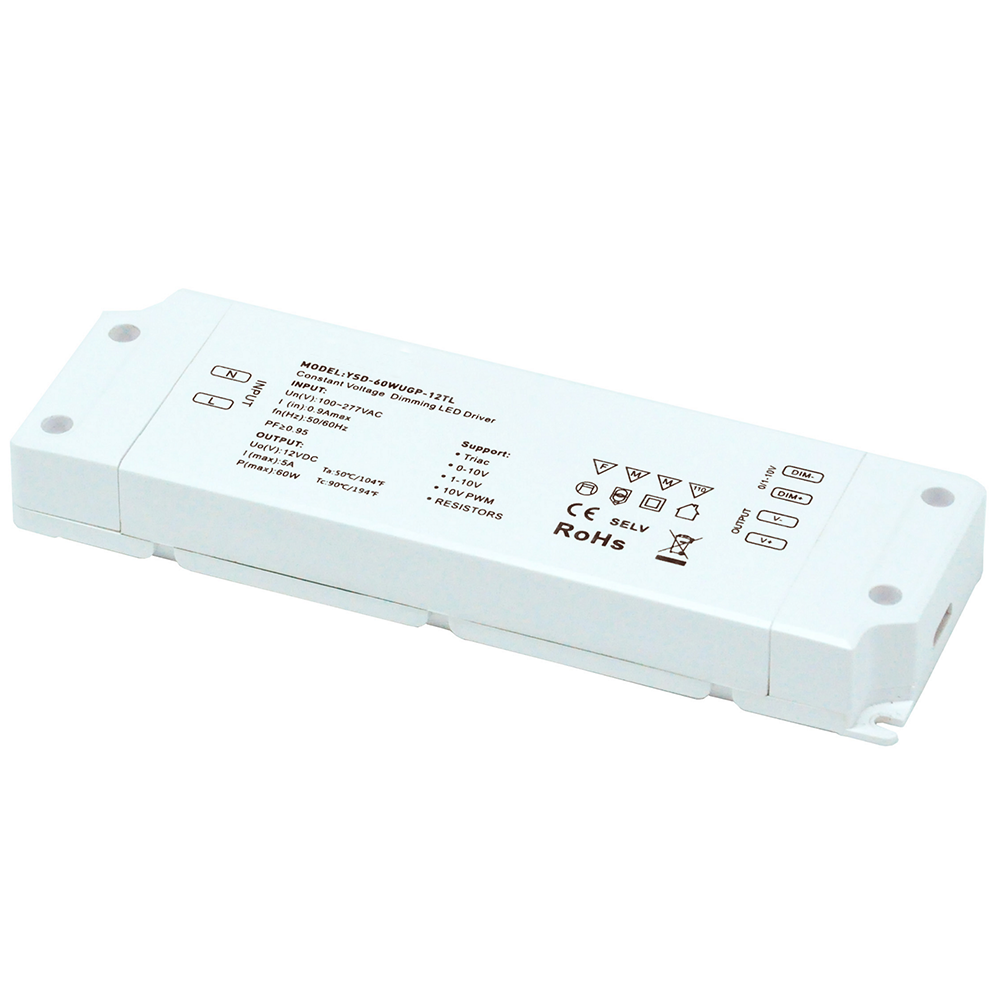

DC12V 60W TRIAC 0/1-10V PWM Dimmable 5 in 1 Dimming LED Intelligent Driver (CV PF>0.95)
LED Intelligent Driver (CV)

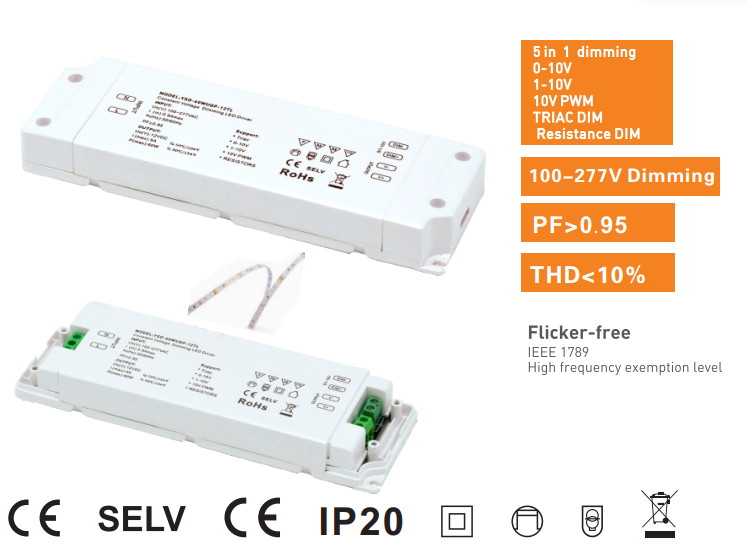

TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM
With soft-on and fade in function, visual more comfortable.
Dimming range: 0~100%, LED start at 1% possible.
0-100% flicker-free, High frequency exemption level.
High Efficient driver: efficiency 88%,PF>0.95, THD<10%

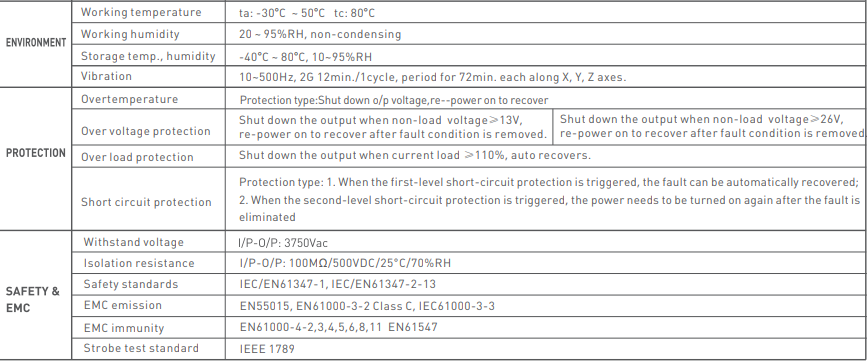

Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
Output voltage: 12VDC
Output voltage range: 12VDC±0.3VDC
Output сurrent: Max 5A
Output power: Max 60W
Output power range: 0~60W
With or without strobe: No strobe
Dimming range: 0~100%, dimming depth: Max. 1%
Ripple & Noise: ≤200mV
PWM frequency: 3500Hz

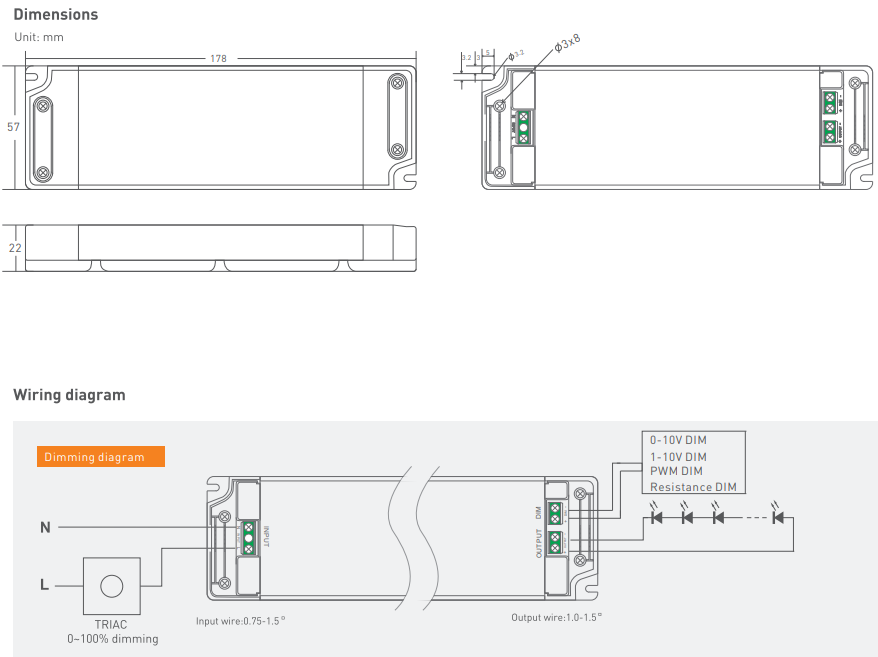

Dimming interface: TRIAC/ 0-10V/1-10V/10V PWM/RESISTANCE DIM
Input voltage: 100-277Vac
Input сurrent: 0 72 . ~0.26A
Power factor: PF>0.95/230Vac, at full load
THD: ≤10% at 230Vac, at full load
Efficiency (typ.): 88%
Inrush current(typ.): Cold start 30A at 230Vac
Control surge capability: L-N:2KV
Leakage сurrent: Max. 0.5mA
