AC110V/220V DC24V 200W 8.3A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
Design for indoor installations
Protections: Short circuit / Overload/Over temperature
Cooling by free air convection
100% full load burn-in test

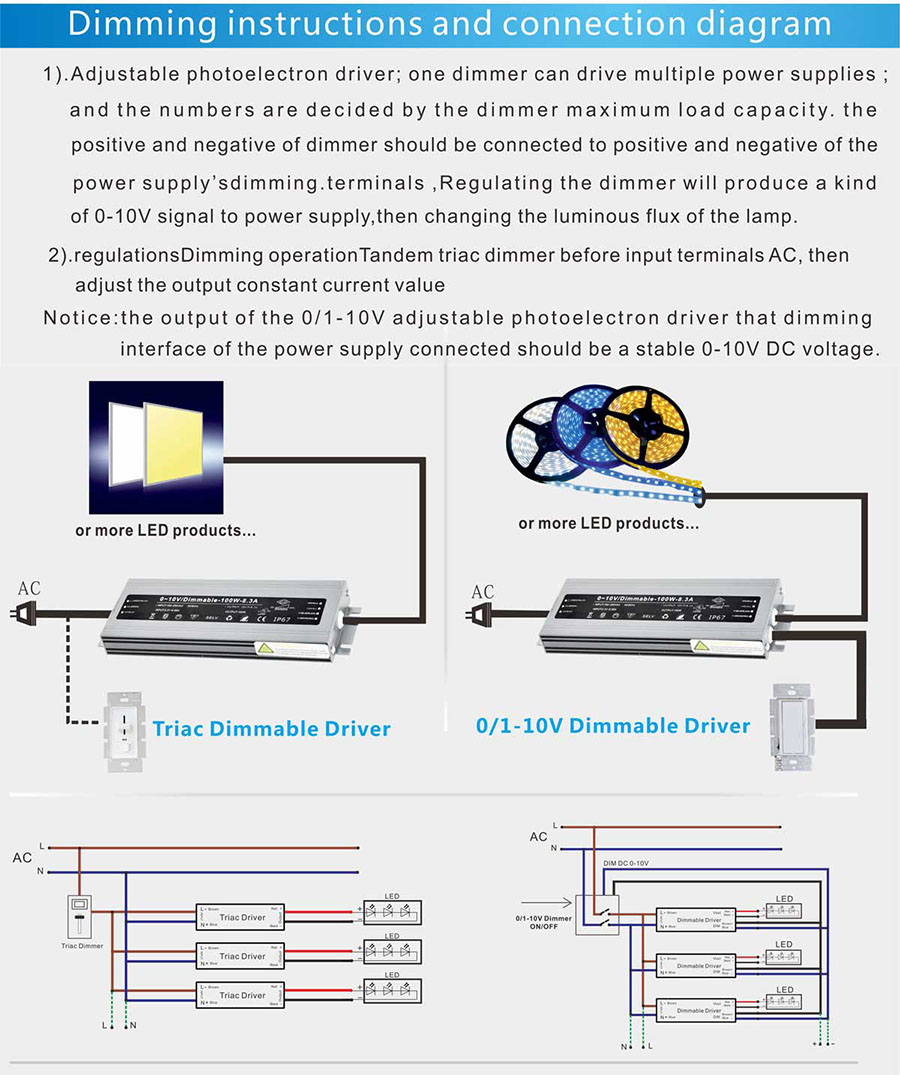

Optional dimming method: TRIAC or 0/1-10V dimmable
Meet the LED lighting
Products through CE, RoHS Certification
Output DC Voltage: 24V
Rated Current: 24V 8.3A
Current range: 0-8.3A
Rated power: 200W
Voltage Tolerance: ±2%
Linear Regulation: ±1%
Load regulation: ±2%
Input Voltage range: 170-250VAC OR 100-130VAC
Frequency range: 50-60Hz
Power Factor(Typ.): PF>0.6/220VAC
AC Current(Typ._): 1.8A/220VAC
Inrush Current(Typ.): Cold Start 120A/220VAC
Protection Short circuit: Protection type: recovers automatically after fault condition is removed
Overload over: load protected@115-140% above peak rating
Over temperature: protection type: shut down o/p voltage,re-power on to recover
