4CH CV 0-10V 1-10V Dimming Driver LT-704-5A

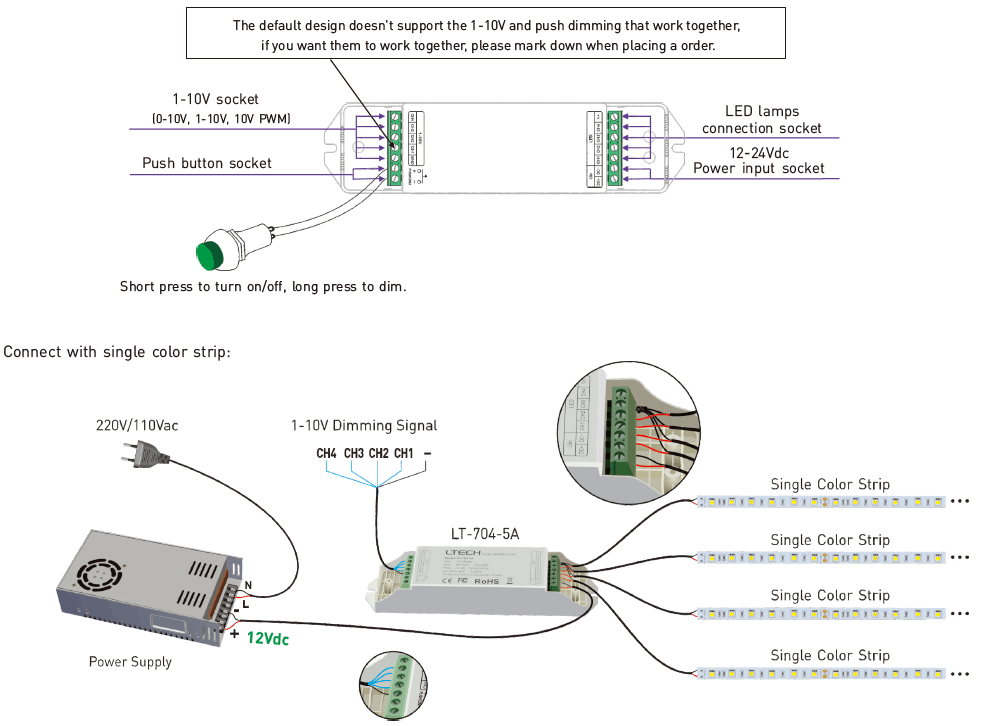

1、Dimming interface:0-10V, 1-10V, 10V PWM, push button.
2、PWM digital dimming, no alter LED color rendering index.
3、Dimming range: 0~100%, LED start at 0.1% possible.
4、Max. current output: 20A.
5、Short circuit / Over current protection, recover automatically.
6、Full protective plastic housing.
7、Suitable for indoor environments.
LT-704-5A 4CH CV 0-10V, 1-10V Dimming Driver

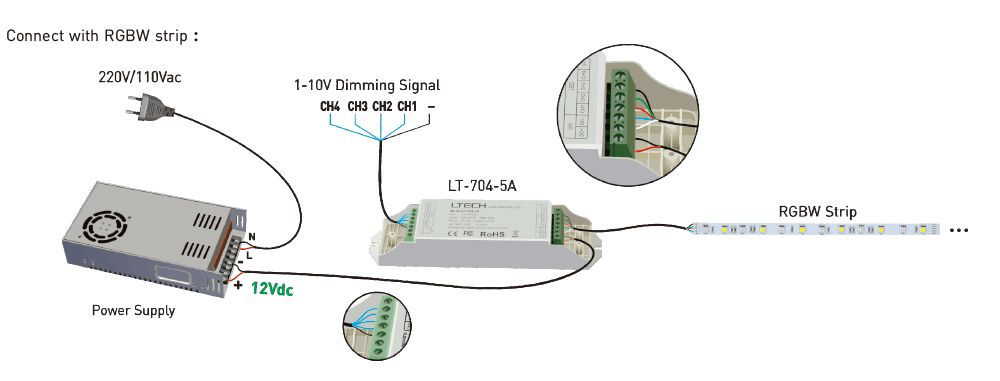

Input signal: 0-10V, 1-10V, 10V PWM, push button
Input voltage: DC12V~DC24V
Max load current: 5A ×4CH Max 20A
Max output power: 0-240W...480W
Dimming Range: 0~100%, LED start at 0.1% possible.
working temperature: -30℃~55℃

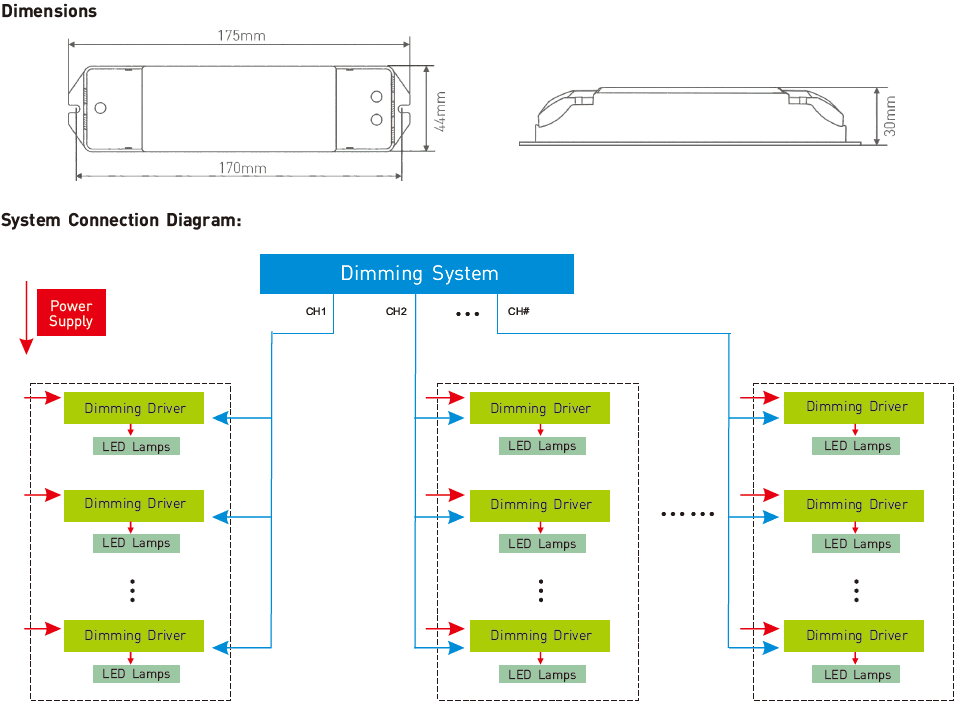

Package Size: L178×W48×H33(mm)
Weight (G.W): 150g
