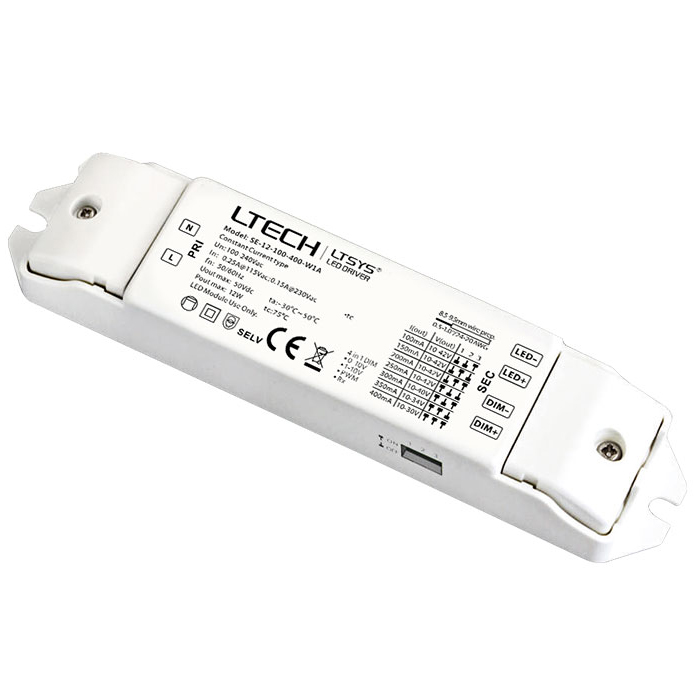

LED Intelligent Driver, 12W 100-400mA(100-240Vac) 4 in 1, SE-12-100-400-W1A
LED Intelligent Driver
Dimming interface: 0-10V (1-10V/10VPWM/RX).
T-PWM digital dimming, present a perfect visual experience.
Built-in SCM, dimming curve and smoothing time can be customized.
Automatic recognition of 0-10V, 1-10V input signal.
Dimming range: 0~100%, LED start at 0.01% possible.
Flicker-free (IEEE 1789), achieve the level of exemption
Innovative thermal management technology, intelligent power
Over-heat / Over voltage / Over load / Short circuit protection,
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
