75W 12VDC CV 0-10V/1-10V Driver(200-240Vac)LM-75-12-G1A2

Model: LM-75-12-G1A2 Review stars 0.0 (0 Reviews) Various options in stock
Price$39.98
Select Specifications:
Select Input Voltage:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The LTECH LM-75-12-G1A2 is an intelligent 75W constant voltage 12VDC power supply engineered for precision architectural dimming and dependable 200-240Vac installations across the EU, UK, and AU. Delivering up to 6.25A of regulated output, this unit serves as a direct led light driver replacement for legacy fixtures and a versatile ledstrip driver for modern residential and commercial lighting projects. It integrates 5-in-1 dimming capabilities, accepting 0-10V, 1-10V, 10V PWM, RX, and AC Push DIM signals with automatic protocol detection. Driven by an onboard single-chip microcomputer (SCM), the driver achieves an ultra-deep 0.1% to 100% dimming range with a PWM frequency up to 3600Hz, meeting IEEE 1789 standards for flicker-free operation at the high-frequency exemption level. Built with a slim protective housing and comprehensive self-recovering electrical safeties, it provides a stable power conversion foundation for any 12V single color LED strip lights setup.

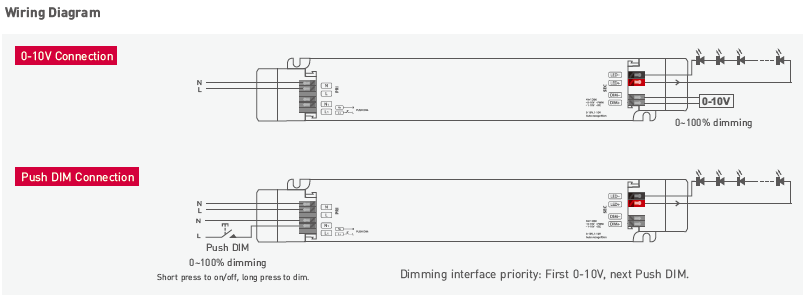

Wiring Diagram for 0-10V and Push DIM Control Connections
75W 12VDC CV 0-10V/1-10V Driver (200-240Vac) LM-75-12-G1A2 - photo 1
Efficiency, Power Factor, THD, and Overload Relationship Curves

Key Features

5-in-1 Control Interface

Automatically recognizes 0-10V, 1-10V, 10V PWM, RX, and standard line-voltage Push DIM switches without manual toggle adjustments.

0.1% Ultra-Deep Dimming

Smooth 0-100% stepless dimming curve with low-end startup at 0.1% enables refined ambiance control in architectural spaces.

IEEE 1789 High-Frequency Exemption

Operates at a PWM frequency up to 3600Hz to eliminate visible and camera-detected optical flicker across the entire dimming spectrum.

High Energy Conversion

Delivers 91% typical efficiency at full load with a power factor exceeding 0.97 and total harmonic distortion under 14% at 230Vac.

Automated Four-Way Protection

Integrated monitoring circuits automatically isolate and recover from short circuits, overloads (≥102%), over-voltage, and PCB thermal peaks (≥110°C).

Compact Class II Enclosure

Measuring 293×43×30 mm with integrated strain relief and wire-pressing boards, the housing fits into narrow linear coves and cabinet cavities.

Technical Highlights

  • Delivers 12Vdc ±0.5Vdc constant voltage output with ripple and noise rated at ≤200mV for stable LED performance.
  • Equipped with an SCM processor supporting customized dimming curves and soft-start ramp times.
  • Priority logic handles dual control inputs cleanly by giving immediate precedence to active 0-10V signals over Push DIM lines.
  • Push DIM mode features non-volatile memory that restores the previously adjusted brightness after AC power interruption.
  • Complies with Safety Extra Low Voltage (SELV) regulations and withstands up to 3750Vac isolation test voltage.

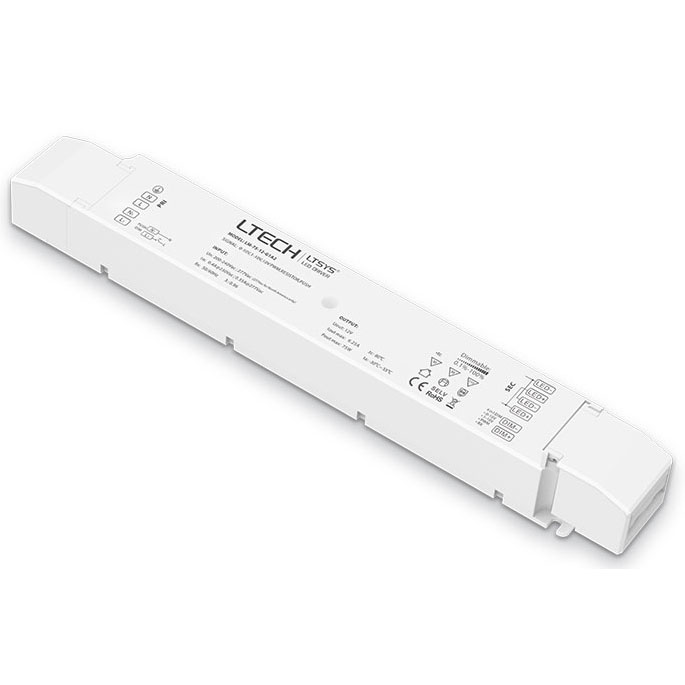

LTECH LM-75-12-G1A2 75W 12V Constant Voltage 0-10V and Push DIM Driver Overview

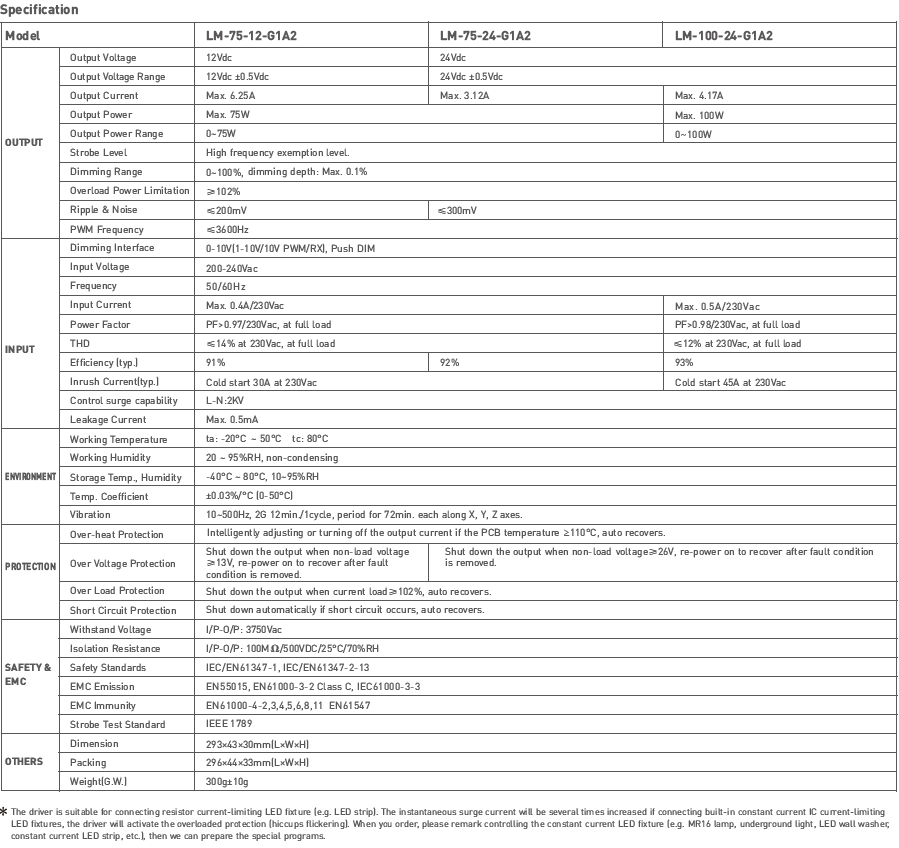

Product Specifications

ParameterDetails
ModelLM-75-12-G1A2
Product TypeConstant Voltage LED Intelligent Driver
Rated Output Power75W Max (0~75W load range)
Output Voltage12Vdc
Output Voltage Tolerance12Vdc ±0.5Vdc
Output CurrentMax. 6.25A
Input Voltage220V±20% (EU, UK, AU) / 200-240Vac
AC Input Frequency50/60Hz
AC Input CurrentMax. 0.4A at 230Vac
Power Factor (PF)>0.97 at 230Vac, full load
Total Harmonic Distortion (THD)≤14% at 230Vac, full load
Efficiency (Typical)91%
Inrush CurrentCold start 30A at 230Vac
Surge ProtectionLine to Neutral: 2KV
Leakage CurrentMax. 0.5mA
Dimming Interface0-10V, 1-10V, 10V PWM, RX, Push DIM
Dimming Range0~100% (dimming depth down to 0.1%)
PWM Modulation Frequency≤3600Hz
Flicker StandardIEEE 1789 High Frequency Exemption Level
Ripple & Noise≤200mV
Overload Power Limitation≥102% (shut down output, auto recovery)
Over Voltage ProtectionShut down output when non-load voltage ≥13V
Over Heat ProtectionOutput adjustment or shutdown when PCB ≥110°C, auto recovery
Short Circuit ProtectionShut down output, auto recovery
Operating Ambient Temperature (ta)-20°C to 50°C
Maximum Case Temperature (tc)80°C
Working Humidity20% ~ 95% RH, non-condensing
Safety StandardsIEC/EN61347-1, IEC/EN61347-2-13, SELV
EMC Emission & ImmunityEN55015, EN61000-3-2 Class C, IEC61000-3-3, EN61547
Product Dimensions293 × 43 × 30 mm (L × W × H)
Net / Gross Weight300g ± 10g
Product Dimensions and Case Specifications (293 x 43 x 30 mm)

Application Scenarios

Architectural Linear Cove Lighting Integrate into 220V ceiling coves to power constant voltage 12V LED strip lights. The 0.1% minimum dimming depth ensures smooth transitions from full ambient illumination down to subtle night lighting without stepped flicker or sudden cutoffs.
Commercial 0-10V Dimming Networks Deploy as an efficient led driver replacement across office buildings, hotels, and retail displays connected to central 0-10V dimmer control panels. The unit automatically detects control voltage lines and delivers consistent brightness across multiple grouped luminaires.
Residential Push-Button Wall Dimming Utilize existing momentary wall switches for full lighting management without pulling separate low-voltage control lines. A short click switches power while holding the switch smoothly adjusts illumination levels, keeping cabinetry and vanity runs uncluttered.
Flicker-Free Studio and Hospitality Installations With a high-frequency PWM rate of ≤3600Hz complying with IEEE 1789, this replacement led driver prevents banding and stroboscopic artifacts under high-speed video recording, broadcast cameras, and photography lighting.

How to Wire & Install This Power Supply

  1. Confirm that your lighting load uses 12VDC constant voltage and that the total connected load does not exceed 60W (providing an optimal 20% operating headroom under the 75W maximum rating).
  2. Disconnect AC mains power at the service panel before handling any wiring or removing the protective end covers.

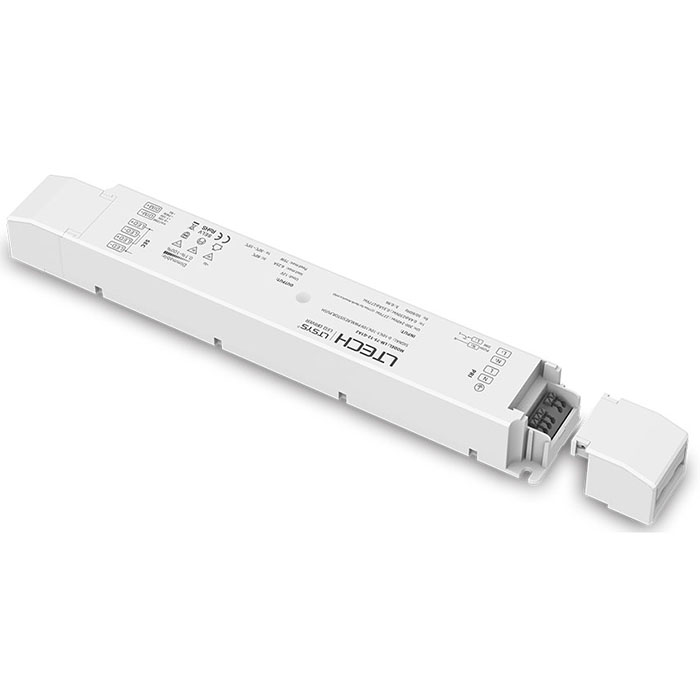

  3. Break off the left and right latches to remove the plastic terminal safety covers, exposing the screwless wire-pressing terminals.
  4. Connect the 200-240Vac mains lines to the AC input terminals labeled 'L' (Live) and 'N' (Neutral).
  5. For 0-10V control: Connect the low-voltage dimming wires from your analog controller to the terminals marked '+' and '-'. For Push DIM control: Connect an AC momentary push switch across the AC Live line and the 'Push' input terminal (do not connect 0-10V lines simultaneously).
  6. Connect your 12V LED strip positive wire to the driver's output terminal labeled '+' and the negative return to '-'.
  7. Engage the wire-pressing board firmly over the cable jackets to provide strain relief, snap the protective covers back in place, and restore AC mains to test dimming performance.
⚠ Precautions
  • This unit is designed strictly for 200-240Vac (50/60Hz) electrical grids in Europe, the United Kingdom, Australia, and compatible regions; do not connect directly to 110V/120V mains.
  • This driver is engineered for resistor current-limiting fixtures like standard flexible LED strip lights. If connecting built-in constant current IC fixtures (such as MR16 bulbs, wall washers, or CC strips), high inrush surge may trigger overload protection (hiccup mode). Contact support prior to ordering CC fixtures.
  • Ensure the driver is mounted in a well-ventilated indoor location maintaining ambient temperatures between -20°C and 50°C. Never cover the housing with thermal insulation.
  • Control signal priority: If both 0-10V and Push DIM signals are present, the driver automatically defaults to 0-10V input commands.
  • The driver holds an IP20 rating; do not expose to moisture, condensing humidity, or outdoor elements without a secondary waterproof junction box.

What's in the Box

  • ✓1 × LTECH LM-75-12-G1A2 75W 12V Dimmable LED Driver
  • ✓1 × Installation & Wiring Instruction Manual

⇩ Downloads & Documents

PDFLM-100-24-G1A2

Frequently Asked Questions

Q: is an led driver a transformer

A:While both devices step down electrical voltage, an LED driver includes active rectification, solid-state regulation, and dimming circuitry, whereas a traditional magnetic transformer only changes AC voltage levels without providing clean, constant DC output.

Q: how to test led driver

A:To test this driver, verify that 200-240Vac is present across the L and N input terminals using a digital multimeter set to AC volts. Next, measure the DC output terminals with the multimeter set to DC volts, which should read a steady 12Vdc (±0.5Vdc) when unloaded or under a suitable 12V resistive test load.

Q: Can I use the LM-75-12-G1A2 on standard 110V-120V US power outlets?

A:No. The LM-75-12-G1A2 is engineered specifically for 200-240Vac (50/60Hz) electrical systems used in Europe, the UK, Australia, and Asia. Operating this unit on 110V/120V mains will cause under-voltage malfunction.

Q: Can this unit replace an older non-dimmable 12V power supply?

A:Yes. This 75 watt led driver operates reliably as a replacement led driver. If no 0-10V control wire or Push DIM switch is connected, the unit simply turns on at 100% full brightness when powered by the wall switch.

Q: What is the maximum continuous load recommended for this 75W driver?

A:For maximum operating lifespan and cool thermal performance, follow the standard 80% continuous load rule by loading up to 60W of 12V LED strip lights onto this 75W maximum rated power supply.

Q: How does the Push DIM function work with a momentary wall switch?

A:In Push DIM mode, a brief tap of the momentary switch toggles the light on or off, while holding the switch dims the output up or down. Releasing and holding the switch again reverses the dimming direction, and the driver saves your last brightness setting in built-in memory.
