Special Price: $25.98 $24.984% off

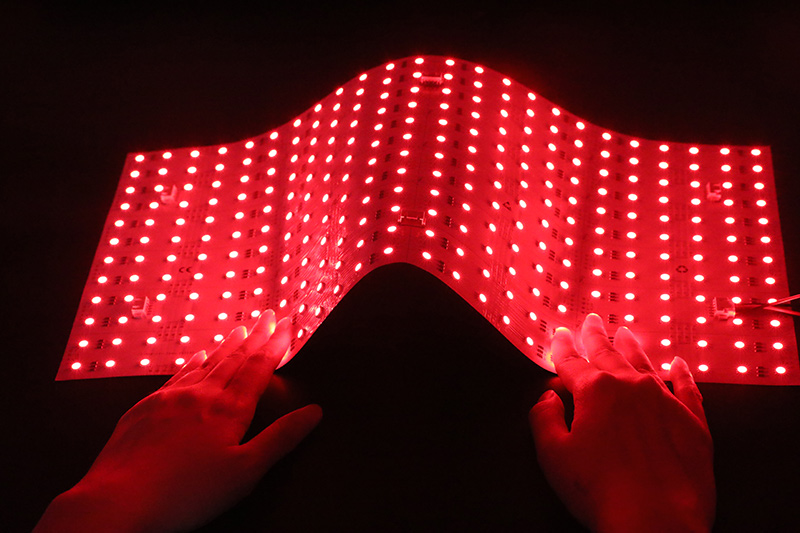

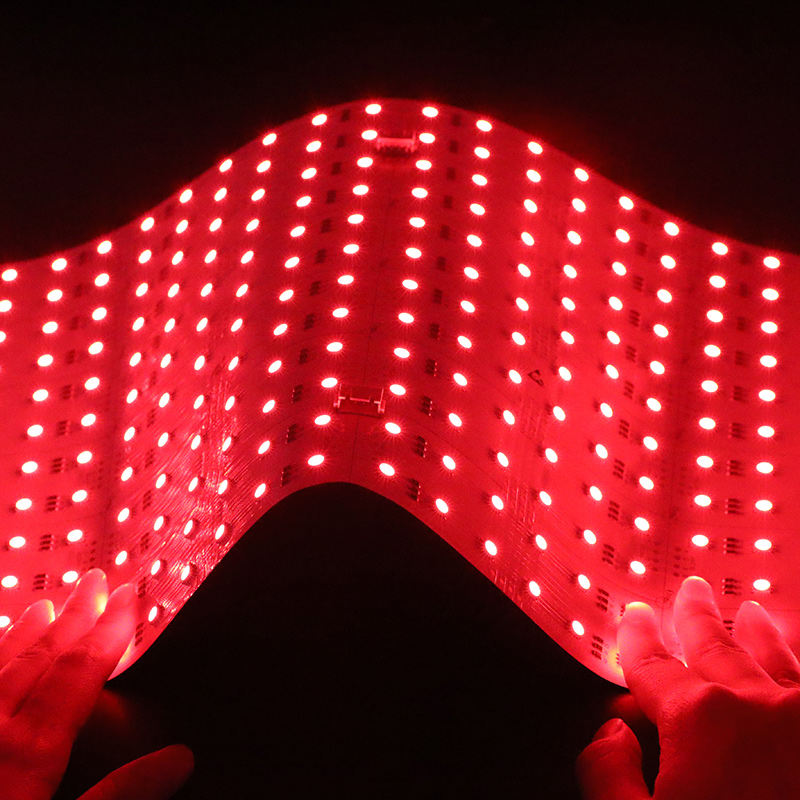

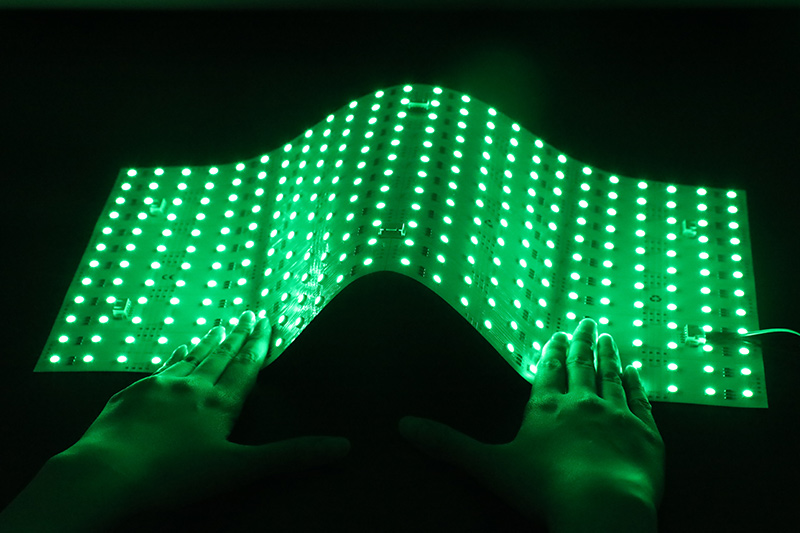

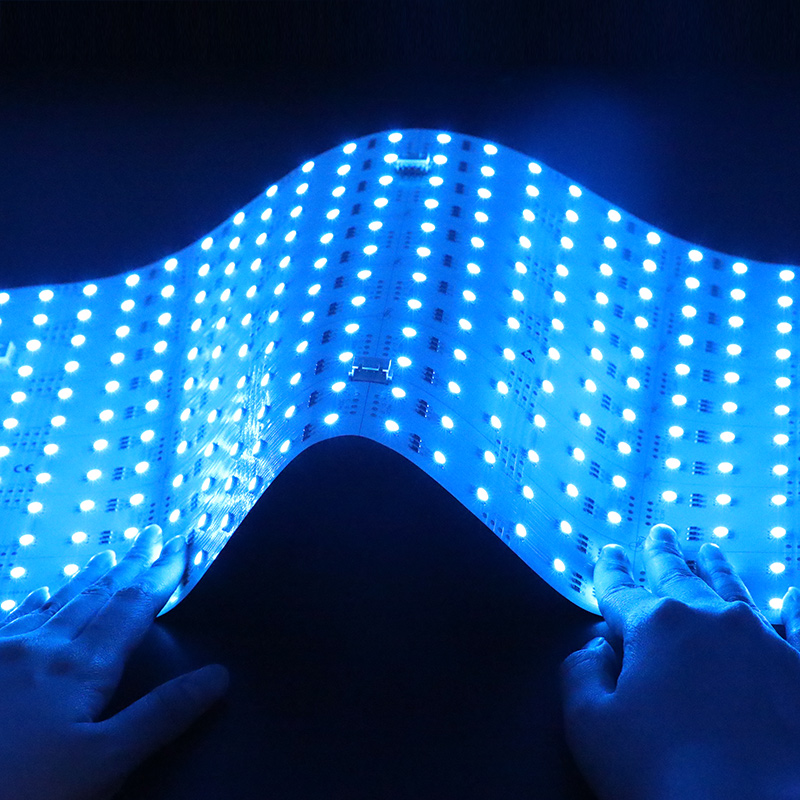

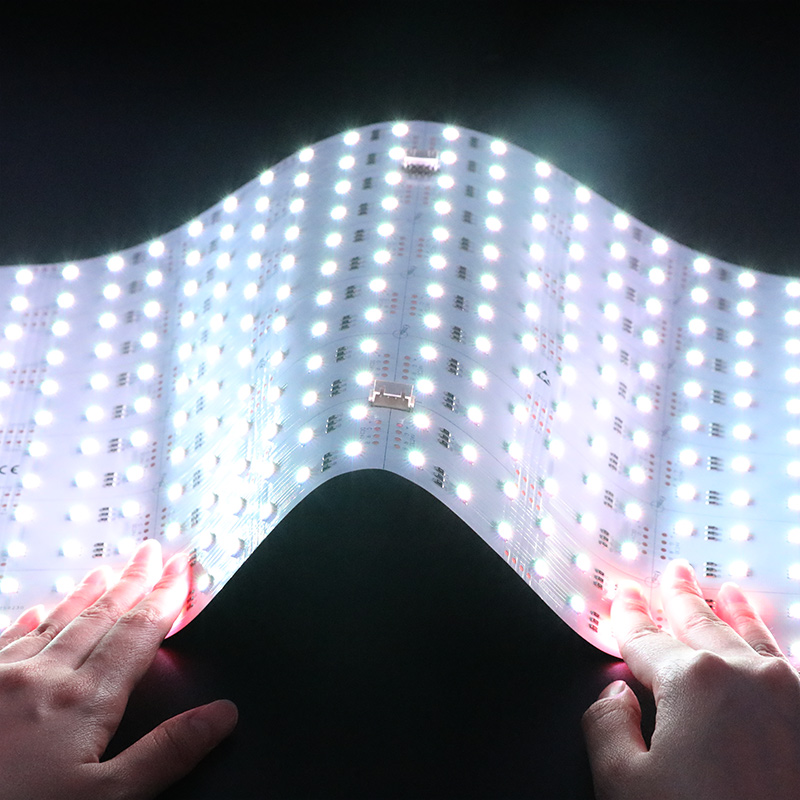

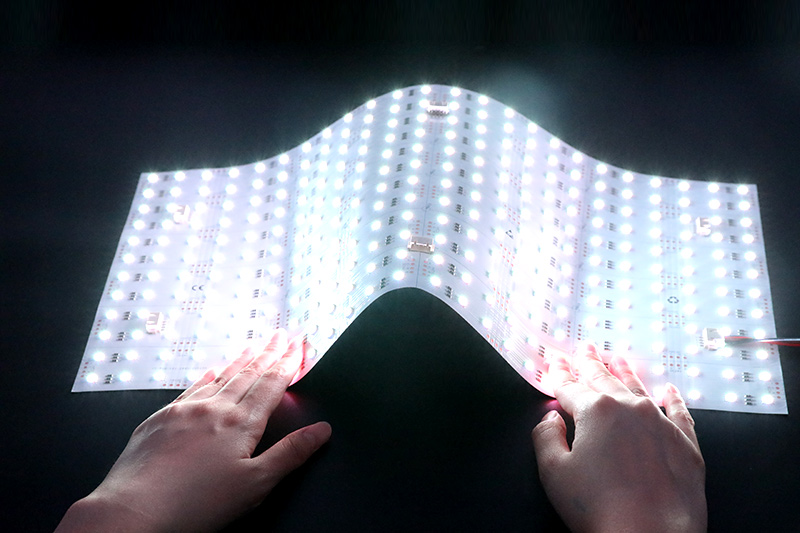

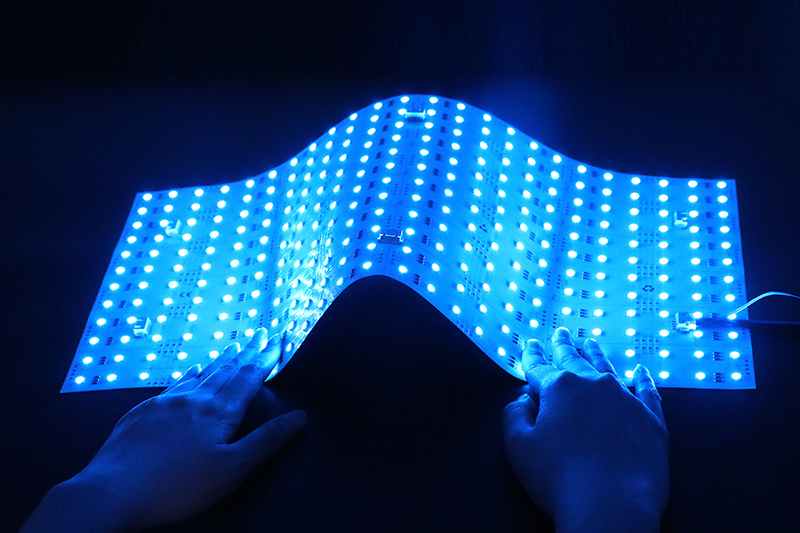

Flexible RGB LED sheet is as thin as paper and can be bent by hand, enabling it to easily fit curved walls or ceilings. This RGB LED light sheet is specially designed for colorful backlighting. Using the controller, you can adjust the brightness and display thousands of colors.
Each LED glowing sheet is equipped with 288pcs 5050 SMD LEDs, where the three primary RGB colors are integrated within each bead. Compared to color-separated RGB SMDs, this LED backlight sheet provides higher brightness and more uniform lighting effects.

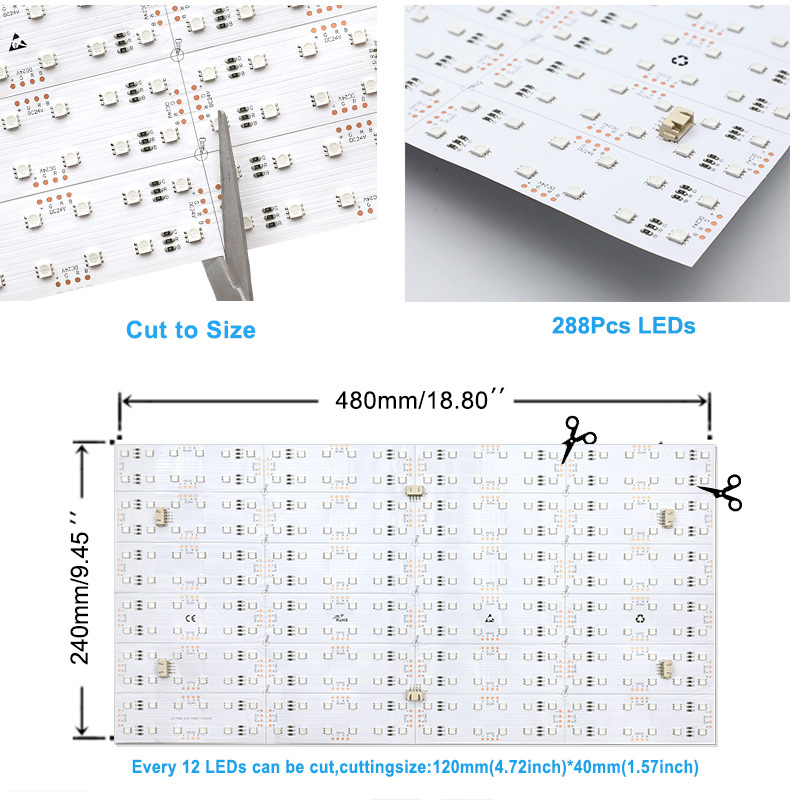

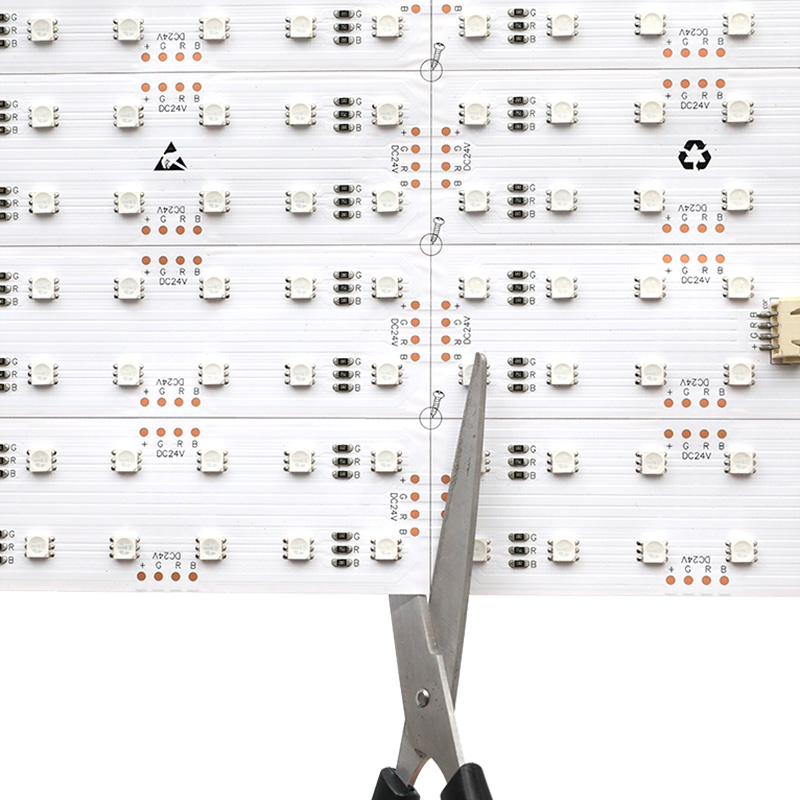

The LED paper sheet operates at DC24V, and can be freely customized in size. For large area illumination, you can seamlessly splice the sheet LED lights together by soldering or the connectors on the board to cover wide large walls, desktops, and ceilings. For small-area lighting, you can cut the thin LED sheet with scissors without affecting the original luminous effect. Every 12 LED beads (one module) can be cut, and the board is marked with black guidelines. The minimum cut range is L120mm*W40mm (4.72in*1.57in).
Features:
1. RGB 3in1 color, diverse color illumination, brighter and more uniform.
2. Flexible and bendable, easy to fit curved walls or ceilings.
3. Paper-thin, effortlessly integrate into architectural design.
4. Cuttable and trimmable, every 12 LEDs can be cut. (L4.72" x W1.57")
5. Linkable via on-board connectors for large area illumination.

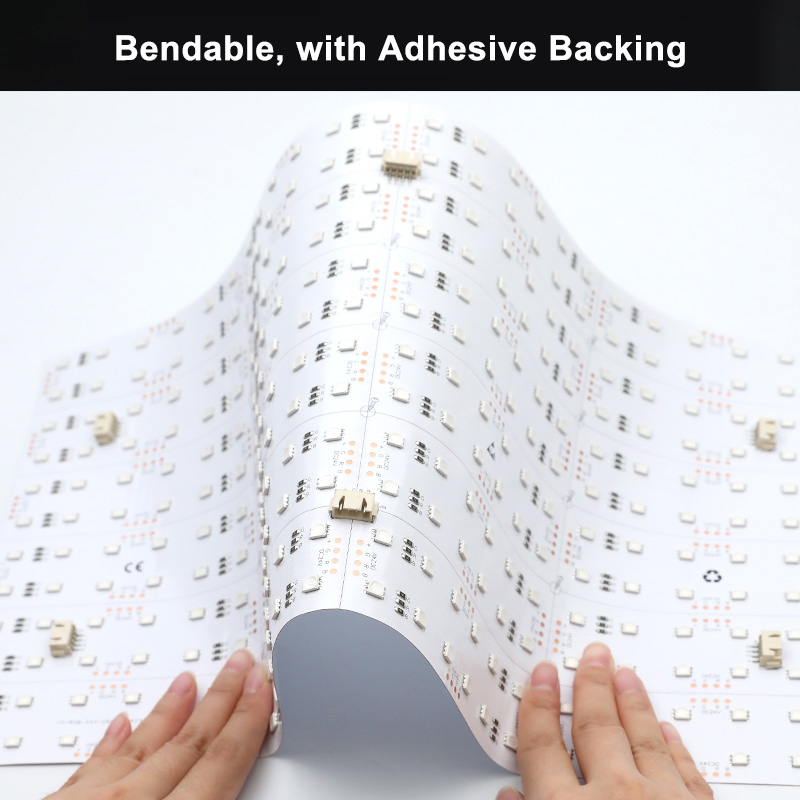

5. Adhesive backing for quick and stable installations.
If select kit, you will receive WIFI-BT-WB5 WiFi controller and LRS-100-24 meanwell power supply with an AC plug.
Note:
1. Designed with pre-drilled holes for screw mounting, but not fully open.

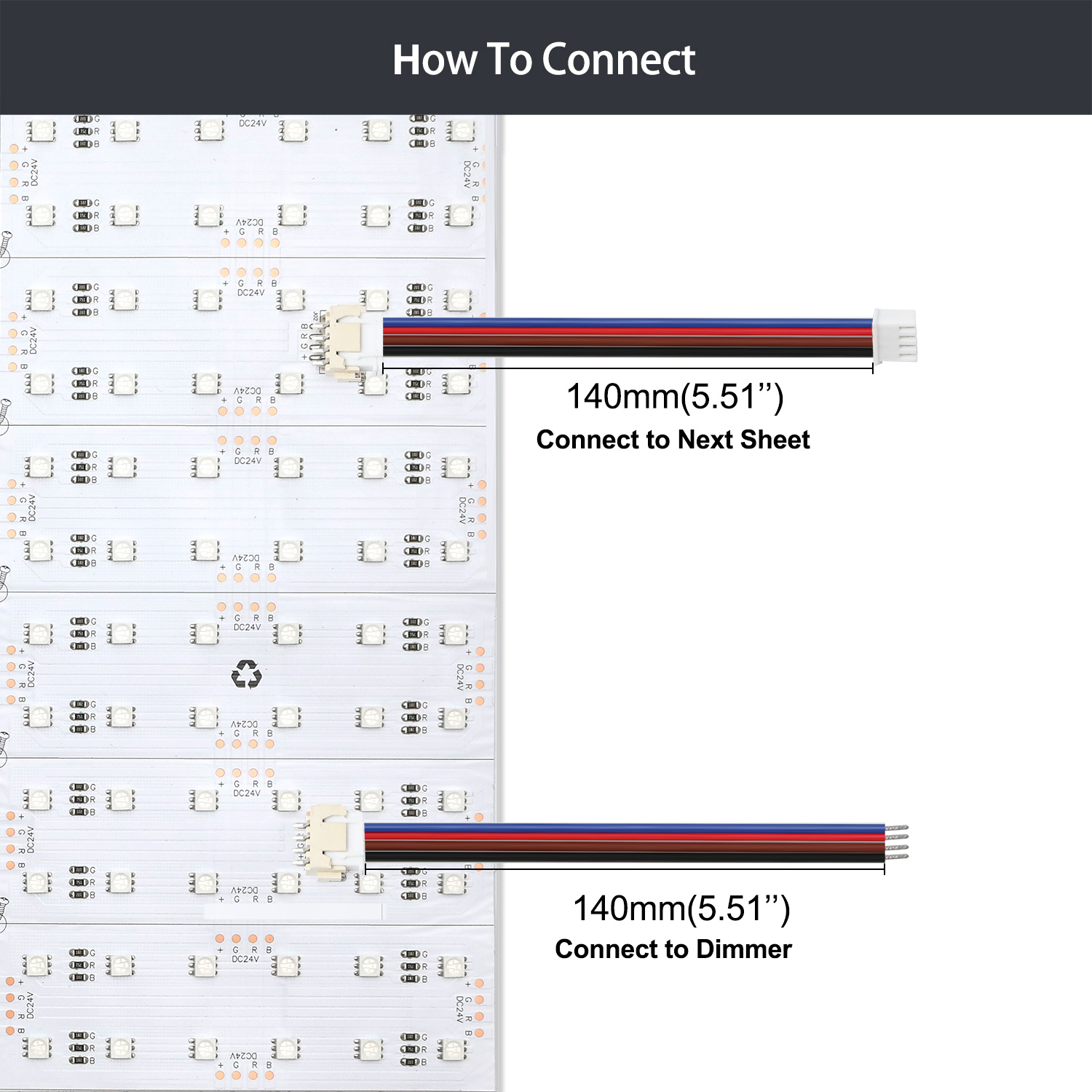

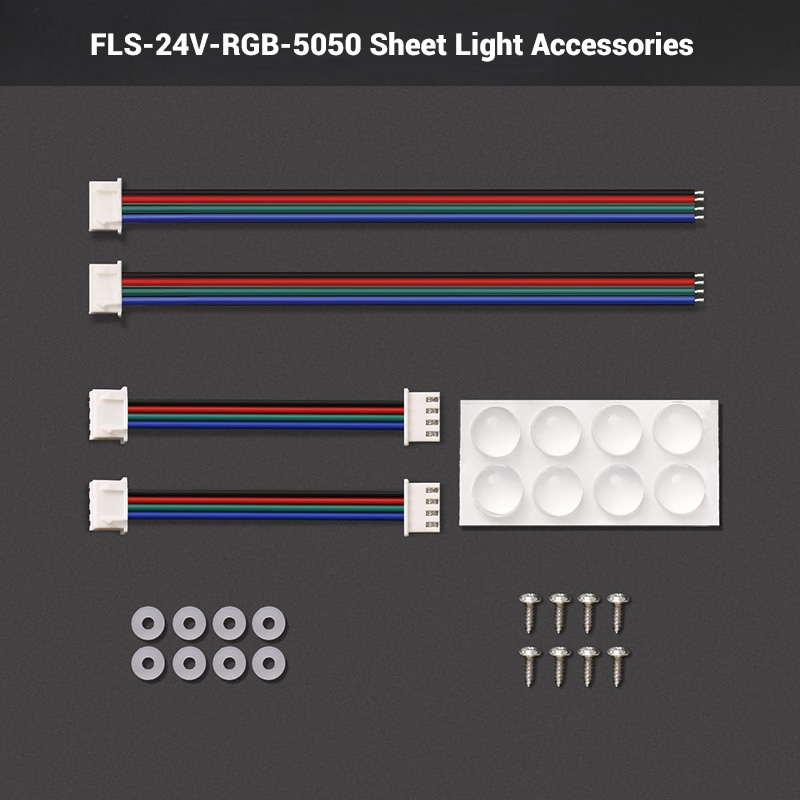

3. Each flexible LED sheet comes with a connection piece and a connecting cable.
4. Please arrange the 24V power supply layout reasonably. A connector terminal withstands a current of 1 ampere. Each connector can connect up to 3 LED lighting sheets in a series.
5. It is recommended to use one controller to control 2-5 LED pieces.
The "24X12" specified in the title indicates that there are 24 LEDs in a row, with a total of 12 rows. (288 LED Chips)
Click here to discover more LED light sheets: Flexible Cuttable LED Sheet Lights
Video showcasing the CCT color LED sheet used for marble wall backlighting.
Kindly note that the product featured in the video is different from the one offered here. (mainly color difference) We appreciate your attention to this detail.
Product Specifications
| LED Strip Type: | 24V 5050 Trimmable Bendable 3in1 RGB Multi Color LED Sheet |
| LED Chip: | SMD5050 |
| Input Voltage: | 24V DC |
| Product Size: | L18.8 "x W9.4"x H0.23" (480mm*240mm*6mm) |
| Light Color: | RGB |
| Light Efficiency: | 20-22LM per LED at Full Output |
| LED Quantity: | 288 LEDs per sheet |
| Working Power: | 18W per sheet |
| Cut Unit: | 12 LEDs (L4.72" x W1.57"/ 120mm*40mm) |
| Lifespan: | 50,000+hours |
| Beam Pattern: | 120 degrees |
| IP Rating: | Non-waterproof IP20 |
| Warranty: | 2 years |
