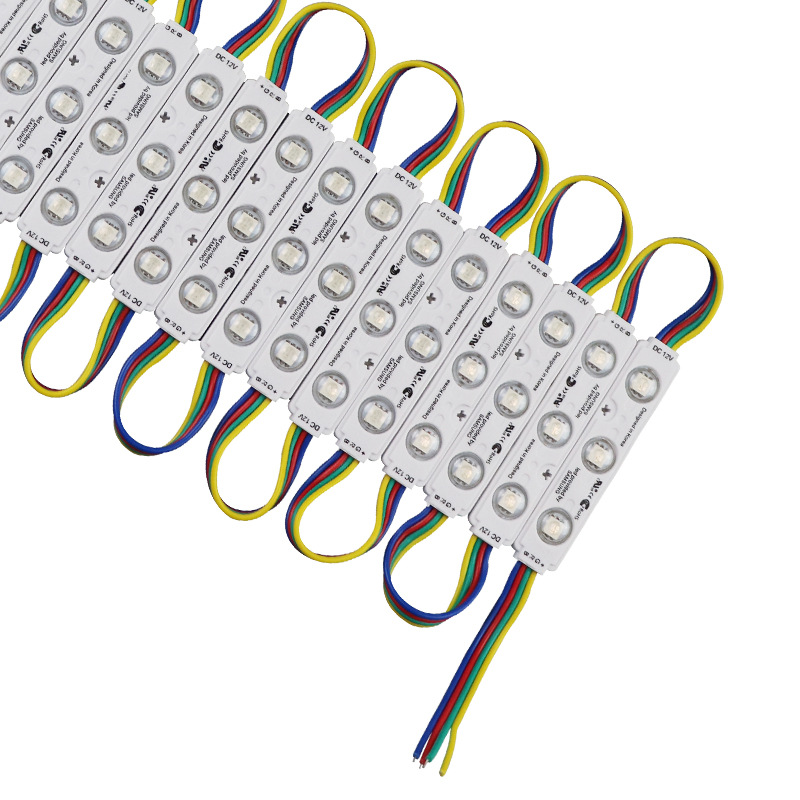

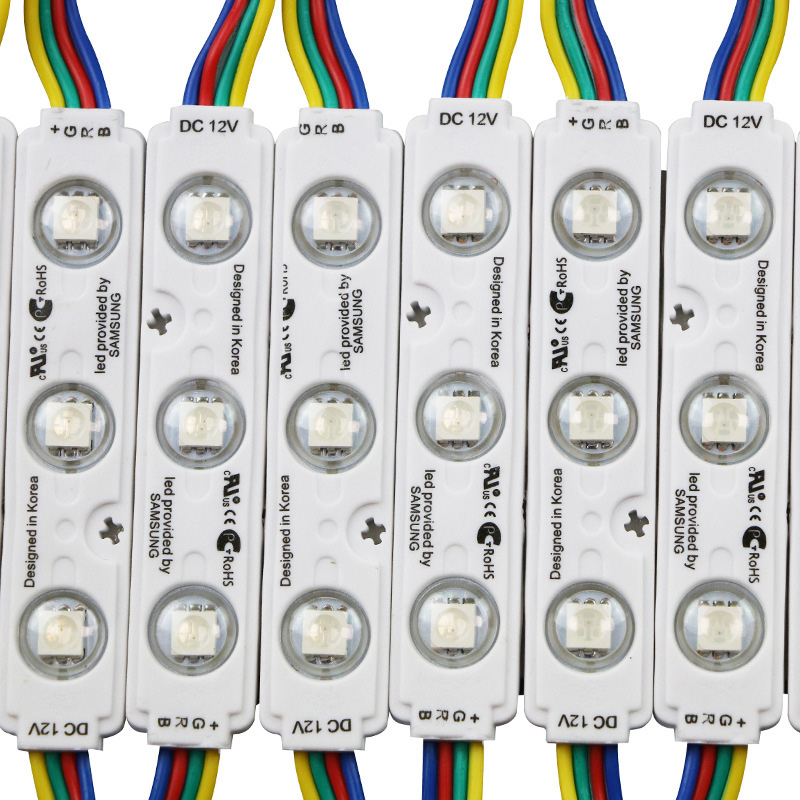

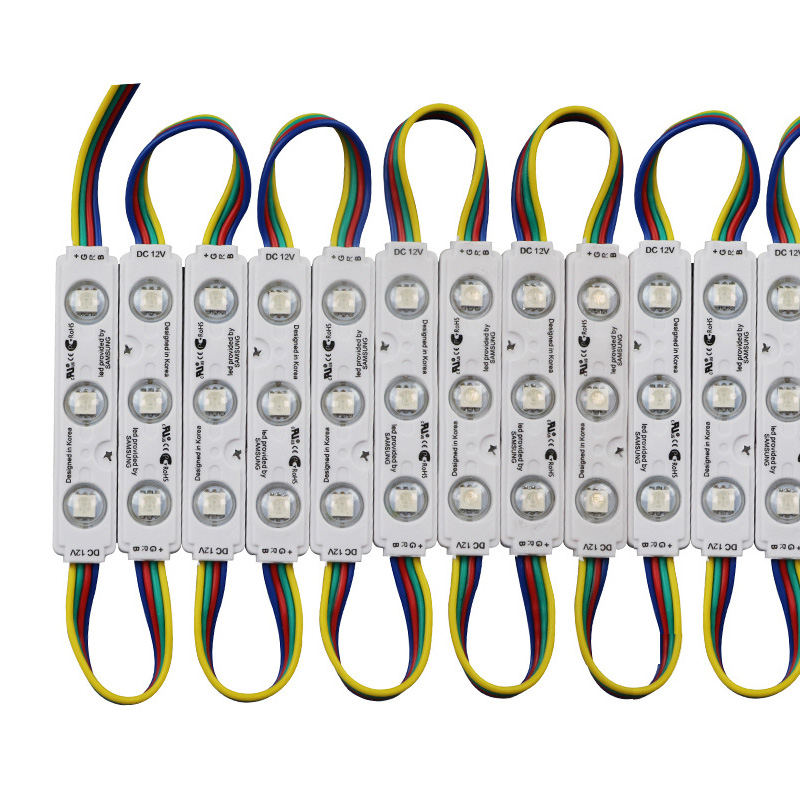

12Volt 0.72Watt 3 SMD5050 Super Bright LEDs Square Constant Current Sign Linear Color Change RGB/RGBW LED Module String Lights For Channel Letter Lighting
These 12Volt 0.72Watt 3 SMD5050 super bright LEDs square constant current sign linear single-color constant current LED light modules provide consistent illumination for channel letters, sign lighting, under-cabinet lighting, store window lighting, display case lighting,channel letters,signboard lighting,advertising light boxes,decorative lighting ,backlighting, average home lighting, lighting professionals and more!

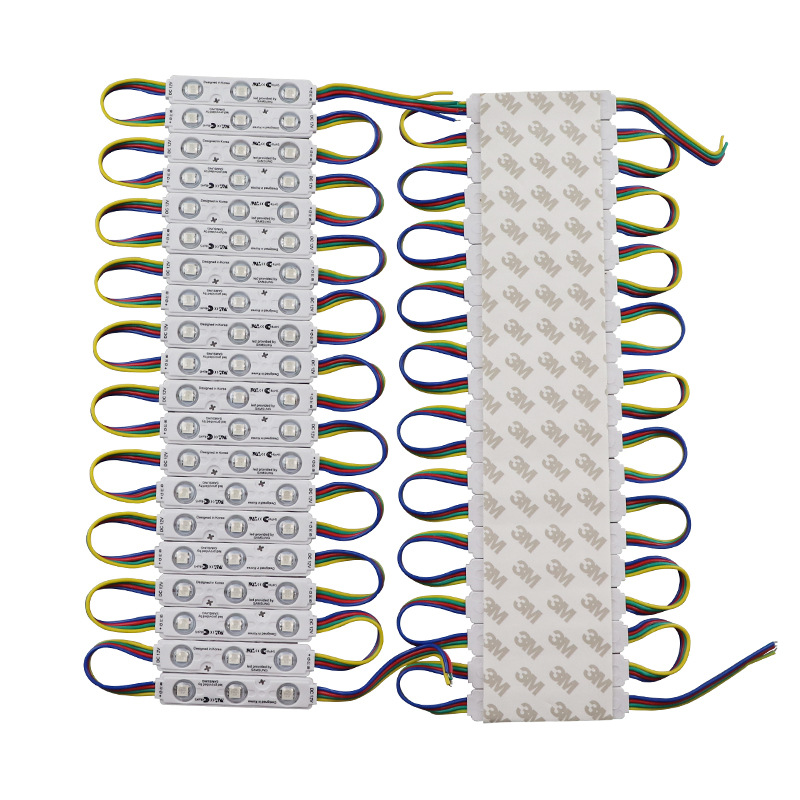

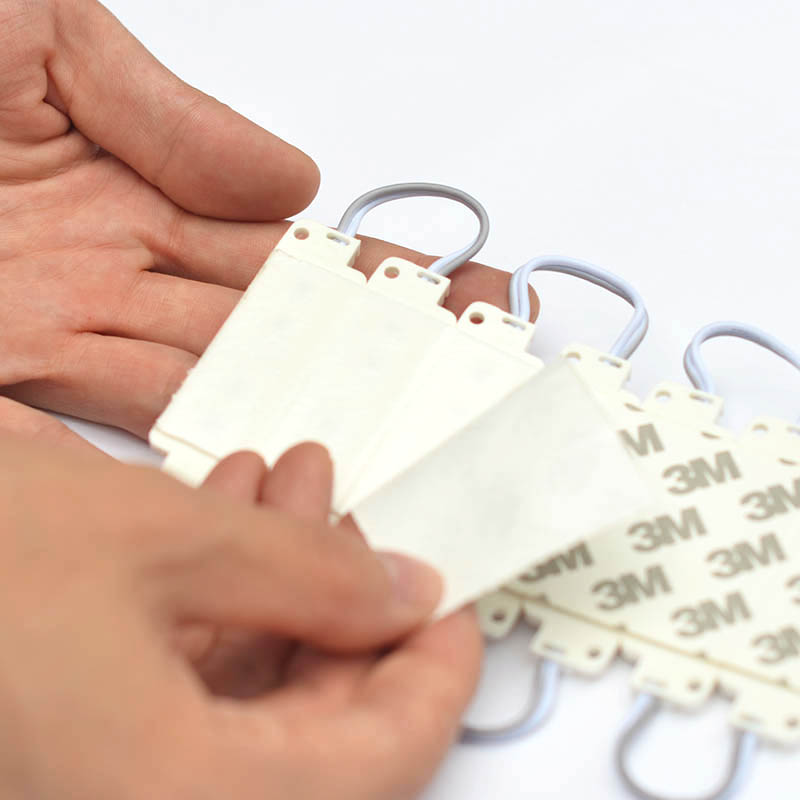

Our brightest LED modules adopt super bright 5050 SMD LED light source, low voltage power supply, security and stability. The low-profile PVC module is injection molded with a 1/8" screw hole for mounting in extreme cold or heat. Equipped with a mounting hole and Double-sided 3M adhesive foam tape, can be stuck just about anywhere, easy installation. Components are not fragile, easy to transport and use. Long service life, more than 50000 hours. Low power consumption, energy saving province electricity. 120 Degree Beam Pattern. Each module can be cut into one unit, so you could cut a different length for your project and request. Available in natural white, warm white, blue, green, yellow, and red colors.

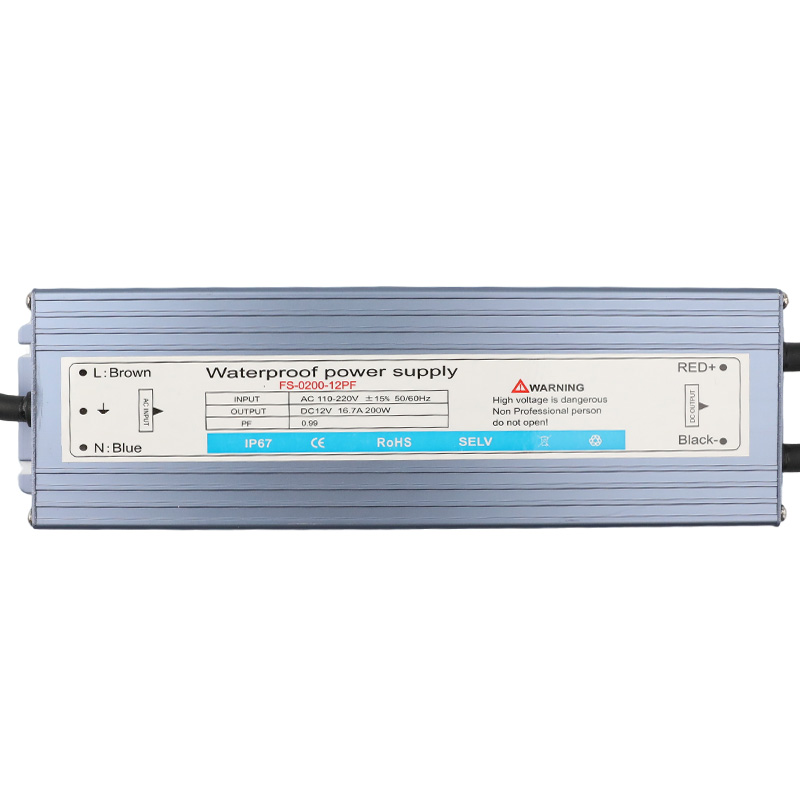

These 12 volt LED Modules are sold in 1 pcs increments. if you enter a quantity of "1", you will get 1 pcs. if you enter a quantity of "5", you will get 5 pcs in a string. Dimmable - Connect LED Smart Dimmers. 12VDC power supply Link.
Standards and Certifications
LED Type: SMD 5050
LED Brand: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

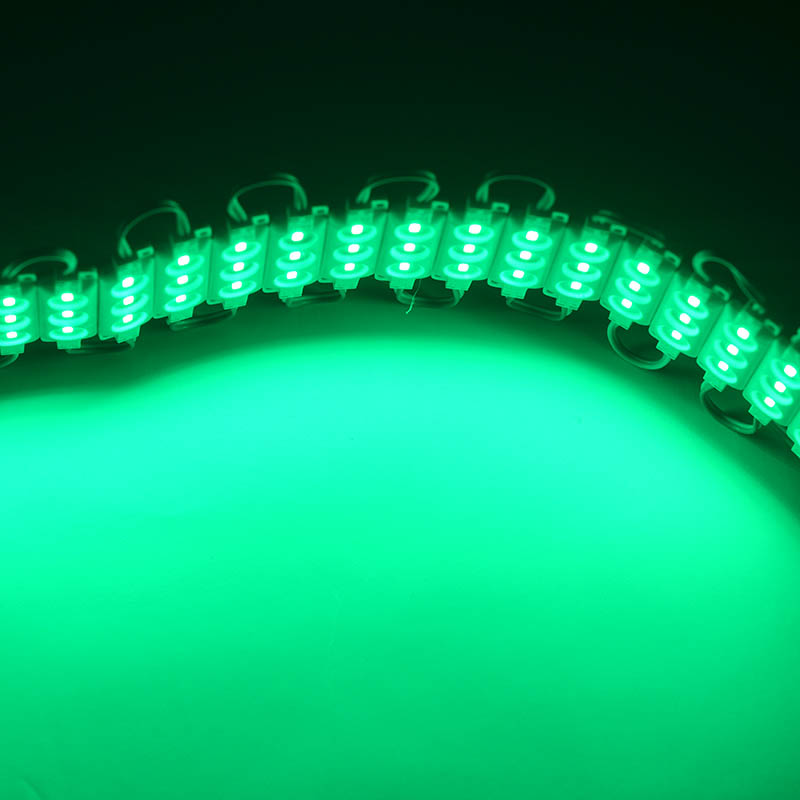

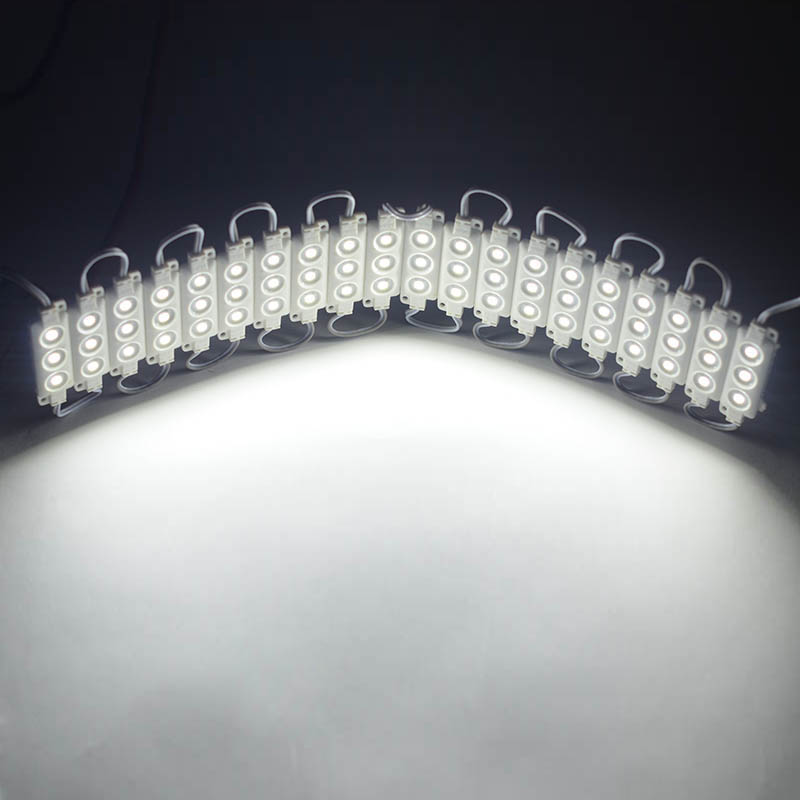

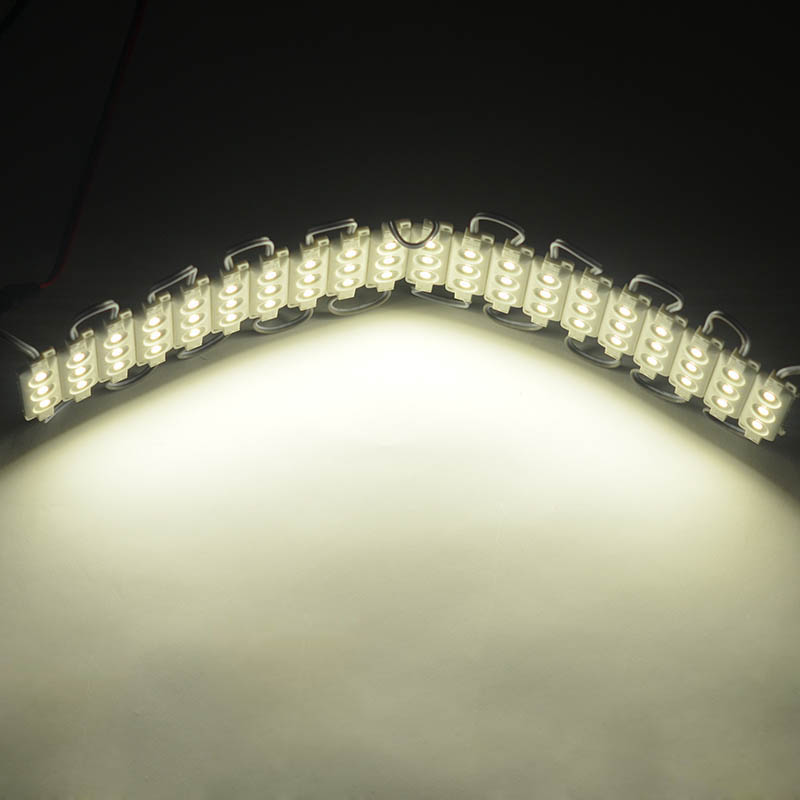

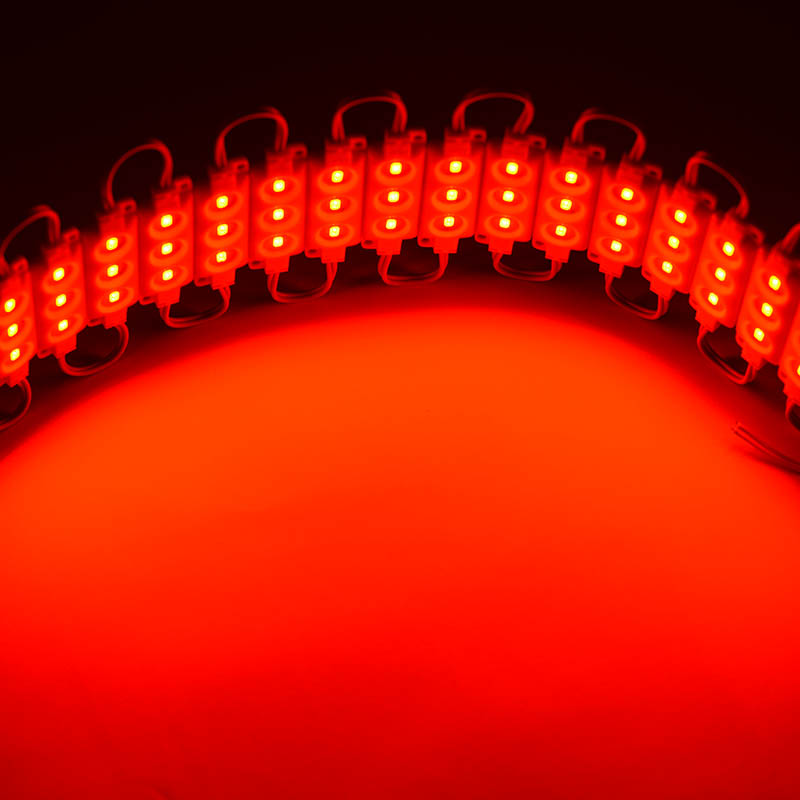

Light Color: Warm White, Daylight White, Red, Green, Blue, Amber (optional)

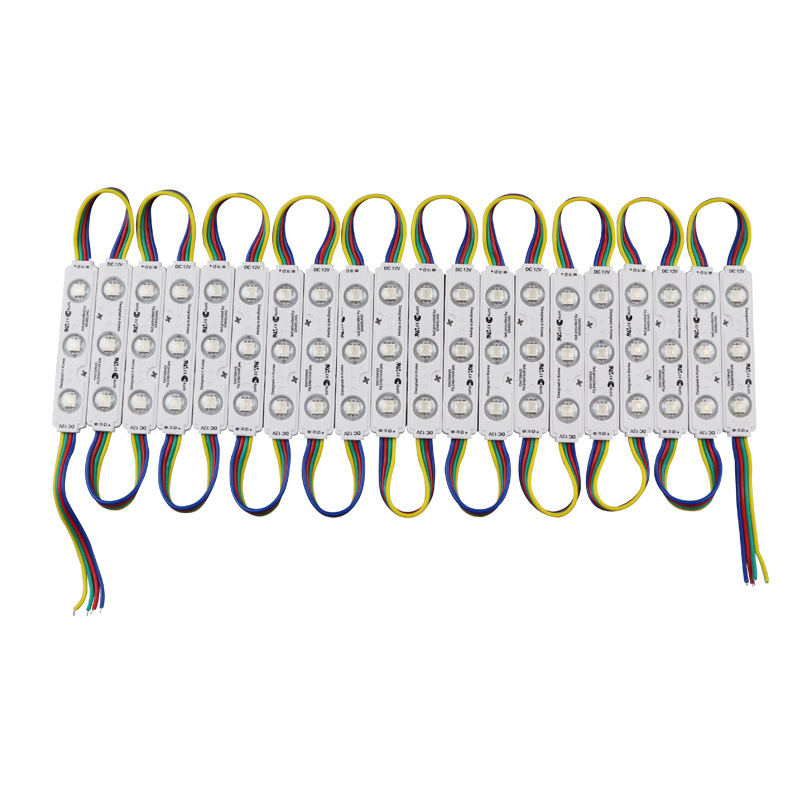

Dimension: 20pcs/string, every 1 PCS can be cut
LED Quantity: 3 LEDs per string
Warantty: 3 years
Dimensions: L68mm x W19mm x H7mm
Input Voltage(V): 12V DC
Working Power: 0.06A 0.72W /pcs
Lamp Luminous Flux(lm): 20~24lm/PCs
Beam Pattern: 120 degree
Water Proof: Outddor Waterproof IP65 (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
CRI (Ra>): 85
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
