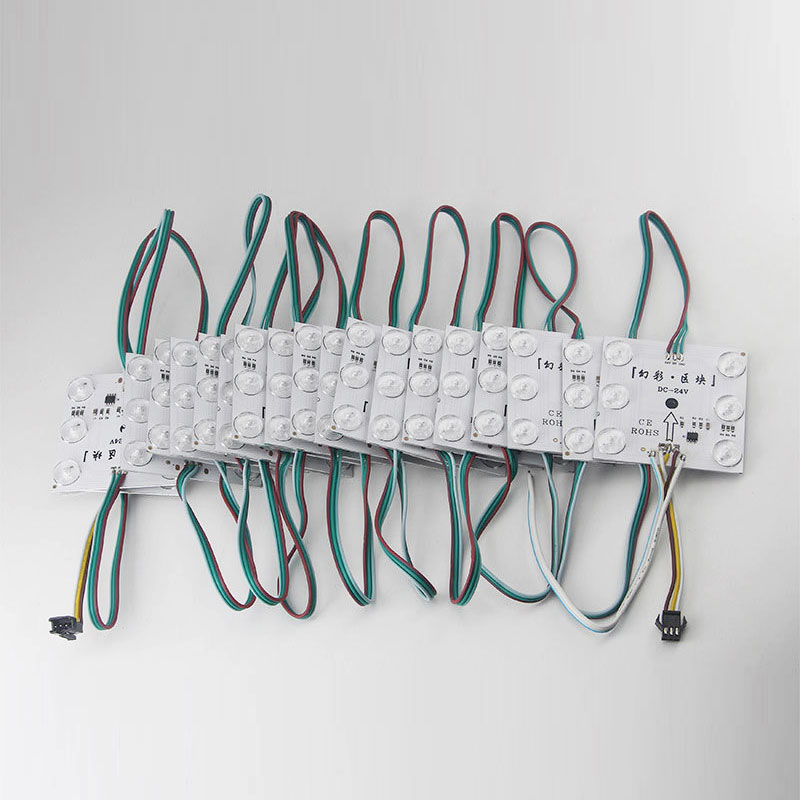

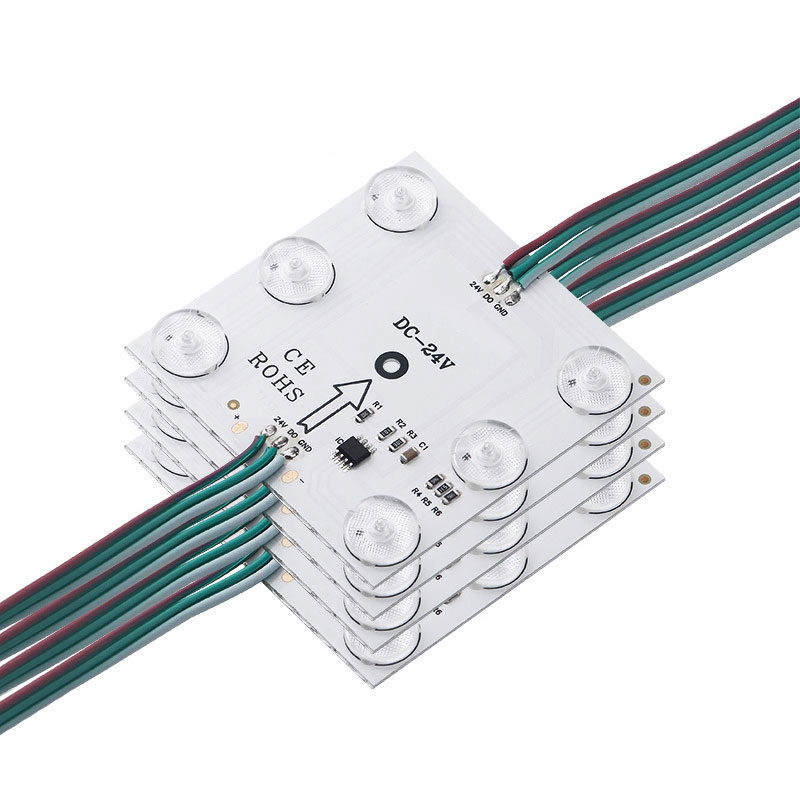

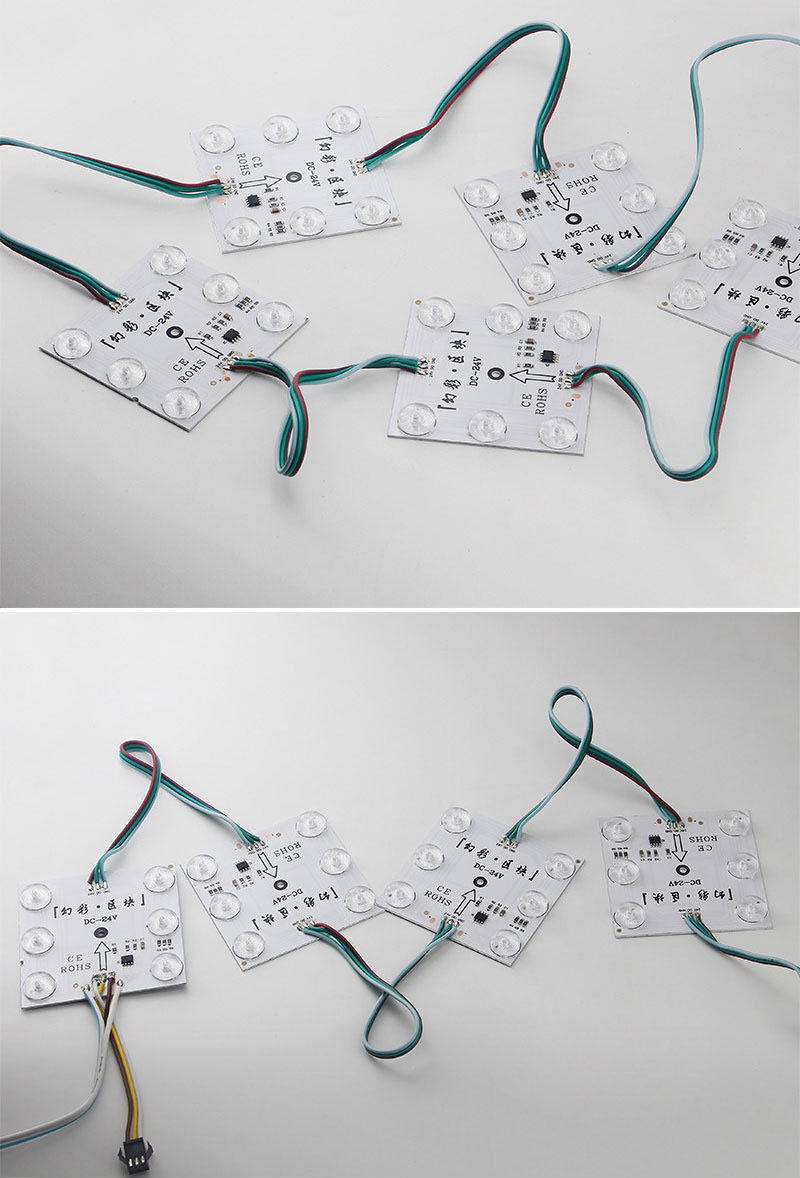

DC24V 175° Diffuse Reflection Thin Addressable RGB LED Module Light 70*70mm, 20pcs/string
Use this color chasing module string lights to DIY your ceiling lighting, channel letter lighting, advertasing lighting, etc.

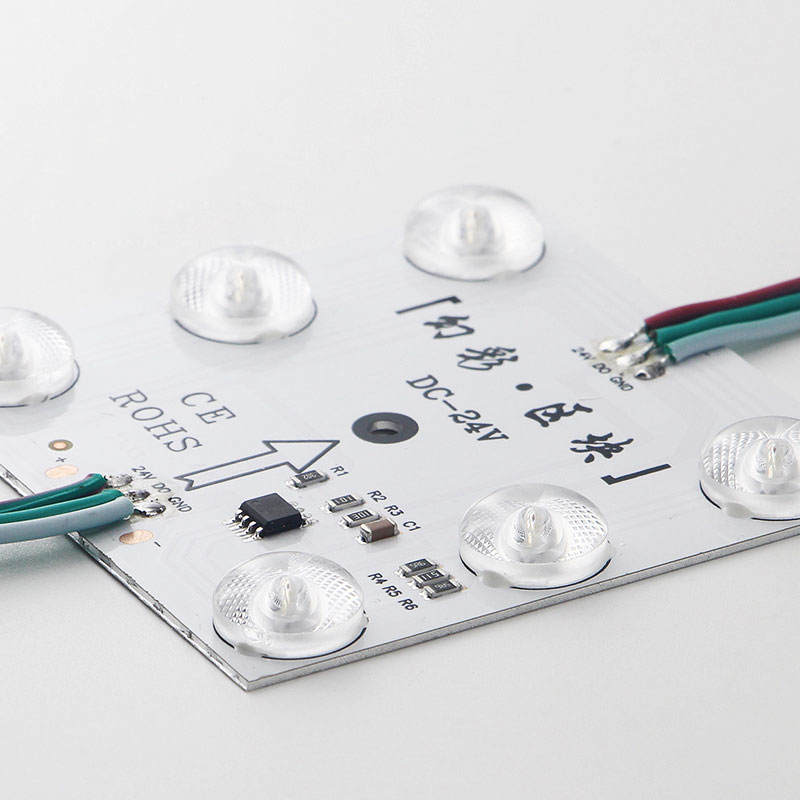

It adapts SMD3030 RGB LED, with 175° high transmission acrylic lens, good color effect. Each lamp bead is equipped with a lens, the LED light inside the lens is repeatedly refracted, to make the LED light more uniform and clear, and the light distribution range is wider.

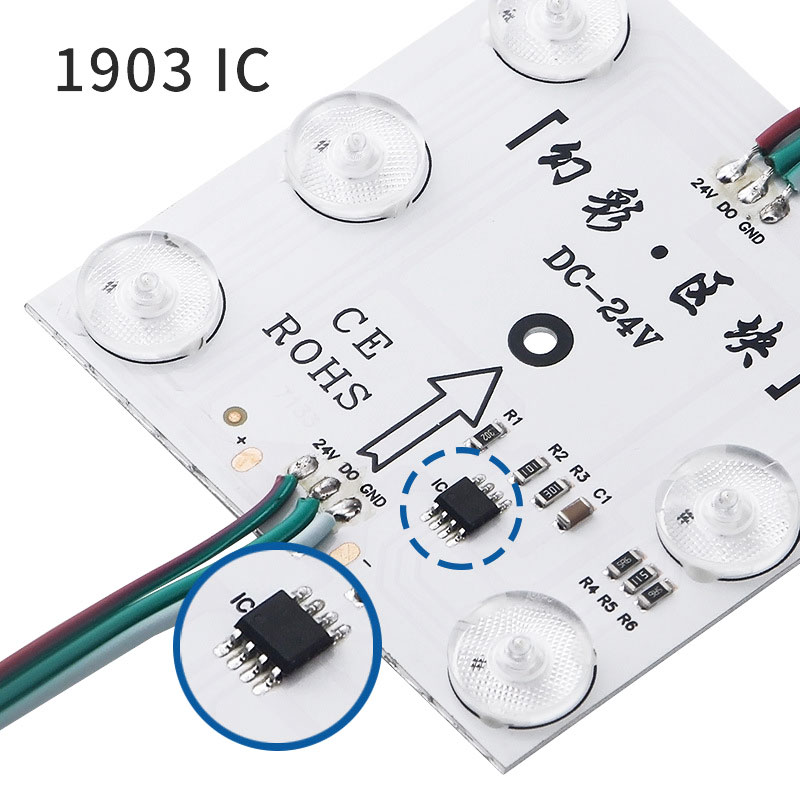

Built-in 1903 dream color IC chip (versatility and matching degree up to 90%), can realize large area light synchronization (asynchronous). Using high quality aluminum substrate as carrier, with superior heat dissipation performance, effectively extending LED life.

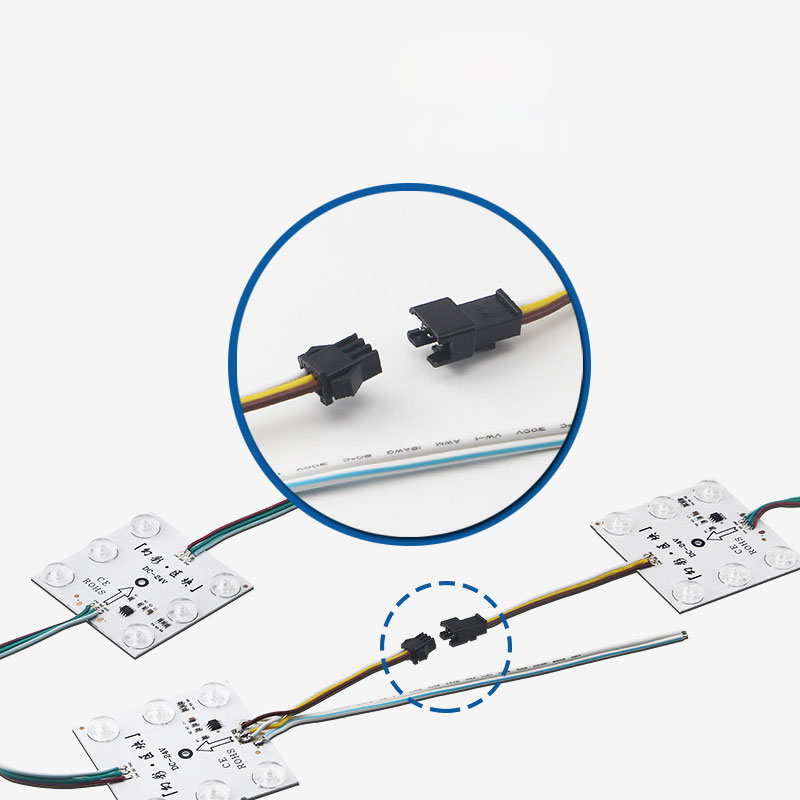

The light string module comes with quick connectors (JST conenctor) at both ends to effectively solve the welding problem.
SMD3030 RGB LEDs with new EMC packaging process
Highly refractive white oil coating, uniform light refraction
If you have requirements for spacing, you can contact us for customization. (Generally 15cm)
Standards and Certifications
Working Voltage: DC24V
Product Power: 5W / piece
Beam Angle: 175°
Product Lamp Beads: 6pcs 3030 RGB
IC Model : UCS1903 ( SPI )
Waterproof Performance: IP20
Applicable Temperature: -20℃~+60℃
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
