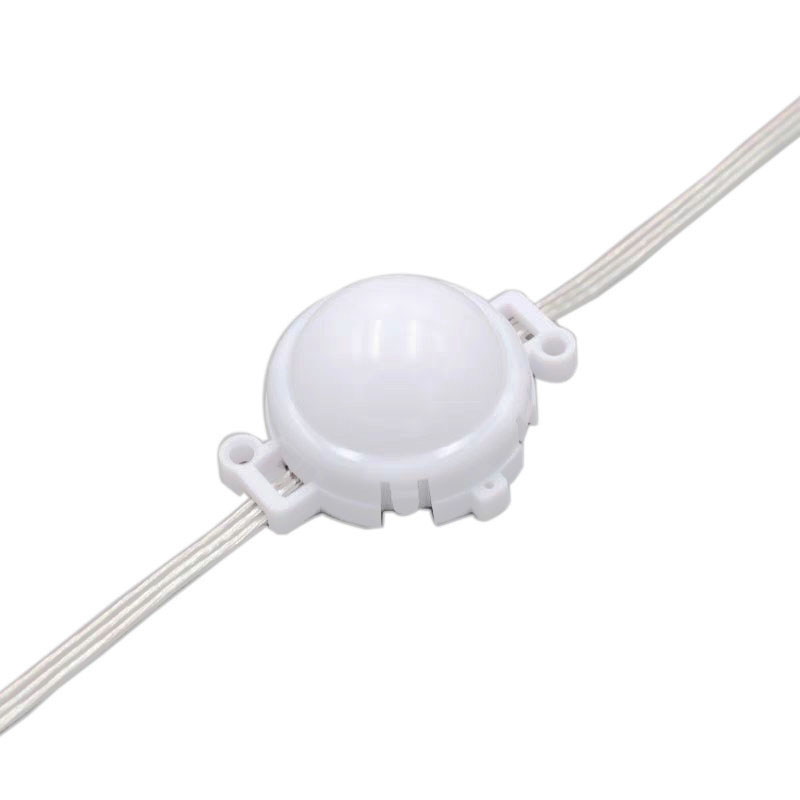

30mm UCS2904 RGBW Pixel LED Module 12V String Lights, 20pcs /String

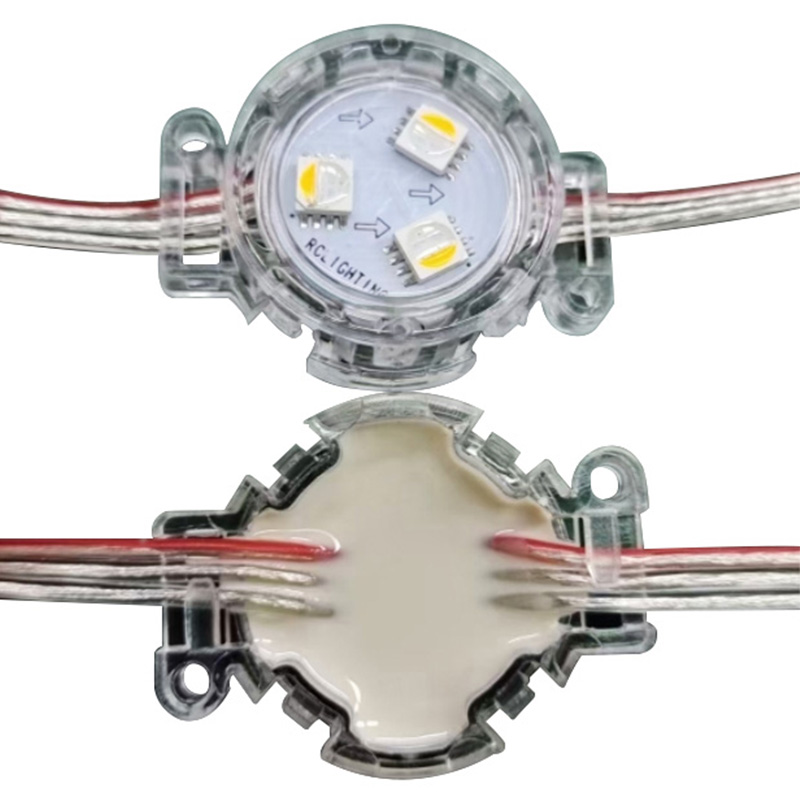

LED Module Lights, a new type fixture of decorative lighting, widely used in advertising signs, building outline, billboards, light boxes, channel letters, and other places. This LED module light with PC clear lens or milky white cover, high brightness and soft light, 20 pixel points a string. Each pixel module light included 3pcs of SMD5050 4in1 RGBW LED chips. 20cm/7.87" wire length, 5pcs pixel lights per meter.
The UCS2904 IC driver has 4-channel SPI signal, controlled by addressable SPI controller to achieve a variety of light effects such as color gradient, running, patterns, etc. Comes with waterproof wires, good waterproof performance, can be used in outdoor advertising luminous signs, building facades, dot matrix screen decoration, stage screen, and other LED lighting projects.
Avoid series connection between each string of module lights to reduce the problem of inconsistent color caused by voltage drop. It can be powered on one side for 6m length.
Standards and Certifications
|Item:||UCS2904 Pixel LED Module Light 20pcs|
|LED Chip:||5050SMD, 3 LEDs per pixel|
|Light Color:||Dream Color RGBW|
|Wire Length:||20cm/7.87", 5pcs per meter, 20pcs 13.12ft|
|Material:||PC Clear Lens Cover, Milky White Cover|
Three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
