Product Information
Experience unparalleled flexibility in your lighting control with the L-Tech E610P-RF, a professional-grade 0-10V dimmer module designed for modern installations. This innovative dimmer panel combines the reliability of a traditional wired 0-10V wall control with the convenience of wireless RF 2.4GHz technology. It's the perfect solution for projects requiring both a physical rotary knob for smooth dimming and the ability to add remote or multi-point control without complex rewiring. Ideal for commercial, architectural, and high-end residential applications, the E610P-RF simplifies installation while expanding control possibilities. As the direct upgrade to the E610P-PWM, it offers enhanced features and a robust 5A switching capacity, making it a superior choice for any system built on the 0-10V dimming standard.
Key Features
Hybrid Control System
Combines wired 0-10V and wireless RF 2.4GHz control in a single unit for maximum project flexibility.
Integrated Dimming & Switching
Features a rotary knob for smooth 0-100% dimming and a built-in 5A relay to completely switch lights on or off.
Multi-Point Wireless Control
Pair with up to 10 compatible RF remotes or integrate with a WiFi gateway for convenient control via a smartphone app.
Standard Wall Box Fit
Designed for standard 86x86mm European style wall boxes, ensuring a clean and professional installation.
Robust Power Handling
Capable of switching loads up to 5A across a wide voltage range (90-250Vac), suitable for significant lighting circuits.
Technical Highlights
- Dual-mode operation: wired 0-10V analog signal and wireless RF 2.4GHz.
- 5A built-in power switch handles loads directly, often eliminating the need for an external relay.
- Surge protection up to 100A / 10msec for enhanced durability and system safety.

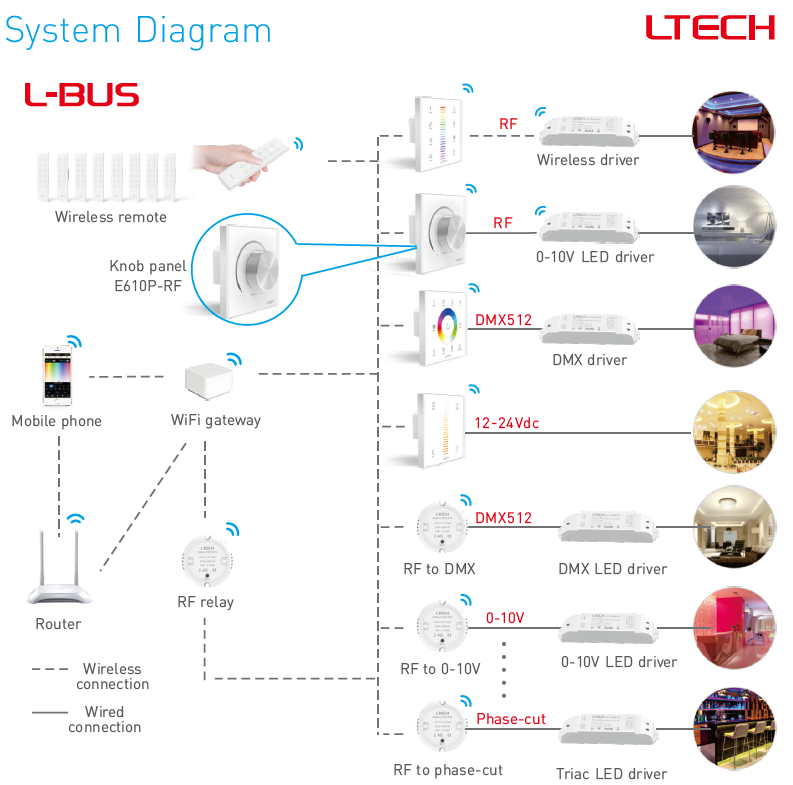

- Compatible with L-Tech F-series remotes and the WiFi-106 gateway for smart control integration.
Product Specifications
| Parameter | Details |
|---|---|
| Model | E610P-RF |
| Input Voltage | 100~240Vac, 50-60Hz |
| Output Signal | 0~10V |
| Max Output Current | 50mA |
| Switching Power | 90~250Vac |
| Max Switching Current | 5A |
| Wireless Signal | RF 2.4GHz |
| Anti-surge | ≤100A / 10msec |
| Working Temperature | -10℃~35℃ |
| Dimensions (L×W×H) | 86×86×50 mm |
| Package Size (L×W×H) | 106×106×60 mm |
| Gross Weight | 220g |

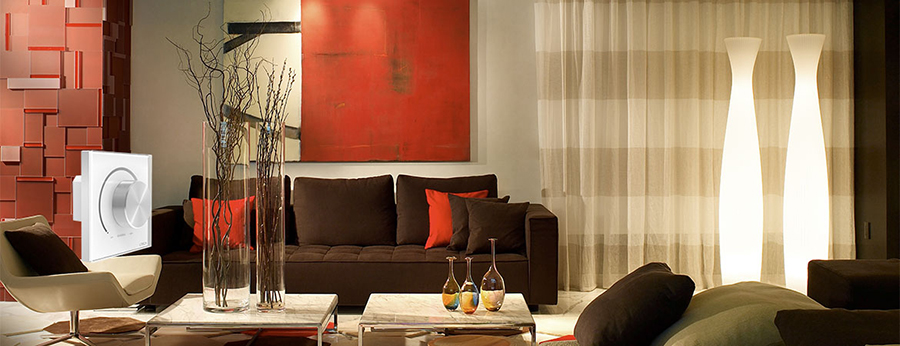

Application Scenarios
How to Install & Use This 0-10V Dimmer
- Safety First: Before installation, ensure the main circuit breaker is turned off to prevent electrical shock.

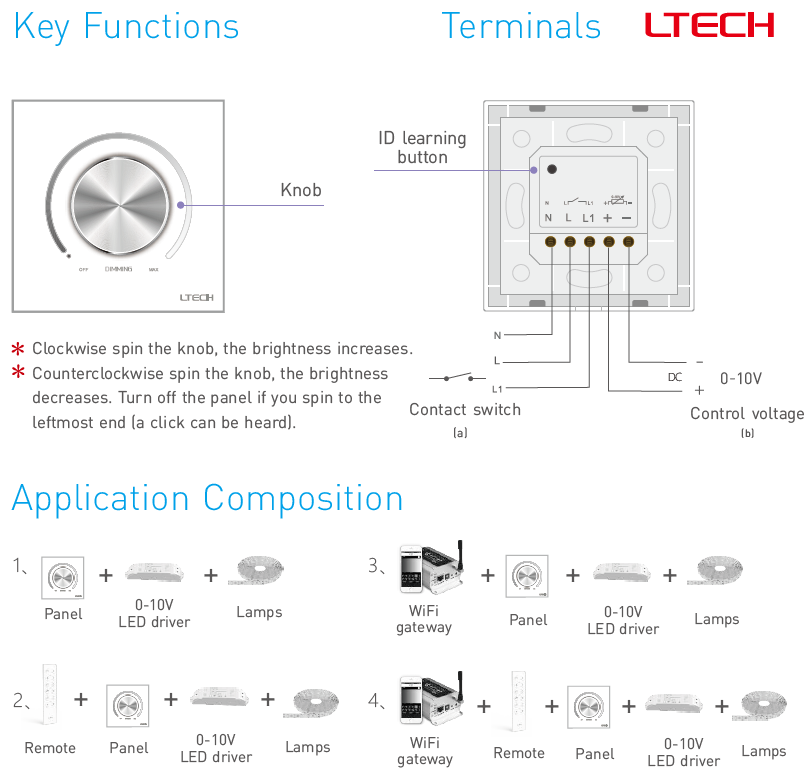

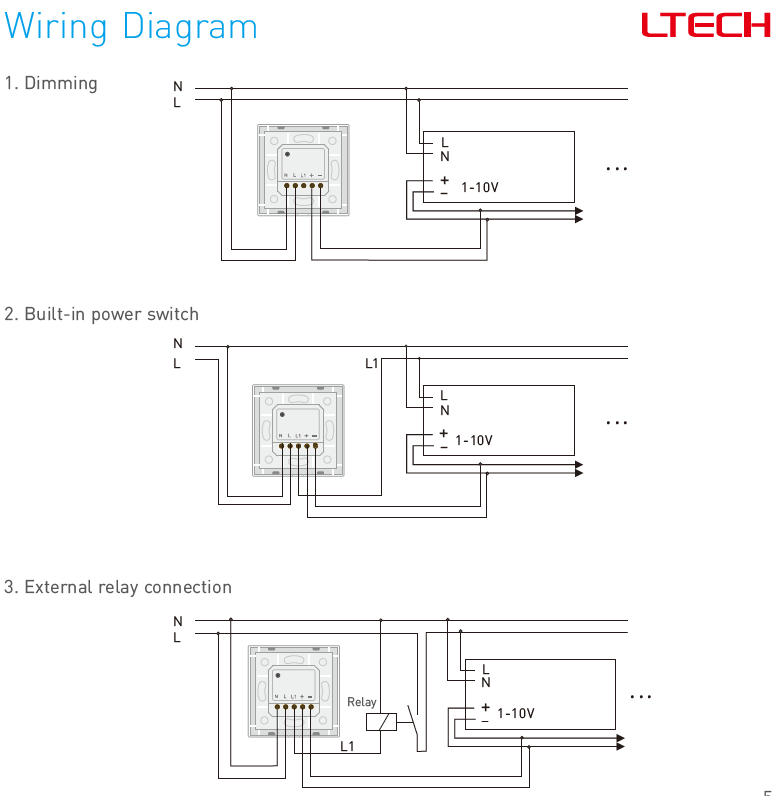

- Wiring Connections: Connect the 100-240Vac Line (L) and Neutral (N) wires to the dimmer's input terminals. Connect the 0-10V output signal wires (+ and -) to the corresponding terminals on your 0-10V LED driver. Finally, connect the switched load from the L1 terminal and Neutral to your lights or driver input.
- Manual Knob Control: Once installed and powered on, push the rotary knob to turn the lights on or off. A distinct 'click' can be heard. Rotate the knob clockwise to increase brightness and counter-clockwise to decrease it for smooth dimming.
- Pairing with an RF Remote: To pair, short press the "ID learning button" on the dimmer panel; the connected lights will flicker. Within 15 seconds, press the On/Off key on a compatible remote (e.g., F1) or the desired zone keys (e.g., F5). A rapid flicker from the lights will confirm a successful pairing.
- Pairing with a WiFi Gateway: For smartphone app control, you must use a compatible L-Tech WiFi gateway (sold separately). Connect the gateway to your network, open the mobile app, navigate to the zone settings, and follow the on-screen "MATCH" prompts to link the dimmer.
- Clearing Paired Codes: To unpair all remotes, press and hold the "ID learning button" on the dimmer for 10 seconds until the lights flicker 5 times. This confirms all codes have been cleared.
- This product is designed for professional installation. Always consult a qualified electrician.
- This dimmer is intended for use with 0-10V dimmable LED drivers. Do not connect it directly to LED strips or non-dimmable fixtures.
- Ensure the total connected load does not exceed the 5A (90-250Vac) switching capacity. For larger loads, an external relay is required.
- The dimmer is designed for installation in a standard 86-type European style electrical wall box.
What's in the Box
- ✓1 x E610P-RF 0-10V Wireless Dimmer Panel
- ✓1 x User Manual
⇩ Downloads & Documents
PDFE610P-RF
Frequently Asked Questions
Q: What is the main advantage of the E610P-RF over a standard 0-10V dimmer?
A:Its hybrid design. You get the robust, industry-standard wired 0-10V control plus the flexibility of adding wireless RF remote control without any extra wiring.
Q: Can I control this dimmer from my phone?
A:Yes, but you will need to purchase and install a compatible L-Tech WiFi gateway, such as the WiFi-106. The gateway bridges the RF signal to your home WiFi network for app control.
Q: Does this dimmer actually turn the lights off, or just dim to zero?
A:It has a built-in 5A power relay. When you turn the knob fully counter-clockwise until it clicks, it physically disconnects the power to your lights, ensuring a complete shut-off.
Q: What kind of lights can I control with this dimmer?
A:You can control any LED light fixture or LED strip that is powered by a 0-10V dimmable LED driver. The dimmer sends the control signal to the driver.
Q: How many remotes can I pair with a single E610P-RF dimmer panel?
A:You can pair one dimmer panel with a maximum of 10 compatible RF remotes, allowing for multiple control points in a room.
Q: Is this a direct replacement for the older E610P-PWM model?
A:Yes, the E610P-RF is the new and improved version designed to replace the E610P-PWM, offering more versatile control options.
