Product Information

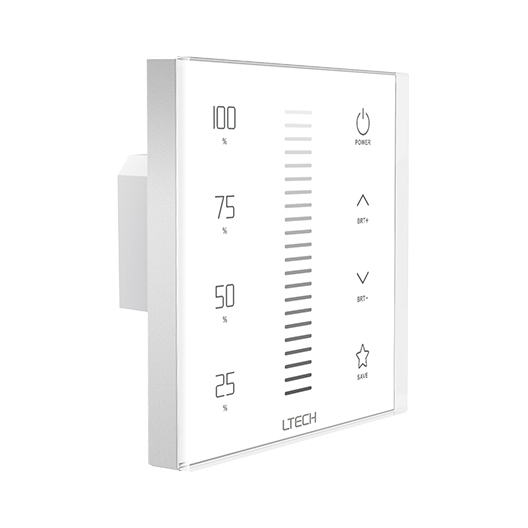

Elevate your lighting control with the Ltech E1S-AD, a sophisticated dimmer touch panel designed for modern 0-10V and 10V PWM lighting systems. This elegant wall-mounted unit replaces traditional switches with a highly responsive capacitive touch interface, providing smooth, intuitive dimming at your fingertips. It combines the reliability of a wired 0-10V output with the flexibility of RF 2.4GHz wireless control. Operate it as a standalone dimmer panel, pair it with convenient RF remotes, or integrate it with a WiFi gateway to unlock smart control from your mobile phone. Its sleek, standard 86x86mm design ensures a seamless fit into any contemporary residential or commercial space, offering a professional and user-friendly upgrade for precise lighting management.
Key Features
Versatile 3-in-1 Control
Functions as a standalone touch panel, a wireless RF receiver, and provides both 0-10V and 10V PWM wired outputs for maximum compatibility.
Capacitive Touch Interface
Features a high-precision touch slider for smooth dimming, brightness shortcut keys, and LED indicators for clear visual feedback.
RF Wireless Expandability

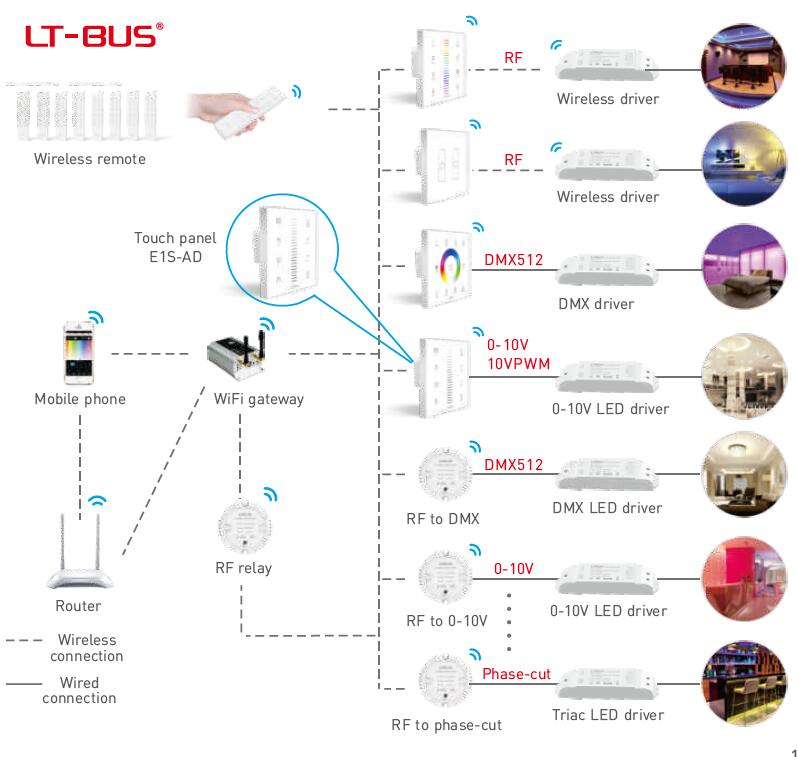

Pair with Ltech RF remotes for handheld control or add a WiFi gateway to enable lighting control via a smartphone app.
Standard European Design
The 86x86mm panel is designed to fit standard European-style wall boxes for a clean, professional installation.
Audible Feedback Option
Touch keys are accompanied by chord sounds for confirmation, with an option to easily turn the buzzer on or off.
Technical Highlights
- Direct 100-240Vac mains power input eliminates the need for a separate power supply for the panel.
- Stable RF 2.4GHz wireless signal ensures reliable communication with remotes and gateways.
- Dual analog output signals (0-10V and 10V PWM) cater to a wide range of dimmable LED drivers.
- Durable construction rated for operation in temperatures from -20℃ to 55℃.
Product Specifications
| Parameter | Details |
|---|---|
| Model | E1S-AD |
| Input Voltage | 100~240Vac |
| Output Signal | 0-10V, 10V PWM |
| Wireless Signal | RF 2.4GHz |
| Control Method | Capacitive Touch, RF Remote, Smartphone App (via Gateway) |
| Working Temperature | -20℃~55℃ (Ta) |
| Dimensions (LxWxH) | 86 × 86 × 36 mm |
| Package Size (LxWxH) | 113 × 112 × 50 mm |
| Gross Weight | 225g |
Application Scenarios
How to Control & Use This Controller

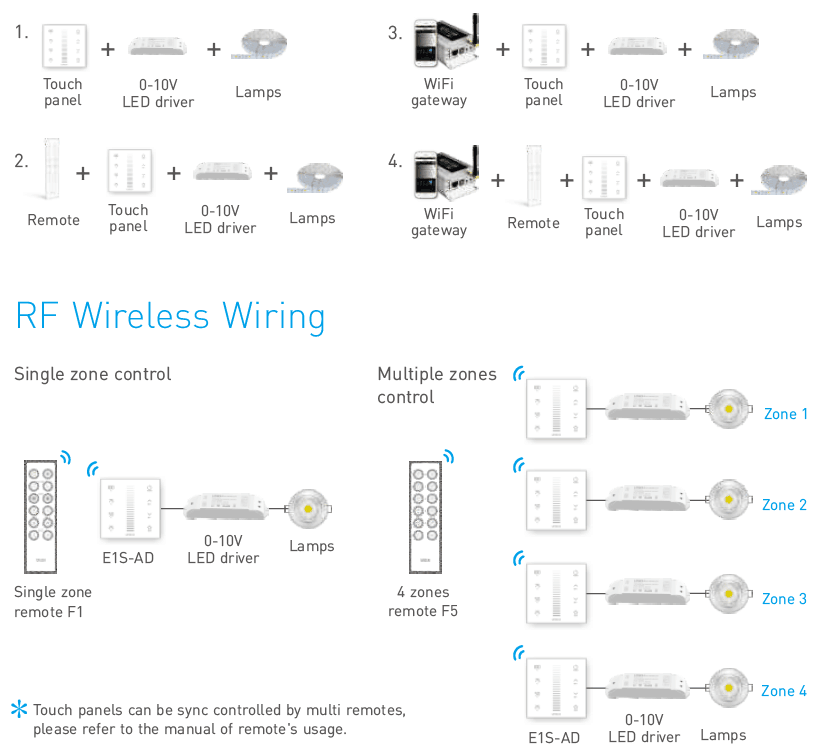

- 1. Wiring: Ensure power is disconnected. Connect the 100-240Vac line (L) and neutral (N) wires to the corresponding input terminals on the panel. Connect the 0-10V signal and GND output terminals to your compatible 0-10V LED driver.
- 2. Installation: Securely mount the E1S-AD panel into a standard European 86x86mm wall box.

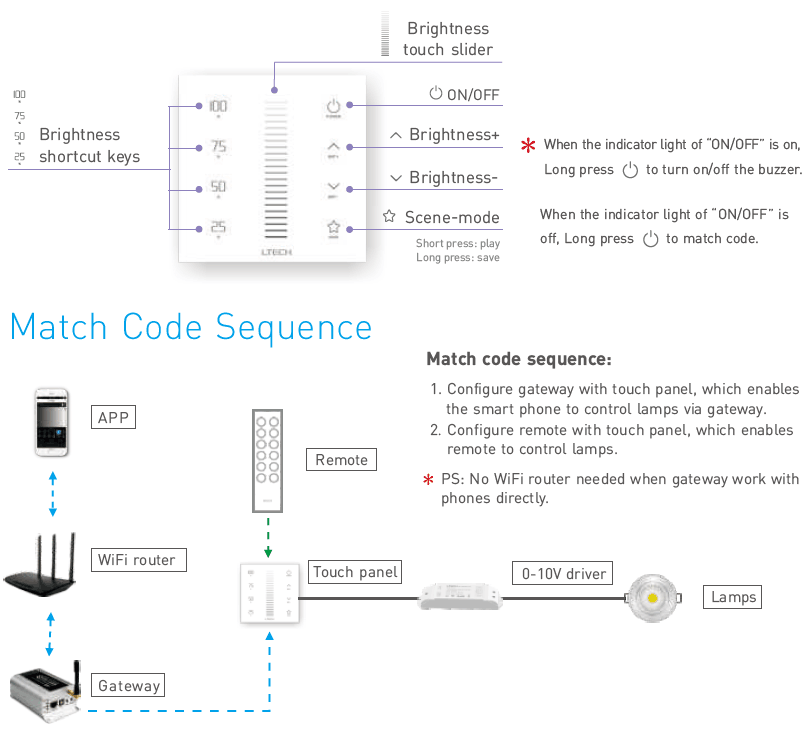

- 3. Basic Control: Use the ON/OFF key to toggle power. Slide your finger along the brightness touch slider for smooth dimming. Use the brightness shortcut keys for quick adjustments.
- 4. Pairing with an RF Remote: With the panel's indicator light off, long-press the ON/OFF key until all indicator lights start flashing. Press any key on the desired RF remote; if the lights stop flashing, the pairing is successful.
- 5. Pairing with a WiFi Gateway: Follow the same initial step as pairing a remote (long-press ON/OFF until lights flash). Then, use the corresponding smartphone app to select the zone and complete the pairing process with the gateway.
- 6. Clearing Paired Codes: To reset all pairings, press and hold the bottom two keys on the touch panel simultaneously for 5 seconds until the indicator lights flash several times.
- Installation involves mains voltage. It is strongly recommended to have this device installed by a qualified electrician.
- This panel requires a compatible 0-10V or 10V PWM dimmable LED driver to function.
- A WiFi gateway is required for smartphone app control and is sold separately.
- Always perform pairing or code clearing when the panel's main light is off (the ON/OFF key's indicator will be on).
What's in the Box
- ✓1x E1S-AD 0-10V RF Wireless Touch Panel Dimmer
- ✓1x User Manual
⇩ Downloads & Documents
PDFE1S-AD
Frequently Asked Questions
Q: Does this touch panel require batteries or a separate power supply?
A:No, the E1S-AD connects directly to your 100-240Vac mains power, so no separate power supply or batteries are needed for the panel itself.
Q: Can I control this dimmer with my smartphone?
A:Yes, but it requires pairing the panel with an Ltech WiFi gateway (sold separately). Once connected, you can control your lights via a dedicated smartphone app.
Q: What is the difference between the 0-10V and 10V PWM outputs?
A:Both are analog dimming signals. 0-10V is a standard voltage-based signal, while 10V PWM uses pulse width modulation. This dual output ensures compatibility with a wider range of dimmable drivers.
Q: Is this compatible with any LED strip light?
A:This dimmer panel controls the driver, not the strip directly. It is compatible with any single-color LED strip or fixture that is connected to a 0-10V or 10V PWM dimmable LED driver.
Q: What type of wall box does this fit?
A:This dimmer is designed for a standard European style 86x86mm electrical wall box.
Q: Can I use one remote to control multiple E1S-AD panels simultaneously?
A:Yes, you can pair multiple E1S-AD panels to the same zone on a multi-zone RF remote to synchronize control across different areas.
Q: How do I turn off the beeping sound when I touch the panel?
A:When the panel's main light is on, long-press the ON/OFF key to toggle the buzzer sound on or off.
