Product Information
Experience smooth, reliable brightness control with the Ltech E610P 0-10V Rotary Dimmer Switch. Designed for professional and high-end residential 0-10V lighting systems, this panel-mount dimmer provides intuitive, tactile control over your lighting's intensity. Its classic rotary knob design makes it simple to operate, while the robust internal components ensure flicker-free performance. The E610P accepts a universal 100-240Vac input, making it a versatile solution for global applications. It not only provides a standard 0-10V dimming signal but also includes an integrated 5A relay to switch the power to your fixtures on and off, combining two essential functions into one clean, elegant wall panel. This is an ideal dimmer for LED strip projects requiring precise analog control.
Key Features
Intuitive Rotary Knob Control
Provides simple, tactile, and precise adjustment of light levels with a smooth-turning physical knob.
Universal AC Input
Operates on a wide input voltage range of 100-240Vac, making it suitable for installations worldwide without a separate transformer.
Standard 0-10V Dimming Signal
Ensures seamless compatibility with a vast range of commercial and residential 0-10V LED drivers and dimmable fixtures.
Integrated Power Switch
Includes a built-in 5A relay, allowing you to completely turn your lights on and off directly from the dimmer panel.
Professional Panel Design
Features a standard 86x86mm square faceplate for a clean, professional installation in standard electrical wall boxes.
Reliable Analog Performance
Delivers a stable, flicker-free dimming signal with a control current up to 50mA, sufficient for managing multiple drivers.
Technical Highlights
- Delivers a linear 0-10V analog dimming curve for smooth brightness transitions.
- Combines dimming signal control and load switching (up to 5A) in a single device.
- Engineered for durability and long-term performance in commercial environments.
- Standardized wiring terminals for straightforward installation.
Product Specifications
| Parameter | Details |
|---|---|
| Model | E610P |
| Input Voltage | 100-240Vac |
| Input Frequency | 50/60Hz |
| Output Signal | 0-10V |
| Control Current | Max. 50mA |
| Switching Current | Max. 5A |
| Dimming Range | 0-100% |
| Control Method | Rotary Knob |
| Working Temperature | -10℃ to 35℃ |
| Dimensions (L×W×H) | 86 × 86 × 50 mm |
| Package Size (L×W×H) | 106 × 106 × 60 mm |
| Gross Weight | 220g |

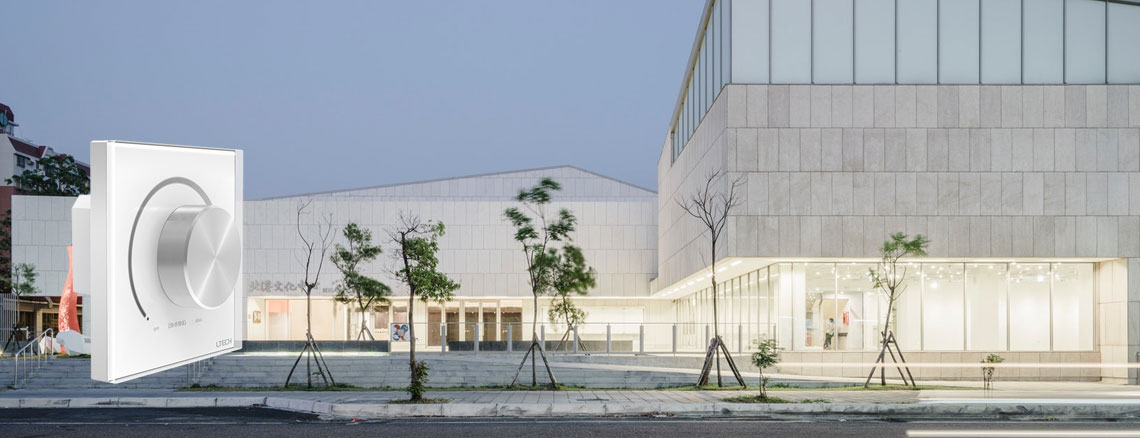

Application Scenarios

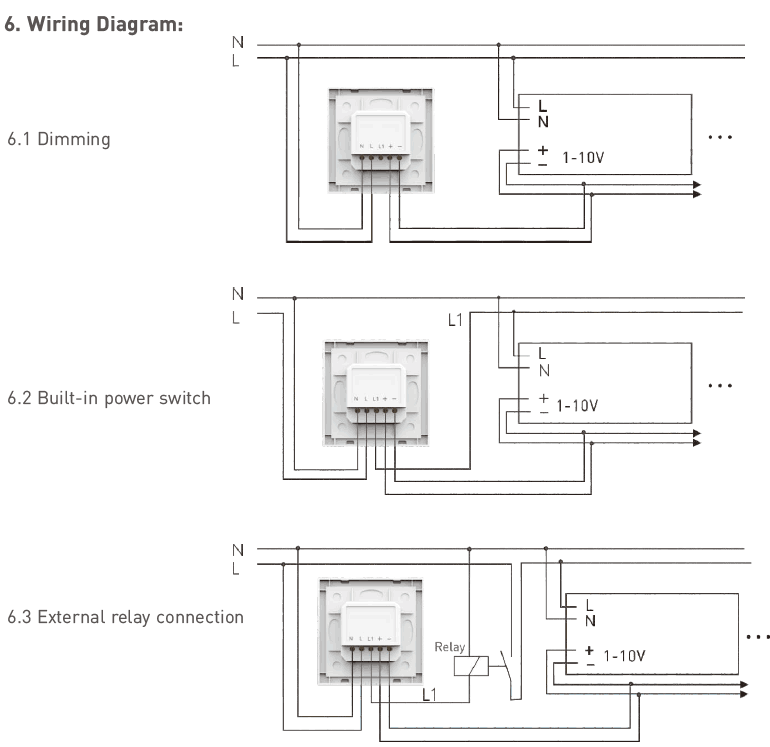

How to Install & Use This 0-10V Dimmer
- SAFETY FIRST: Turn off power at the main circuit breaker before beginning installation.
- AC Input Wiring: Connect the 100-240V AC 'Live' and 'Neutral' wires from your power source to the dimmer's designated AC input terminals.
- Switched Output: Connect the 'Load' output terminal to the AC input of your 0-10V LED driver or fixture. The neutral wire can be passed through.
- Dimming Signal Wiring: Connect the '0-10V+' and '0-10V-' terminals on the dimmer to the corresponding signal input terminals on your LED driver.
- Mounting: Securely install the dimmer into a standard 86x86mm electrical wall box and attach the faceplate.
- Testing: Restore power at the circuit breaker. Rotate the knob to test the full dimming range and press it to test the on/off switching function.
- This dimmer is designed for use with 0-10V dimmable drivers and fixtures only. It is not compatible with TRIAC, DALI, or PWM-only systems.
- Ensure the total load connected to the switch does not exceed the maximum switching current of 5A.
- The 50mA control current is typically sufficient to control dozens of drivers, but always check your driver's specifications.
- For detailed wiring diagrams, please consult the E610P datasheet available in the Downloads section below.
What's in the Box
- ✓1 x E610P 0-10V Dimmer
- ✓1 x User Manual
⇩ Downloads & Documents
PDFE610P
Frequently Asked Questions
Q: What is a 0-10V dimmer?
A:A 0-10V dimmer is a low-voltage analog lighting control method. It sends a DC voltage signal between 0 and 10 volts to the LED driver, which interprets this voltage to set the light output level (0V being off or minimum, 10V being 100% brightness).
Q: Can I use this dimmer with any LED strip?
A:No, this dimmer must be paired with an LED strip that is powered by a 0-10V dimmable LED driver. The dimmer controls the driver, and the driver controls the strip.
Q: Does the E610P dimmer need its own power supply?
A:No, the E610P is designed to be powered directly from your mains electricity (100-240Vac), simplifying installation.
Q: What's the difference between the 50mA control current and the 5A switching current?
A:The 50mA control current is the maximum capacity of the low-voltage 0-10V signal output. The 5A switching current is the maximum high-voltage load the internal relay can turn on and off.
Q: Is this a smart dimmer? Can I control it with my phone?
A:No, the E610P is a hard-wired analog rotary dimmer. It provides simple, reliable manual control and does not have Wi-Fi, Bluetooth, or smart home capabilities.
Q: How do 0-10V dimmers differ from other types of dimmer switches?
A:Unlike a standard residential dimmer (leading/trailing-edge or TRIAC) which modulates the AC power line, a 0-10V dimmer sends a separate, dedicated low-voltage signal. This method generally provides smoother, flicker-free dimming, especially at very low light levels.
