Product Information
The MiBoxer FUT028 provides a complete and reliable solution for controlling 4-channel RGBW LED strip lights. This convenient set includes both the receiver and a dedicated 2.4GHz RF remote, ensuring a stable, responsive connection up to 30 meters away. Unlike simple RGB controllers, the FUT028 allows you to manage red, green, blue, and a separate white channel for pure white light or vibrant mixed colors. Effortlessly switch between precise manual color selection and a variety of dynamic, pre-programmed auto modes to create the perfect atmosphere for any occasion. Its robust 10A output capacity and compatibility with both DC12V and DC24V systems make it a versatile choice for residential, commercial, and even custom automotive lighting projects.
Key Features
Complete RGBW Control
Independently manage red, green, blue, and a dedicated white channel for millions of colors and true white tones.
2.4GHz RF Wireless Technology
Enjoy a stable, long-range connection of up to 30m (98ft) that works through walls without requiring direct line-of-sight.
Manual & Auto Modes
Select static colors and brightness manually or choose from multiple built-in dynamic modes for automatic color-changing effects.
High-Capacity Output
Handles a total maximum load of 10A (up to 6A per channel), ideal for powering significant lengths of LED strips.
Broad Voltage Compatibility
Operates on both DC12V and DC24V, making it suitable for a wide variety of LED lighting systems.
Simple Pairing & Operation
The intuitive remote control pairs easily with the controller for a straightforward, user-friendly setup.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | FUT028 2.4GHz RF RGBW LED Controller Set |
| Model Number | FUT028 |
| Input Voltage | DC12V-24V |
| Control Technology | 2.4GHz RF Wireless |
| Channels | 4 (R, G, B, W) |
| Max Output Current per Channel | 6A |
| Max Total Output Current | 10A |
| Control Distance | 30 meters (approx. 98 feet) |
| Working Temperature | -20~60°C |
| Connection Method | Common Anode |
| Controller Dimensions | 85 x 45 x 22.5 mm |

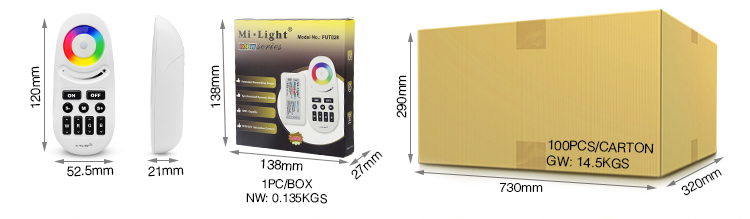

| Remote Dimensions | 120 x 52.5 x 21 mm |
| Remote Power | 2 x AAA Batteries (not included) |
Application Scenarios
How to Control & Use This Controller

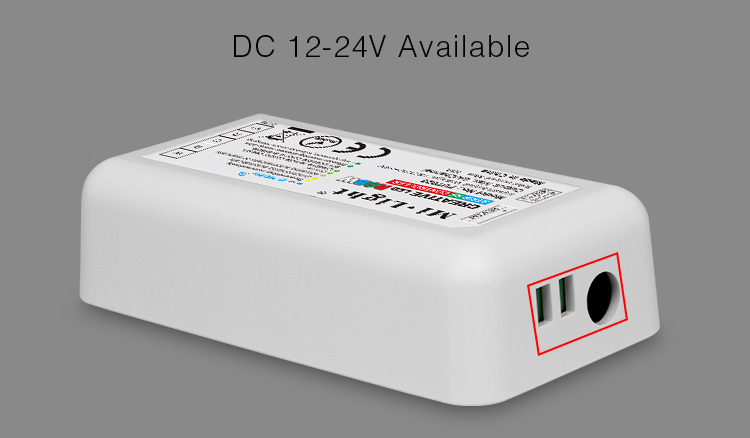

- Power Connection: Connect your DC12V or DC24V power supply to the controller's input terminals (V+, V-). Ensure the polarity is correct to avoid damage.

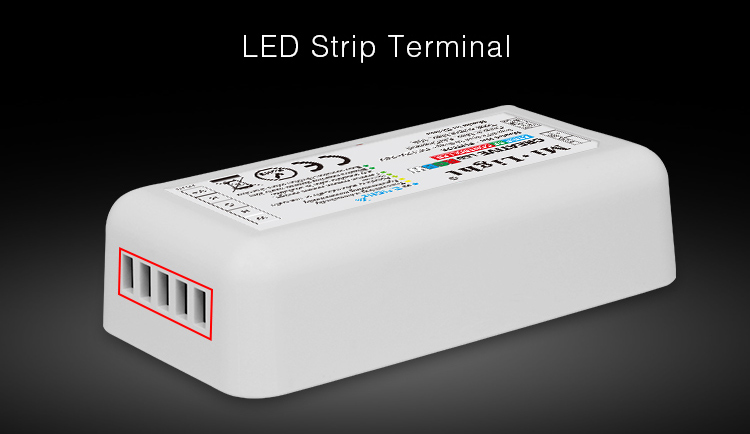

- Strip Connection: Connect your 5-pin RGBW LED strip lights to the output terminals. Carefully match the V+, R, G, B, and W wires to the corresponding ports on the controller.
- Remote Pairing: Install two AAA batteries into the remote. Immediately after powering on the controller, press the 'ON' button on the remote one time. The connected LED strip will flash three times to confirm a successful link.
- Operation: Use the remote's buttons to turn the lights on/off, adjust brightness, select static colors, and cycle through the various automatic color-changing modes.
- Always use a power supply that matches the voltage of your LED strip (DC12V or DC24V).
- Do not exceed the controller's maximum total load of 10A. Calculate your strip's total amperage before connecting.
- For very long runs of LED strips that exceed the 10A limit, a signal amplifier may be required to maintain performance and prevent overloading the controller.
- The 2.4GHz signal can pass through most obstacles, so direct line-of-sight between the remote and controller is not necessary.

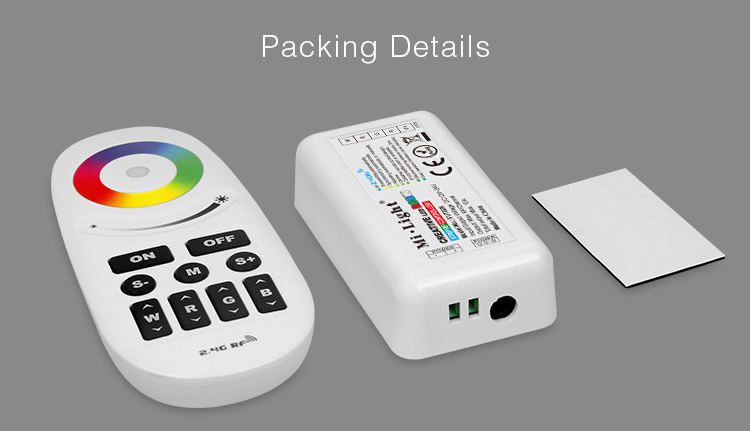

What's in the Box
- ✓1 x FUT028 RGBW LED Controller
- ✓1 x 2.4GHz RF Remote Control
- ✓1 x User Manual
Frequently Asked Questions
Q: What type of LED strip is this controller for?
A:This controller is designed specifically for 4-channel, 5-pin common anode RGBW (Red, Green, Blue, White) LED strips. It is not compatible with RGB, RGBCCT, or addressable (pixel) strips.
Q: Can I control multiple controllers with one remote?

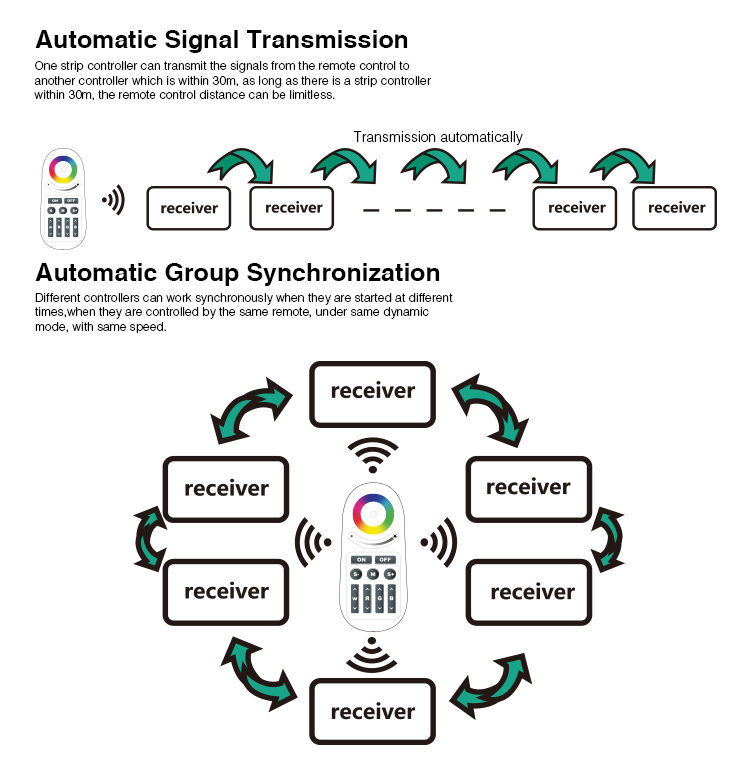

A:Yes, you can pair multiple FUT028 controllers to a single remote. This allows you to synchronize the color and mode of several separate LED strip runs.
Q: What does 'Manual & Auto Adjustable' mean?
A:Manual adjustment allows you to pick a specific static color and set its brightness. Auto adjustment refers to the controller's built-in dynamic modes that automatically cycle through colors and effects like fade and flash.
Q: Is a power supply included with this set?
A:No, a power supply is not included. You must purchase a separate DC12V or DC24V power supply that matches your LED strip's voltage and can provide enough wattage for your total strip length.
Q: What is the effective range of the remote?
A:The 2.4GHz RF remote has a control distance of up to 30 meters (approximately 98 feet) in an open environment.
Q: Can this be used for automotive lighting?
A:Yes, its DC12V-24V operating voltage makes it fully compatible with the electrical systems in most cars, trucks, RVs, and boats for custom lighting projects.
