Product Information
Important Upgrade Notice: The FUT042 433MHz RGB LED Strip Controller has been discontinued and fully replaced by its upgraded version. When you order this item, we will send you FUT042UP Upgraded DC12-24V 433MHz RGB LED Strip Controller, ensuring you receive the latest technology and performance.

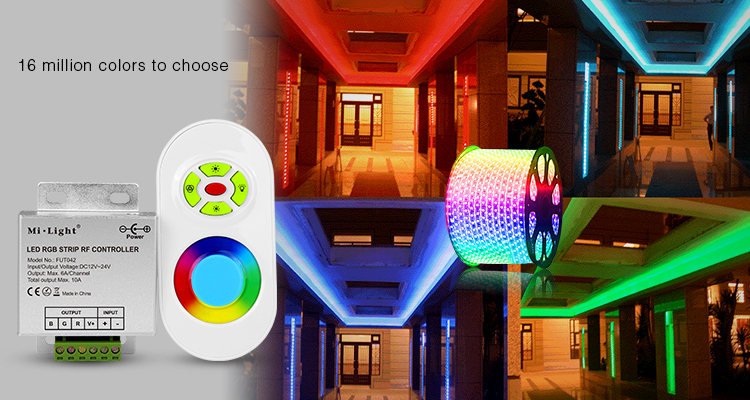

This controller kit is a straightforward and reliable solution for managing standard 4-pin RGB LED strip lights. Operating on the 433MHz RF frequency, it provides stable wireless control without the need for complex network configurations. Its support for a wide DC12-24V input range makes it compatible with a variety of common RGB strips, while the robust 10A maximum output can handle significant lengths of lighting, perfect for creating vibrant accent and mood lighting in any room.
Key Features

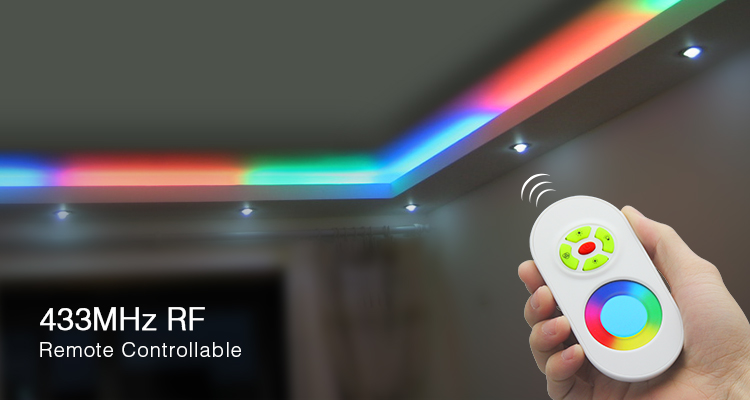

433MHz RF Wireless Control
Utilizes a stable 433MHz radio frequency for reliable remote control, distinct from more common 2.4GHz systems.
Broad Compatibility
Designed specifically for common-anode 4-pin RGB LED strip lights, ensuring wide-ranging project suitability.
Flexible Voltage Input
Accepts DC12V to DC24V input, allowing you to use it with the most popular types of low-voltage LED strips.
Sufficient Power Output
Delivers up to 6A per channel with a total maximum output of 10A, capable of powering substantial lighting setups.
Complete Controller Kit
Includes both the controller receiver and a dedicated RF remote, providing everything needed for immediate control.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 433MHz RGB LED Strip Controller |
| Model Number | FUT042 (Upgraded to FUT042UP) |
| Input Voltage | DC12V-24V |
| Control Frequency | 433MHz |
| Output Current | Max. 6A / Channel |
| Total Output | Max. 10A |
| Compatible Strips | 4-pin RGB LED Strip Lights |

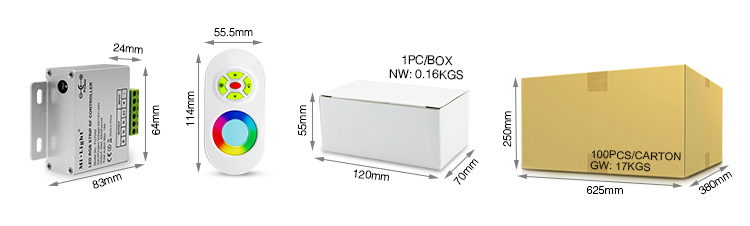

| Controller Dimensions | 83 x 64 x 24 mm |
| Remote Dimensions | 114 x 55.5 x 21.5 mm |
Application Scenarios
How to Control & Use This Controller
- Ensure power is disconnected before wiring.
- Connect the output of your DC12V or DC24V power supply to the controller's input terminals, matching positive (+) and negative (-) polarity.

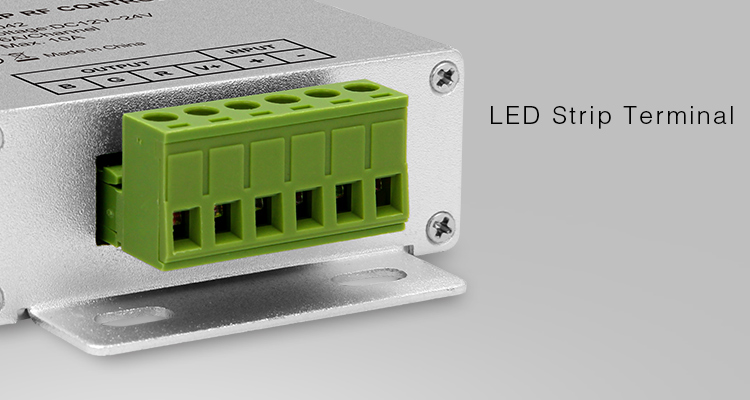

- Connect your 4-pin RGB LED strip to the controller's output terminals. Align the common anode (V+) wire and the R, G, and B wires to their corresponding terminals.
- Insert batteries into the RF remote control.
- Restore power to the system. The remote should be automatically paired and ready to use.
- Use the remote to power the lights on/off, select colors, and switch between dynamic modes to test functionality.
- The input voltage of the power supply must match the required voltage of your RGB LED strip (e.g., use a 12V supply for a 12V strip).
- Do not exceed the controller's maximum total output of 10A. Calculate your LED strip's total current draw to ensure it is within this limit.
- This controller is not waterproof. For installation in damp or outdoor locations, it must be housed in a suitable weatherproof enclosure.
What's in the Box
- ✓1 x RGB LED Controller Receiver (FUT042UP Upgraded Model)
- ✓1 x 433MHz RF Remote Control
⇩ Downloads & Documents
PDFFUT042.pdf
Frequently Asked Questions
Q: I ordered the FUT042, why did I receive the FUT042UP?
A:The FUT042 has been officially discontinued and replaced by the superior FUT042UP model. All orders for this product are automatically fulfilled with the new, upgraded version.
Q: What is the main difference between this 433MHz controller and a 2.4GHz controller?
A:433MHz technology often provides a longer control range compared to 2.4GHz. However, 2.4GHz is a more modern standard that can support more complex features like mesh networking and app control, which this simpler model does not have.
Q: What type of LED strips can I use with this controller?
A:This controller is specifically designed for standard 4-pin, common-anode (V+) RGB LED strip lights. It is not compatible with RGBW, RGBCCT, or addressable (pixel) strips.
Q: Can I control these lights with a smartphone app or voice assistant?
A:No, this is a dedicated RF system. Control is exclusively through the included 433MHz remote control. It does not have WiFi or Bluetooth connectivity.
Q: What kind of power supply do I need?
A:You will need a power supply with a DC12V or DC24V output that matches your LED strip's voltage. The power supply's wattage rating must be high enough to support the total power consumption of your connected strip.
