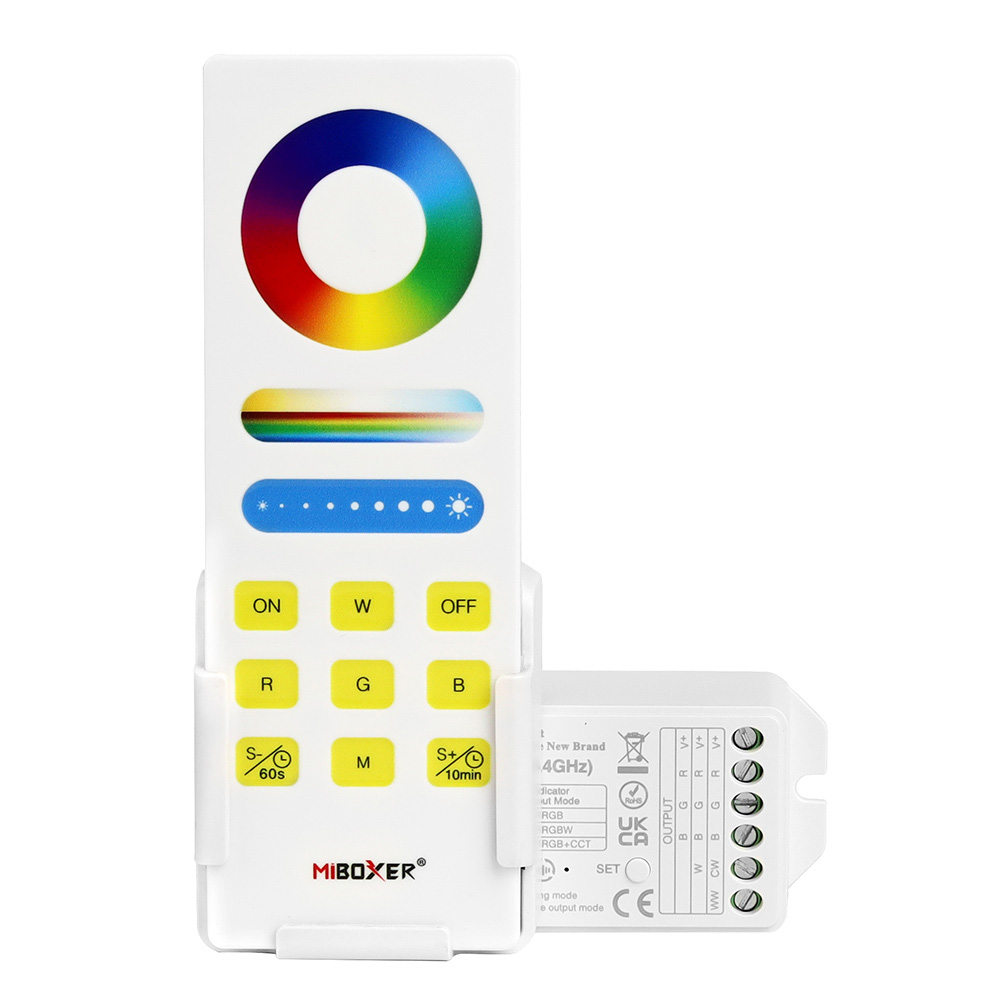

FUT043A RGB Smart LED Control System
Product Name: RGB Smart LED Control System
Model No.: FUT043A

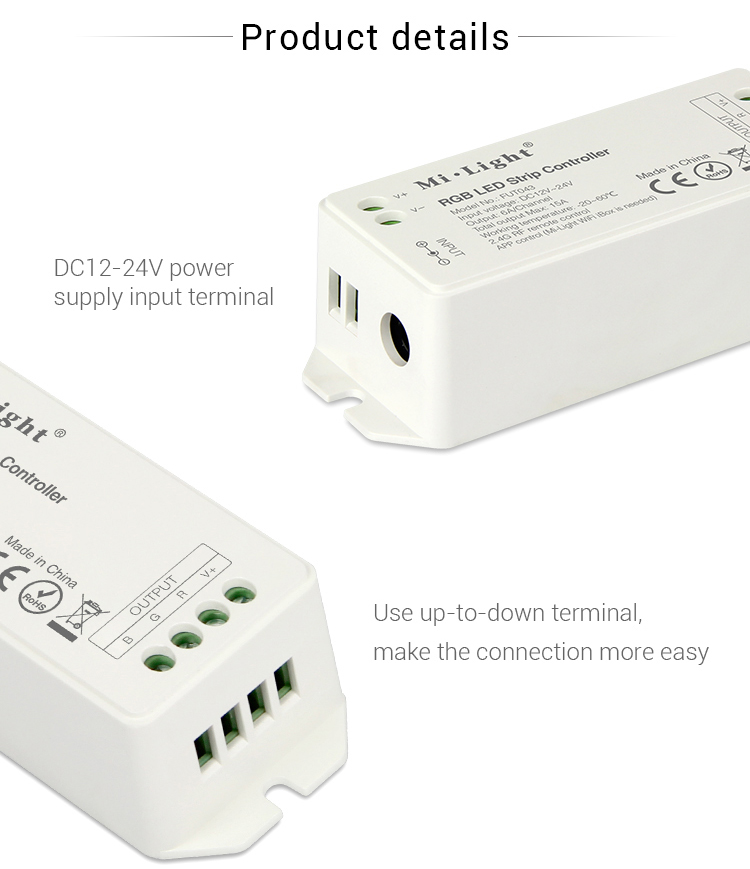

Working Voltage: DC12V~24V
Output Max: 6A/Channel
Total Output Max: 15A
Working Temperature: -20~60℃

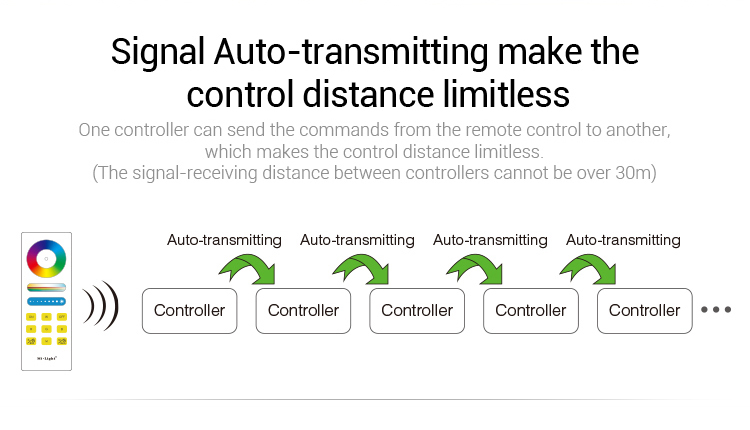

Max Controlling Distance: 30m
Output Connection: Common anode
Controller Size: 37*28*97mm

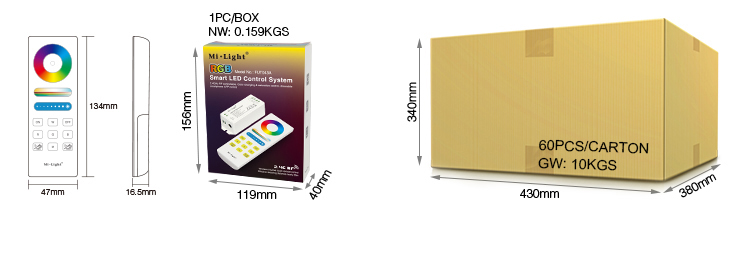

Remote Size: 47*16.5*134mm
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
