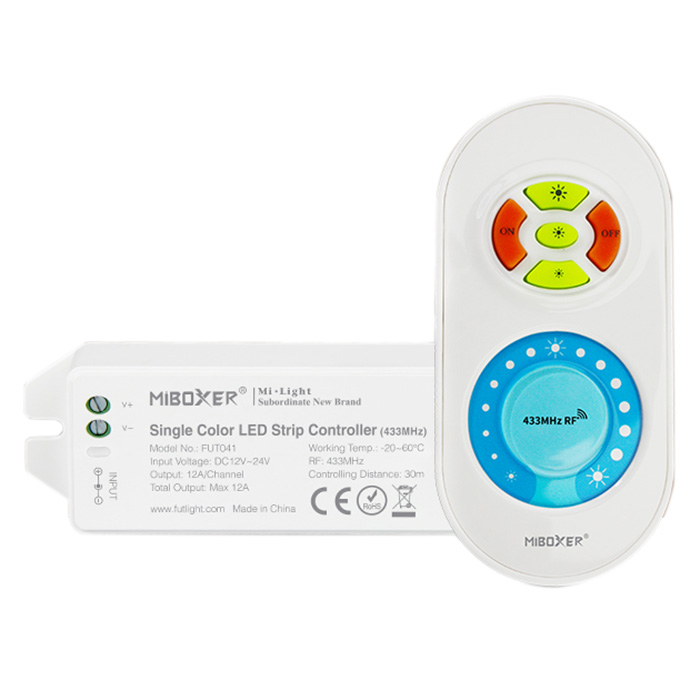

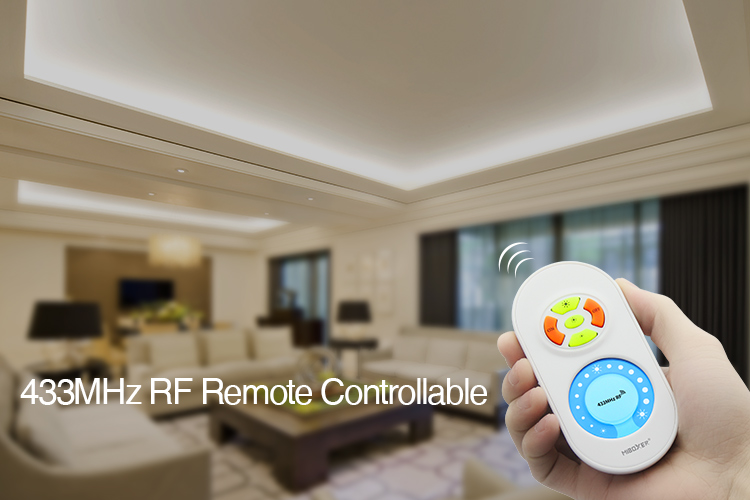

FUT041 Upgraded 433MHz Single Color LED Strip Controller
This controller adopt the widely used 433MHz wireless technology with the features of low power consumption, long signal transmitting and strong anti-interference, etc. Widely used on the controlling of hotel lighting and home lighting.
433MHz Single Color LED Strip Controller

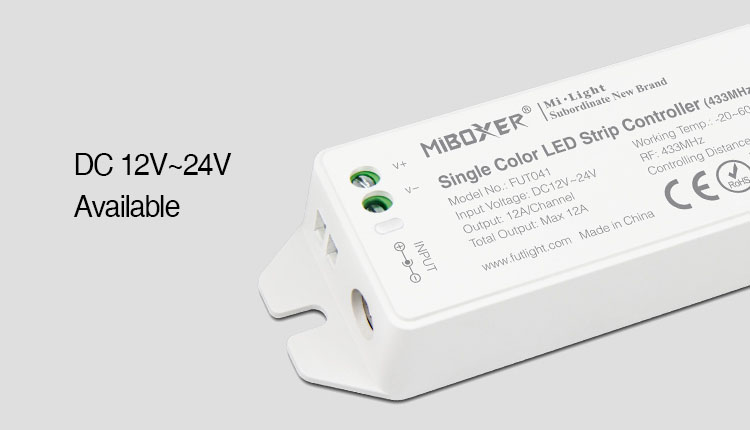

Input Voltage: DC12V~24V
Total Output: Max 12A
Control Distance: 30m

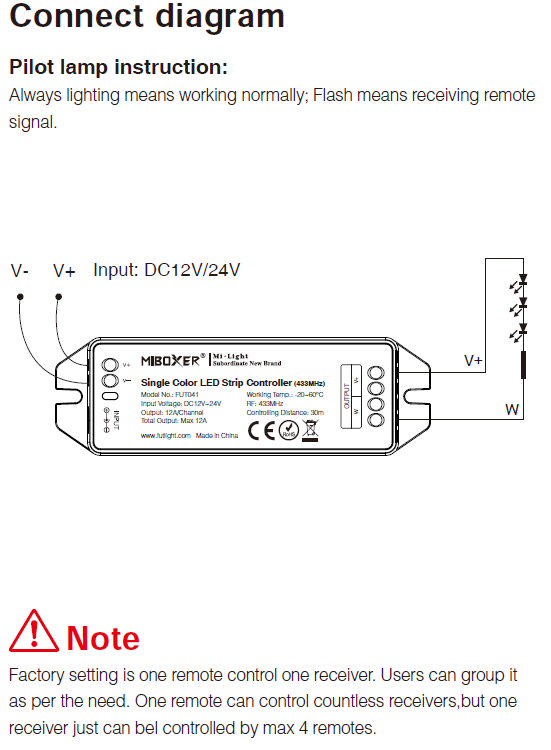

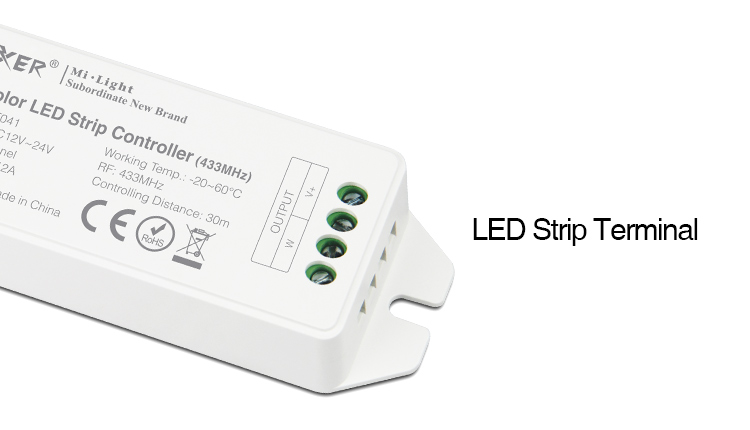

Output Connection: Common anode
Working Temp.: -20~60°C

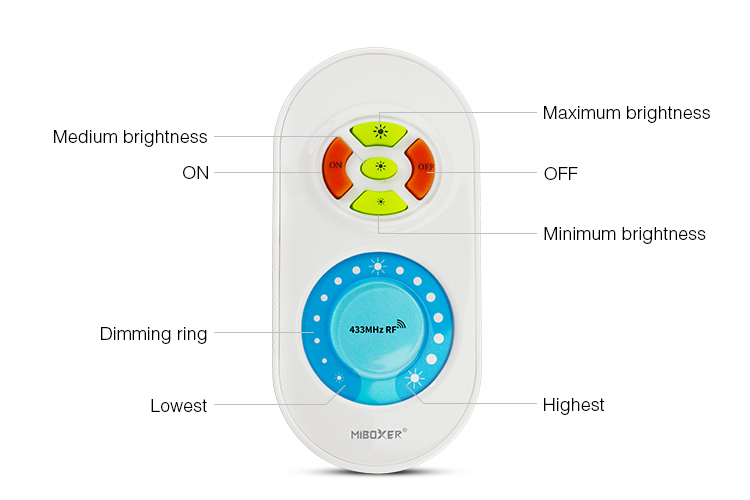

Working Voltage: 3V(2*AAA Battery)
Standby Power: 20uA
Transmitting Power: <10mW
Modulation Method: ASK
Control Distance: 30m
Working Temp.: -20~60°C
1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be damage.
2. Please don’t connect wires with power on. Please turn on again only when it is in right connection and no short circuit.
3. Non-professional user cannot dismantle the controller directly, otherwise it may damage the controller.
4. Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.
