Product Information
Key Features
Through-Surface Sensing
Installs behind wood, glass, or plastic panels, creating an invisible, touch-sensitive control point.
Intuitive Dual-Function Control
A short touch toggles the light on or off, while a long touch smoothly dims the brightness up or down.
Flicker-Free PWM Dimming
Features a 2KHz PWM frequency output for a smooth, continuous 0-100% dimming range without visible flicker.
Safe Low-Voltage Operation
Powered by 5VDC, making it safe and easy to integrate into a wide range of custom lighting projects.
Versatile Signal Output
Outputs a standard 5V level or PWM signal, compatible with a variety of LED drivers and controllers.
Compact & Discreet Design
Its small footprint (33.5 x 19mm) allows for easy installation in tight spaces within furniture and fixtures.
Technical Highlights
- Advanced capacitive sensing technology for reliable detection through non-conductive materials up to 5cm thick.
- High-frequency 2KHz PWM output ensures smooth, comfortable dimming compatible with sensitive cameras.
- Integrated logic for both momentary (on/off) and sustained (dimming) touch detection.

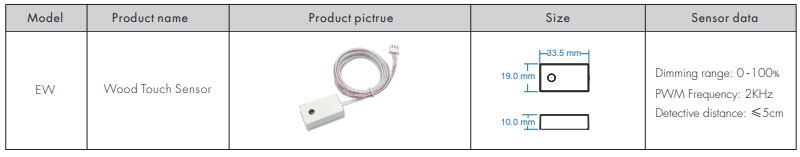

Product Specifications
| Parameter | Details |
|---|---|
| Model | SK-EW |
| Input Voltage | 5VDC |
| Output Signal | 5V Level / PWM Signal |
| Control Method | Capacitive Touch |
| Functions | Short Touch (On/Off), Long Touch (Dimming) |
| Dimming Range | 0-100% |
| PWM Frequency | 2KHz |
| Sensing Medium | Wood, Glass, Plastic, other non-metallic materials |
| Maximum Detection Distance | ≤5cm |
| Dimensions (L×W×H) | 33.5 × 19 × 10 mm |
| Wire Length | 1 meter |
| Working Temperature | -30°C ~ +55°C |
Application Scenarios
How to Control & Use This Sensor Switch

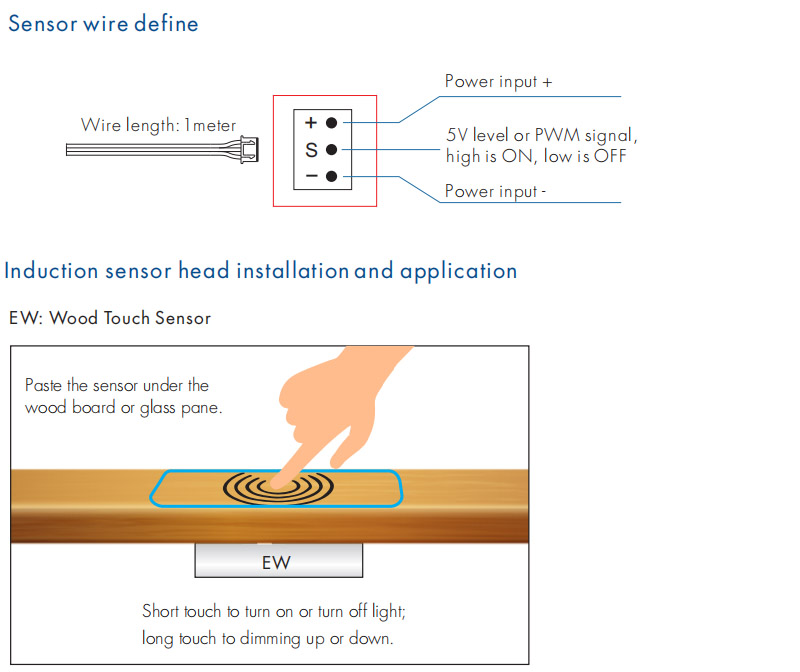

- Step 1: Mounting - Securely affix the sensor module to the back side of your chosen non-metallic surface (e.g., wood, glass, plastic). Ensure the central sensing area is aligned with where you intend to touch.
- Step 2: Power Input - Connect the input wires to a regulated 5VDC power supply. The Red wire connects to Positive (+) and the Black wire connects to Negative (-).
- Step 3: Signal Output - Connect the output wires to the signal input of your LED controller or driver. The Yellow wire is the PWM signal output, and the Black wire is the common ground (-).
- Step 4: Operation - Once wired, touch the front surface of the panel. A brief tap will turn the lights on or off. A sustained press-and-hold will cycle the brightness up and down.
- Ensure the material thickness does not exceed the 5cm maximum detection range for reliable operation.
- This sensor is designed for low voltage systems. Only use a compatible 5VDC power supply.
- The sensor will not function if mounted on or behind metallic or conductive surfaces.
- This device outputs a control signal; it does not directly power LED strips. It must be used with a compatible LED controller or driver.
What's in the Box

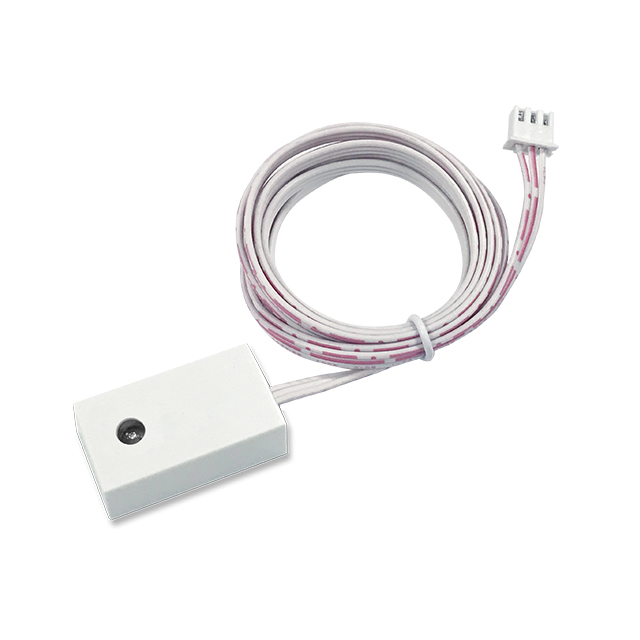

- ✓1 x SK-EW Wood/Glass Touch Sensor Switch with 1m wire
⇩ Downloads & Documents
Frequently Asked Questions
Q: What materials can this touch sensor work through?
A:It is designed to work through non-metallic materials like wood, glass, plastic, acrylic, and stone up to 5cm thick.
Q: Will this sensor work if I mount it behind a metal panel?
A:No, capacitive touch technology does not work through metal or other conductive surfaces.
Q: What kind of power supply is required for the SK-EW sensor?
A:This sensor requires a stable, regulated 5VDC power supply for proper operation.
Q: How do I dim the lights with this sensor?
A:To dim, simply press and hold your finger on the surface above the sensor. It will cycle through brightness levels until you release your finger.
Q: Can this sensor power my LED strip directly?
A:No, this is a sensor that outputs a low-power 5V PWM signal. It must be connected to an LED controller or a driver that accepts a PWM input to control your lights.
Q: Is the touch sensitivity adjustable?
A:The sensitivity is factory-set for a detection range up to 5cm and is not user-adjustable.
