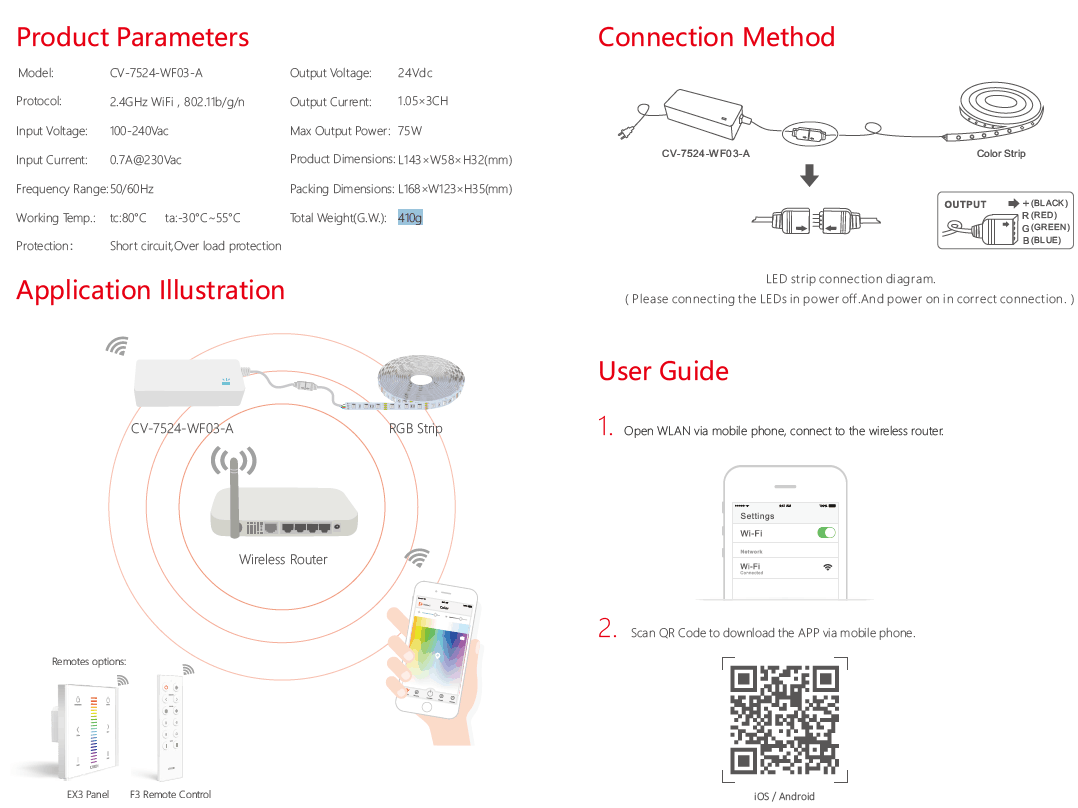

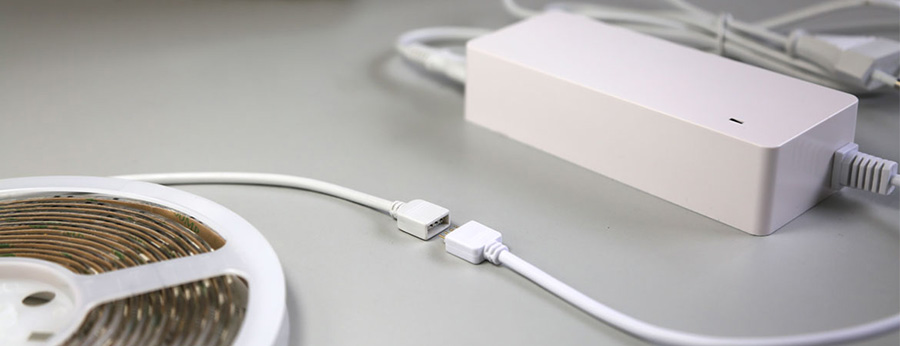

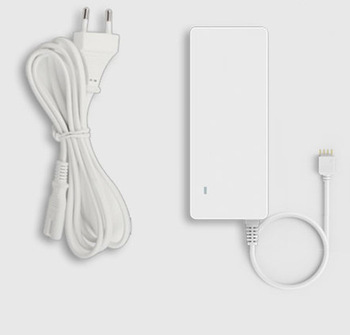

WiFi Smart LED Driver CV-7524-WF03-A
Protocol: 2.4GHz WiFi，802.11b/g/n
Input Voltage: 100-240Vac
Input Current: 0.7A@230Vac
Frequency Range: 50/60Hz
Working Temp.: TC:80°C ta -30°C~55°C
Protection： Short circuit, Overload protection
Output Voltage: 24Vdc
Output Current: 1.05×3CH
Max Output Power: 75W
Product Dimensions: L143×W58×H32(mm)
