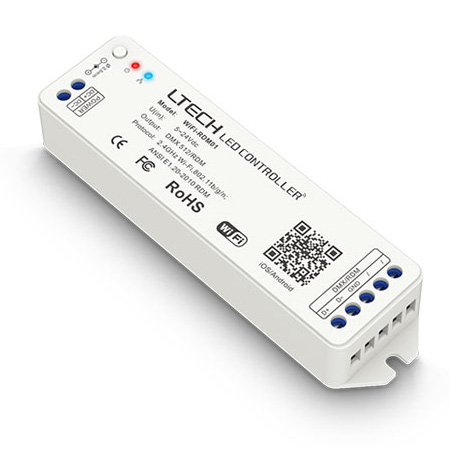

DC5-24V RDM WiFi Controller WiFi-RDM01
WiFi-RDM01 is the RDM master control, which browsing and setting corresponding parameters of the equipment with RDM protocol through the RDM standard protocol.

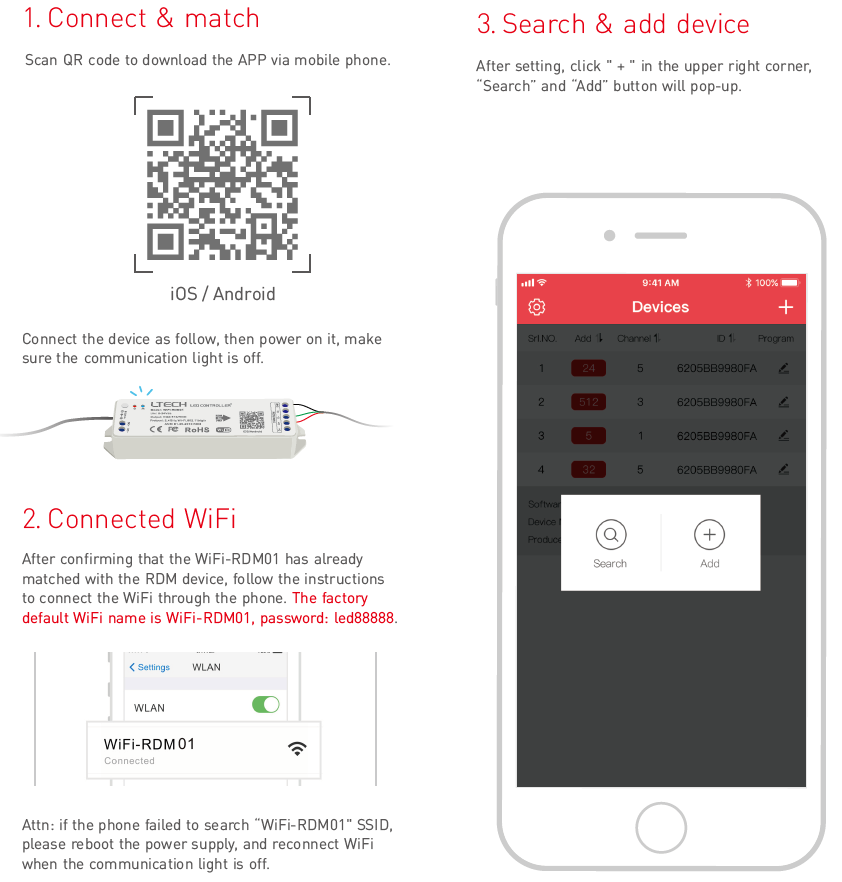

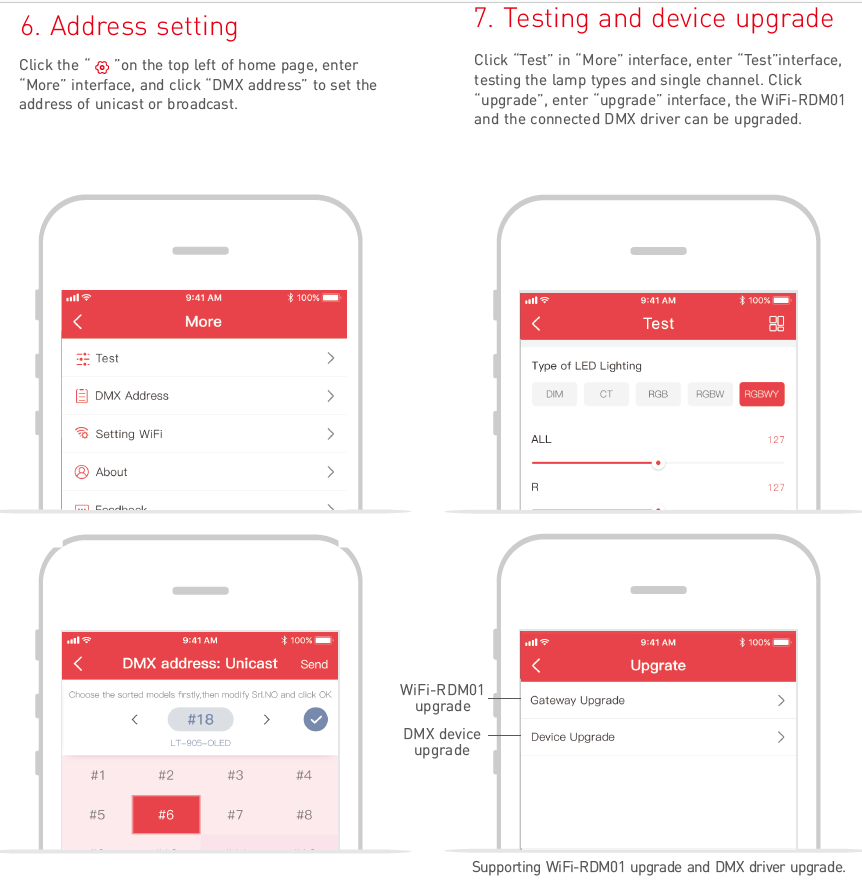

WIFI-RDM01 uses the Wifi module, which can wireless control by the phone's APP and supporting to upgrade the firmware remotely. it is convenient for customers' using the most functional and latest firmware version.

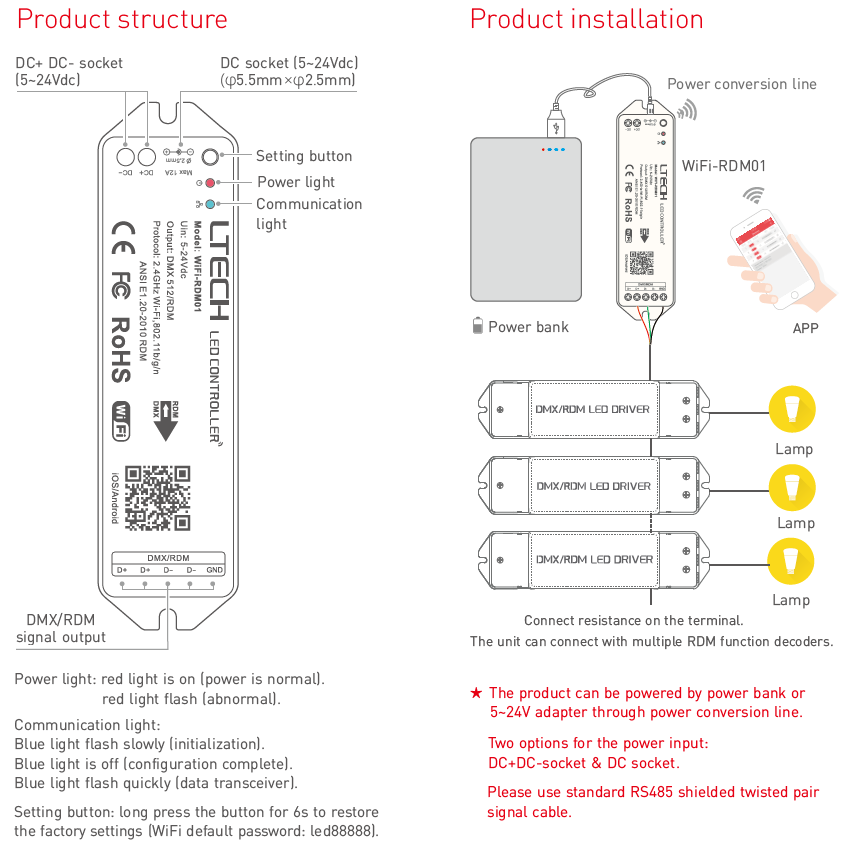

WiFi-RDM01 can be compatible with other brand's product with the RDM protocol, and it does not affect the normal operation of other products when hangs on the bus.
Protocol: 2.4GHz Wi-Fi, 802.11b/g/n,ANSI E1.20-2010 RDM
Input voltage: 5-24Vdc
Working temperature: -30℃～55℃
Package size: L127×W35×H24mm
Weight (G.W.): 110g
The product shall be installed and serviced by a qualified person.
This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a waterproof enclosure.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the voltage of the power supply used to comply with the working voltage of the product.
5. Ensure all wire connections and polarities are
correct before applying power to avoid any damages to the LED lights.
6. If a fault occurs please return the product to your
supplier. Do not attempt to fix this product by yourself.
