WIFI-103,4A*3CH 12A Max, High-end Controller Connection Directly or By Router,Flexibly Control SC, CT, RGB LED Lgihting fIxture, (Replaced by WiFi-104)
Sorry to tell you that the WiFi-103 has been discontinued, please use the WiFi-104 for replacement.
WIFI-103,4A*3CH 12A Max, High-end Controller Connection Directly or By Router,Flexibly Control SC, CT, RGB LED Lgihting fIxture,Warranty 5 years
WiFi-103 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices could control various types of LED lighting products after installing related software on our ios or Android phones, tablet PCs and other mobile devices. It makes the led lighting control more intelligence, networking and humanization.
One WIFI-103 controller can be used as dimmer, CT controller, even RGB controller, which means a significant saving to middleman who need to stock up, now one product will realize your three desires.
WiFi - 103 control system supports direct or through a router two network connection mode:
● As a direct way, mobile phone, pad can directly control the WiFi - 103 controller a wireless control, without any third party of network equipment ;
● Through a router connection, in addition to reach all the functions of direct connection, and will not affect the normal Internet access router at the same time, a more important role is to support the software interface to switch muti-control systems, control independent of each other systems more convenient.
In addition, this model has DIY function. Users can get any effect they want based on our controlling software. If you don't have any mobile devices with the controlling software at hand, you could also use our 2.4G RF remote control--T series(T1, T2, T3) to control it , which provides more choices!
- ● Support both wifi control of Apple products (iPod, iPad, iPhone) , Android mobile devices like samsung, HTC and RF wireless remote
- control More flexible, efficient, intelligent.
- ● With the 3-in-1(RGB, dimming, CT) apple/android mobile device App. one machine multipurpose to suit different lighting application
- ● Built-in 32 fixed modes, 8 DIY modes which are programmable. infinite changes mixed by the three primary colours--red, green and
● Save scenes anytime anywhere for next play.
- ● WiFi and remote wireless control are all based on global universal 2.4 GHZ frequency band to work, share a root 2.4 G antenna, avoid
- bringing space pollution by WiFi and remote control using different frequency wireless signal.

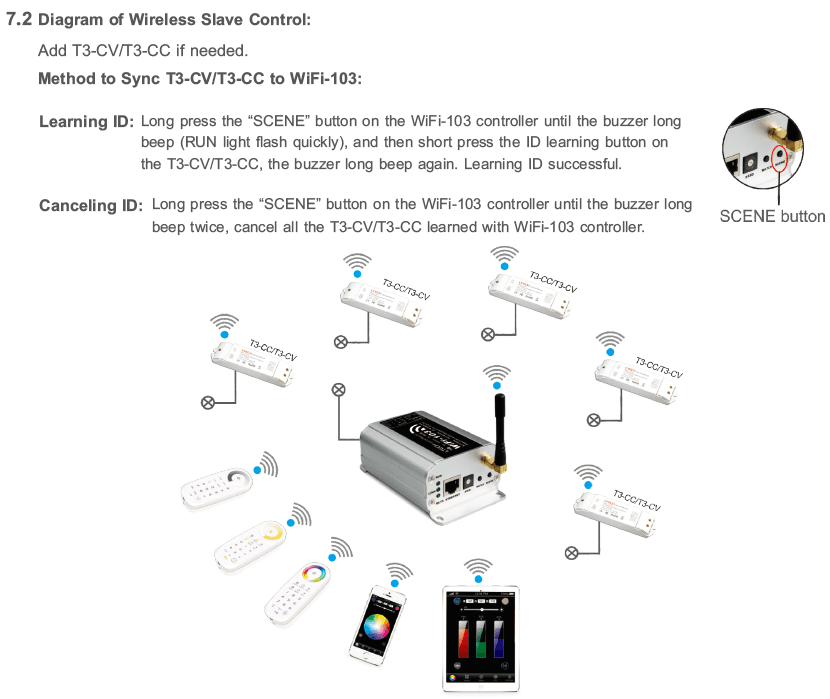

- ● Optional CV/CC wireless sync control, it is easy to add sub-control for WiFi master controller in not enough power, wireless
- connection in different zones. CV/CC sub-control can connect different kinds of LEDs.
- ● Realize simple zones control function in connecting multi-master.
|Communication standard||2.4GHz Wi-Fi, 802.11b/g/n protocol|
|Max current load||4A×3CH Max 12A|
|Max output power||144W/288W(12V/24V)|

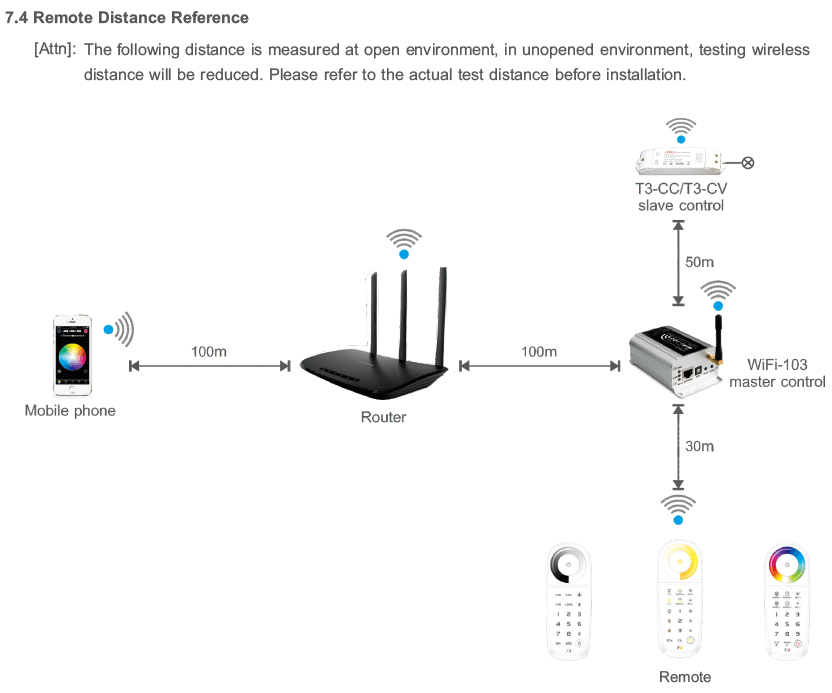

|control distance||100m (Distance of cross-eyed)|
|RGB color change mode||32 fixed modes, 8 DIY modes|
|Platform||Android 2.1 or above, IOS4.3 or above, with the wifi function|
