Product Information
Introducing the FSLCCT-2835X208W8, a professional-grade 24V CCT-adjustable LED strip engineered for superior performance in long-run applications. This 8mm 208LEDs/m strip's innovative design allows for a continuous 10-meter (32.8ft) installation without any perceptible voltage drop, ensuring uniform brightness and color temperature from start to finish. With a high Color Rendering Index (CRI) of over 93 and a tunable white range from a warm 2700K to a cool 6500K, it delivers exceptional light quality for demanding residential and commercial projects. The slim 8mm PCB and precise 9.6mm cut points offer maximum design flexibility, making it the ideal choice for architectural coves, under-cabinet lighting, and large-scale ambient installations where consistency and color accuracy are paramount.
Key Features
Extended 10-Meter Run Length
Install up to 10 meters (32.8ft) in a single, continuous run with zero voltage drop for perfectly consistent lighting.
Dynamic CCT Adjustment
Seamlessly tune the white light from a cozy 2700K warm white to a crisp 6500K cool white to match any mood or task.
Superior Color Accuracy (CRI >93)
Render colors, textures, and skin tones faithfully, making it perfect for retail displays, kitchens, and art galleries.

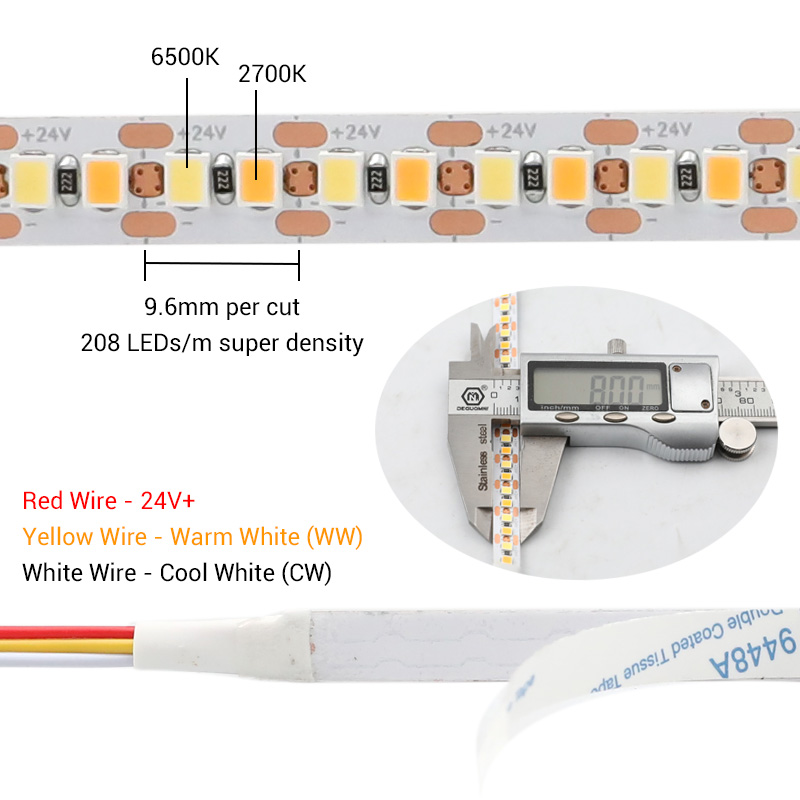

High-Density & Precision Cutting
Features 208 LEDs per meter for smooth, dot-free illumination and can be cut every 9.6mm for custom-fit installations.
Slim 8mm PCB Design
The narrow 8mm width allows for easy installation in slim LED aluminum profiles and tight spaces.
Versatile Control Options
Compatible with a wide range of CCT controllers, including RF, Wi-Fi, Bluetooth, 0-10V, Triac, and DALI systems.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | FSLCCT-2835X208W8 |
| Input Voltage | 24V DC |
| Power Consumption | 18W per meter (9W/channel) |
| Color Temperature (CCT) | 2700K to 6500K, Warm White to Cool White Adjustable |
| Color Rendering Index (CRI) | Ra > 93 |
| Luminous Flux | Approx. 1600-1800 lm/meter |
| LED Type | SMD 2835 |
| LED Density | 208 LEDs per meter |
| Max Run Length | 10 meters (32.8 feet) |
| Cutting Interval | Every 9.6mm (2 LEDs) |
| PCB Width | 8mm |
| Beam Angle | 120° |
| IP Rating | IP20 Non-Waterproof (Optional IP67, IP68) |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) |

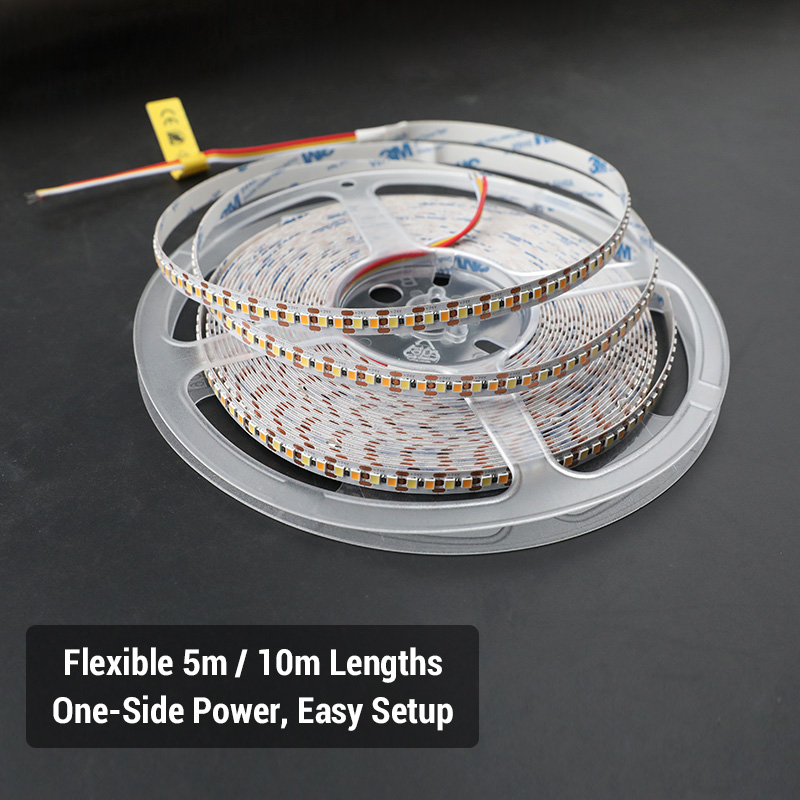

| Reel Lengths | 5 meters (16.4ft) / 10 meters (32.8ft) |
Application Scenarios
Power Consumption and Driver Sizing
| Length | Power | Driver |
|---|---|---|
| 5 meters | 90W | 24V DC, 108W or higher |
| 10 meters | 180W | 24V DC, 216W or higher |
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for FSLCCT-2835X208W8Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
