Rotary Glass Panel Dual color LED Constant Voltage Controller T2-K For CCT LED lights strip

Model: T2-K Review stars 0.0 (0 Reviews) Various options in stock
Price$22.98
Qty Discounts Off Price
1-10
$22.98
11-99
$22.52
100-199
$21.83
200+
$20.91
* Discounts may vary based on options below
Select Specifications:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The Skydance T2-K is a wall-mounted rotary constant voltage controller engineered specifically for tunable white dual color LED lights. Designed for low-voltage systems operating at 12-24VDC, this control panel led lights unit delivers an intuitive physical dial interface alongside built-in 2.4GHz RF wireless communication. Supplying LED strip lights and accessories since 2015, SuperLightingLED provides proven lighting control hardware trusted by electricians and designers globally, with 26.4% of our customers ordering again (8,869 of 33,629 buyers) across 124 countries and regions.

Featuring 4 output channels rated at 3A per channel (12A total), the T2-K drives up to 144W at 12VDC or 288W at 24VDC directly. The rotary encoder offers dual-mode action: push to switch power, double push to toggle between Kelvin tuning and light output adjustment, or rotate smoothly across 50 discrete fine levels. With 256-level pulse-width modulation (PWM), adjustments remain entirely flicker-free across the full 0% to 100% range, making it a reliable physical control center for architectural and residential spaces.

arrow
T2-K rotary dual color CCT constant voltage LED glass wall panel controller
arrow
Rotate knob to change color temperature across 50 steps and dim brightness
arrow
Flicker-free 256-level PWM constant voltage smooth dimming curve
arrow
2.4GHz wireless signal transmission with 30m range accepting 10 RF remotes
arrow
Standard European 86x86mm wall mount footprint with glass finish
Rotary Glass Panel Dual color LED Constant Voltage Controller T2 K - photo 2

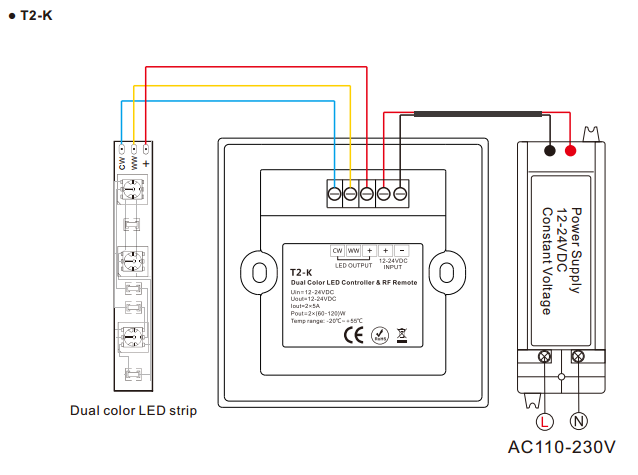

T2-K 4-channel dual color LED strip and 12-24V power supply wiring diagram
Rotary Glass Panel Dual color LED Constant Voltage Controller T2 K - photo 3

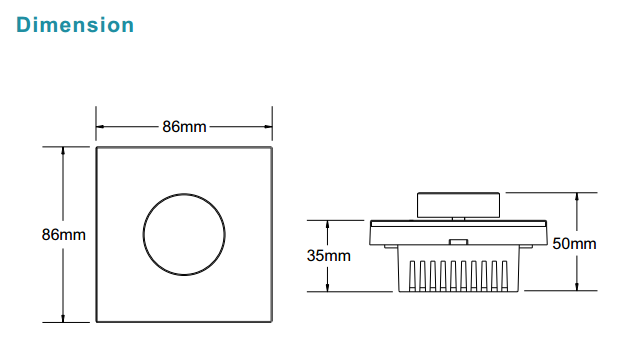

Mechanical structural dimensions and base plate mounting diagram
Rotary Glass Panel Dual color LED Constant Voltage Controller T2 K - photo 4

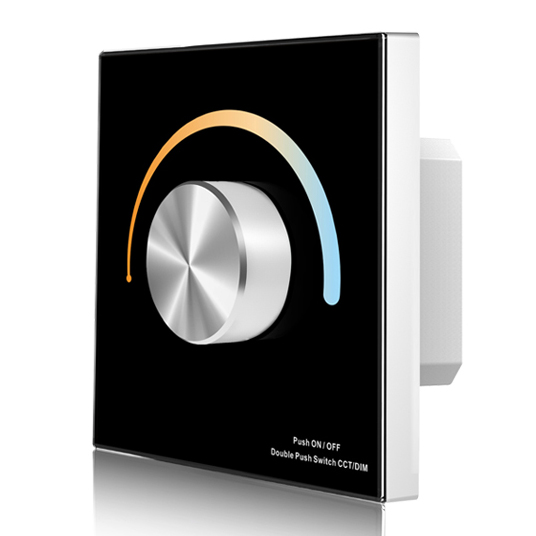

T2-K tempered glass faceplate available in black and white finishes

Key Features

Dual-Parameter Rotary Dial

Double push the central knob to alternate effortlessly between adjusting color temperature and dimming brightness across 50 calibrated detent levels.

4-Channel Constant Voltage Output

Equipped with two pairs of warm white and cool white terminals (WW1, CW1, WW2, CW2) delivering 3A per channel for up to 288W total load at 24VDC.

256-Level Flicker-Free Dimming

Applies refined 0-100% logarithmic PWM regulation with 256 distinct steps, preventing visible strobing or camera flutter at low levels.

2.4GHz RF Transceiver Integration

Functions as a standalone master receiver that matches up to 10 RF remote controls within a 30m line-of-sight range, or transmits sync signals to additional controllers.

Toughened Glass Wall Faceplate

Features a scratch-resistant tempered glass surface in black or white mounted onto a standard European 86x86mm electrical box footprint.

Audible Feedback & Tone Toggle

Emits distinct chord tones on rotation and push commands, which can be silenced at any time by pressing the dial for 5 seconds when turned off.

Dual-Function Dial & Dimming Operation

  • Single push on the dial turns the connected LED strip load on or off instantaneously.
  • Double push toggles control focus between color temperature adjustment (Kelvin) and brightness dimming (intensity).
  • Rotational encoder provides 50 click-stop levels over 2.5 complete turns for precise lighting tuning.
  • Continuous press-and-hold (1-6 seconds) activates stepless 256-level linear dimming up or down.
  • Onboard status LED illuminates to confirm active operation mode and pairing status.

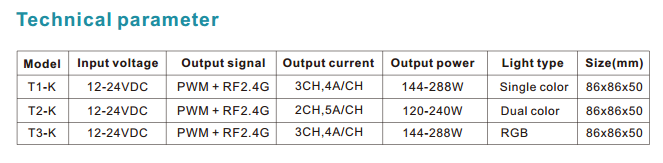

Product Specifications

ParameterDetails
Model NumberT2-K
Supported LED TypeDual Color / Tunable White (CCT) LED Strip
Input Voltage12-24VDC
Input Current12.5A
Output Voltage4 x (12-24)VDC
Output Current4 Channels, 3A/CH (12A Total)
Output Power144W @ 12VDC / 288W @ 24VDC
Output TypePWM Constant Voltage
Dimming Resolution256 Levels (0-100% Smooth)
Rotary Dial Steps50 Levels (2.5 Full Turns)
Wireless ConnectivityRF 2.4GHz (Up to 30m Range)
Remote CapacityAccepts Up to 10 Paired Remotes
Faceplate MaterialTempered Glass Panel
Housing ColorsWhite or Black Options
Operating Temperature (Ta)-30°C ~ +55°C
Max Case Temperature (Tc)+85°C
Ingress Protection RatingIP20 (Indoor Dry Locations)
Dimensions86.00 mm x 86.00 mm x 48.00 mm
Safety StandardsCE, EMC (EN301 489, EN 62479), LVD (EN60950), RED (EN300 328), RoHS
Protection MechanismsReverse Polarity, Over-Heat
Rotary Glass Panel Dual color LED Constant Voltage Controller T2 K - photo 5
Full product overview and terminal port arrangement for T2-K dimmer

Application Scenarios

Residential Living & Dining Zones Mount the T2-K wall panel near room entryways to control cove and baseboard dual white CCT LED strip lights. Rotate smoothly between crisp 5000K illumination for reading and cozy 2700K warmth for evening relaxation without requiring smartphone applications.
Boutique Retail & Art Galleries Fine-tune display case lighting for seasonal merchandise presentations. The 256-step PWM curve ensures zero camera flutter during customer photography while providing repeatable Kelvin temperatures across multiple display cabinets.
Hospitality & Suite Bedside Controls Install directly into standard 86-type electrical boxes beside guest beds. The physical rotary dial with optional chord tones provides familiar, tactile operation for hotel visitors adjusting headboard backlight and architectural accents.

How to Control & Use This Controller

  1. Select a regulated 24V power supply that exceeds your total LED strip load wattage by at least 20% to prevent thermal stress.
  2. Disconnect AC line power before wiring. Strip wire insulation 4-5mm and insert 0.5-2.0mm² conductors into the terminal blocks.
  3. Connect DC+ and DC- from your power supply to the INPUT 12-24VDC terminals, observing marked polarity strictly.
  4. Wire your tunable white LED strip to the output terminals: attach common positive to +, cool white negative to CW1 (or CW2), and warm white negative to WW1 (or WW2).
  5. Mount the baseplate into an 86-size European wall box (52-59mm screw hole spacing) using the supplied screws, then snap the glass touch faceplate firmly into place.
  6. Restore power. Single push the rotary knob to turn lights ON. Double push to select either color temperature or brightness mode, then rotate to adjust.
  7. To match an optional RF CCT remote control via knob: turn light on, turn off, immediately push the knob for 5 seconds, then press the on/off or zone key on the remote within 5 seconds until the LED flashes 3 times.
  8. To match via power restart: switch mains power off and on, immediately short press the remote on/off or zone button 3 times; light blinks 3 times to confirm pairing.
⚠ Precautions
  • Input voltage must match the voltage requirement of the connected LED strip (12VDC strips require 12VDC power; 24VDC strips require 24VDC power).
  • Total load current must not exceed 12A across all 4 channels (maximum 3A per channel). For larger loads, install a CV power repeater downstream.
  • Do not install the panel inside sealed metallic enclosures, which will attenuate the 2.4GHz RF wireless signal range.
  • Rated for IP20 dry indoor environments only; avoid areas subject to condensation, steam, or direct moisture ingress.

What's in the Box

  • ✓1 x T2-K Rotary Dual Color CCT LED Glass Wall Panel Controller
  • ✓1 x Wall Mounting Baseplate
  • ✓1 x User Instruction Manual Ver 1.1.0

⇩ Downloads & Documents

PDFT1-K,T2-K,T3-K(octagon)

Frequently Asked Questions

Q: How do I switch between dimming brightness and changing color temperature on the T2-K?

A:Push the knob twice rapidly. This switches the dial encoder from adjusting brightness levels to tuning color temperature (Kelvin), allowing seamless dual-function control from a single physical knob.

Q: Can the T2-K controller be paired with handheld wireless remotes?

A:Yes, the T2-K contains an integrated 2.4GHz RF receiver that can match up to 10 compatible Skydance RF CCT remote controls simultaneously within a 30m wireless radius.

Q: How do I turn off the chime tone when pushing or rotating the dial?

A:First push the knob to switch the light off. Once turned off, press and hold the knob down continuously for 5 seconds to disable or enable the acoustic confirmation tone.

Q: What wall back box dimensions does the T2-K fit?

A:The T2-K is designed to fit standard European 86x86mm flush-mount wall boxes with mounting screw centres spaced between 52mm and 59mm.

Q: What happens if my tunable white LED strip project requires more than 288W?

A:You can connect the PWM output lines of the T2-K to the input side of a constant voltage power amplifier (repeater) to extend capacity without losing synchronization.

Q: what is dmx controller for led lights

A:A DMX controller sends digital DMX512 serial protocol data across up to 512 channels, whereas the T2-K is a local PWM constant voltage dial dimmer with RF 2.4G wireless matching for standard low-voltage DC LED installations.

Q: Does the T2-K remember its last color temperature and dimming state after a power outage?

A:Yes, the T2-K features non-volatile memory that automatically restores your previous brightness and Kelvin settings once power is reconnected.
