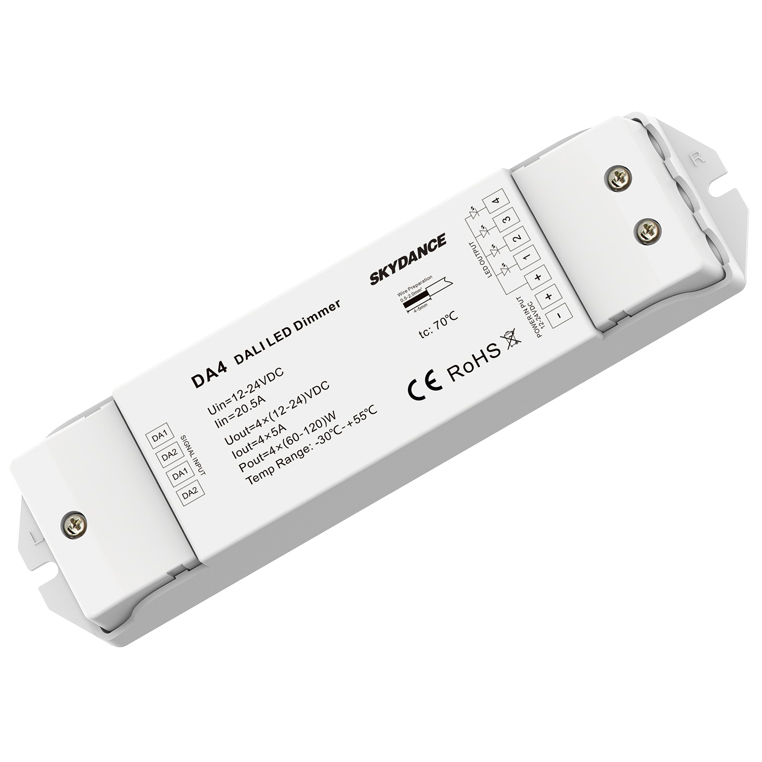

4CH*15A 12-24VDC CV DALI Dimmer DA4
●4 Address/4 Channel/Constant voltage/PMW dimming
● 4 channel constant voltage DALI LED Dimmer, 5A per channel.
● 4 DALI address, 4 channel work separately.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
● DALI address will be automatically assigned by DALI master.
● PWM digital dimming, standard DALI logarithmic dimming curve.
Input and Output
Input voltage: 12-24VDC
Input current: 20.5A
Output voltage: 12-24VDC
Output current: 4CH,5A/CH
Output power: 4 x (60-120)W
Output type: Constant voltage
Input signal: DALI
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity

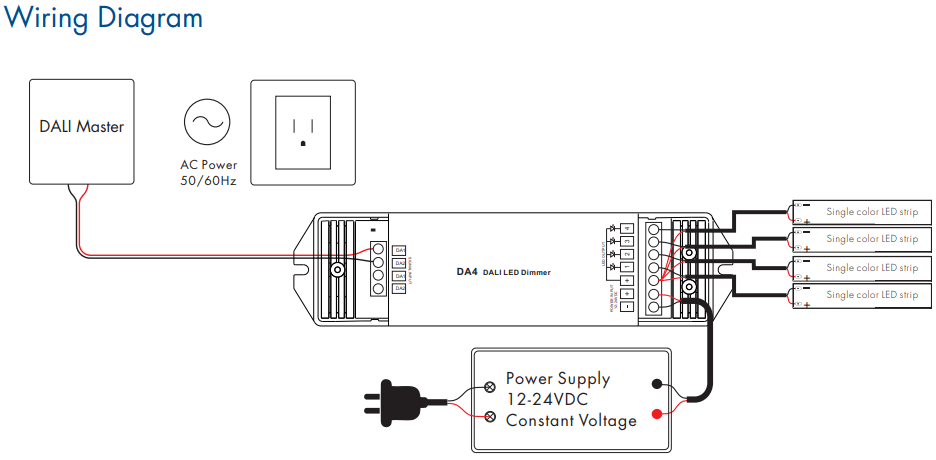

This product is designed with 4 DALI address input and 4 channel output, DALI address is assigned by DALI The master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
Safety & Warnings
DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
