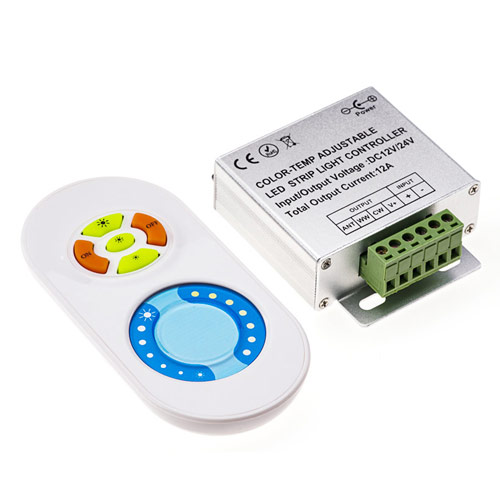

DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips

Model: CONCCT-RF-7
DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips
  • DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips
  • DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips
  • DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips
  • DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips
  • DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips
  • DC12/24V Max 12A, Universal Aluminum version with Pulley Touch Panel 2.4GHz wireless RF color temperature touch controller For Led light Strips

Select Specifications:

Select Operating Voltage :

Select Applied to:

$19.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$19.99
5-9
$19.59
10-14
$18.99
15+
$18.19
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

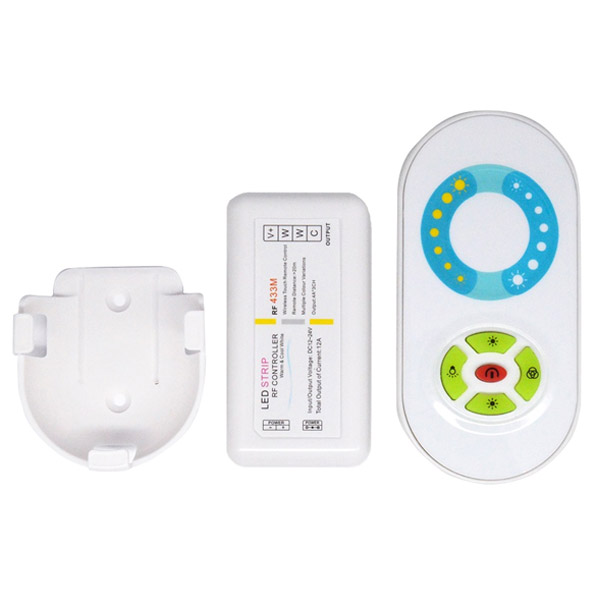

    This five key touch color temperature controller is wireless small volume controller which newly introduced by our company, touch remote control adopts high precision capacitance touch control technology, you can select the color temperature proportion and brightness you need by one button. It is convenient and easy. It is used for controlling a variety of single color or color temperature lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.




    Standards and Certifications





    Product Specification

    Controller

    Working temperature:   -20-60℃

    Supply voltage:   DC12V-24V

    Output:   2 channels

    Connection mode:   common anode

    External dimension:   L84 Χ W64 Χ H23mm

    Packing size:   L200 Χ W146 Χ H36mm

    Net weight:   75g

    Gross weight:   197g

    Static power consumption:   <1W

    Output current:   <5A (each channel)

    Output power:   12V:<120W, 24V:<240W

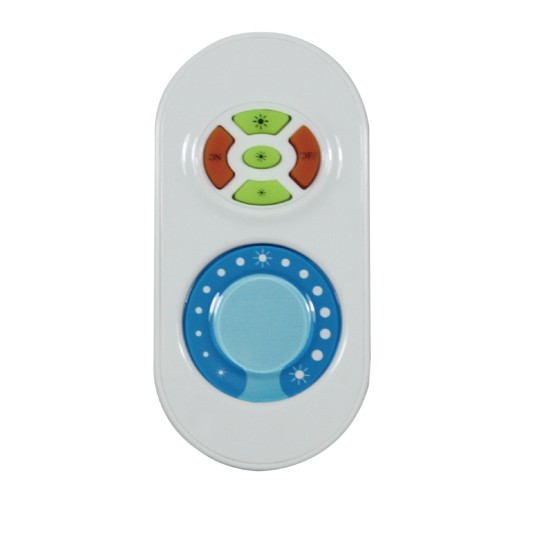

    Touch Remote Control

    Working temperature:   -20-60℃

    Power supply mode:   AAA * 3

    Supply voltage:   1.5V * 3

    Transmission frequency:   433.92 Mhz

    Standby power consumption:   0.015mW

    Standby current:   3uA

    Working current:   200uA

    Emission current:   10mA

    Remote distance:   about 30m

    Standby time:   6 months

    Remote control weight:   85g



    Installation Battery of The Remoter

    This remoter is used 2pcs AAA batteries ,each voltage is 1.5V.

    Open the cover of the battery;load 2 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack.

    Notice:

    If the indicator lights on the remote controller flash regularly without touch,please note the battery should be changed.



    For occasions

    Interior decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.

    Outdoor decoration: billboards, park, bridge, road transport, tourist attractions.

    Other: sample reveals ark decoration and other places need RGB lamps and lanterns.



    Remarks

    1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

    2. Power supply voltage range is DC12~24V, more than voltage range maybe burn out the controller.

    3. When not use touch remote control for long time, we suggest you to take down the batteries.

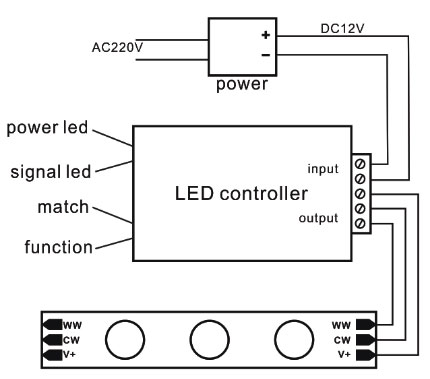

    Connection Diagram

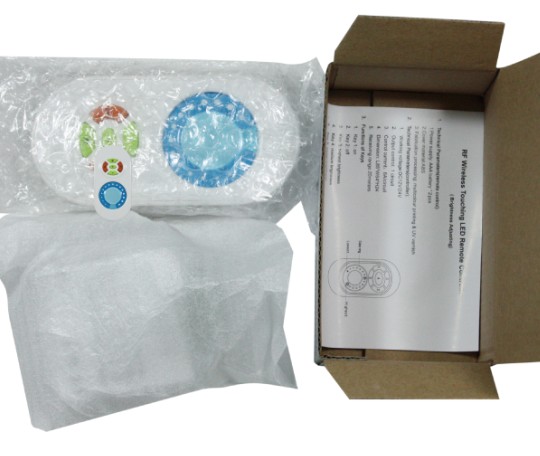

    Package Included

    1 × color temperature dimmer

    1 × RF wireless remote control.

    1 x  Piece of User's Manual
