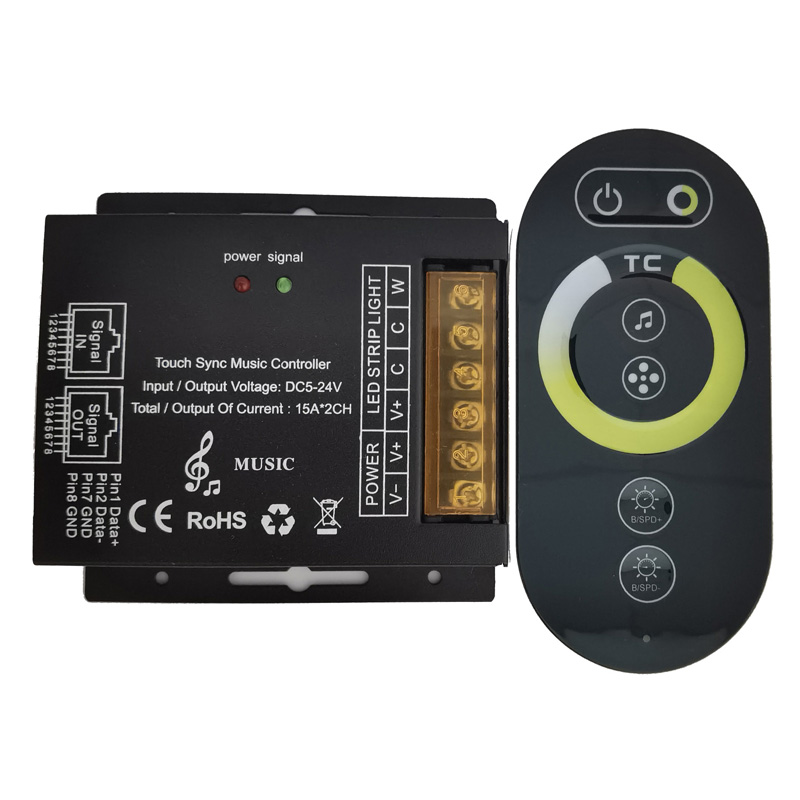

DC12/24V Max 24A 294W, Universal with RJ45 Interface SYNC With Touch Panel 2.4GHz wireless RF Double White touch controller For led lighting

Model: CONCCT-RF-8
DC12/24V Max 24A 294W, Universal with RJ45 Interface SYNC With Touch Panel 2.4GHz wireless RF Double White touch controller For led lighting

Select Specifications:

Select Operating Voltage :

Select Applied to:

$25.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$25.99
5-9
$25.47
10-14
$24.69
15+
$23.65
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This led dual white(color temperature) led Dimmer controller, adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for color temperature adjustable led strip. Designed for single color constant voltage LED lights, Working voltage DC12-24V. The output current is 8A/channel, in order to achieve the synchronization of more led strip, it also can use the internet cable to make them in series connection easily. Adopts RF 14keys remote control with fashion appearance, no need line-of-sight. Control range up to 20 meters. Memory function, each time power-on reserve the mode which stop in the last power-down. Long-press the brightness and speed key can get the fast adjustment, convenient for operation. Multiple controllers can work synchronically when connected by network cable through the RJ45 connector, the network cable between 2 ports up to 80 meters.


    Standards and Certifications





    Product Specification

    Controller

    Max. Load Power:   300W

    Voltage:   DC12V-24V

    Output gray:   256 levels

    Output current:   8A*3 channel

    Supply voltage:   DC12V,24V

    Output power:   12V:<300W, 24V:<600W

    Gross /net weight:   220g/250g

    External dimension:   L91*W88*H24 mm

    Packing size:   L106*W106*H66 mm

    Certification:   CE/RoHS

    Frequency of RF remote control:   433.9MHz

    Working temperature:   -20-60℃

    Touch Remote Control

    Working temperature:   -20-60℃

    Power supply mode:   AAA * 3

    Supply voltage:   1.5V * 3

    Transmission frequency:   433.92 Mhz

    Standby power consumption:   0.015mW

    Standby current:   3uA

    Working current:   200uA

    Emission current:   10mA

    Remote distance:   about 30m

    Standby time:   6 months

    Remote control weight:   85g



    Installation Battery of The Remoter

    This remoter is used 2pcs AAA batteries ,each voltage is 1.5V.

    Open the cover of the battery;load 2 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack.

    Notice:

    If the indicator lights on the remote controller flash regularly without touch,please note the battery should be changed.



    For occasions

    Interior decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.

    Outdoor decoration: billboards, park, bridge, road transport, tourist attractions.

    Other: sample reveals ark decoration and other places need RGB lamps and lanterns.



    Remarks

    1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

    2. Power supply voltage range is DC12~24V, more than voltage range maybe burn out the controller.

    3. When not use touch remote control for long time, we suggest you to take down the batteries.

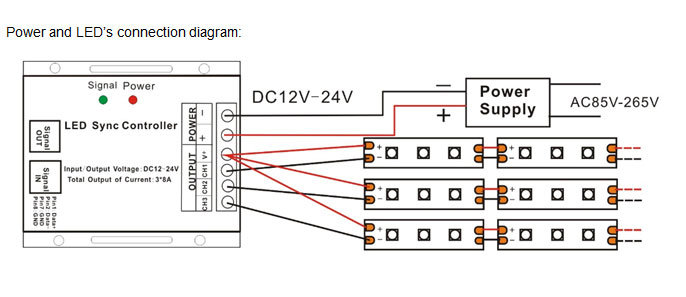

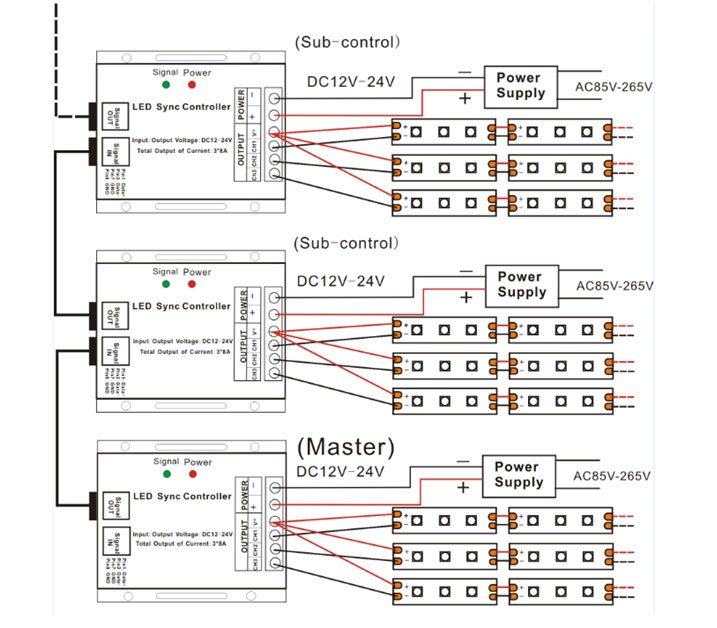

    Connection Diagram



    Package Included

    1 × color temperature dimmer

    1 × RF wireless remote control.

    1 x  Piece of User's Manual
