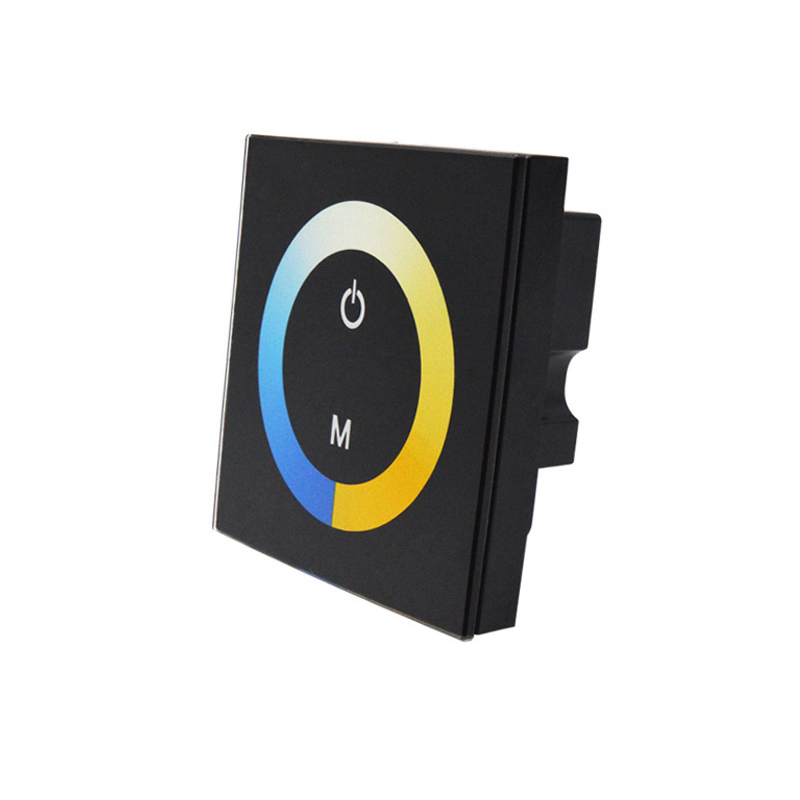

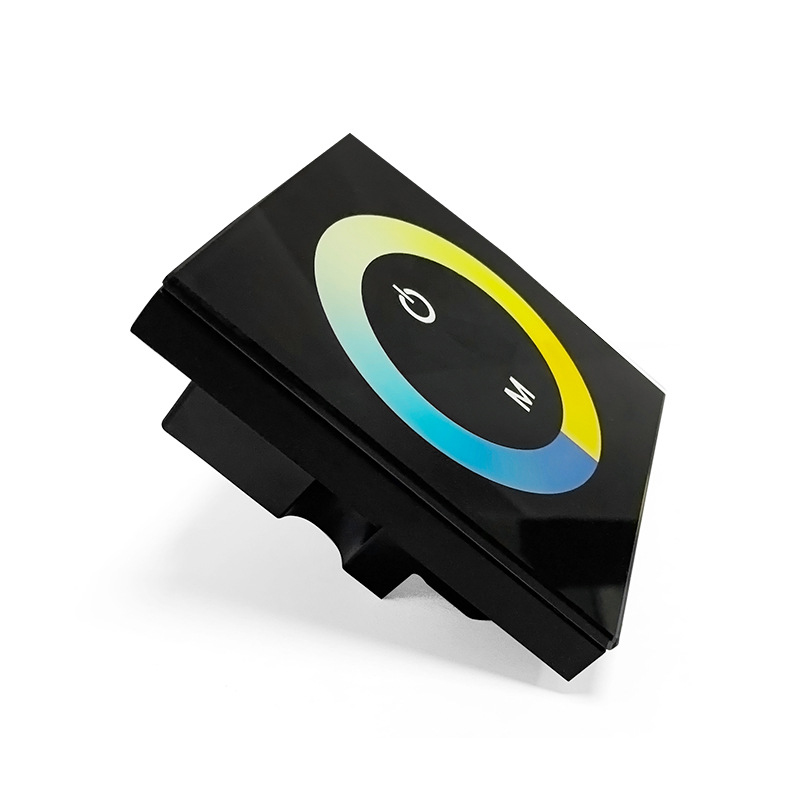

DC12/24V 2.4GHz, Wall Install Series Glass panel color temperature RF dimmer (pulley) for CCT led lighting
This Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led singe color or color temperature lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; Can be realized cold light , warm light, such as white light effect change.
Working temperature: -20-60 degrees
Supply voltage: DC12~24V
Output: 3 channels
Connection mode: common anode

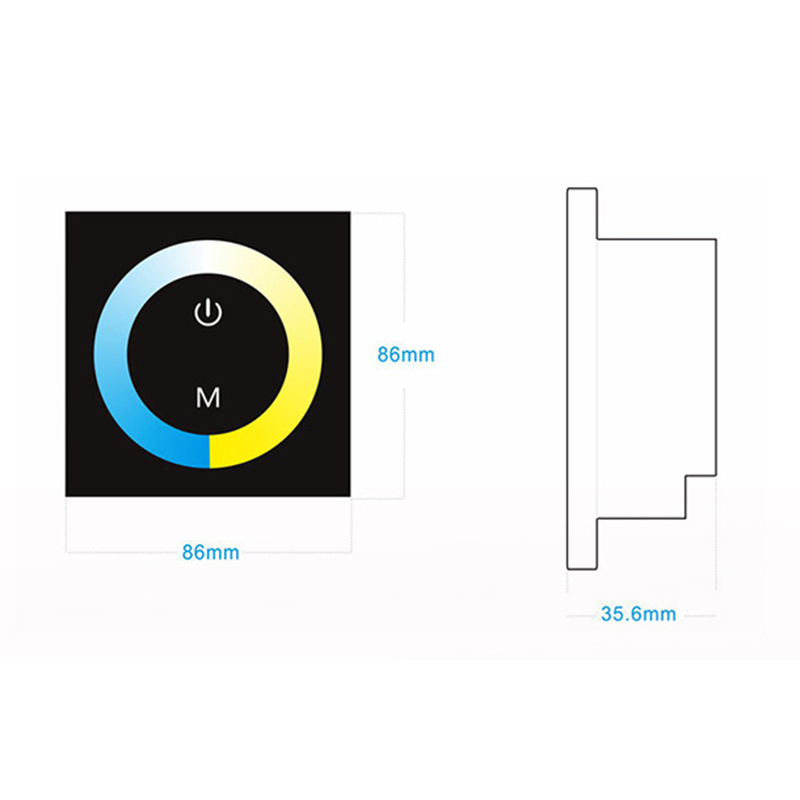

External dimension: L86 Χ W86 Χ H36 mm
Packing size: L90 Χ W90 Χ H45 mm
Net weight: 125g
Gross weight: 150g
Static power: <1W
Output current: <4A( each channel )
Output power: 12V<96W, 24V<192W
Touch Remote Control
working temperature: -20-60℃
power supply mode: AAA * 3
supply voltage: 1.5V * 3
transmission frequency: 2.4Ghz
standby power consumption: 0.015mW
standby current: 60uA
working current: 200uA
emission current: 10mA
remote distance: about 30m
standby time: 6 months
remote control weight: 94g
Installation Battery of The Remoter
This remoter is used 2pcs AAA batteries ,each voltage is 1.5V.
Open the cover of the battery;load 2 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack.
If the indicator lights on the remote controller flash regularly without touch,please note the battery should be changed.
Interior decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.
Outdoor decoration: billboards, park, bridge, road transport, tourist attractions.
Other: sample reveals ark decoration and other places need RGB lamps and lanterns.

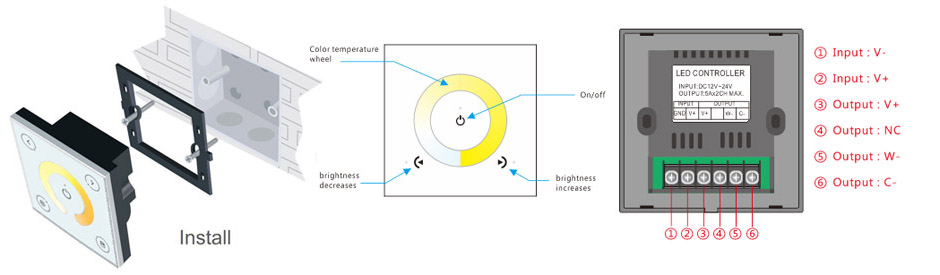

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2. Power supply voltage range is DC12~24V, more than voltage range maybe burn out the controller.
3. When not use touch remote control for long time, we suggest you to take down the batteries.

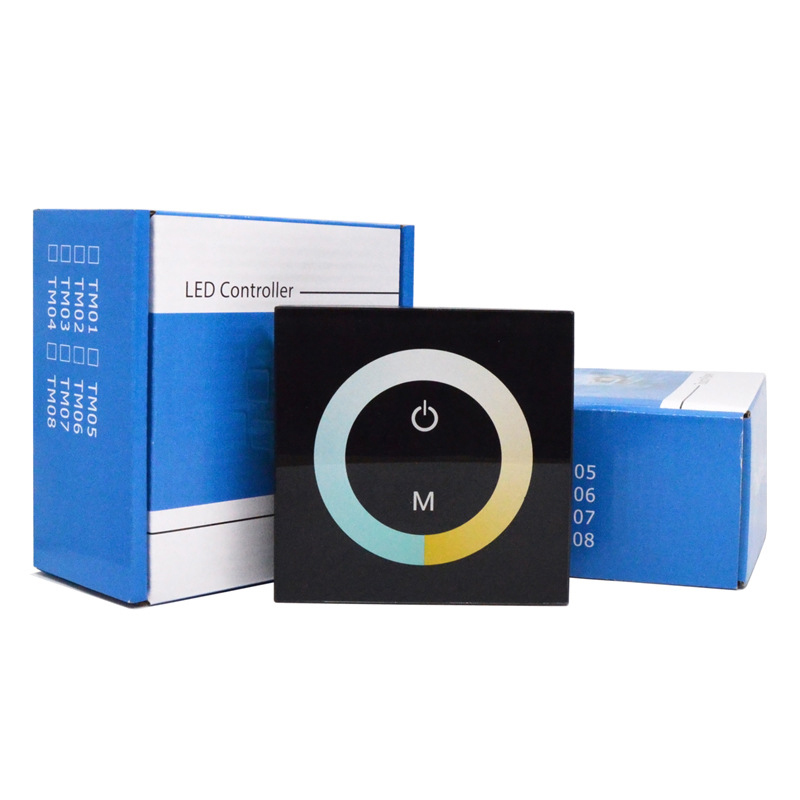

1 x led color temperature glass touch panel dimmers
1 x RF Remote control
1x Piece of User's Manual
