DC12V-24V 24 Channel DMX512 Decoder LED Controller LN-DMXTCON-24CH-LV - Replaced By DMX512-DE8524

DC12V-24V 24 Channel DMX512 Decoder LED Controller LN-DMXTCON-24CH-LV - Replaced By DMX512-DE8524
  • DC12V-24V 24 Channel DMX512 Decoder LED Controller LN-DMXTCON-24CH-LV - Replaced By DMX512-DE8524
  • DC12V-24V 24 Channel DMX512 Decoder LED Controller LN-DMXTCON-24CH-LV - Replaced By DMX512-DE8524


Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This product is now replaced by DC12-24V 24CH 120A DMX512 LED Decoder DMX512-DE8524, which has better performance. If you buy this product, we will send you DMX512-DE8524.



    The decoder adopt the advanced micro-computer control technology and converted the DMX512 digital signal widely used in international to the analog control signal. 1~24 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

    CE FCC  RoHS ISA SGS ISO  warranty


    Technical Parameters

    Working temperature: 0-70℃

    Decode channel: 24 channel

    Supply voltage: DC, +12~24V

    External dimension:L340*W142*H57 mm

    Packing size:L350*W180*H65 mm

    Net weight: 1.5kg

    Gross weight: 1.6kg

    Power consumption: <0.25A(12V); <0.30A(24V)

    Signal input: DMX-512 Standard digital signal

    Signal output: 0~24V, Max. 2A /CH

    Power output: 12V:<576W, 24V:<1152W


    Specifications Download   PDF

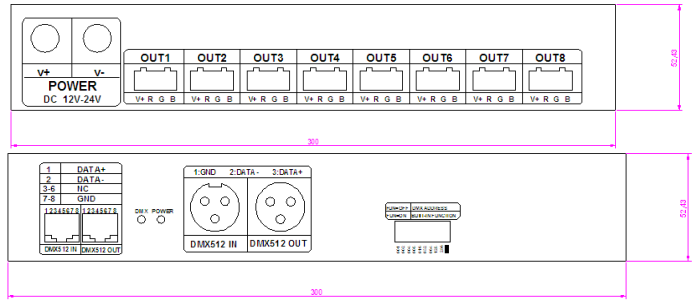

    External Dimension

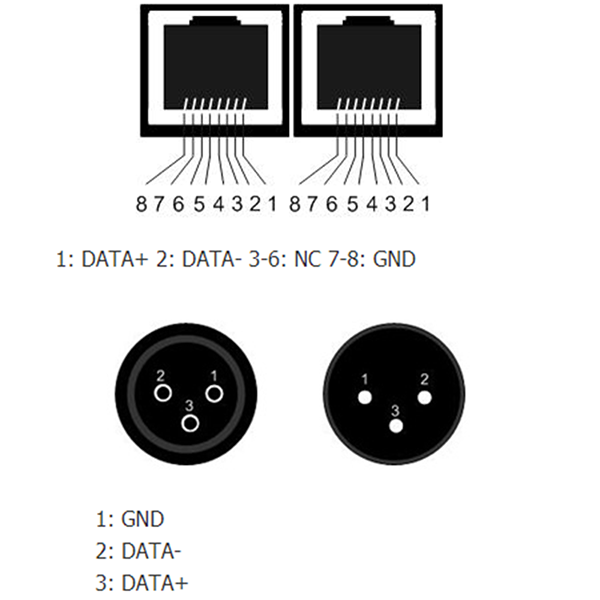

    DMX Signal interface


    Address code setting switch interface:

    See the next page for detailed instructions

    Power input interface:

    DC 12 ~ 24V input, power supply for the decoder itself and the lamps and lanterns of the decoder

    Drive output interface:

    Common anode drive, with 8 V + interfaces and 24-channel R, G, B output interfaces, can be connected to various full-color modules and monochrome modules to automatically adjust the output current according to the load of the lamp module

    Note: The full-color module connected to the common anode can directly connect the positive line and the R, G, B control lines to the corresponding pins of the decoder's output interface; the monochrome module can connect the positive line to the decoder's output interface According to the color of the module, the negative line is connected to a certain pin of the output interface R, G, B of the decoder; the monochrome modules of several colors are connected to the same decoder, and they're The positive lines are connected to the V + pin of the output interface of the decoder.


    Instructions for use

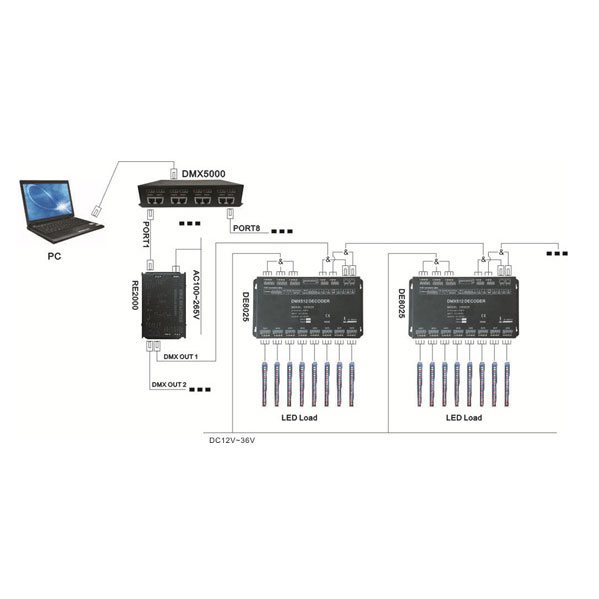

    1. Connection of DMX-512 control signal:

    DMX signal cable uses shielded twisted pair cable (microphone cable), DMX signal is divided into positive and negative ends, pay special attention to the polarity when soldering DMX signal cable plug. Connect the positive, negative, and ground signals of the DMX512 controller to the input interface of the DMX51 decoder.

    2. DMX-512 address code setting:

    The DIP switch on the decode driver has the function of setting the receiving DMX512 start address code with binary numeric encoding. The DMX512 decoder is a 24-channel decoder. For example, when online coding, the second DMX512 decoder should be developed for the 25th channel. The tenth bit of the code development is TERM, and when it is unplugged, it is the DMX signal terminal (this item For signal circuit configuration) The 1-9 bits of the DIP code switch are binary numeric code switches used to set the DMX to start address code. The first bit is the lowest bid, and the 9th bit is the highest bit, with a total of 512 address codes. The start address code is the calculation formula of the DMX control signal channel received by the first channel of this decoder: [sum of the bit values ??of the 1 ~ 9 bits of DIP switch] = DMX start address code. "1"), you can get the bit value; turn the DIP nth bit switch down (set "0"), the bit value of this bit is 0.

    Note: The 10th bit is used as a line terminator.


    DIP switch position value table:

    Example 1: Set DMX start address code to 38

    Set the 6th, 3rd, and 2nd positions of the DIP switch to "1", and the remaining positions to "0". At this time, the total value of the 1 ~ 9 bits of the DIP switch is 32 + 4 + 2, which is the DMX start address code 38.

    That is: [32 + 4 + 2] = 38


    Example 2: Set the DMX start address code to 226

    Set the 8th, 7th, 6th, and 2nd positions of the DIP switch to "1", and the remaining positions to "0". At this time, the total value of the 1 ~ 9 bits of the DIP switch is 128 + 64 + 32 + 2, which is DMX Start address code 226.

    That is: [128 + 64 + 32 + 2] = 226



    3. Precautions for product installation and use

    Installation and usage principles:

    (1) The input voltage must be within the specified operating voltage range of this decoder

    (2) Do not overload

    (3) Install in a suitable environment

    A. It is strictly forbidden to install the decoder in high temperature or humid environment

    B. The following three heat dissipation methods are recommended

    ① Exposed to the flowing air

    ② The heat dissipation space is as large as possible

    ③ Install on a large-area metal plate and make it in good contact


    Notes on installation and use:

    (1) When used in conjunction with the controller, the reliable length of the control line is 200 meters. The controller should be as close as possible to the decoder to avoid weak signals

    (2) It is recommended to use twisted pair shielded cable with a characteristic impedance of 120Ω for the signal line

    (3) The signal line should adopt the structure of a bus, the signal line enters and exits directly from the decoder signal port

    (4) Make sure that the signal cable connector is firmly connected to the decoder signal port

    (5) The decoder should be as close as possible to the lamp, if the lamp length exceeds 5 meters, the lamp after 5 meters should be reconnected to the decoder output interface

    (6) If multiple lamps are connected in series, the connectors should be firmly connected

    (7) Signal lines and lamp power lines should avoid close to strong current lines
