DMX124 Signal Distributor 4 Channel For DMX512 LED Strip Lights or DMX512 Decoder
DMX124 signal distributor is one of DMX signal distributor series, is specially used for amplifying DMX512 digital lighting control signal and 4 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need to be complete electrical isolation. Due to the independent isolation between input/output interface, it can avoid burning precision digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and so on, to ensure the safe operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of lighting equipment, so as to improve reliability for the whole digital lighting control system.
Standards and Certifications
Working temperature: -20-60℃
Input voltage: AC 100 ~ 240V 50～60HZ
Rated power: 4W

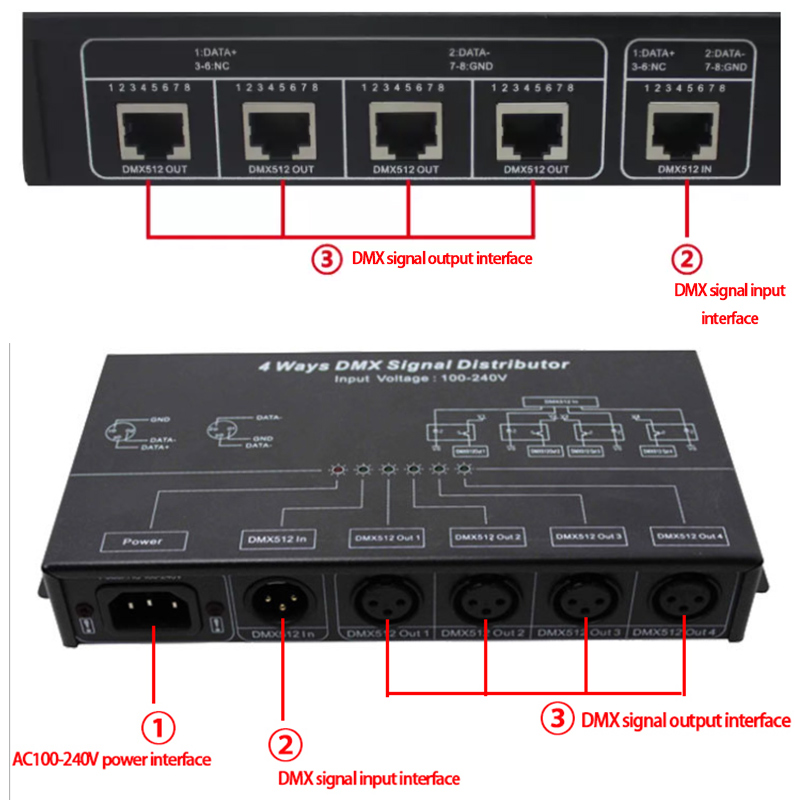

Input signal：1 channel DMX512 signal
Output signal：4 channel DMX512 signal output, the output port can be connected to 32 equipments mostly.
The isolation voltage between input/output interface:> 1000V

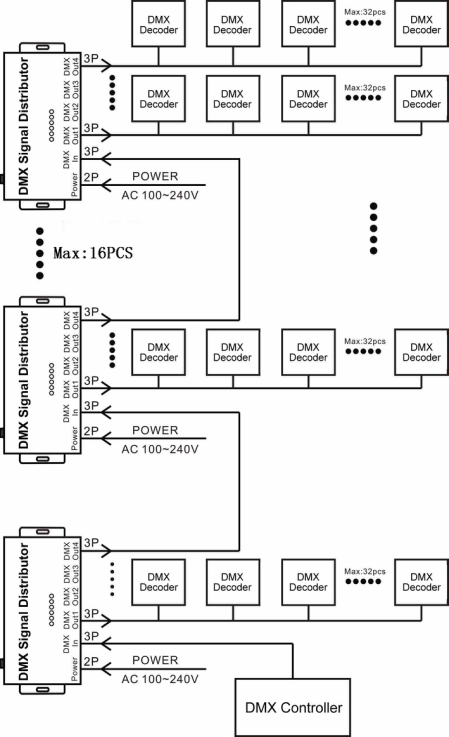

Cascade quantity: can cascade 16pcs signal amplifier mostly.

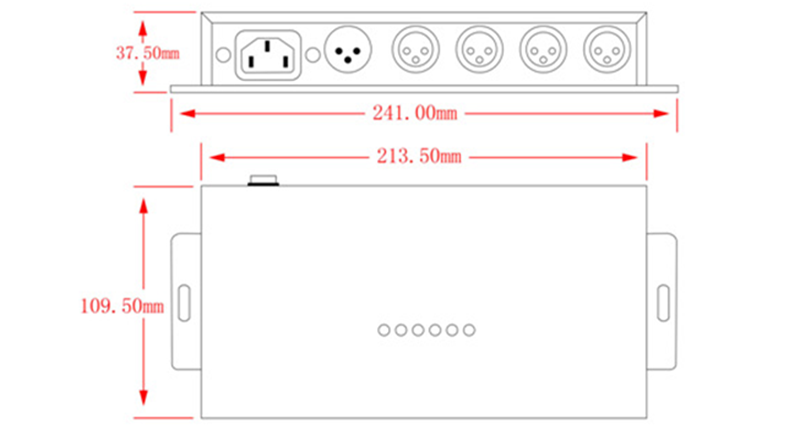

External dimension: L241*W109.5*H37.5mm
Packing size: L270*W170*H6

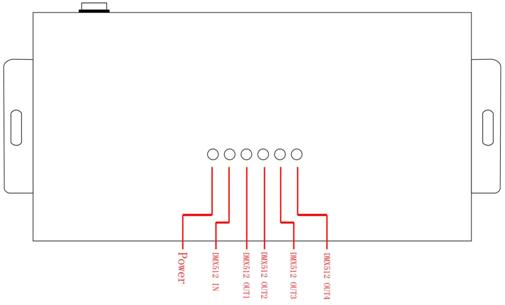

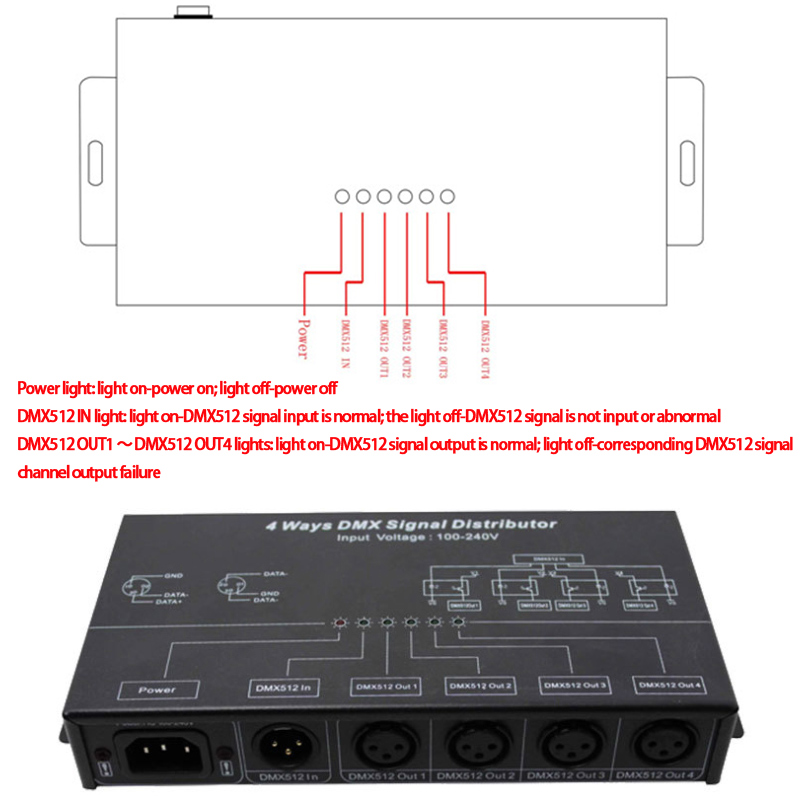

Signal light specification
Power light: light is on - Power on; Light is off - power off
DMX512 IN light: light is on - DMX512 signal input normal; Light is off - DMX512 signal without input or unnormal
DMX512 OUT1～DMX512 OUT4 light: light is on - DMX512 signal output normal; Light is off - DMX512 signal output failure
① 1*DMX124 signal distributor host
③ 4*Kanon head male head
④1*Cannon head female head
⑥1*AC power cord
⑦1*Outer packing box
