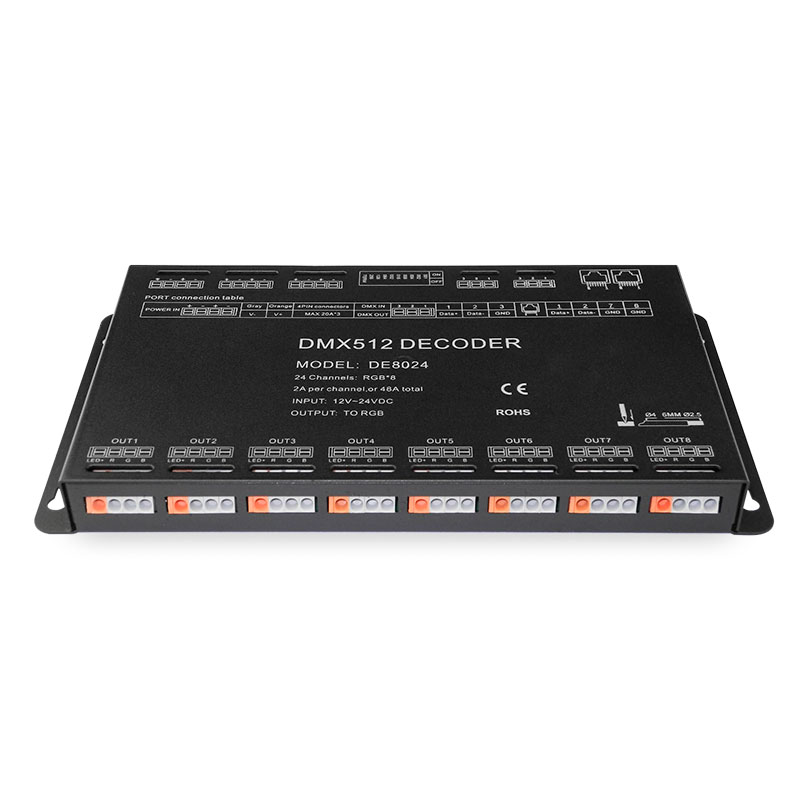

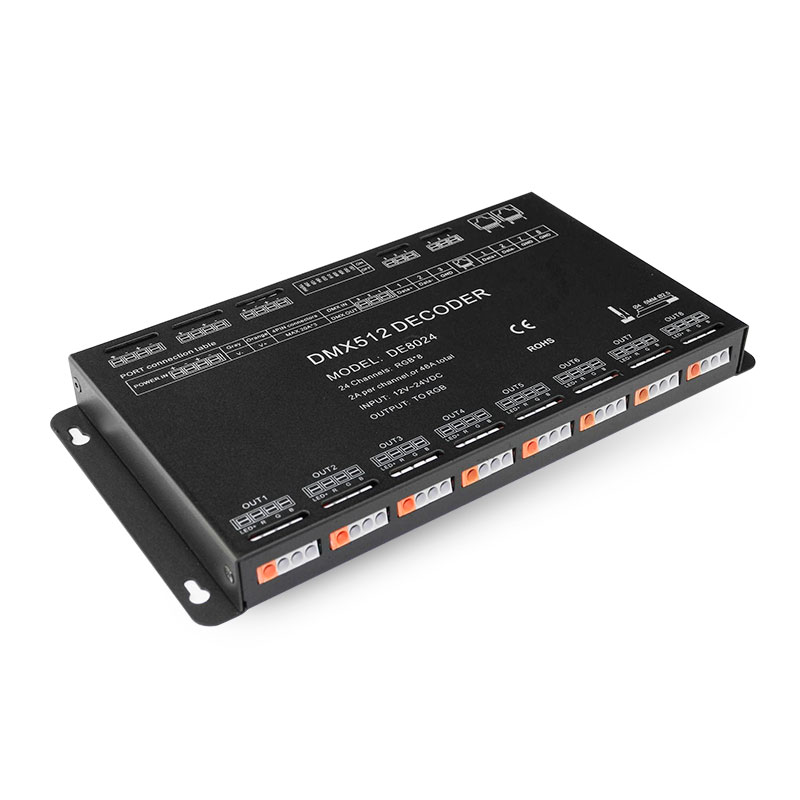

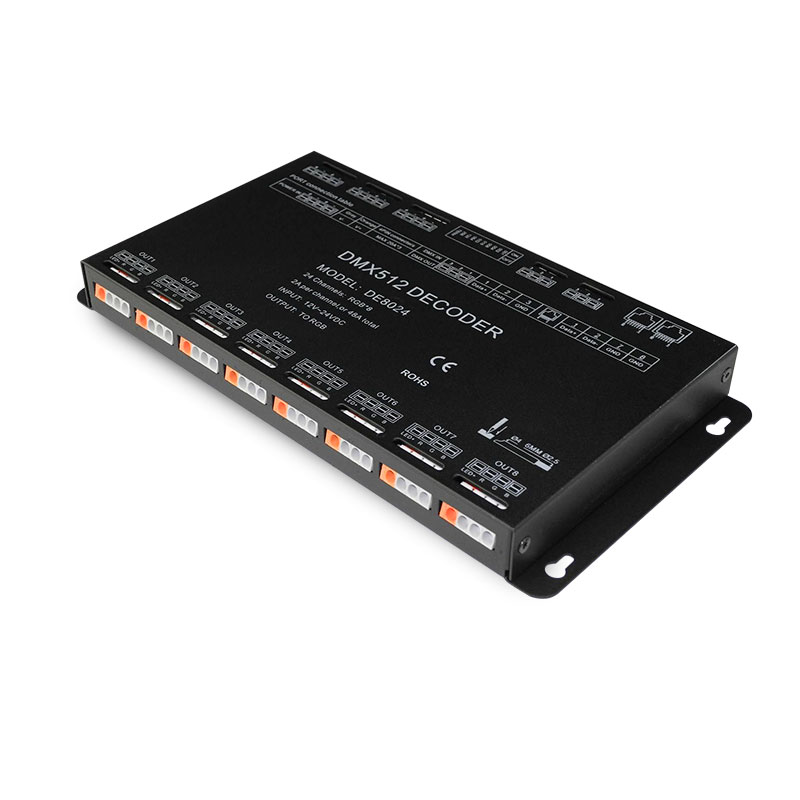

DC12-24V DMX512 Digital Signal 24CH RGB Output Constant Voltage LED Decoder
This DMX Decoder features 24 channels that which can load up to 2A per channal and 48A in total.So it can connect more RGB LED lights easily when power is less than the max load, as well as a RJ45 and screwless terminal will suit more circumstances.
1. Meets DMX512/1990
2. 256-levels brightness,full-color with driver controls
3. Output 24 channels, MAX 2A per channel.Total current is 48A.
4. Can achieve asynchronous color changes effect under working with controller.
5. Cooperate with control system, can realize rich change effect.
6. Setting the DMX address freely
7. Modularizing and can be matched with different LED module neatly.
8. There are 3 x Max20A 4pin power in connectors, please apply according to LED load power requirement.
Standards and Certifications
Input Voltage: DC12-24V
Output Current: 2A/CH*24CH Max48A
Contrl Channels: 24CH
Max Power: 576W(12V)/1152W(24V)
Signal Input: DMX512 Digital Signal
Work Temp: -30-70℃
The Light Gray Level: 256
Protection Grade: IP40
Gross Weight: 460g
Pruduct Size: L250*W130*H24(mm)

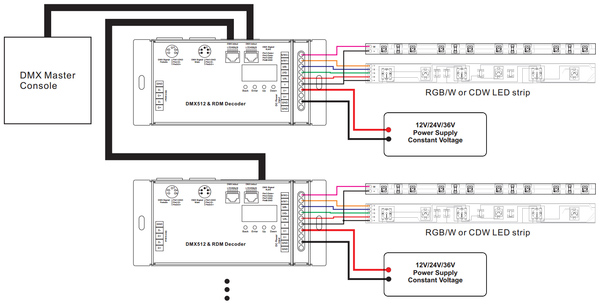

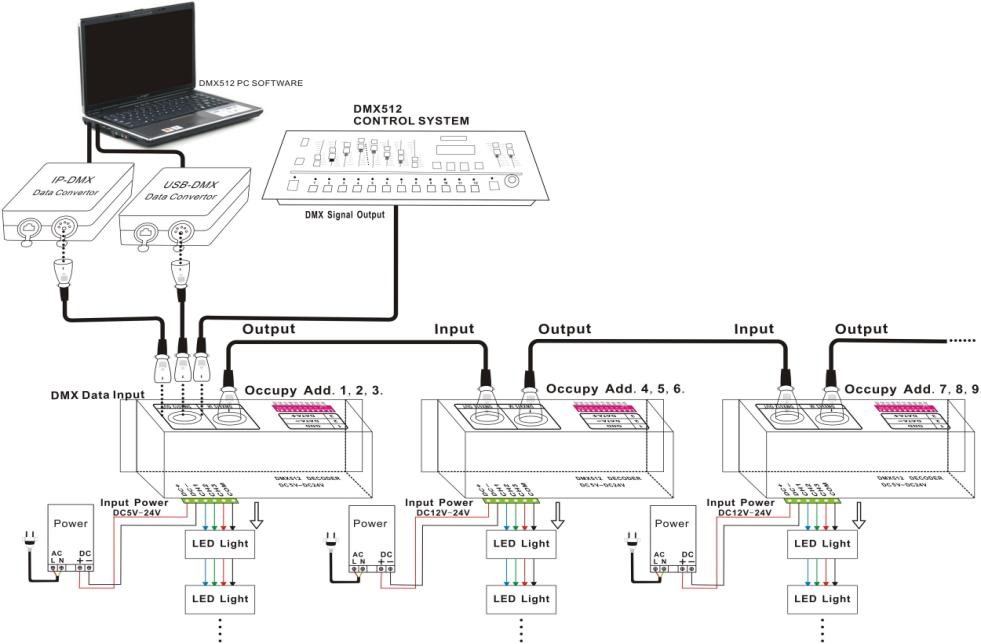

DMX-512 control signal connection
1, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output signal positive,signal nagative,signal ground with decoder input interface corresponding connection.
2, DMX512 master output and decoder's transmission lines can't be over 300 meters.
3, When contacting 32 pieces of decoders, DMX signal must add a signal amplifier such as DMX121,cascade can't more than 4 PCS.
