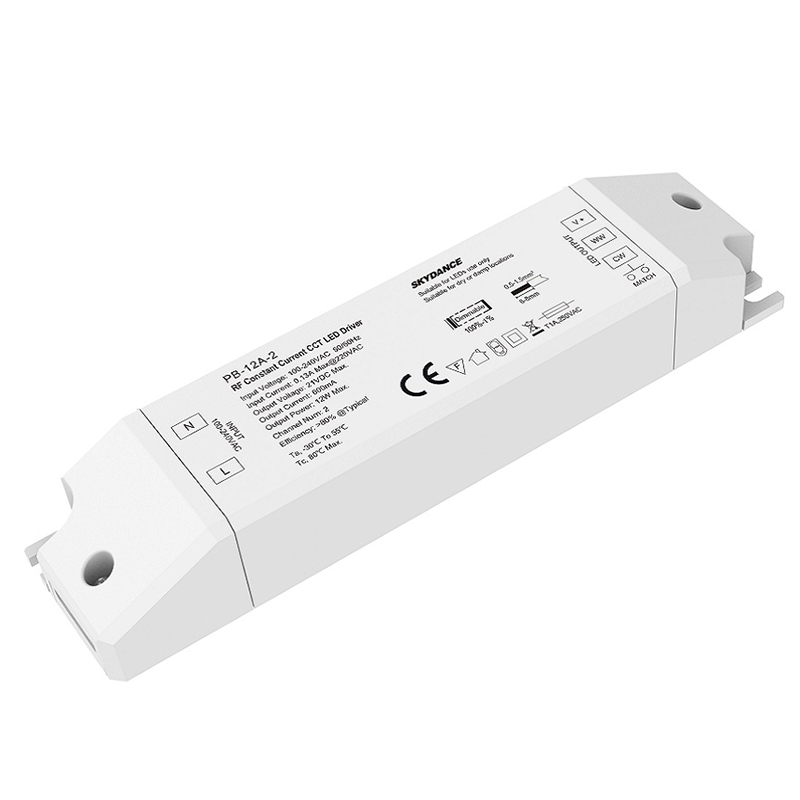

DC21V CCT CC RF Dimmable LED Driver PB-12A-2
● Dimming interface: RF Wireless
● Match with Skydance’s 2.4G dual color remote control, one RF LED driver accepts up to 10 remote controls
● Universal AC input / Full range
● 2 channel constant current output

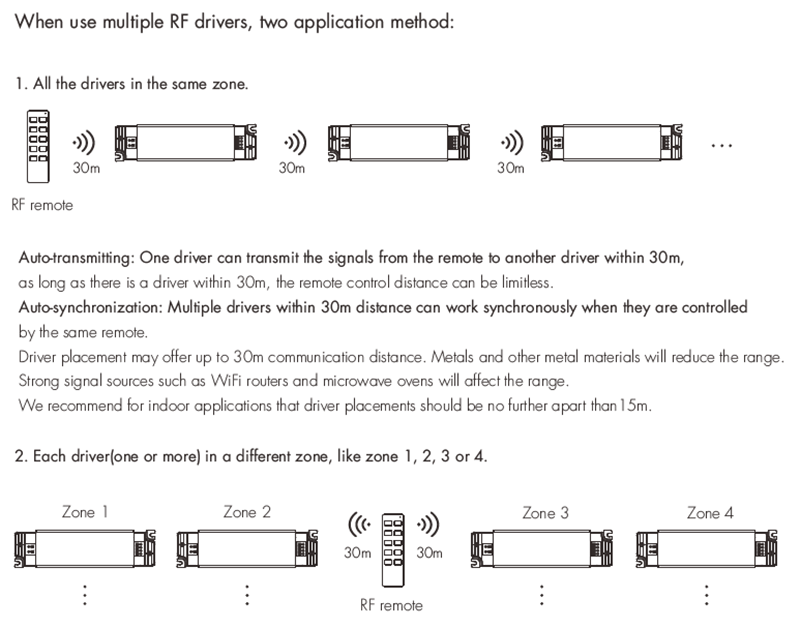

● Auto-transmitting function: LED driver automatically transmit signal to another LED driver with 30m control distance
● Synchronize on multiple number of LED drivers
● Over-heat / Over-load / Short circuit protection, recover automatically
● Full protective plastic case
● Suitable for indoor LED lighting application
● 5 Year, 50,000hr warranty
● Suitable for downlight, spotlight and decorative applications.
● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display.
● Use for retrofit upgrades & new luminaire designs

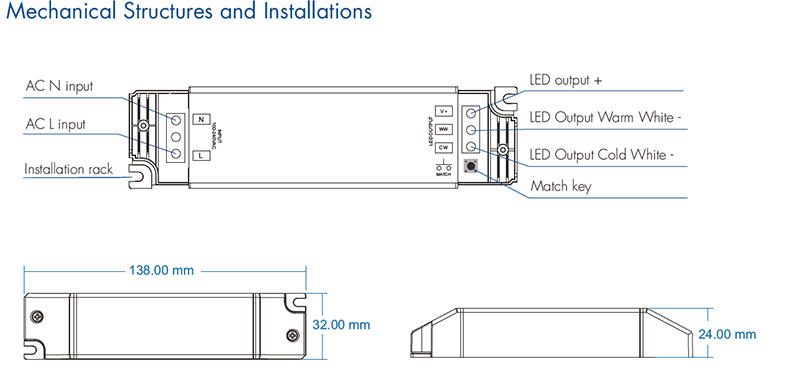

Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the driver’s Match key
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
Press and hold match key for 5s to delete all match,The light blinks 5 times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.The light blinks 3 times means match is successful.
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.The light blinks 5 times means all matched remotes were deleted.
Output Voltage: 21VDC
Output Current: 600mA
Output Power: Max. 12W
Dimming Range: 1～100％
Current Accuracy: ±5％
Rise Time: 560ms/115VAC, 500ms/230VAC
Input Voltage Range: 100VAC～265VAC
Frequency Range: 50/60Hz
Alternating Current: 0.20A/115VAC, 0.12A/230VAC
Inrush Current: Cold start 5A at 230VAC
Leakage Current: < 0.5mA/230VAC
No Load Power: < 1W
Over Load Power: When O/P voltage exceed its range, O/P current declines, auto recovers when the load is reduced.
Short Circuit: Shutdownautomaticallyifshortcircuitoccurs, auto recovers.
Over Temperature: Intelligently adjust or turn off the output current if the PCB temp > 100℃, auto recovers.
Woking Temperature :-30℃～50℃
T-case Max: 70℃
Working Humidity: 20％～90％RH, non-condensing
Storage Temp/Humidity: -40℃～80℃, 10％～95％RH
Temperature Coefficient: ±0.03％/℃ (0-50％)
Vibration Resistance: 10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min
Waterproof Rating: IP20
Security Specifications: IEC/EN61347-1, IEC/EN61347-2-13
Withstand Voltage: I/P-O/P: 3750VAC
Insulation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70％RH
EMC Emission: EN61000-4-220.127.116.11.6.8.11, EN61547
EMC Immunity: EN55015, EN61000-3-2 Class C, IEC61000-3-3
Certications: CE , EMC
