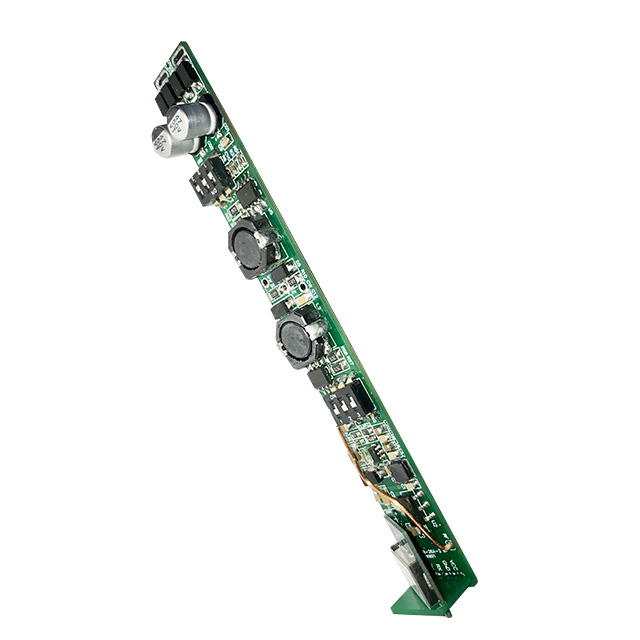

CXR-28A-2(WT) WiFi & RF MAX 29.4W Tunable White Dimmable Constant Current LED Driver - 48V to 10-42V
0-100% dimmable constant current LED driver, support DC48V input voltage, without input polarity, with Short circuit, overload, no-load and anti-reverse protection, we provide 5-year warranty promise.
The output voltage is 10~42V, the max output power is 29.4W, support for indoor low power tunable white LED spotlight, LED downlight, LED underwater, LED strip light.
DC to DC constant current output, multiple outputs current settingsTuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/ off light, timer run, scene edit and music play function
Multiple controllable methods, WIFI directly connect APP control, Skydance RF series, CCT LED dimmable LED wall panel controller control.
Suitable for STUCCHl standard housings, magnetic installation smooth dimming without flicker, quiet without noise.

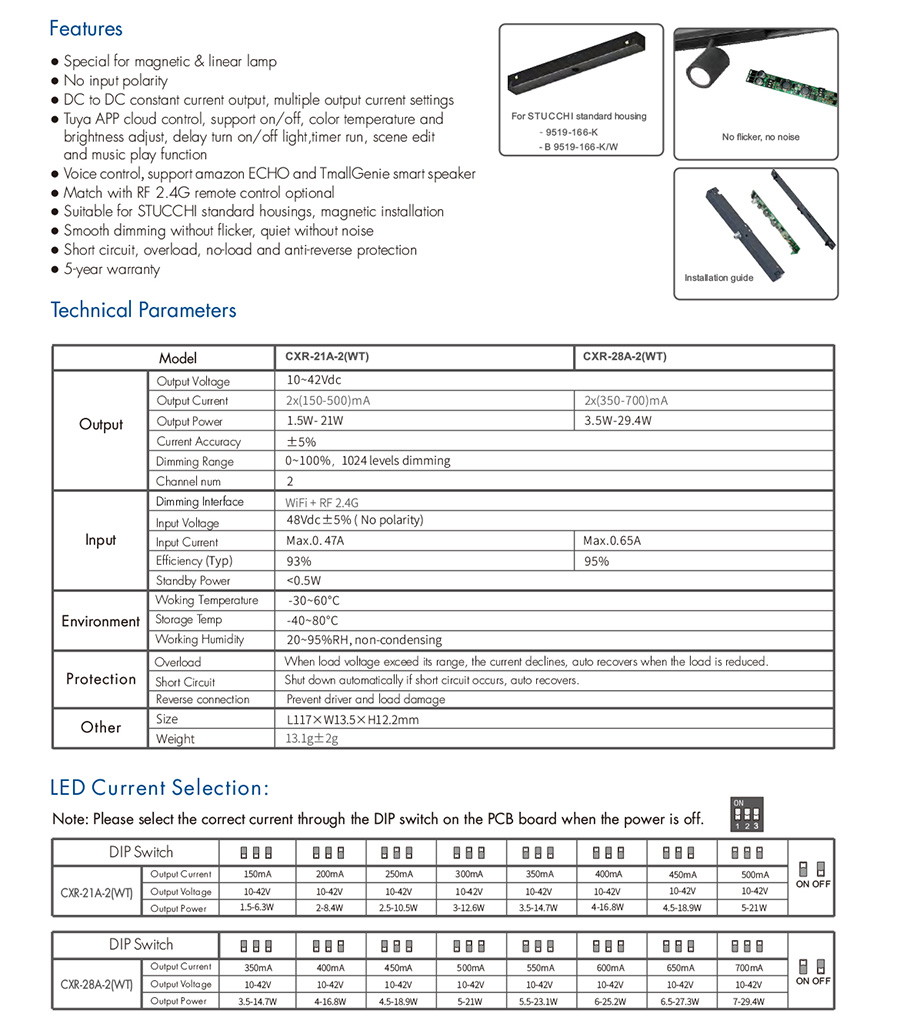

Standards and Certifications
Output Voltage: 10-42Vdc
Output Current: 2*(350-700)mA
Output Power: 3.5W-29.4W
Dimmable Range: 0-100%, 1024 levels dimming
Channel Num: 2
Dimming Interface: WIFI+RF 2.4G
Input Voltage: 48Vdc
Input Current: Max 0.65A
Working Temperature: -30~60℃

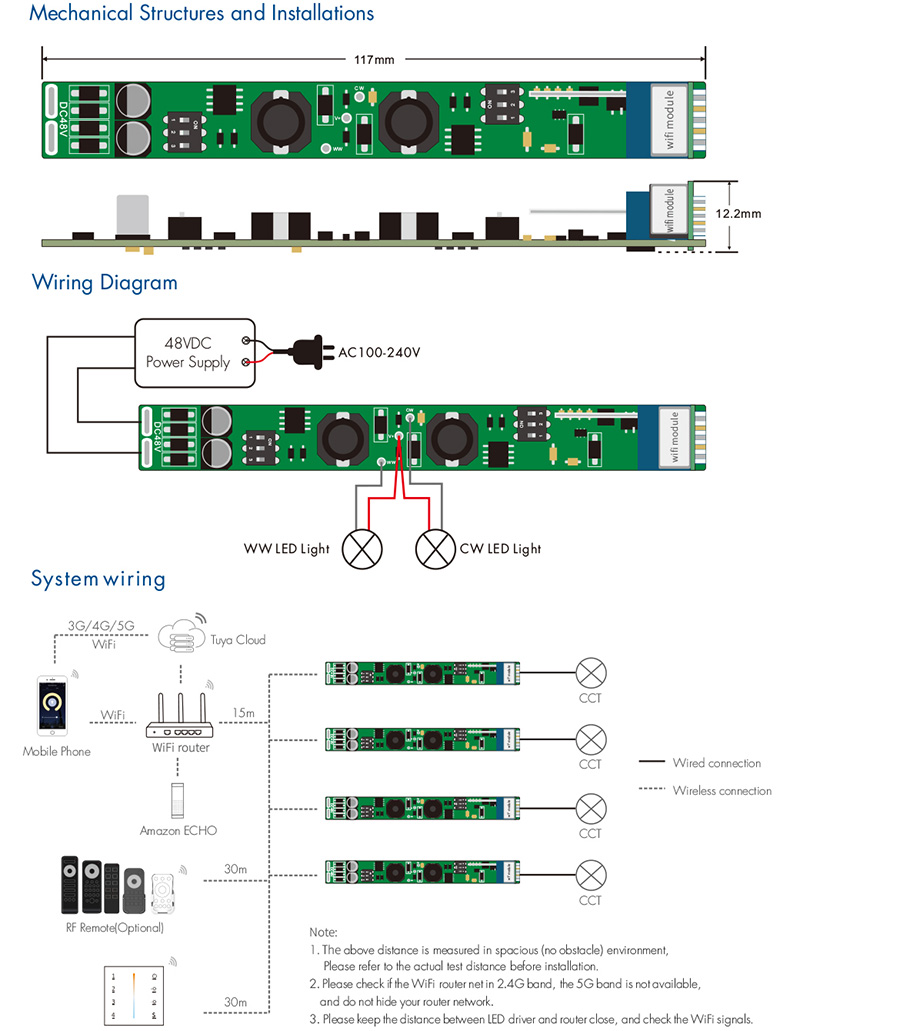

1. The above distance is measured in a spacious (no obstacle) environment, Please refer to the actual test distance before installation.
2. Please check if the WiFi router net in the 2.4G band, the 5G band is not available, and do not hide your router network.
3. Please keep the distance between the LED driver and router close, and check the WiFi signals.
● Suitable for downlight, spotlight and decorative applications.
● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display.
● Use for retrofit upgrades & new luminaire designs
