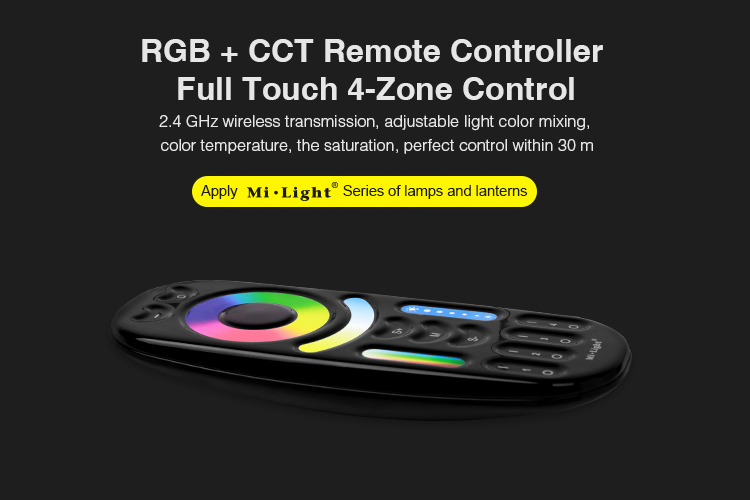

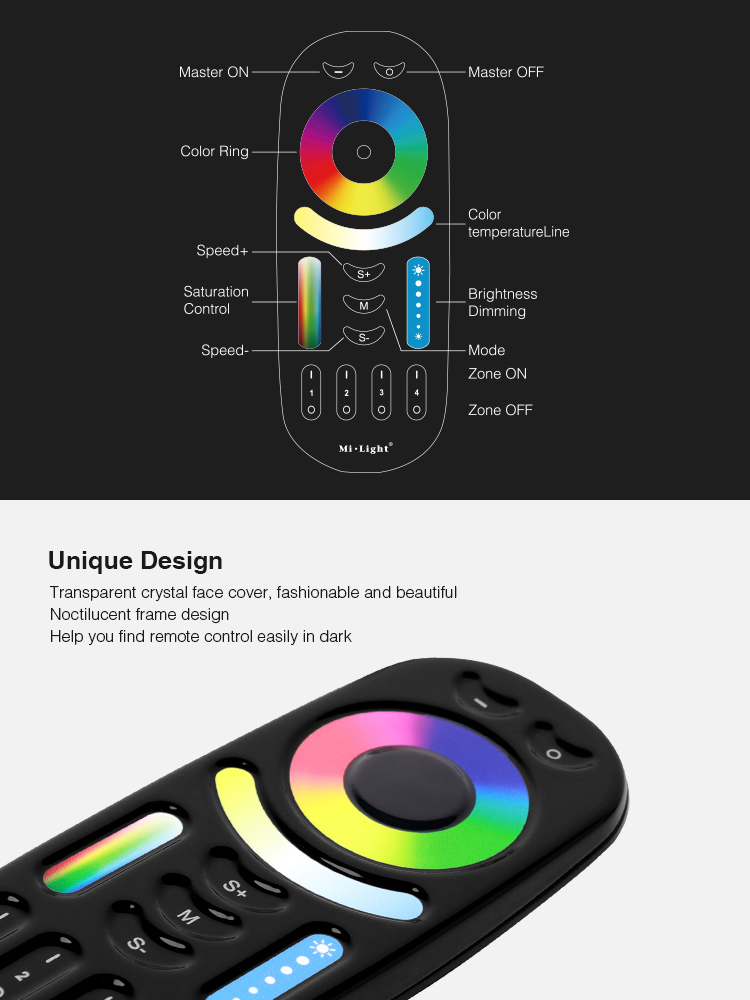

4 Zone RGB+CCT Remote Controller

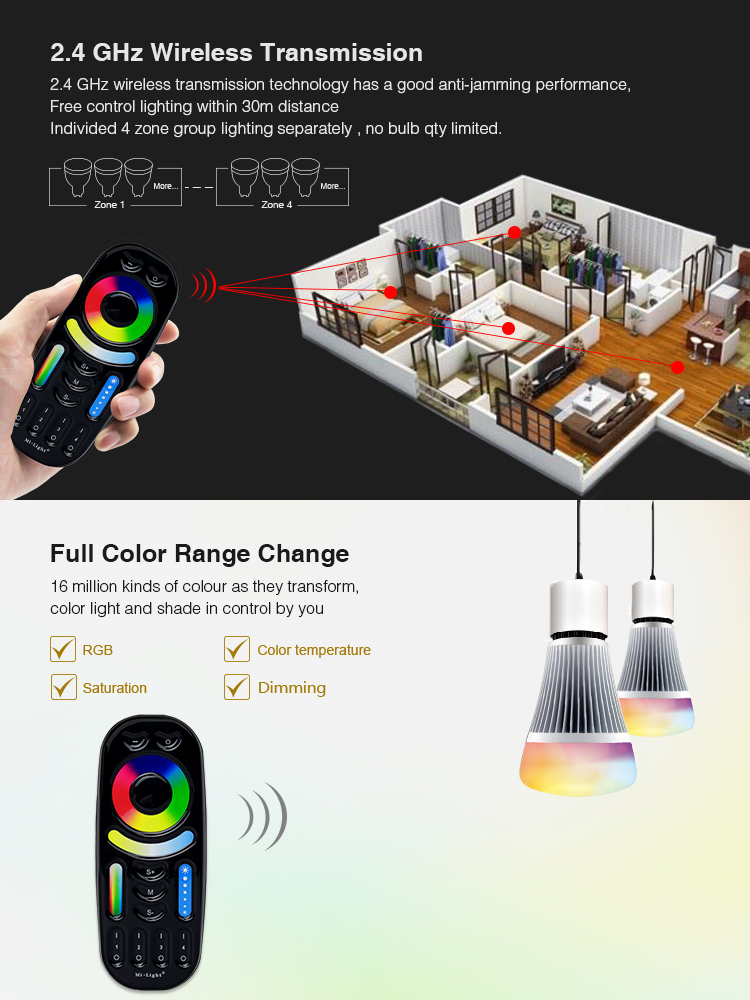

This product adopts worldwide used 2.4GHz frequency, GFSK control method, with the features of low power consumption, long distance transmitting, strong anti-interference, and fast communication rate; can control specified Mi-Light smart light with color, color temperature, saturation, and brightness changes.
Product Name: 4 Zone RGB+CCT Remote Controller
Model No.: FUT092-B
Working Temperature: -20 -60℃

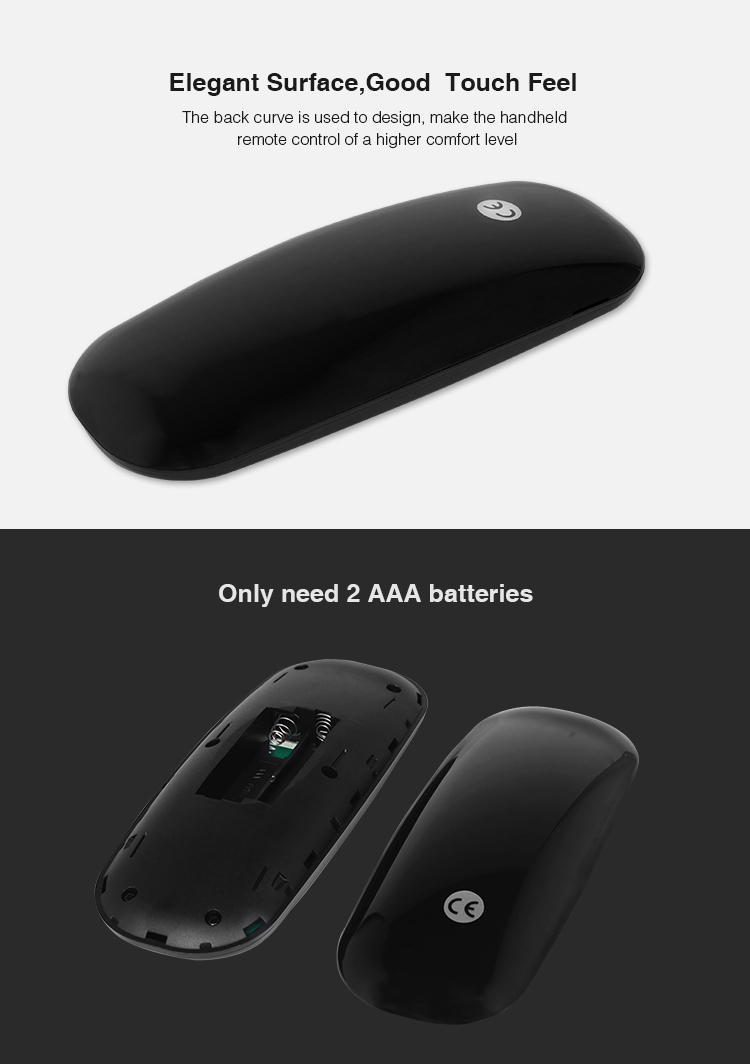

Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 30uA
