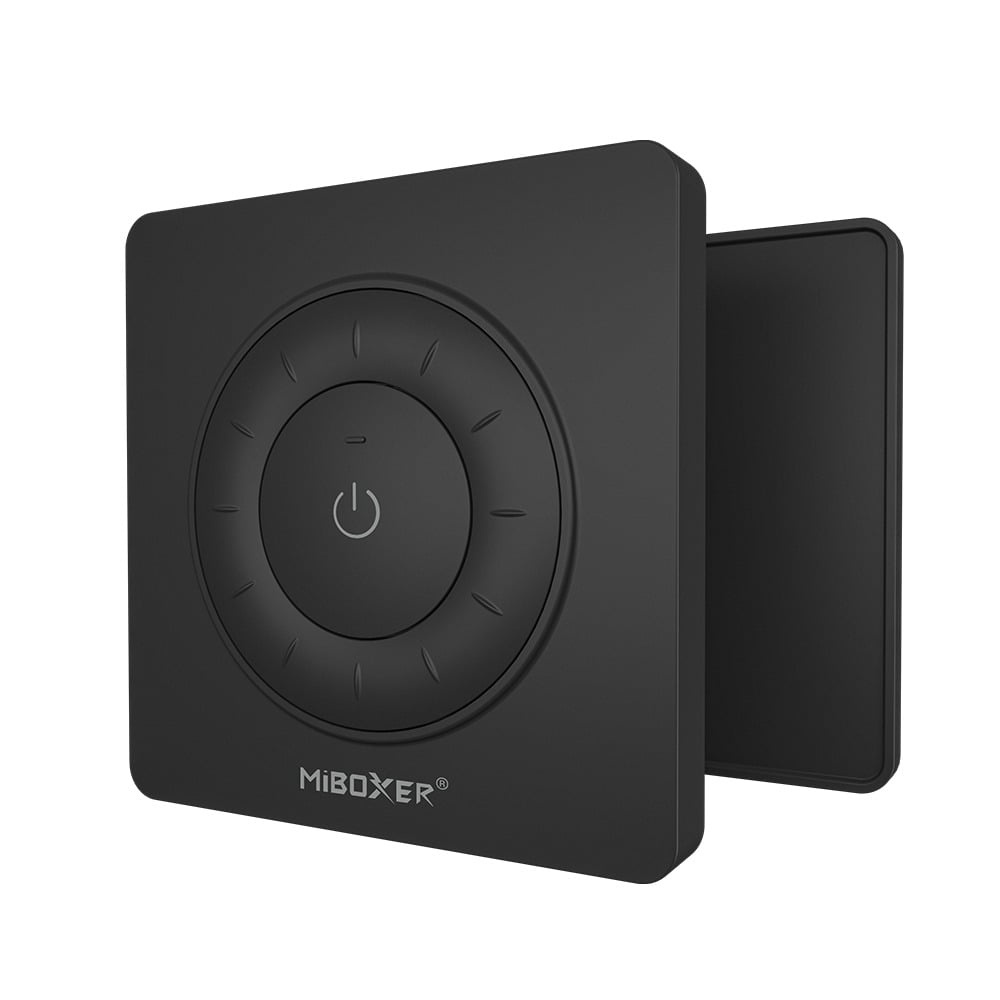

Product Information
Key Features
2.4GHz RF Wireless Transmission
Adopts 2.4GHz wireless transmission technology with GFSK modulation, providing efficient, stable, and strong anti-interference signal coverage up to 30 meters.
Rotary Dimming and CCT Adjustment
Adjust brightness directly by turning the rotary wheel by default, or press and hold the key for 3 seconds to switch to smooth color temperature adjustment.
4 Preset Scene Saving
Supports saving up to 4 custom preset lighting scenes, allowing users to switch between different lighting ambiances with one click.
Magnetic Base Mounting
Features a strong magnetic base for simple wall or surface installation, enabling dual handheld and wall-docked operation.
Multi-Device Synchronous Control
Capable of pairing with and controlling multiple MiBoxer and Mi-Light 2.4G series wireless devices simultaneously.
Technical Specifications
| Parameter | Details |
|---|---|
| Model No. | K3P |
| Working Voltage | 3V (CR2032) |
| Standby Power Consumption | 6μA |
| Transmitting Power | 6dBm |
| RF Protocol & Modulation | 2.4GHz RF, GFSK |
| Control Distance | 30m |
| Working Temperature | -10~40°C |
| Applicable System | MiBoxer / Mi-Light 2.4G Series |
| Certifications & Standards | CE, EMC (ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-3 V2.3.2), LVD (EN 61347-2-11:2001+A1:2019, EN 61347-1:2015+A1:2021, EN 62493:2015+A1:2022), RED (ETSI EN 300 440 V2.2.1) |
Application Scenarios
How to Control & Use This Remote
- Insert a 3V CR2032 button battery into the battery slot with proper polarity.
- Position the magnetic base securely at the chosen location, then dock the K3P remote magnetically.
- Put the target MiBoxer 2.4G receiver (such as the SR5-P 5-in-1 waterproof 2.4GHz RF LED controller receiver) or luminaire into linking mode by cycling power, then press the link key on the remote according to the receiver pairing instructions.
- Rotate the outer dial to dim or brighten the linked lights smoothly.
- Press and hold the key for 3 seconds to switch from brightness mode to color temperature tuning mode, then turn the wheel to adjust CCT.
- Save desired lighting states into preset scenes (up to 4 presets) to quickly recall lighting atmospheres with one click.
- This remote is an RF wireless transmitter; to operate low-voltage LED strip lights, pair it with a compatible 2.4GHz RF receiver controller.
- Rated RF control distance: up to 30m.
- Ensure operating environment stays within -10°C to 40°C; replace the CR2032 battery if transmitting range decreases.
Frequently Asked Questions
Q: What battery does the K3P rotating wheel remote require?
A:The K3P is powered by a single 3V CR2032 button cell battery. With an ultra-low standby power consumption of only 6μA, it provides long-lasting operation.
Q: How do I switch between brightness dimming and color temperature tuning?
A:By default, turning the wheel adjusts brightness. To adjust color temperature, press and hold the key for 3 seconds, then turn the rotating wheel to tune CCT between warm white and cool white.
Q: Can the K3P remote control LED strip lights directly?
A:No. The K3P is an RF transmitter and does not connect directly to LED strips. To control LED strips such as the FSLCCT-2835X208W8 24V tunable white LED strip connected via SR5-P RF receiver, you must pair the remote with a compatible 2.4GHz RF receiver like the SR5-P 5-in-1 waterproof 2.4GHz RF LED controller receiver.
Q: How many preset scenes can be saved on the remote?
A:The K3P supports saving up to 4 custom preset lighting scenes, allowing you to recall preferred light settings with a single click.
Q: What is the wireless range and RF protocol?
A:The remote uses 2.4GHz RF wireless transmission technology with GFSK modulation and a transmitting power of 6dBm, delivering a control range of up to 30 meters in open areas.
Q: Can the K3P control multiple lighting devices simultaneously?
A:Yes. The K3P supports matching and controlling multiple MiBoxer and Mi-Light 2.4G series wireless receivers and fixtures at the same time.
Compatible products
- SR5-P 5-in-1 waterproof 2.4GHz RF LED controller receiver
- HZ2 30A Zigbee and 2.4G RF tunable white LED controller
- FUT083 9W 2.4GHz RF tunable white recessed LED downlight
- FUT112 6W MR16 RGB+CCT 2.4G RF LED spotlight
- FSLCCT-2835X208W8 24V tunable white LED strip connected via SR5-P RF receiver
- SR5L 5-in-1 2.4GHz RF LED controller receiver
