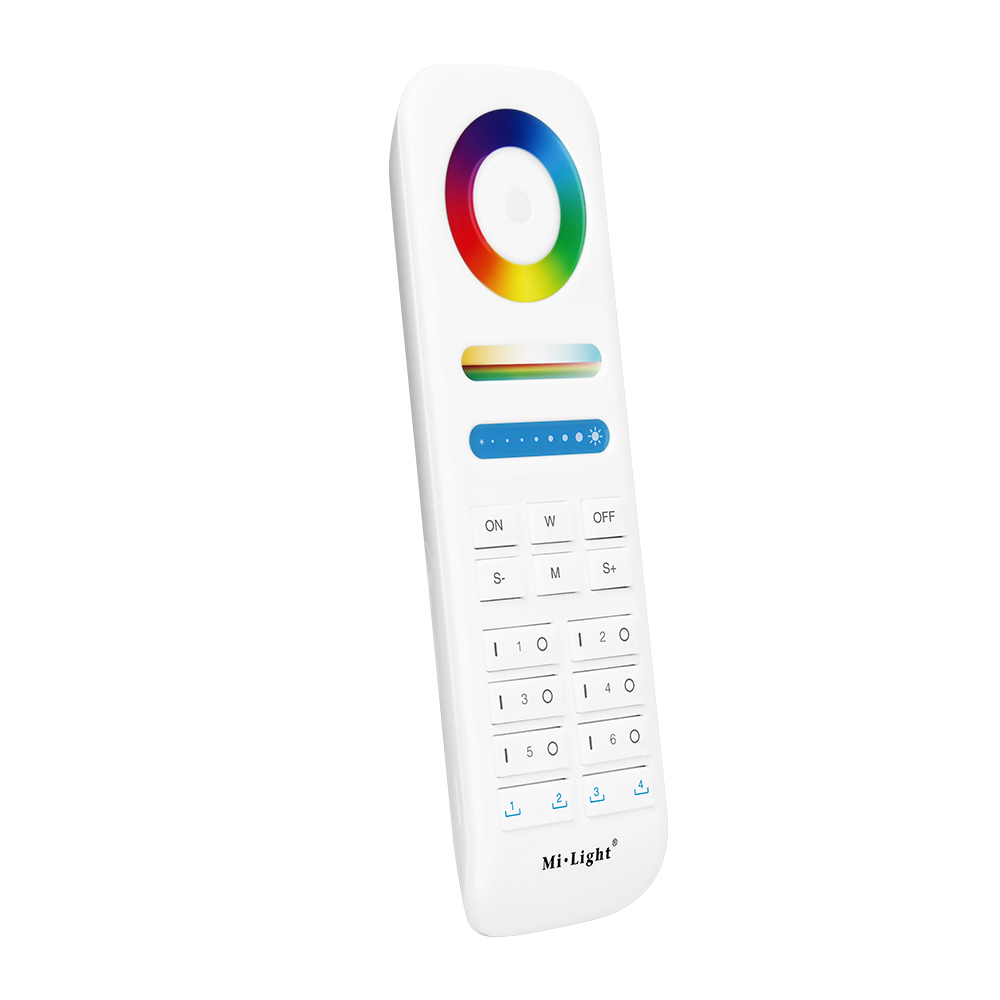

FUT089S 6-Zone RGB+CCT LED RF Remote
• 2.4G RF wireless transmission technology
• It can control MiBoxer / Mi-Light 2.4G series products
• Control distance: 30m
• 16 Million colors to choose
• Brightness, color temperature, and Saturation adjustable
• Support saving 4 favorite colors or dynamic mode (the lamp should be over 2.0 or higher version)
Product Name: 6-Zone RGB+CCT Remote
Model No.: FUT089S

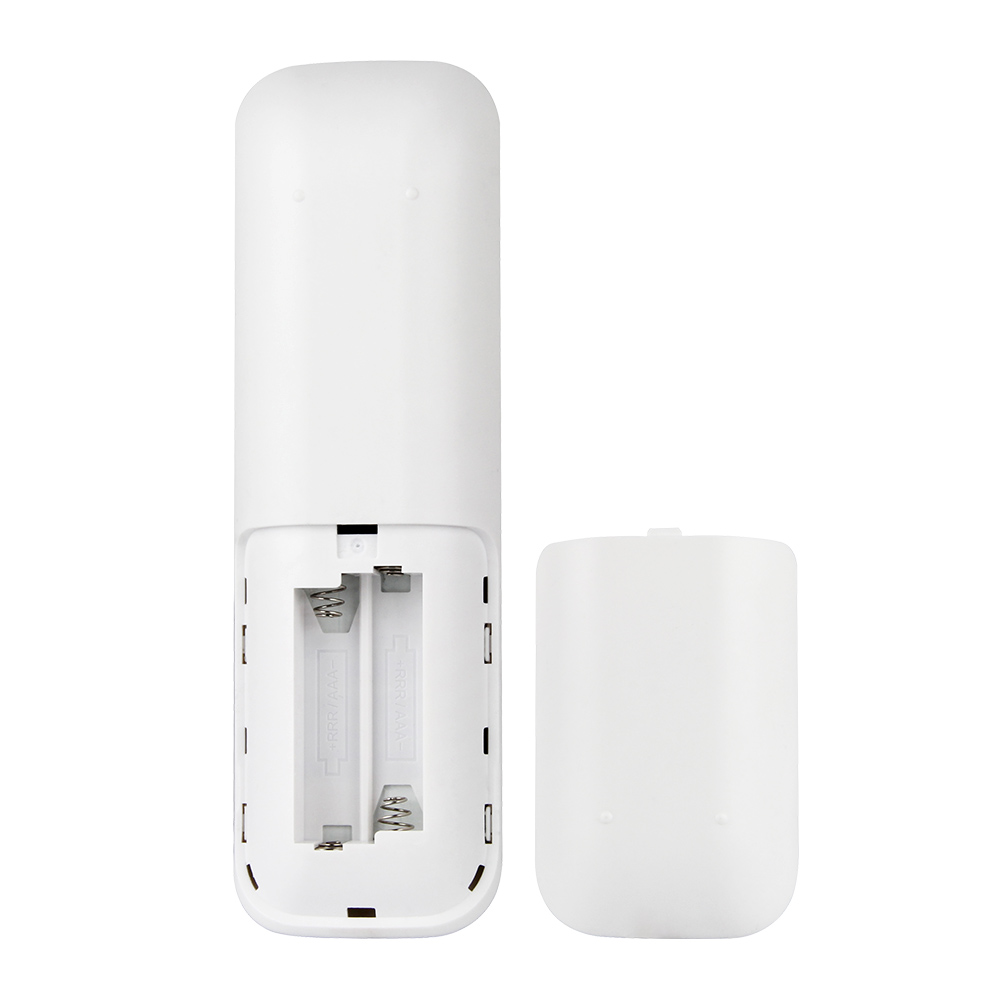

Working Voltage: 3V (AAA * 2PCS)
Transmitting Power: 6dBm
Standby Power Consumption: 15μA
Control Distance: 30m
Working Temperature: -20~60°C
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
